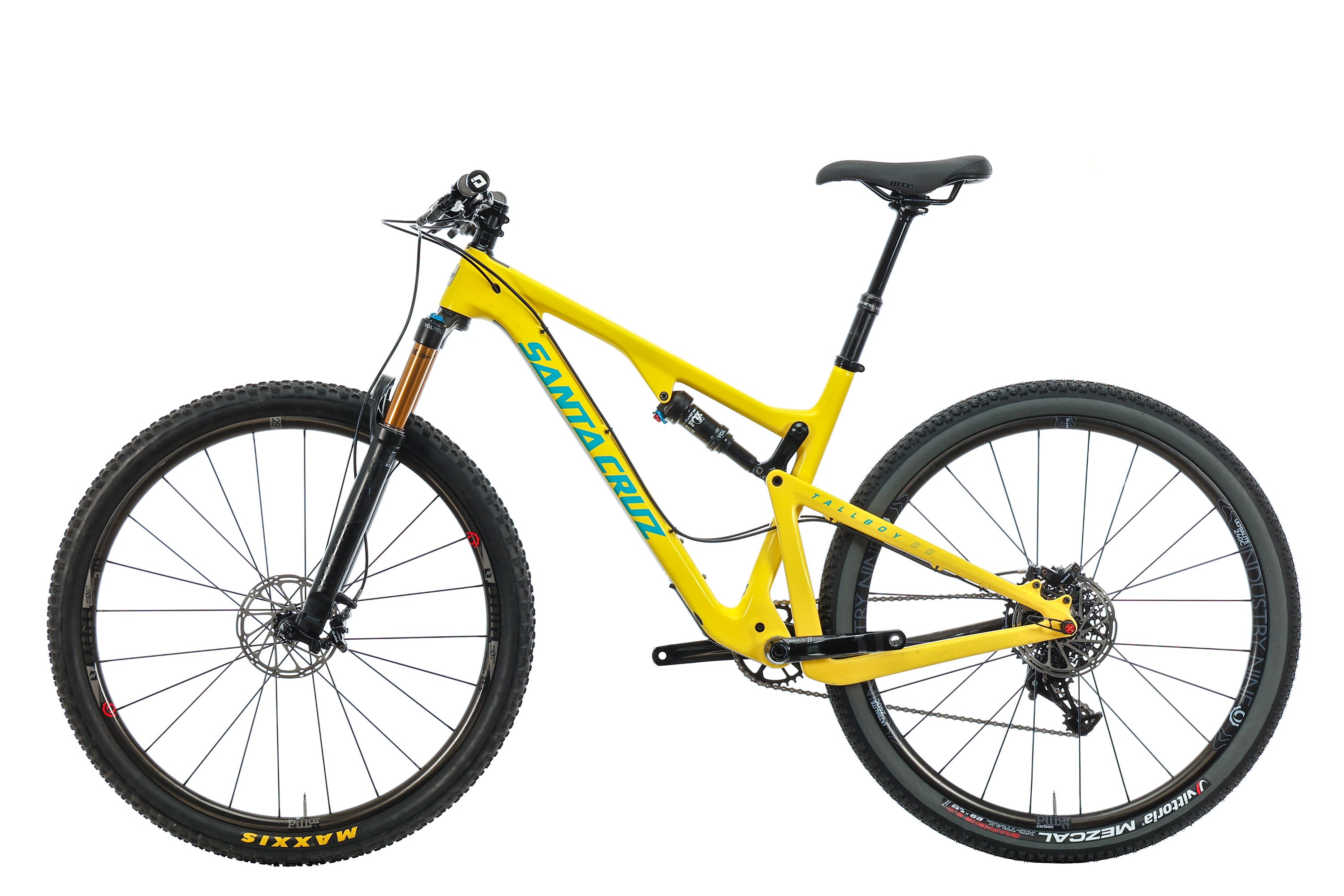

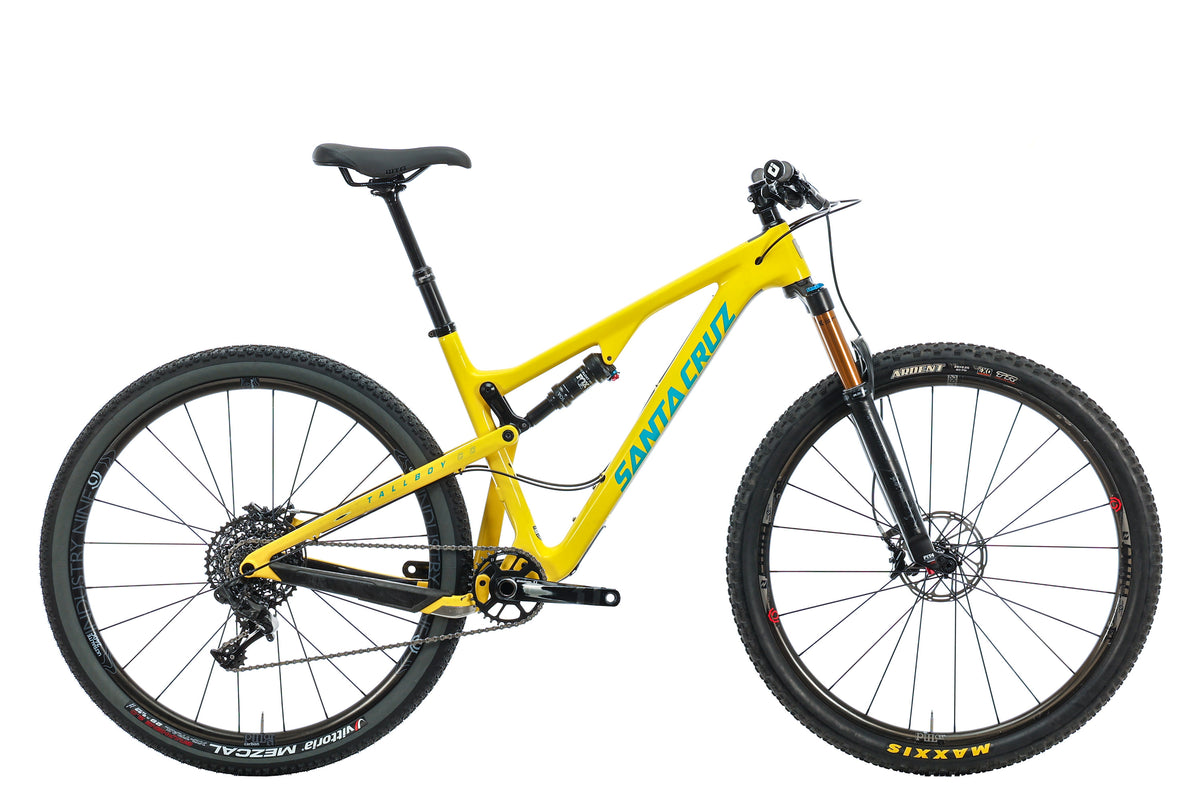

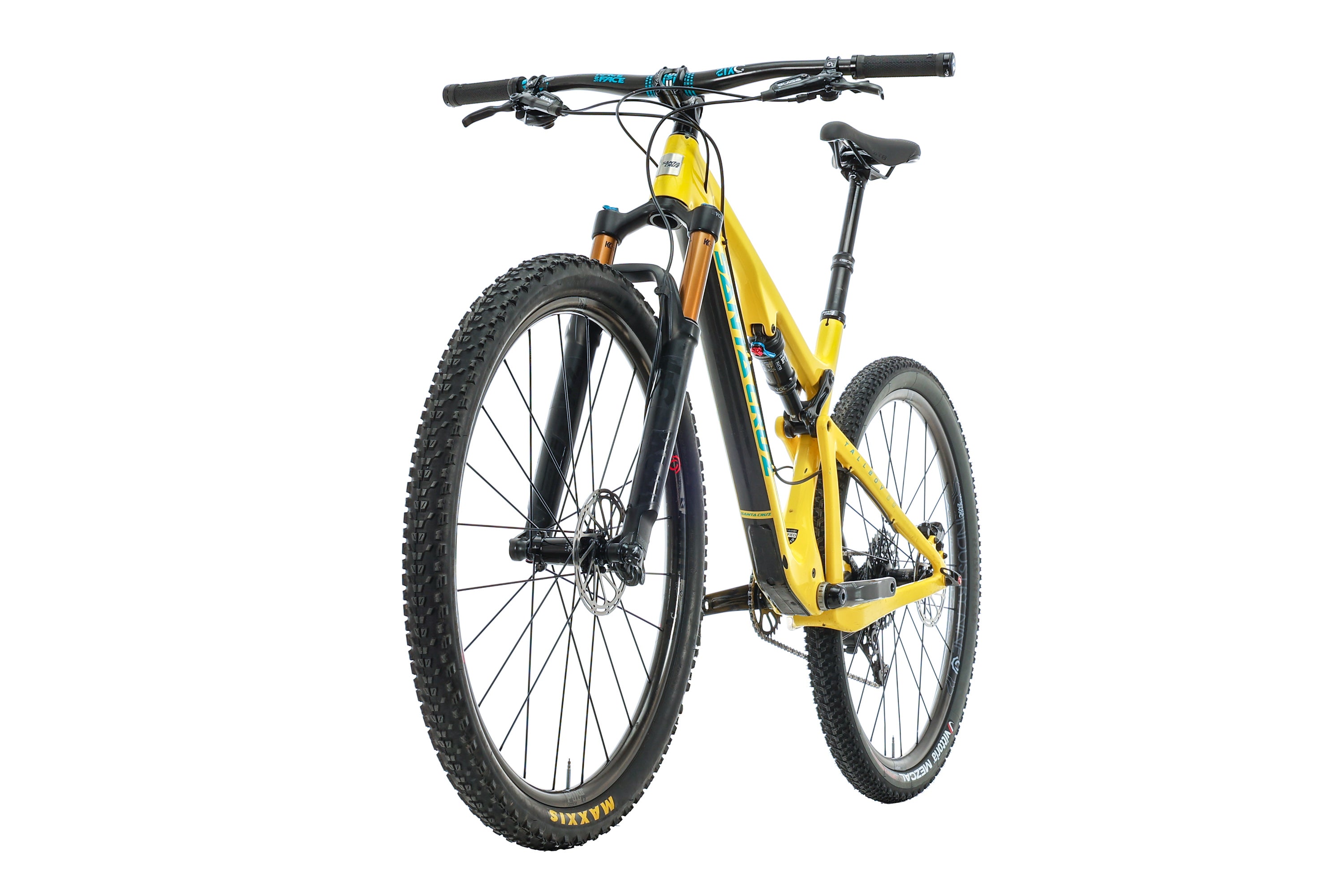

Santa Cruz Tallboy CC Mountain Bike - 2017, Large

Name: Santa Cruz Tallboy CC Mountain Bike - 2017, Large
Brand: Santa Cruz
SKU: BMT24463
Price: 5674.99 USD
Availability: InStock

Item #BMT24463

Recommended Rider Height: 5'10" - 6'2" Sizing Guide

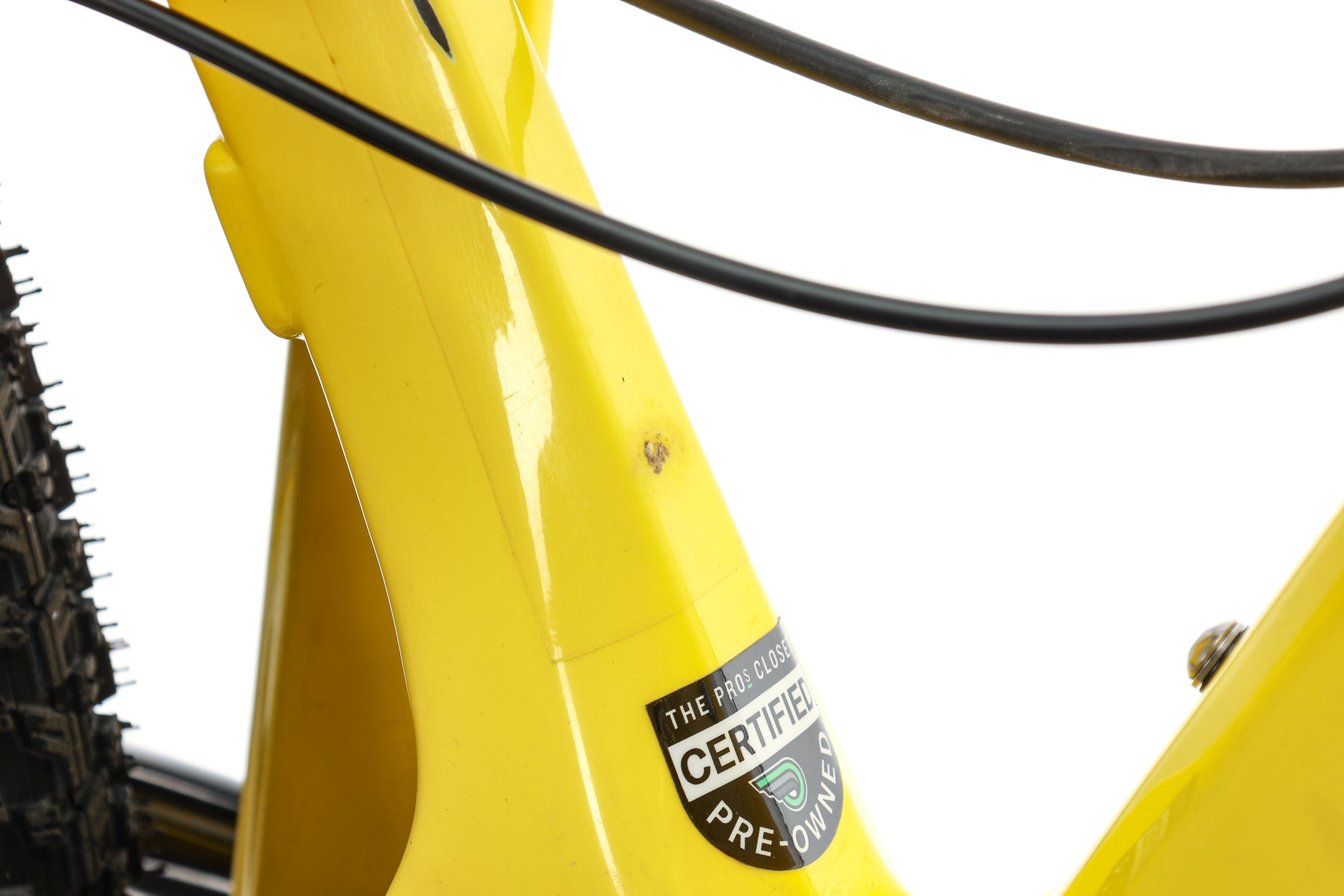

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

The Mountain Bike That Does It All

Product Details

Why We Love It

The Santa Cruz Tallboy is the choice for the rider wanting one MTB to do it all! 29" wheels paired with that goldilocks sweet spot of suspension that climbs fast, descends confidently, and keeps weight low. Santa Cruz's VPP suspension kicks away that pesty pedal-bob as well as creating a more progressive spring rate, small bump compliance, mid-stroke support, beefy bottom out compliance, and a lower center of gravity. Whether blazing flowy XC trails or tossing it on a chairlift at Trestle, this bike is a favorite around TPC.

Upgrades

New handlebar grips offering padding & a secure grip.
New WTB Speed CR-MO saddle.
New rear shifter cable/housing for smooth shifting.

Master Mechanic’s Notes

Specifications

Details

Year	2017
Brand	Santa Cruz
Model	Tallboy CC
Size	Large
Frame Material	Carbon Fiber
Drivetrain	SRAM, 1x11 spd
Weight	25 lbs 15 oz

Build

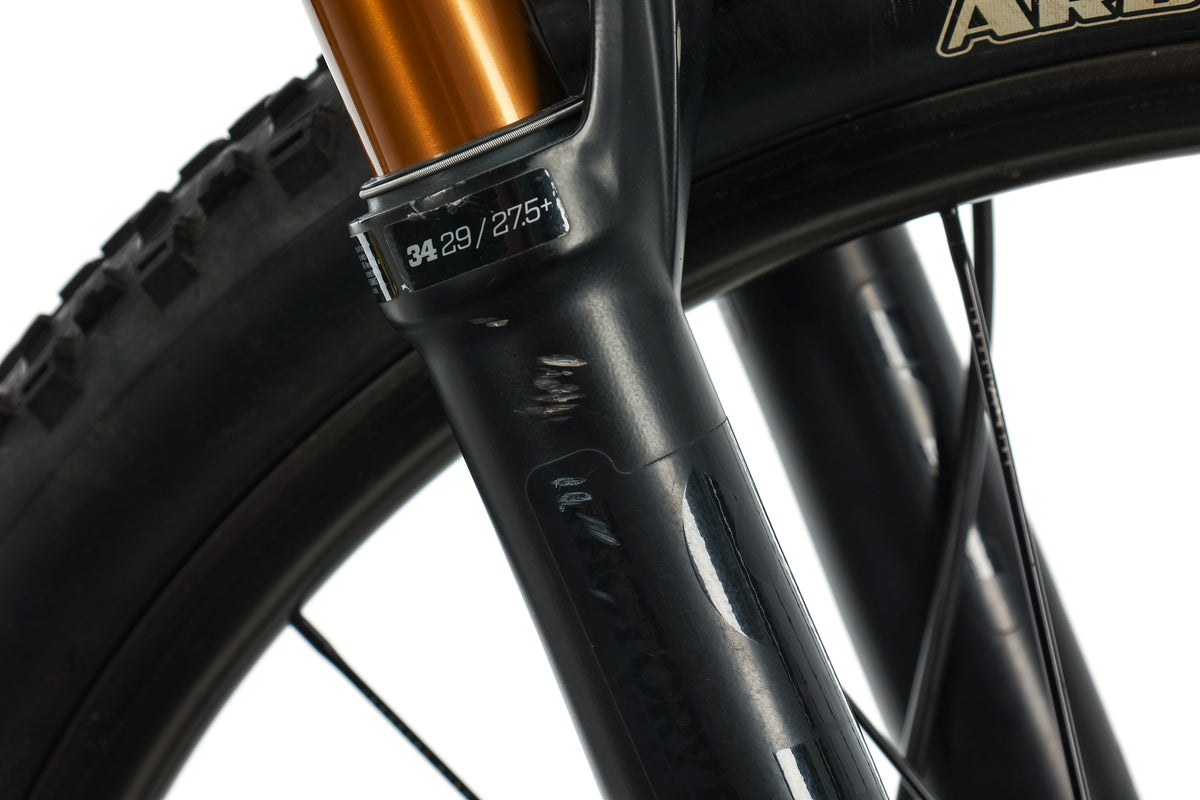

Fork	FOX Factory Series 34 FLOAT Step Cast
Fork Travel	120mm

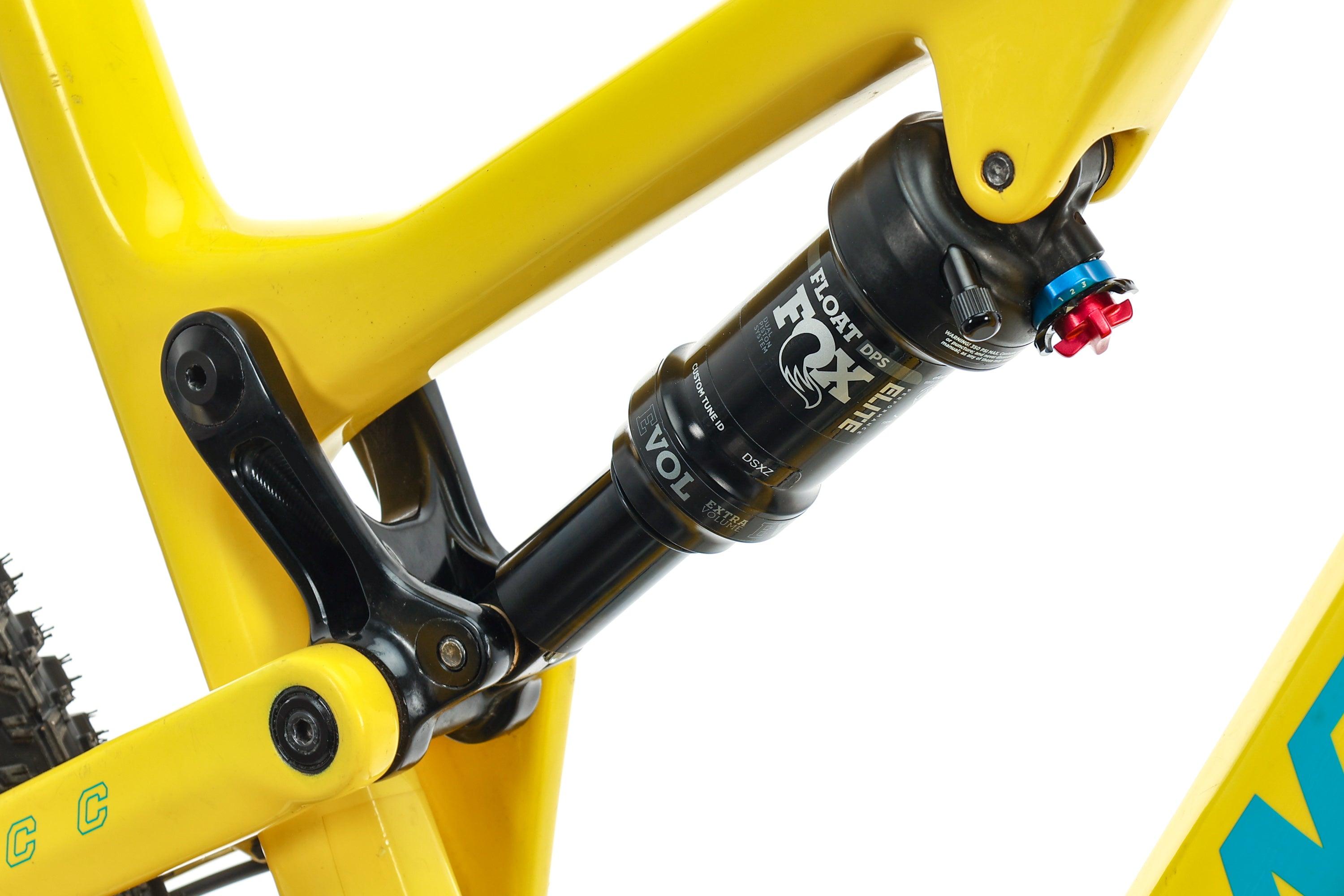

Rear Shock	FOX Performance Elite Series FLOAT DPS
Rear Shock Travel	110mm
Brakes	SRAM Guide R, Disc - Hydraulic
Shifters	SRAM GX, Mechanical
Rear Derailleur	SRAM X1 Type 2.1
Bottom Bracket Shell	Threaded
Crankset	SRAM X1, 32t, 175mm
Cassette	SRAM XG-1150, 10-42t
Chain	SRAM

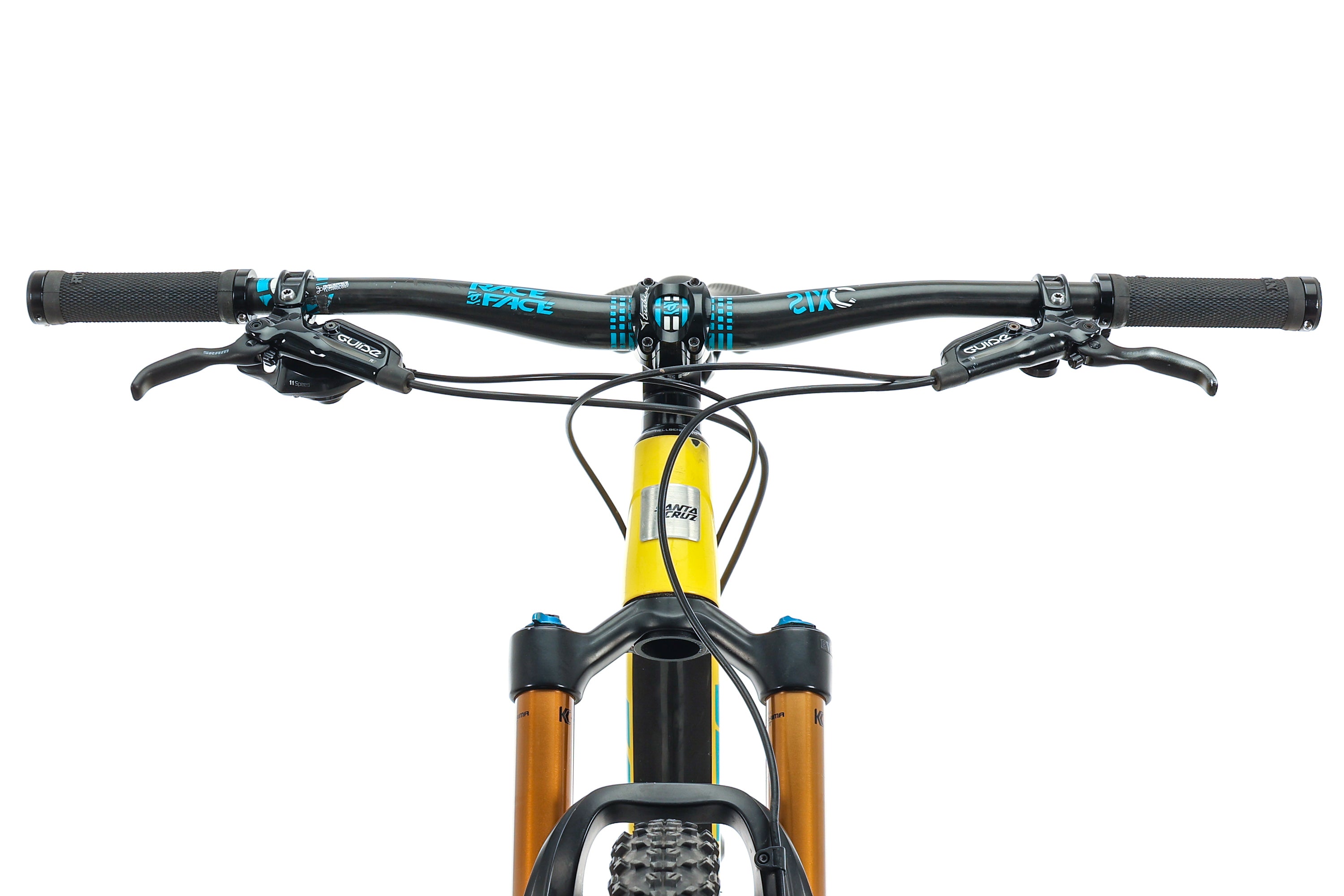

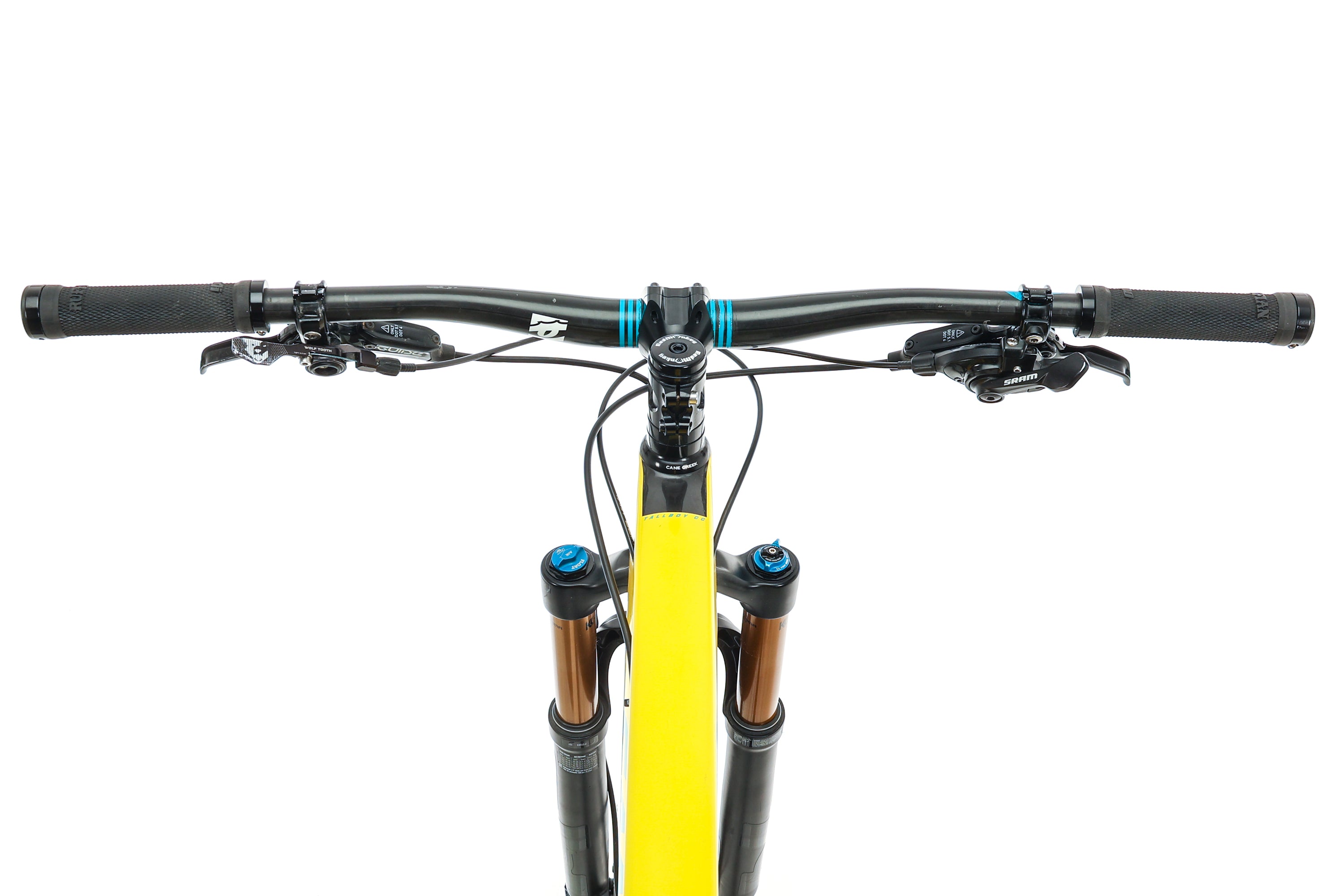

Handlebar	Race Face SixC Carbon, 740mm

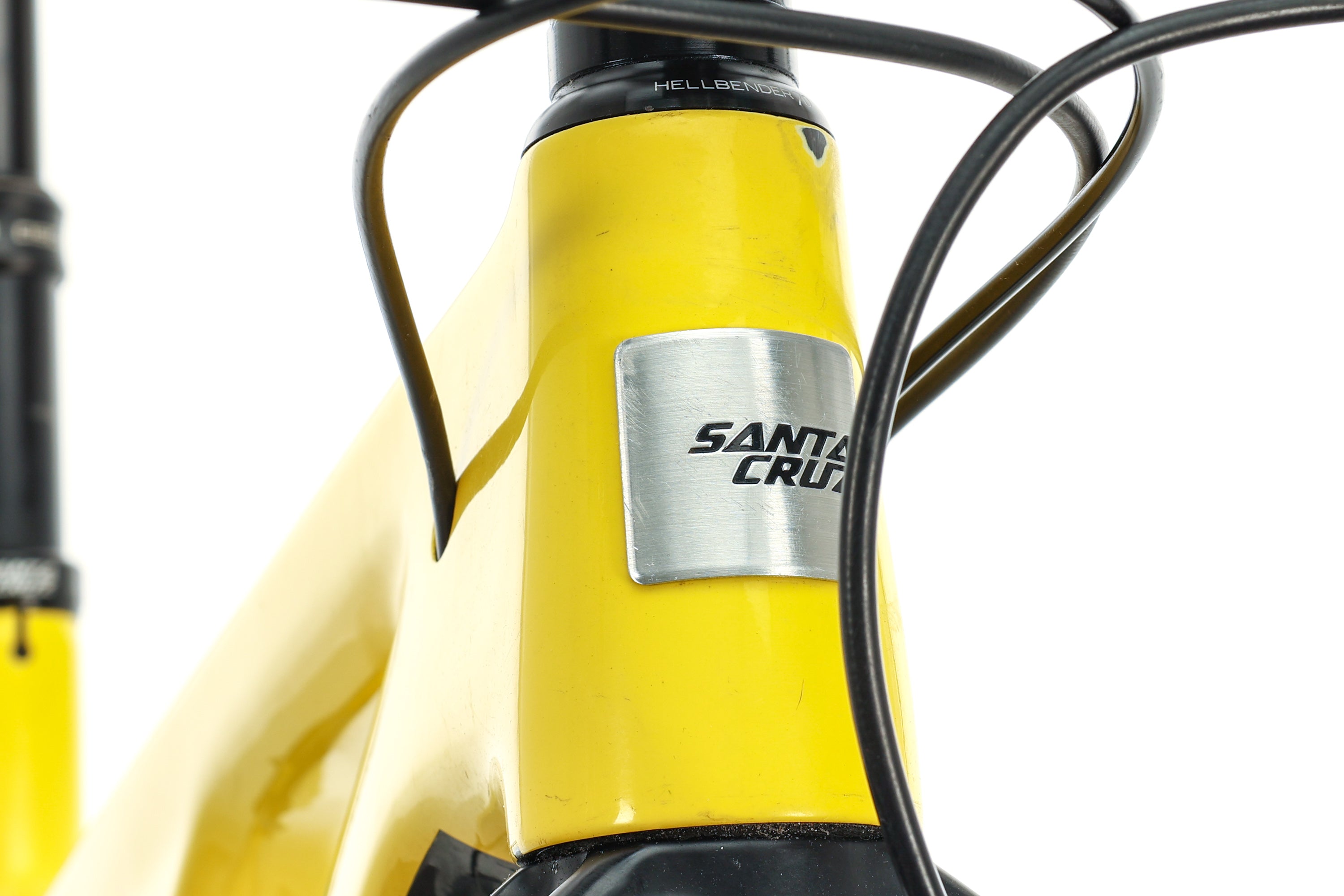

Headset	Cane Creek integrated
Stem	Race Face Turbine Alloy, 31.8mm x 60mm, 6°
Seatpost	Brand-X Ascend, 31.6mm
Seatpost Travel	110mm
Saddle	WTB Speed
Front Axle Spacing	15x110mm (Thru-Axle)
Rear Axle Spacing	12x148mm Boost
Wheelset	Front: Industry Nine Pillar Ultralight Carbon Disc Tubeless Compatible / Rear: Industry Nine Ultralite 240c Carbon Disc Tubeless Compatible, Industry Nine
Front Tire	Maxxis Ardent EXO TR, 29" x 2.35"
Rear Tire	Maxxis Ikon 3C MaxxSpeed EXO TR, 29" x 2.2"
Tire Type	Tubeless
Tubeless Compatibility	Bike ships tubeless
Pedals	Sold separately

Geometry

Recommended Rider Height	5'10" - 6'2" Sizing Guide
a. Effective Top Tube	623 mm
b. Seat Tube	450 mm
c. Seat Tube Angle	73°
d. Head Tube Angle	68°
e. Head Tube	100 mm
f. Stack	603 mm
g. Reach	450 mm
h. Standover Height	707 mm
i. Saddle Height Range	N/A

Santa Cruz Tallboy CC Mountain Bike - 2017, Large

Item #BMT24463

Recommended Rider Height: 5'10" - 6'2" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Need Advice? Ask a Ride Guide

Our Ride Guide team is based in the U.S. and staffed with former bike mechanics, bike shop managers, and other certified bike nerds. Get expert advice on calibrating fit, deciding between models, or chat through any other questions.

Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
13 in	XS	4' 10"	5' 2"
15 in	Small	5' 2"	5' 6"
17 in	Medium	5' 6"	5' 10"
19 in	Large	5' 10"	6' 2"
21 in	XL	6' 2"	6' 5"
