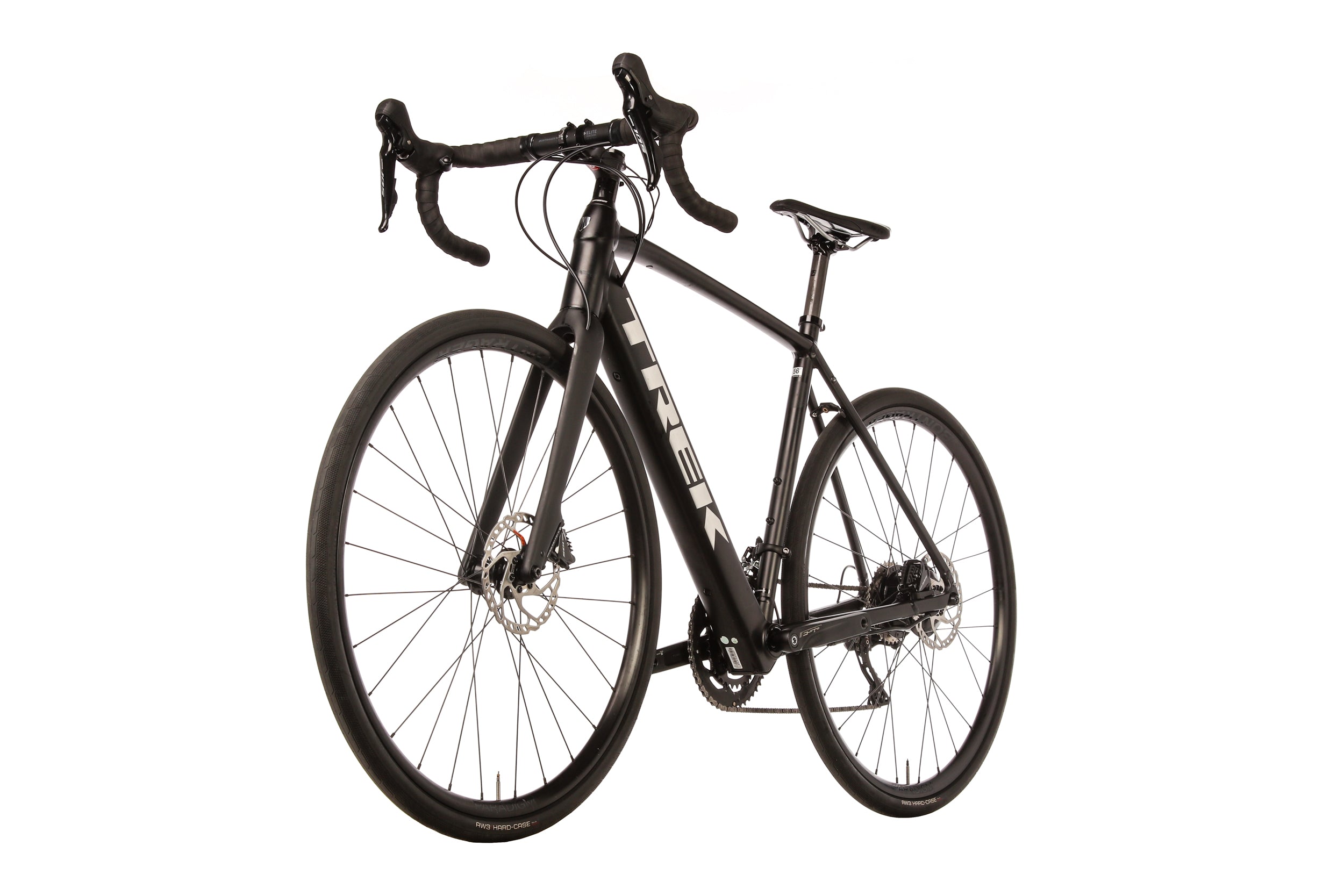

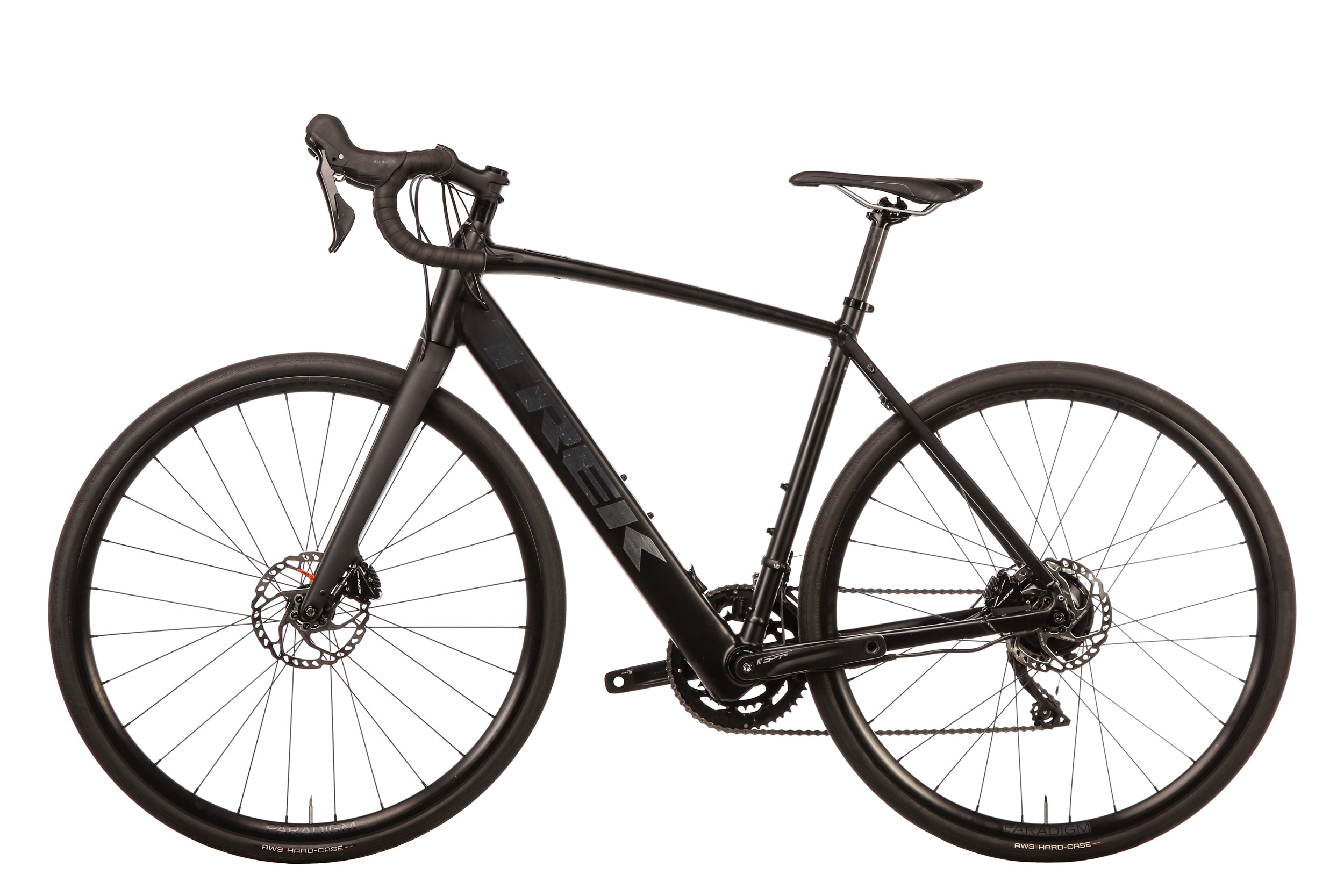

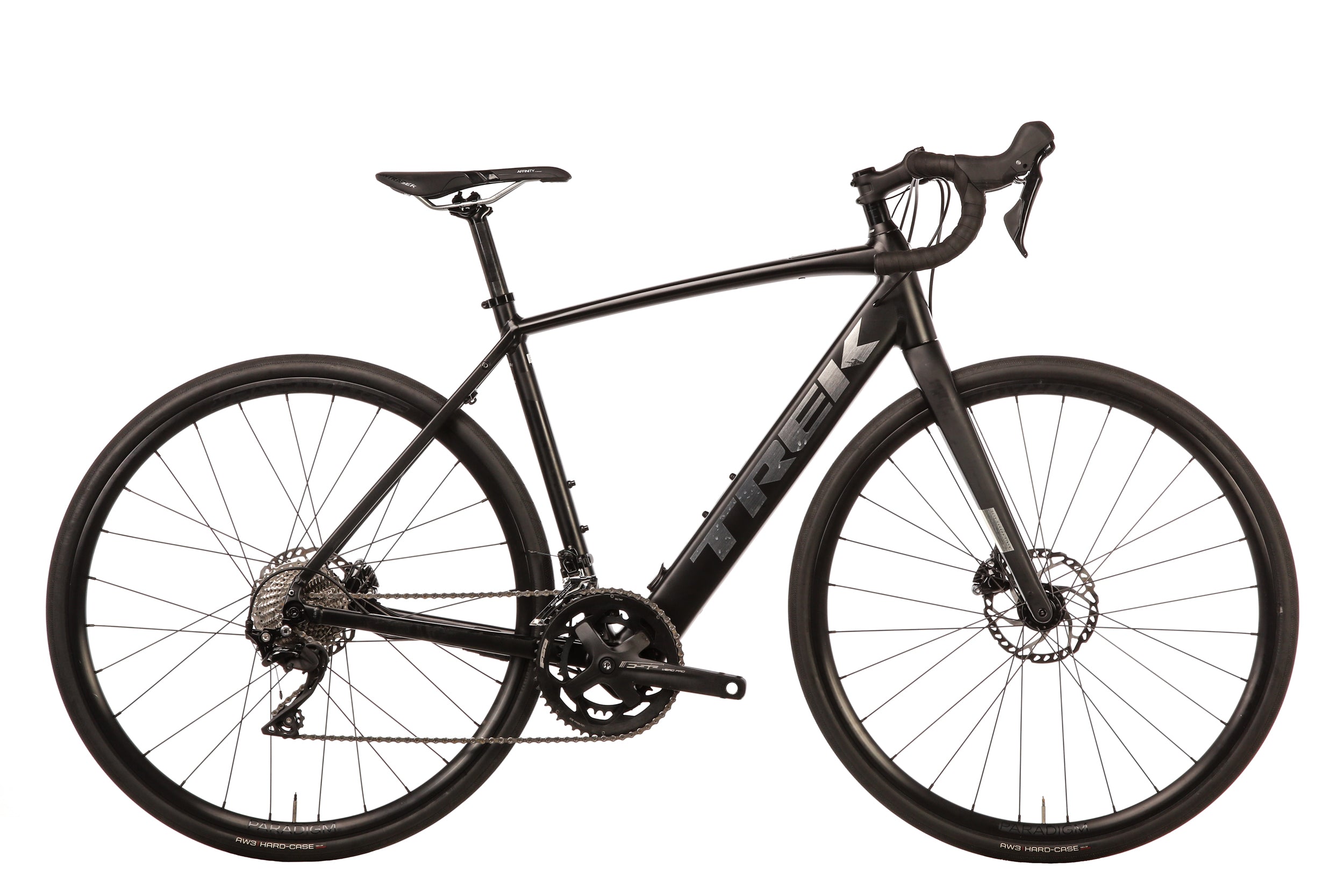

Trek Domane+ AL 5 Road E-Bike - 2024, 56cm
Item #BRD39092
Condition: Certified Pre-Owned
Fit Range: 5'8" - 5'10"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Lightweight Do-It-All Workhorse with a Boost
Why We Love It
Master Mechanic’s Notes

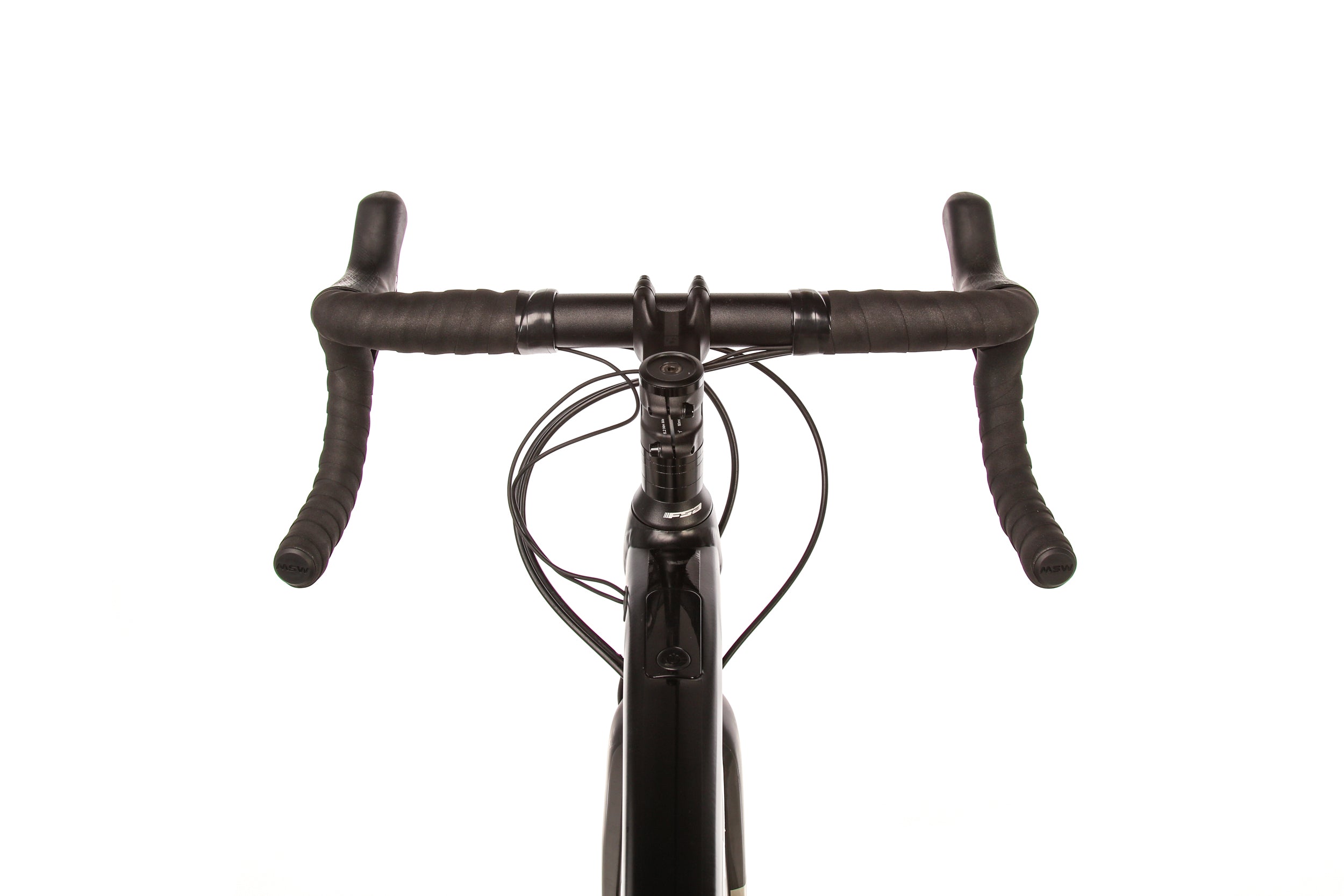

- New handlebar tape

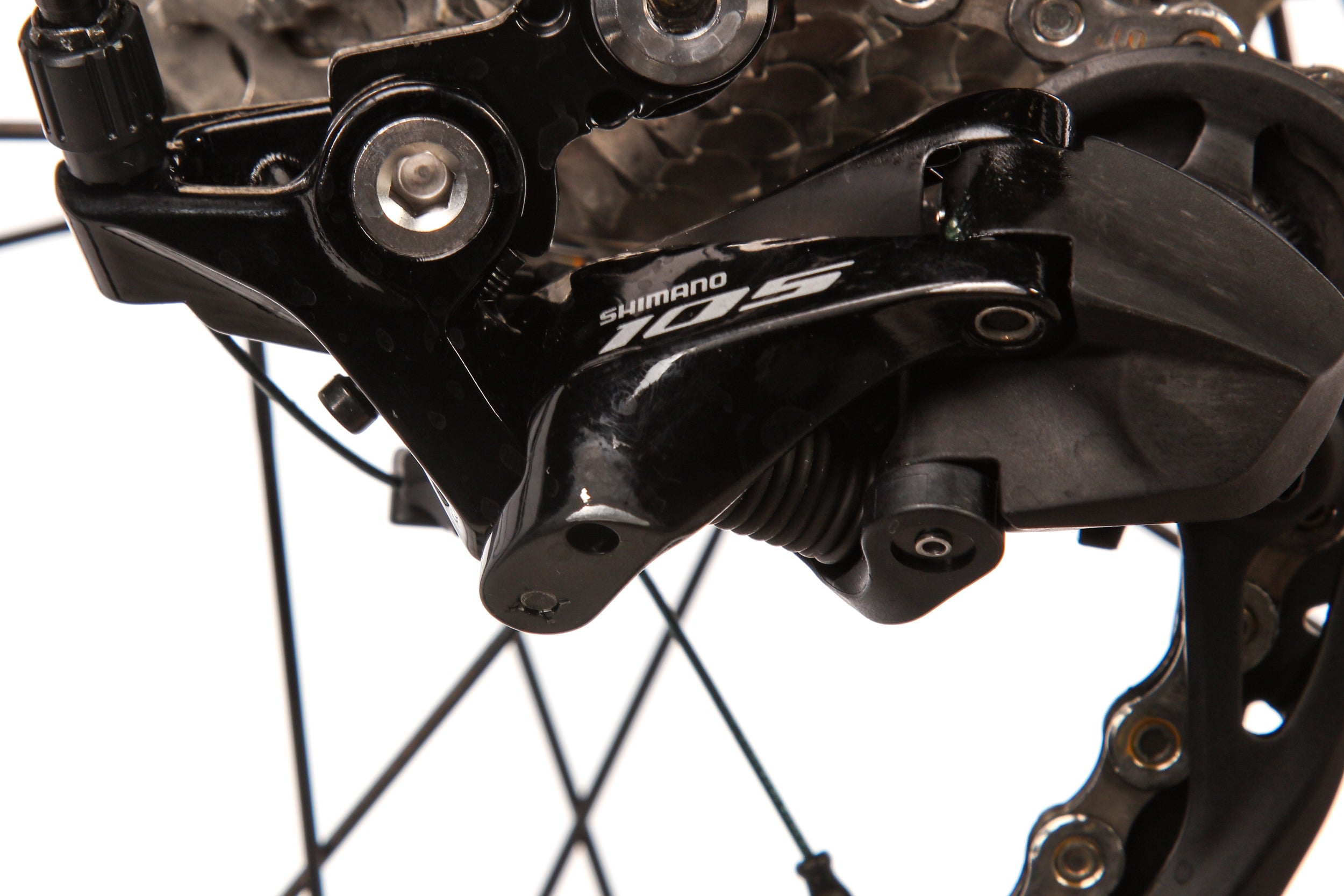

- Light scratches on the shifters, crank arms, & rear derailleur

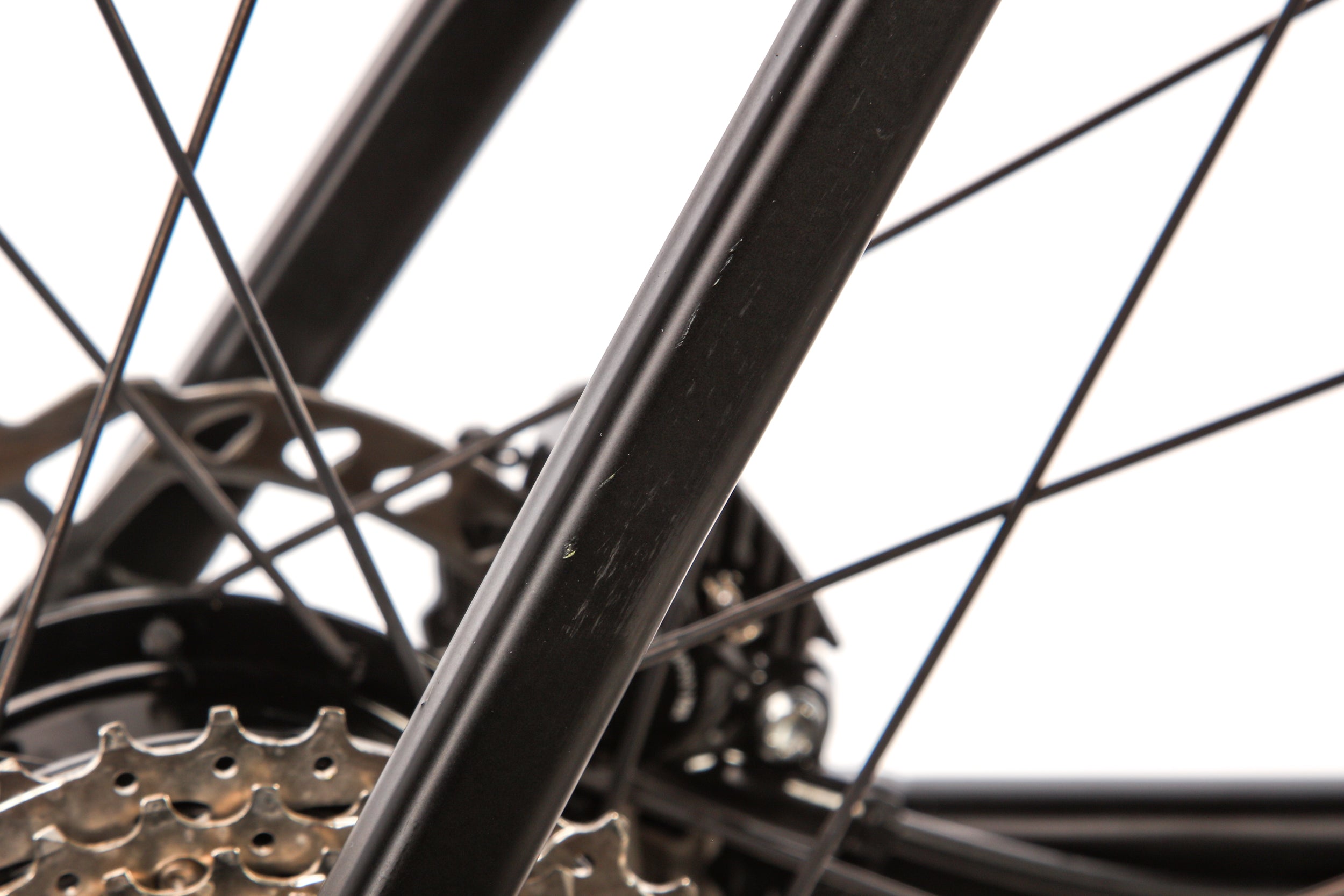

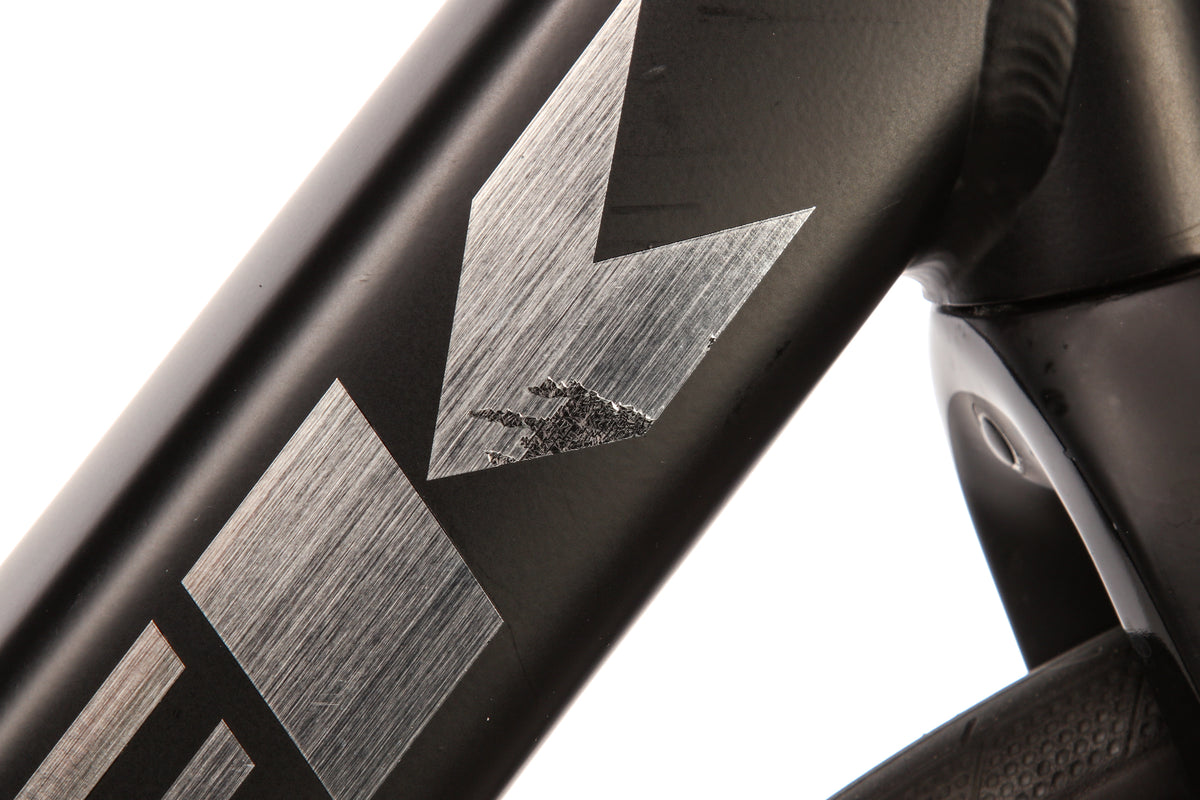

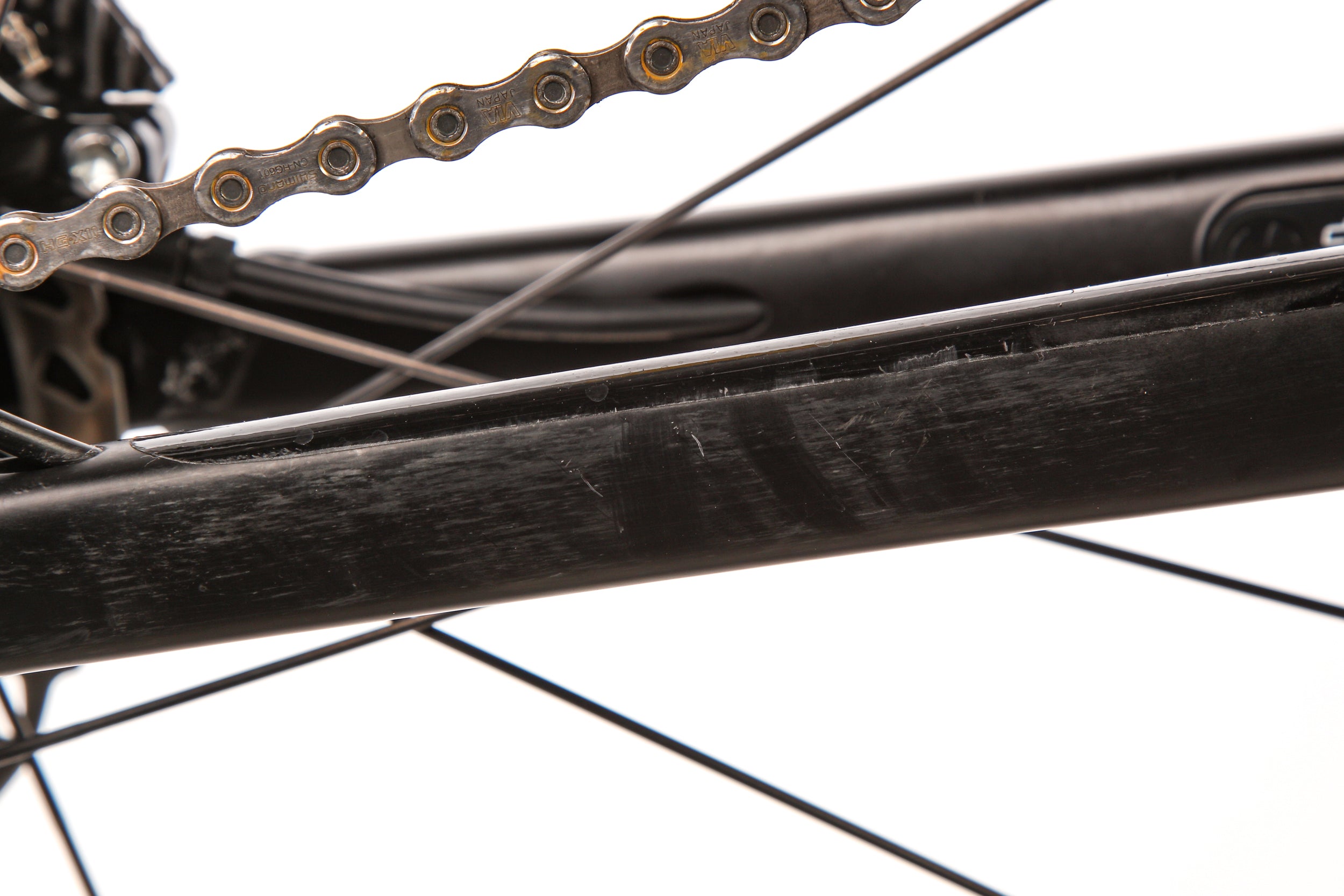

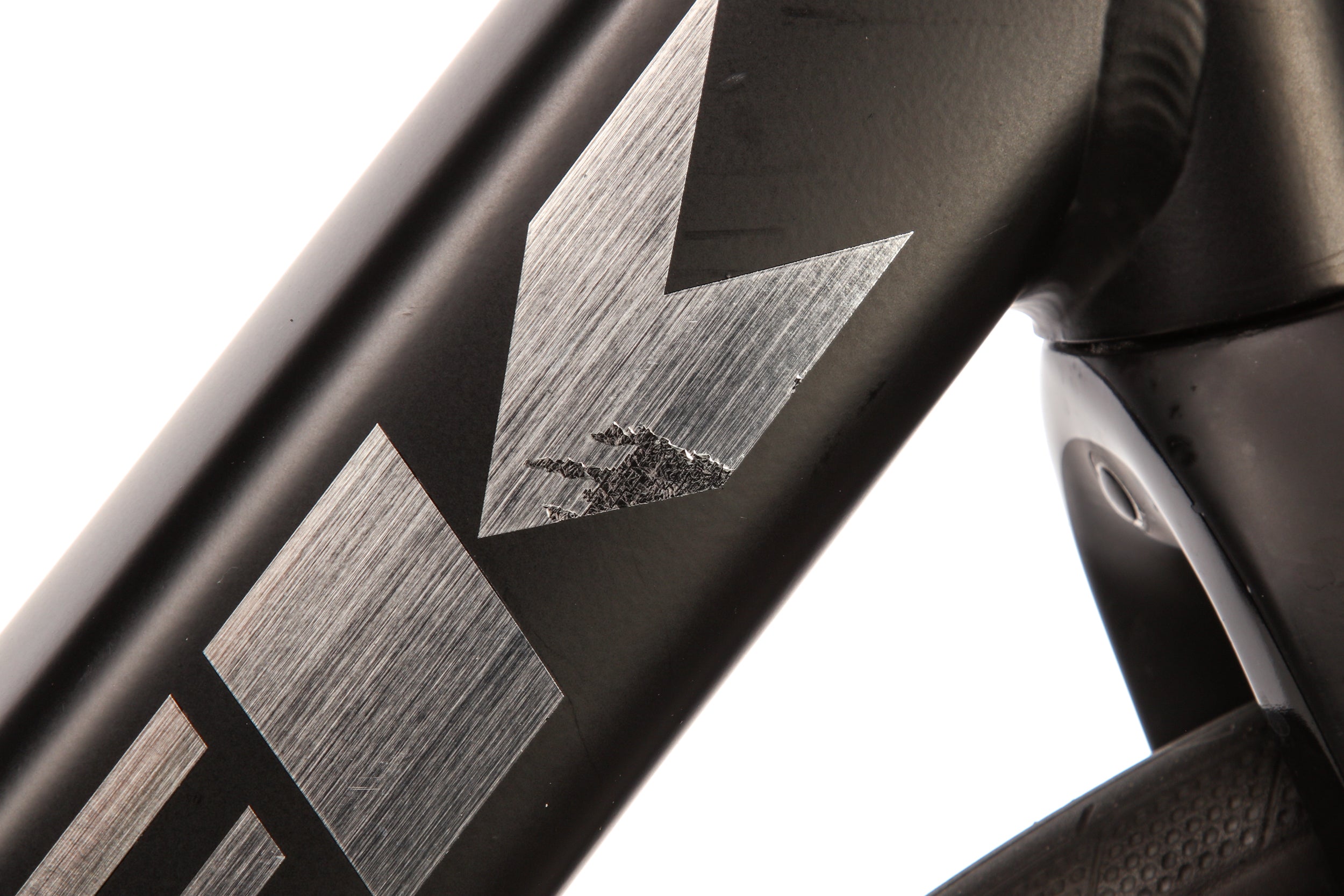

- Light scratches on the down tube, drive side seatstay, & chainstays
Specifications
Details
| Original MSRP | $3,500.00 |
| Year | 2024 |
| Brand | Trek |
| Model | Domane+ AL |
| Size | 56cm |
| Frame Material | Aluminum |
| Drivetrain | Shimano, 2x11 spd |
| Weight | 30 lbs 10 oz |
Build
| Fork | Trek Domane+, Carbon |

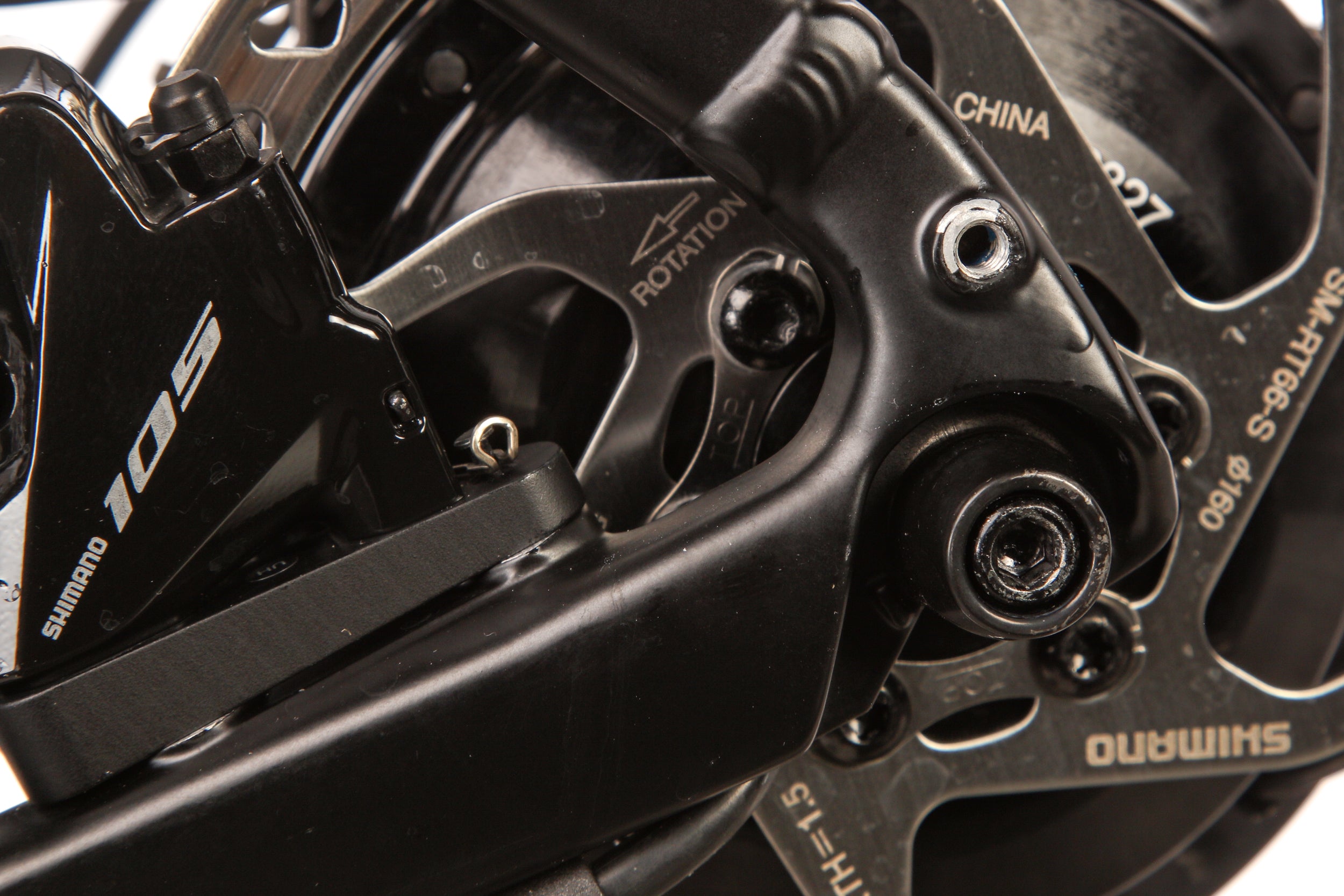

| Brakes | Shimano 105 R7070, Disc Brakes - Hydraulic |

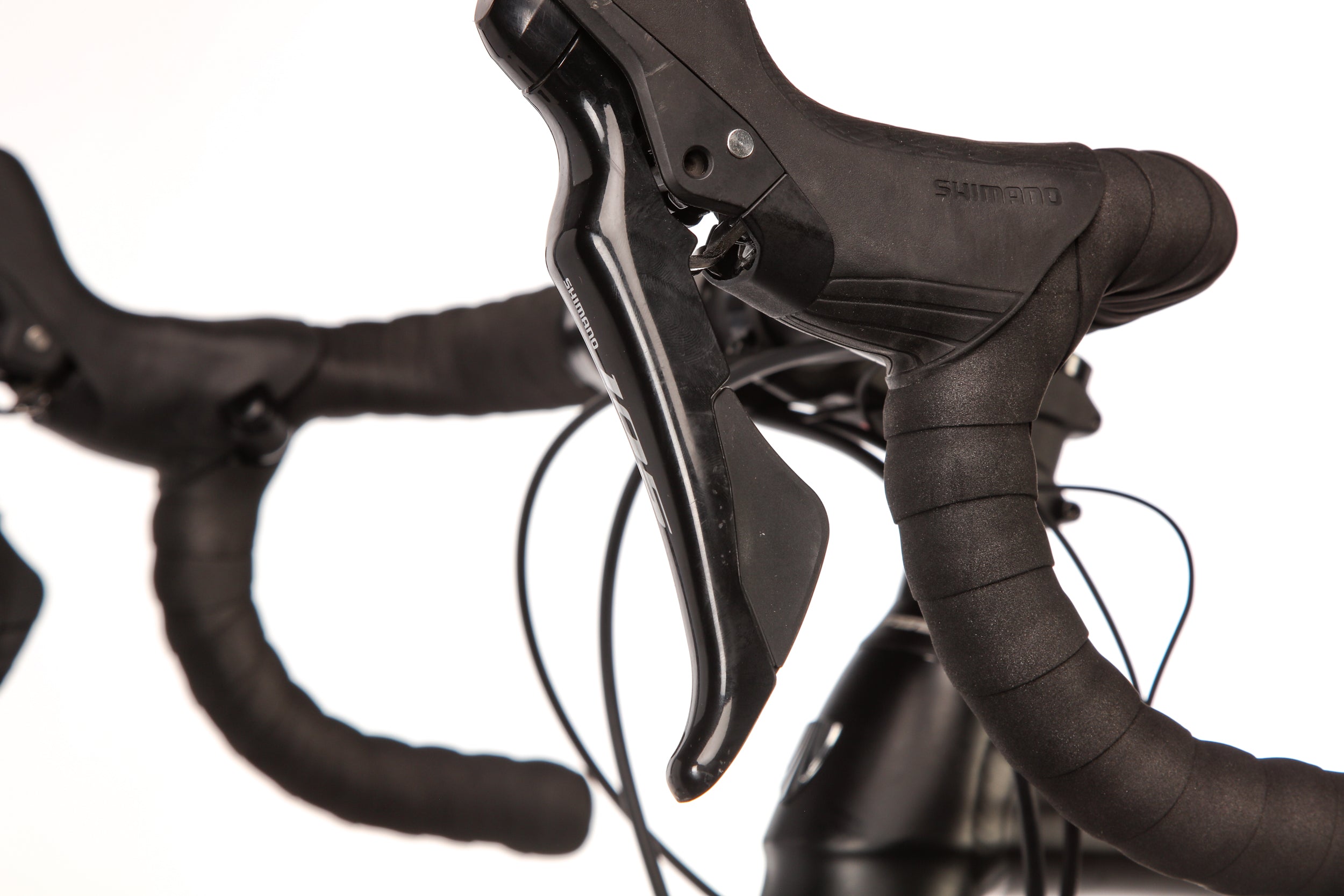

| Shifters | Shimano 105 R7020, Mechanical |
| Front Derailleur | Shimano 105 R7000 |
| Rear Derailleur | Shimano 105 R7000 |
| Bottom Bracket Shell | Threaded |

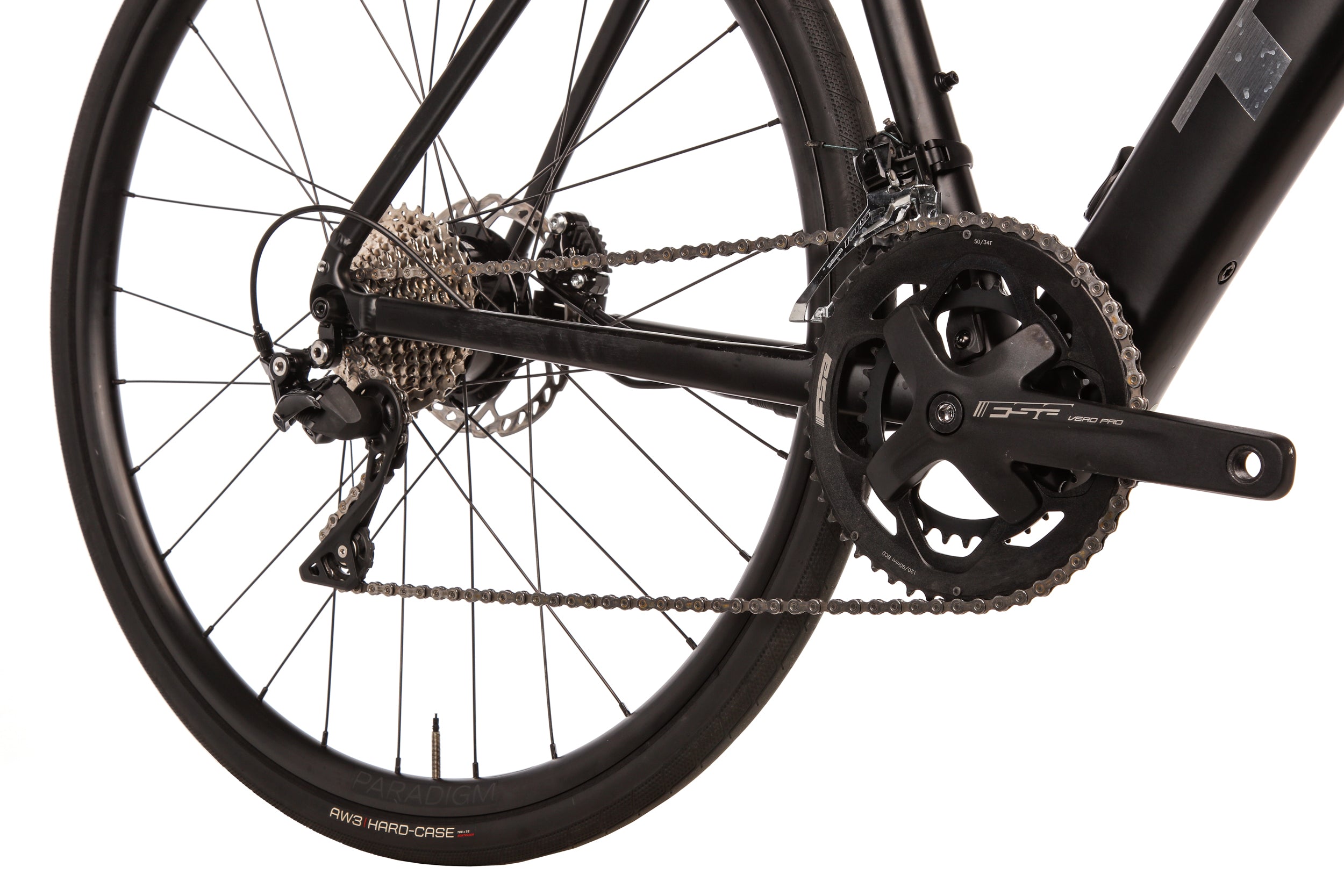

| Crankset | FSA Vero Pro Alloy, 50/34t, 172.5mm |
| Cassette | Shimano CS-HG700-11, 11-34t |
| Chain | Shimano |

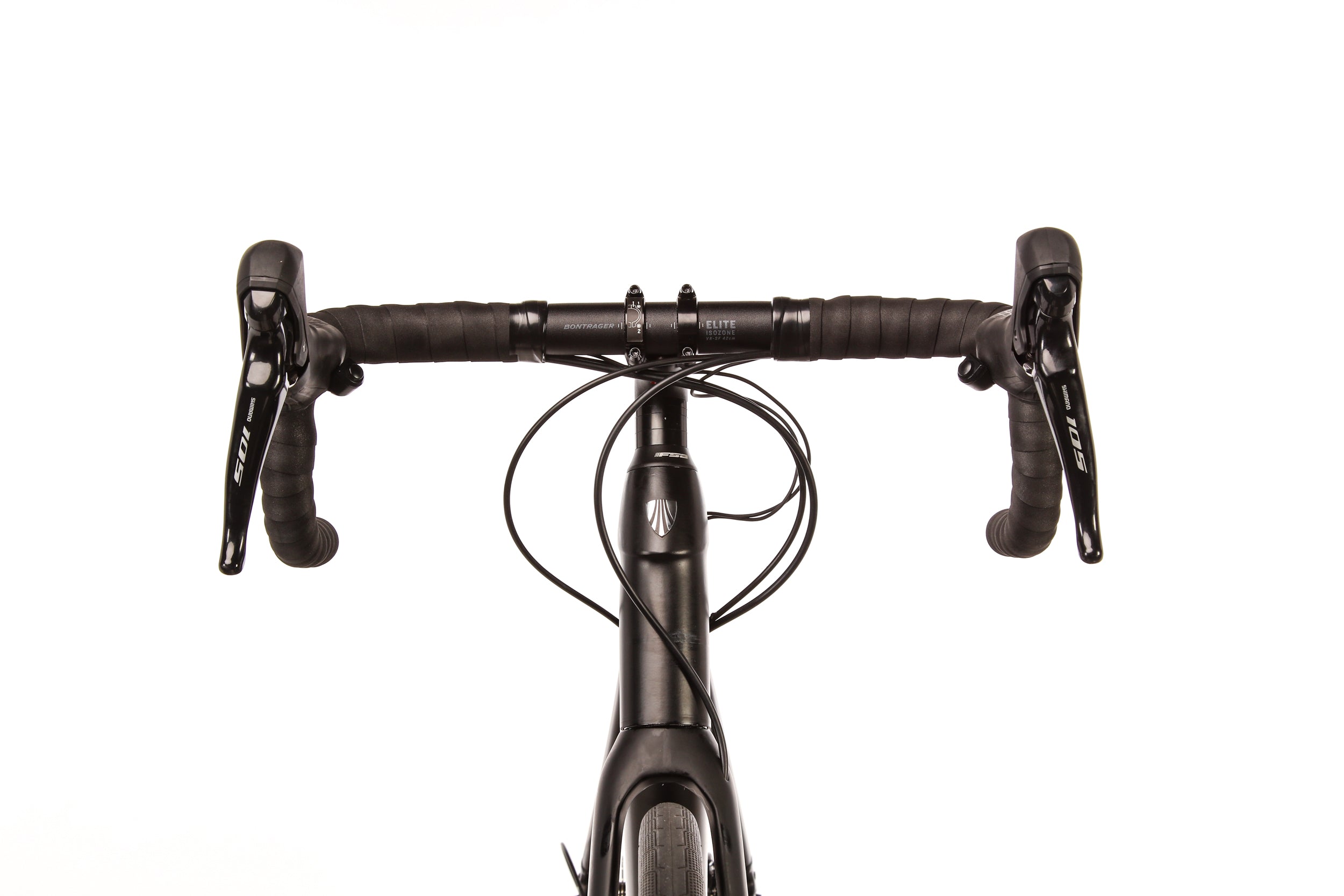

| Handlebar | Bontrager Elite IsoZone VR-SF Alloy, 42cm |
| Headset | FSA |
| Stem | Bontrager Elite Alloy, 31.8mm x 80mm, 7° |
| Seatpost | Bontrager Carbon, 27.2mm |
| Saddle | Bontrager Affinity Comp w/ Cr-Mo Rails |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x135mm (Thru-Axle) |
| Wheelset | Bontrager Paradigm Aluminum Tubeless, Front: Bontrager / Rear: Hyena Hub Drive Motor |
| Front Tire | Bontrager AW3, 700C x 32C |
| Rear Tire | Bontrager AW3, 700C x 32C |
| Tire Type | Clincher |
| Tubeless Compatibility | Wheels are tubeless compatible but ship with tubes installed |
| Motor | Hyena Hub Drive Motor |
| Torque | 40Nm |
| Wattage | 250w |
| Battery | 250Wh |
| Top Speed | 20mph |
| Charger Included | yes |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'8" - 5'10"
|
| A. Effective Top Tube | 554 mm |
| B. Seat Tube | 525 mm |
| C. Seat Tube Angle | 73.3° |
| D. Head Tube Angle | 71.9° |
| E. Head Tube | 160 mm |
| F. Stack | 591 mm |
| G. Reach | 377 mm |
| H. Standover Height | 794 mm |
| I. Saddle Height Range | N/A |
