Sorry, this Scott Voltage FR 720 Small Bike - 2016 has been sold.

Try these similar items:

Scott Voltage FR 720 Small Bike - 2016 drive side

Scott Voltage FR 720 Small Bike - 2016 non-drive side

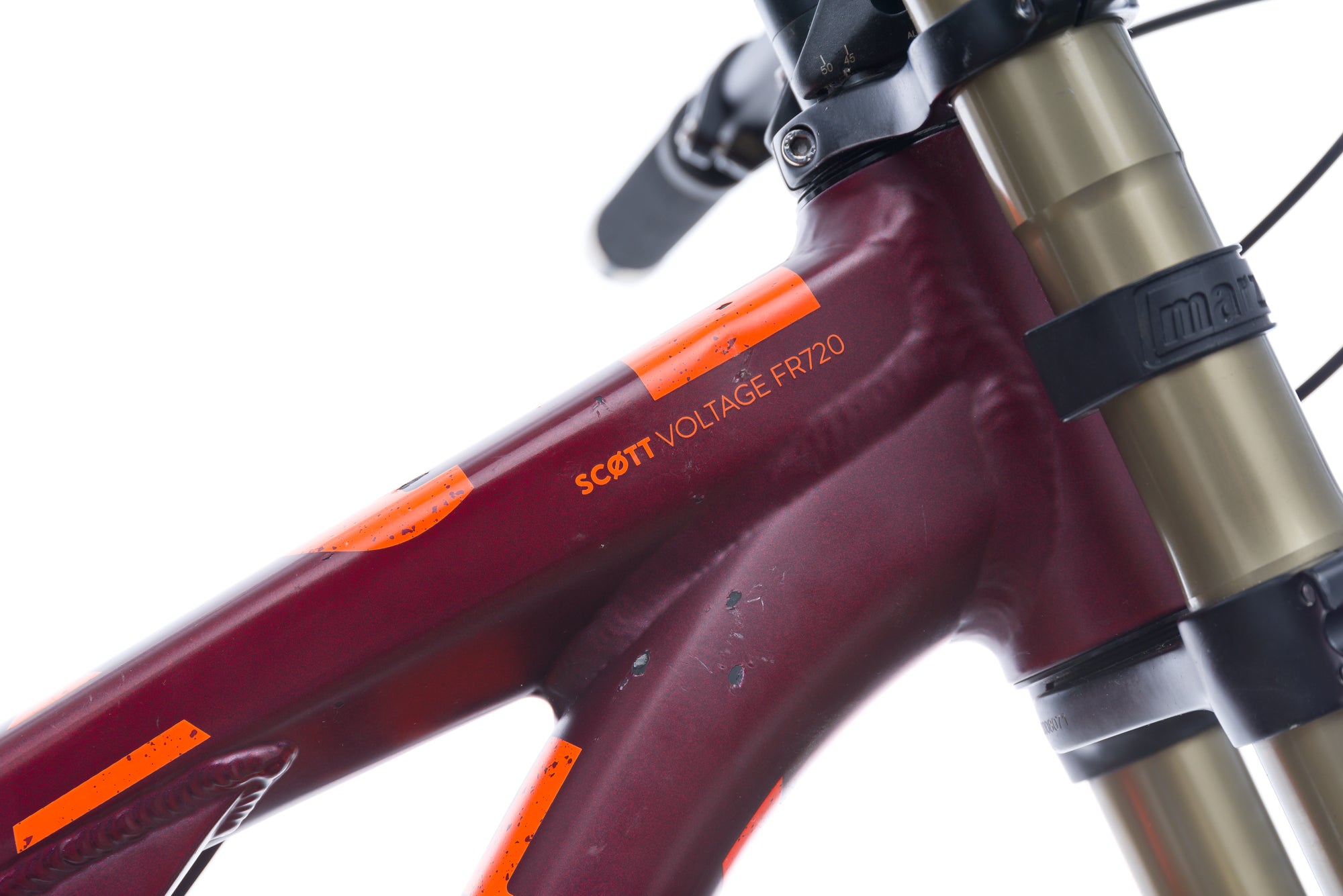

Scott Voltage FR 720 Small Bike - 2016 sticker

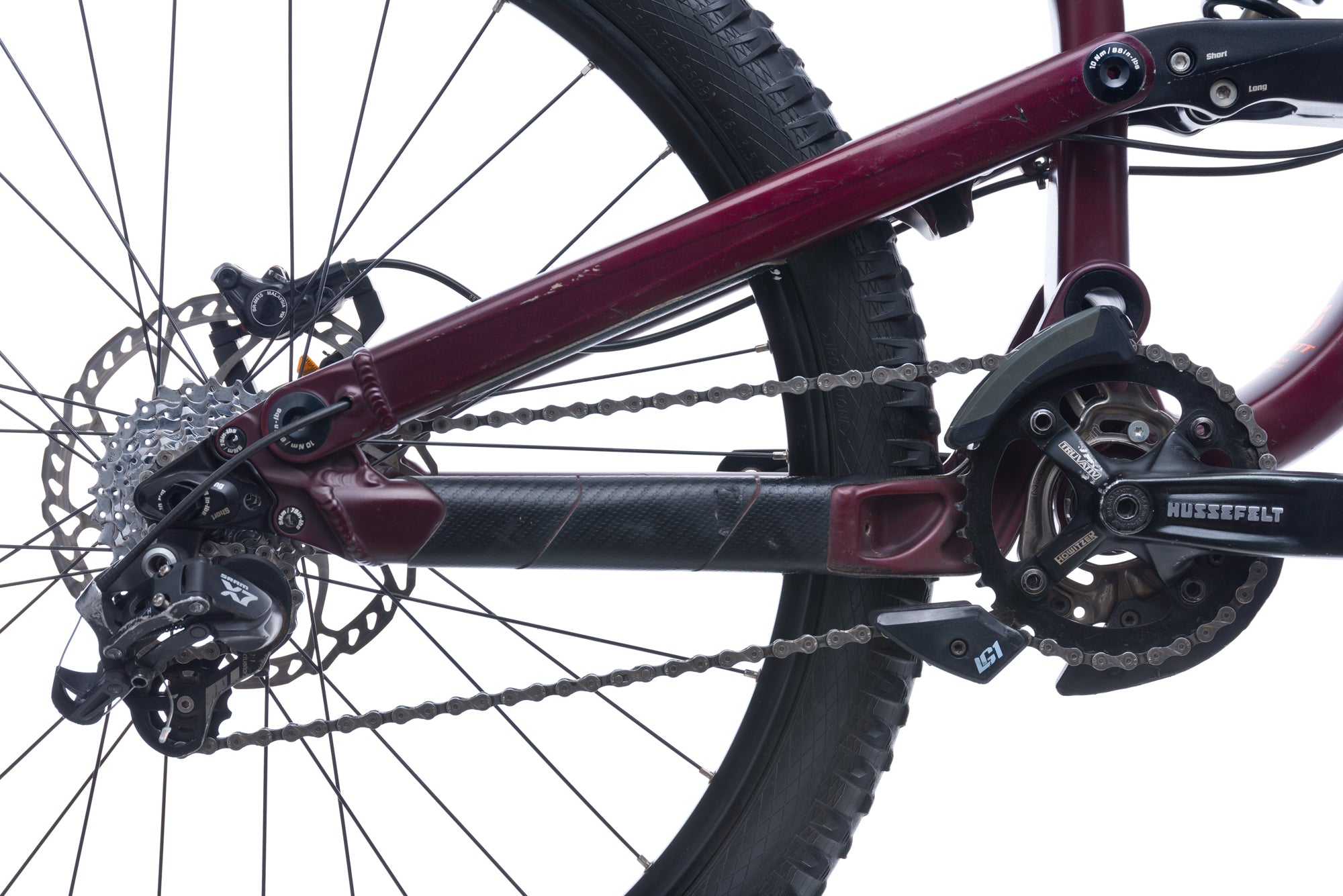

Scott Voltage FR 720 Small Bike - 2016 drivetrain

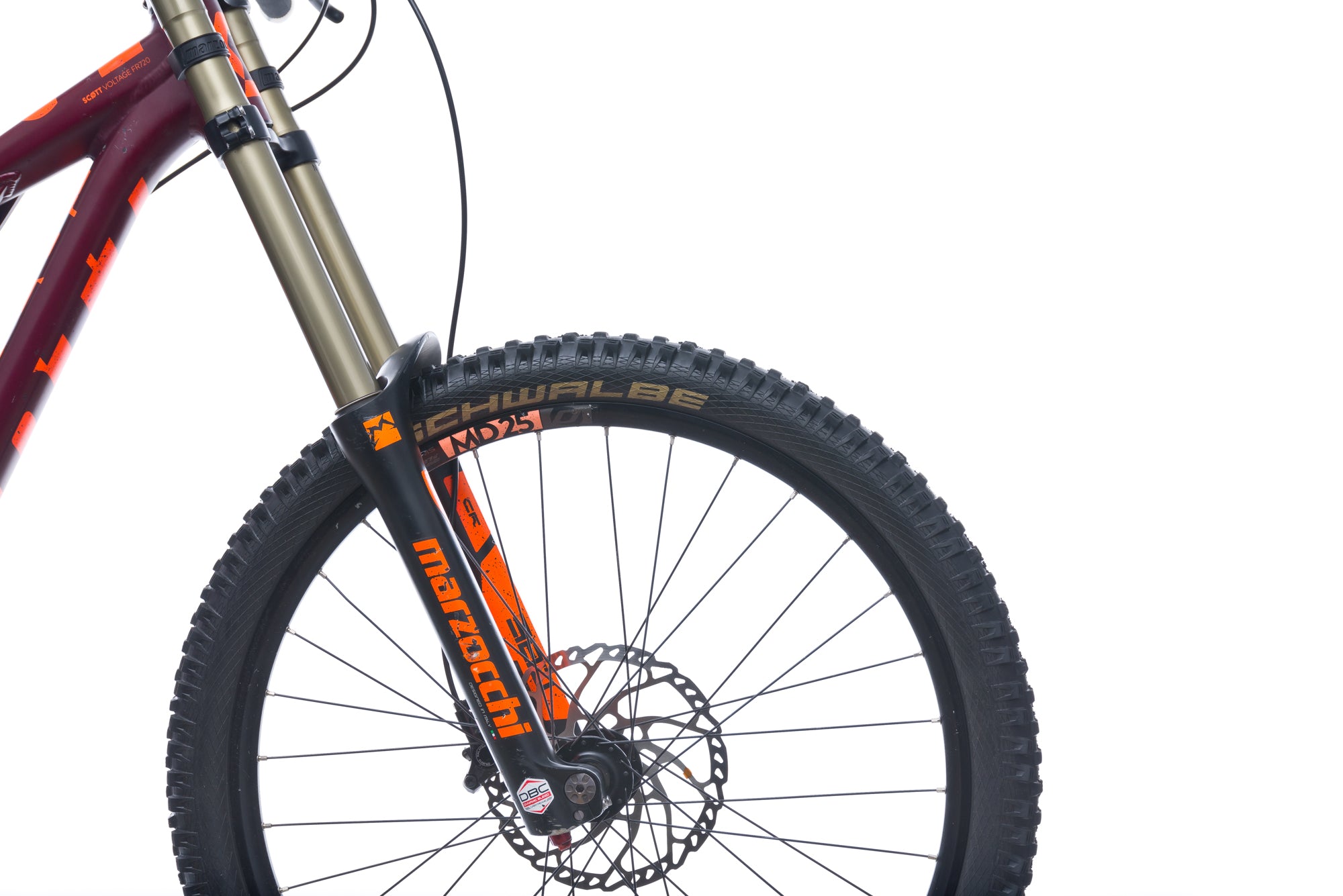

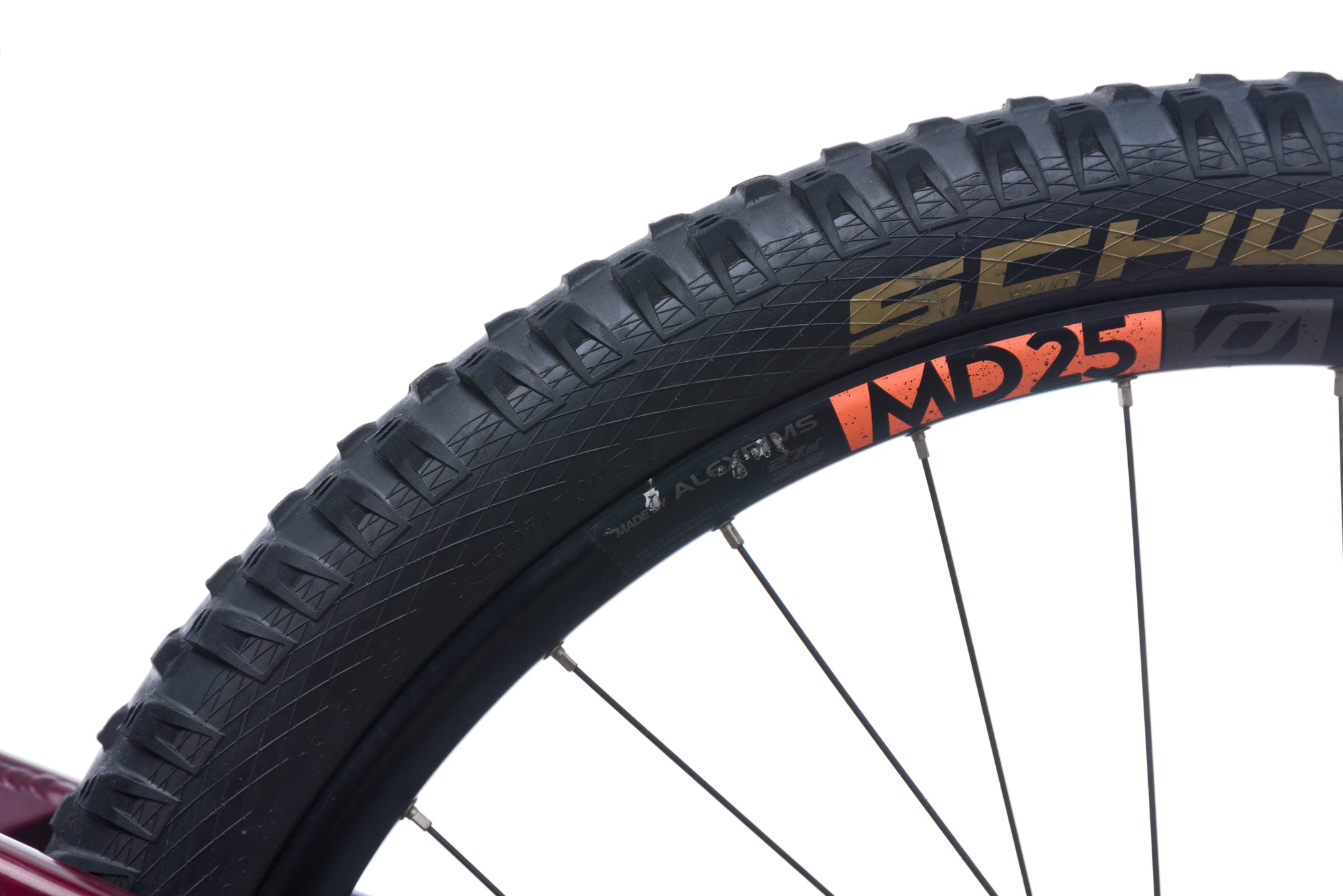

Scott Voltage FR 720 Small Bike - 2016 front wheel

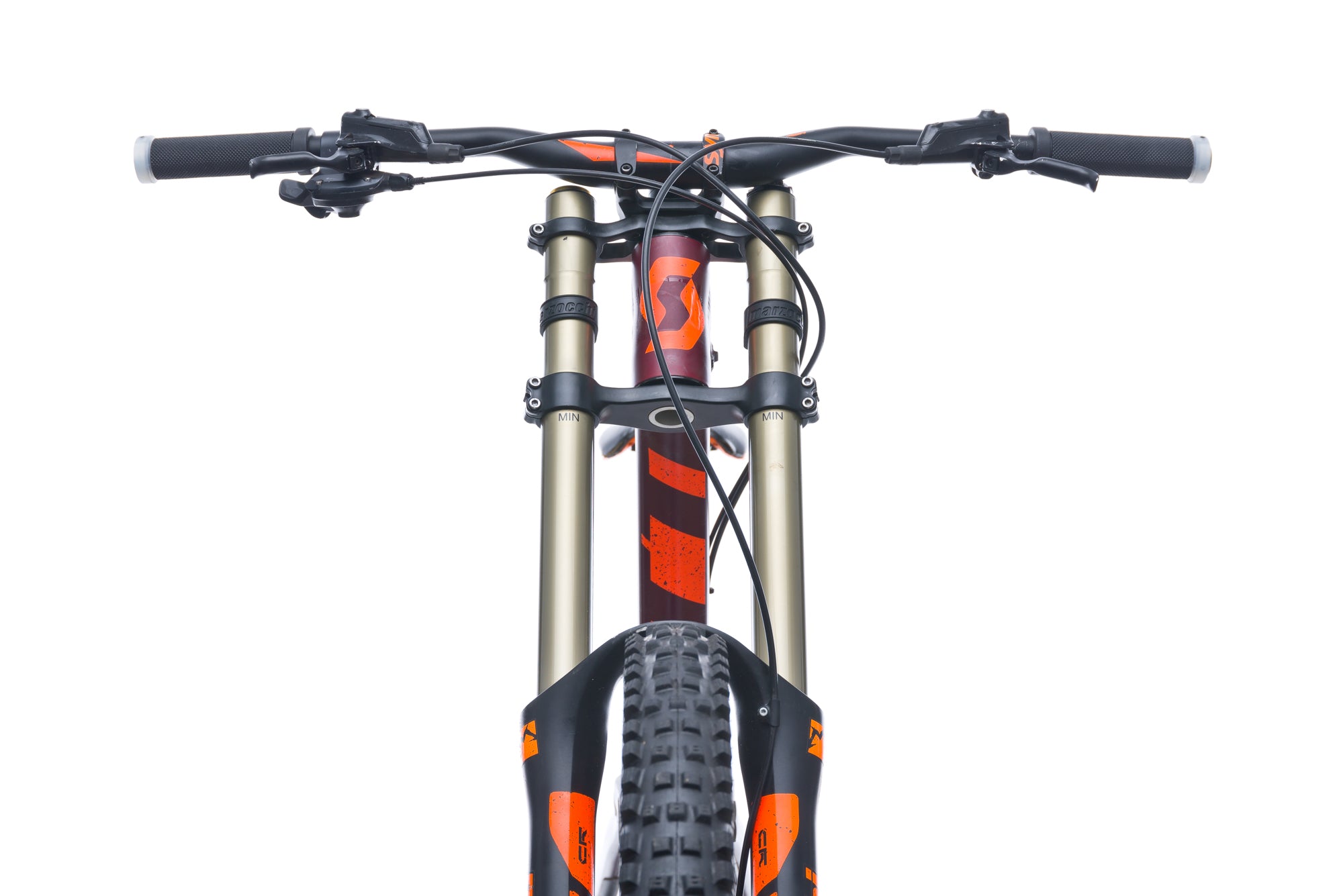

Scott Voltage FR 720 Small Bike - 2016 cockpit

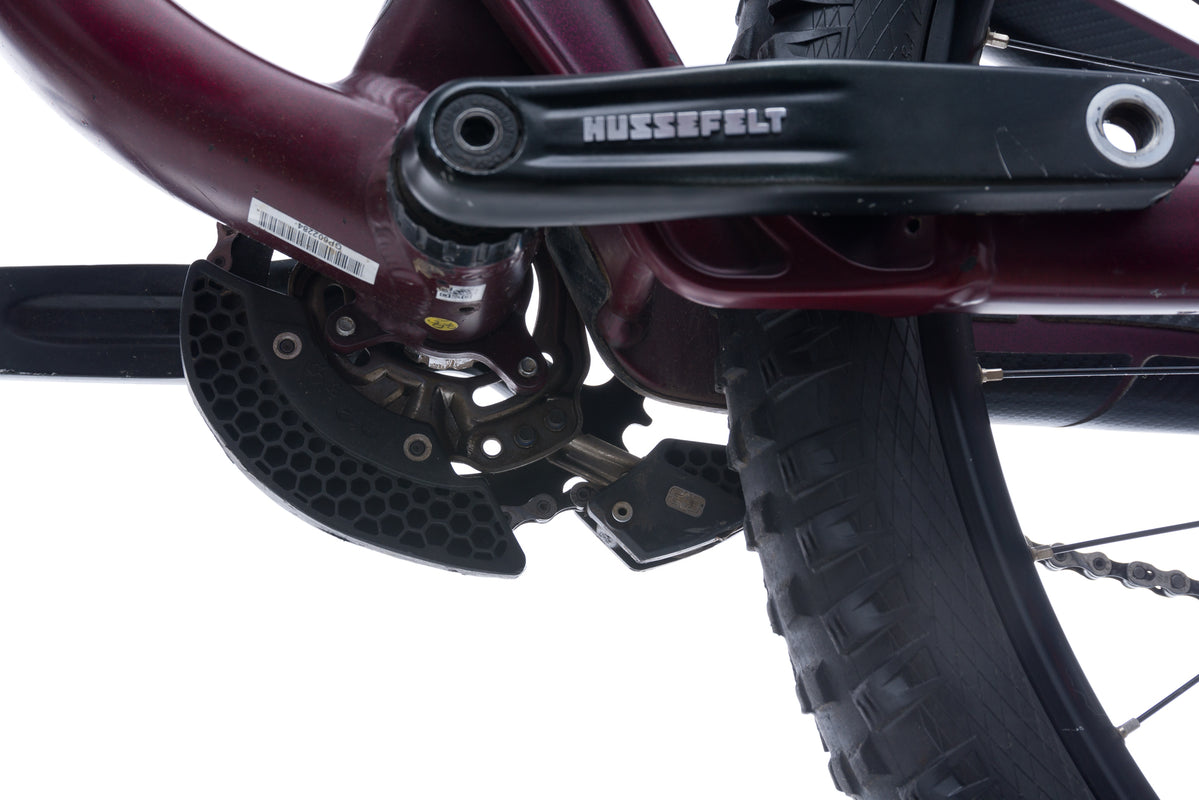

Scott Voltage FR 720 Small Bike - 2016 crank

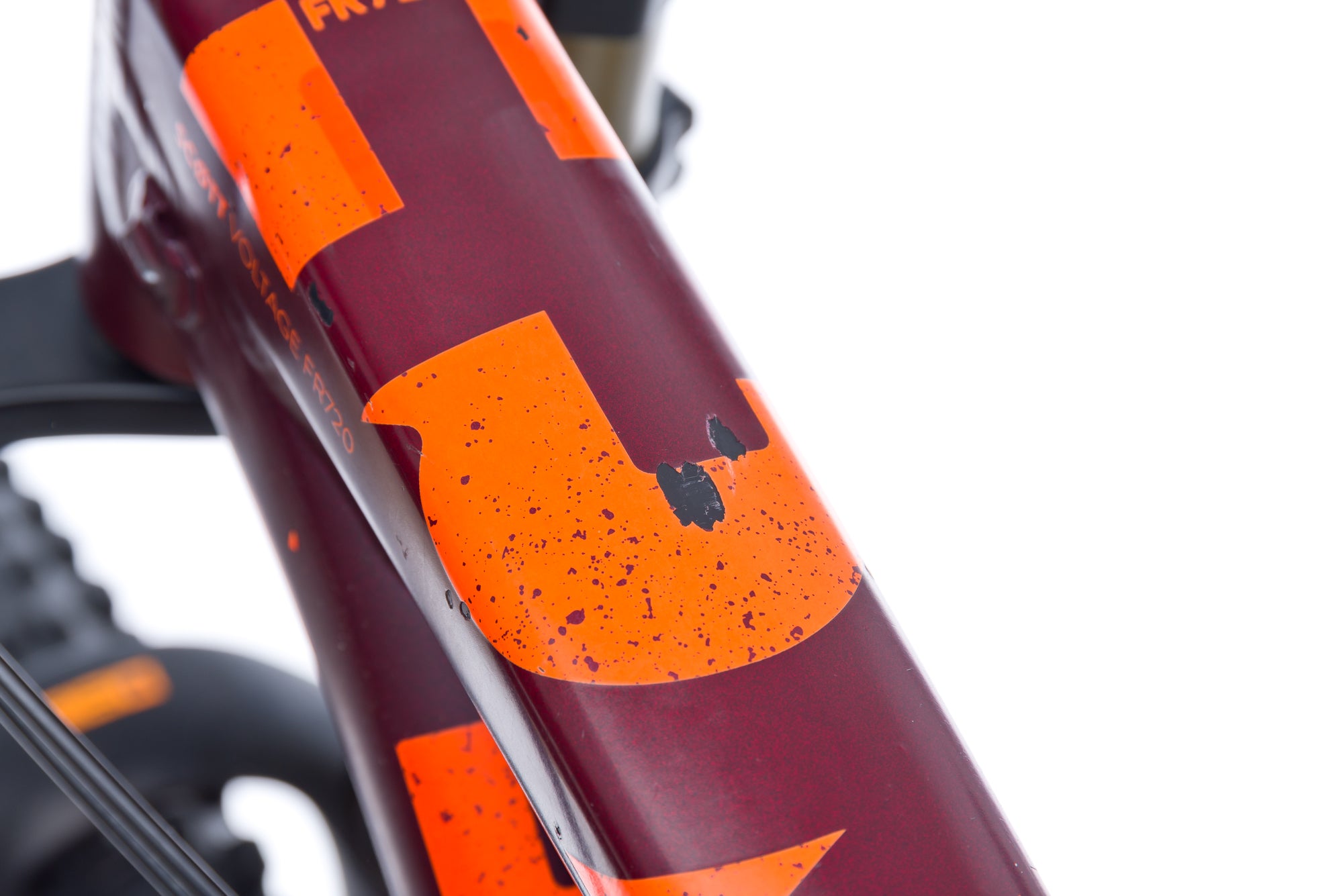

Scott Voltage FR 720 Small Bike - 2016 detail 1

Scott Voltage FR 720 Small Bike - 2016 detail 2

Scott Voltage FR 720 Small Bike - 2016 detail 3

Scott Voltage FR 720 Small Bike - 2016 drive side

Scott Voltage FR 720 Small Bike - 2016 non-drive side

Scott Voltage FR 720 Small Bike - 2016 sticker

Scott Voltage FR 720 Small Bike - 2016 drivetrain

Scott Voltage FR 720 Small Bike - 2016 front wheel

Scott Voltage FR 720 Small Bike - 2016 cockpit

Scott Voltage FR 720 Small Bike - 2016 crank

Scott Voltage FR 720 Small Bike - 2016 detail 1

Scott Voltage FR 720 Small Bike - 2016 detail 2

Scott Voltage FR 720 Small Bike - 2016 detail 3

Scott Voltage FR 720 Small Bike - 2016

Item #BMT10399

Recommended Rider Height: N/A Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2016
Brand	Scott
Model	Voltage FR 720
Size	Small
Frame Material	Aluminum
Drivetrain	SRAM, 1x9 spd
Weight	40 lbs 15 oz

Build

Fork	Marzocchi 380 CR
Fork Travel	200mm
Rear Shock	Fox Van R Performance Coil
Rear Shock Travel	190mm
Brakes	Shimano M615, Disc Brakes - Hydraulic
Shifters	SRAM X7, Mechanical
Front Derailleur	N/A
Rear Derailleur	SRAM X7
Crankset	Truvativ Hussefelt, 36t, 165 mm
Cassette	SRAM, 9spd, 11-28t
Chain	KMC
Handlebar	Syncros DH, 780 mm
Headset	Syncros
Stem	Syncros DH, 35.0 mm x 50mm, 0°
Seatpost	Syncros, 31.6mm
Seatpost Travel	N/A
Saddle	Syncros XM2.5
Front Axle Spacing	20x110mm
Rear Axle Spacing	10x135mm
Wheelset	Syncros MD25, Syncros
Front Tire	Schwalbe Magic Mary, 27.5" x 2.35"
Rear Tire	Schwalbe Magic Mary, 27.5" x 2.35"
Tire Type	Clincher

Geometry

Recommended Rider Height	N/A Sizing Guide
a. Effective Top Tube	569.6 mm
b. Seat Tube	368.8 mm
c. Seat Tube Angle	73.5°
d. Head Tube Angle	64°
e. Head Tube	115 mm
f. Stack	623.1 mm
g. Reach	385 mm
h. Standover Height	776.6 mm

Scott Voltage FR 720 Small Bike - 2016

Item #BMT10399

Recommended Rider Height: N/A Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Mountain Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Mountain Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
13 in	XS	4' 10"	5' 2"
15 in	Small	5' 2"	5' 6"
17 in	Medium	5' 6"	5' 10"
19 in	Large	5' 10"	6' 2"
21 in	XL	6' 2"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
