Sorry, this Santa Cruz Tallboy C X-Large Bike - 2014 has been sold.

Try these similar items:

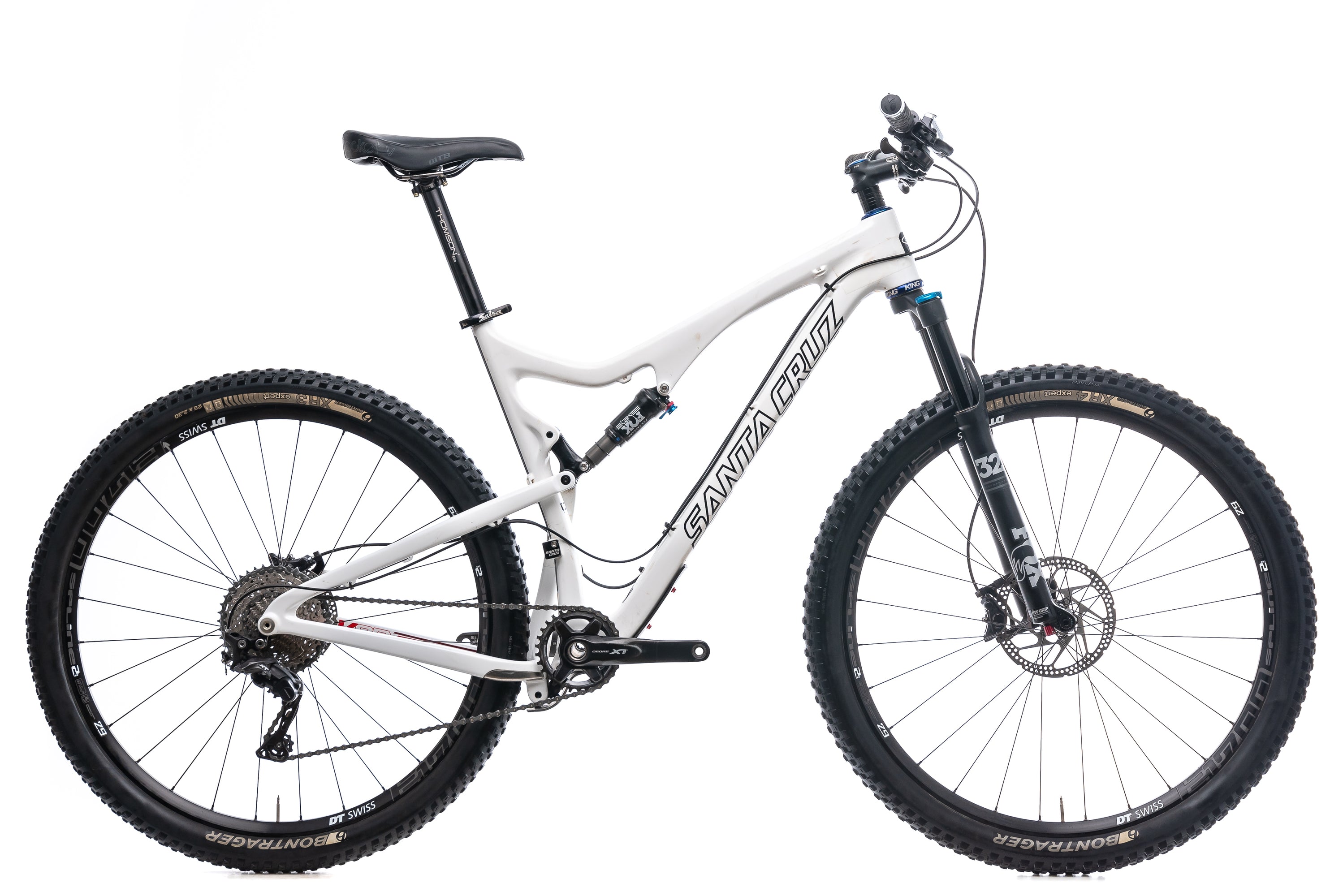

Santa Cruz Tallboy C X-Large Bike - 2014 drive side

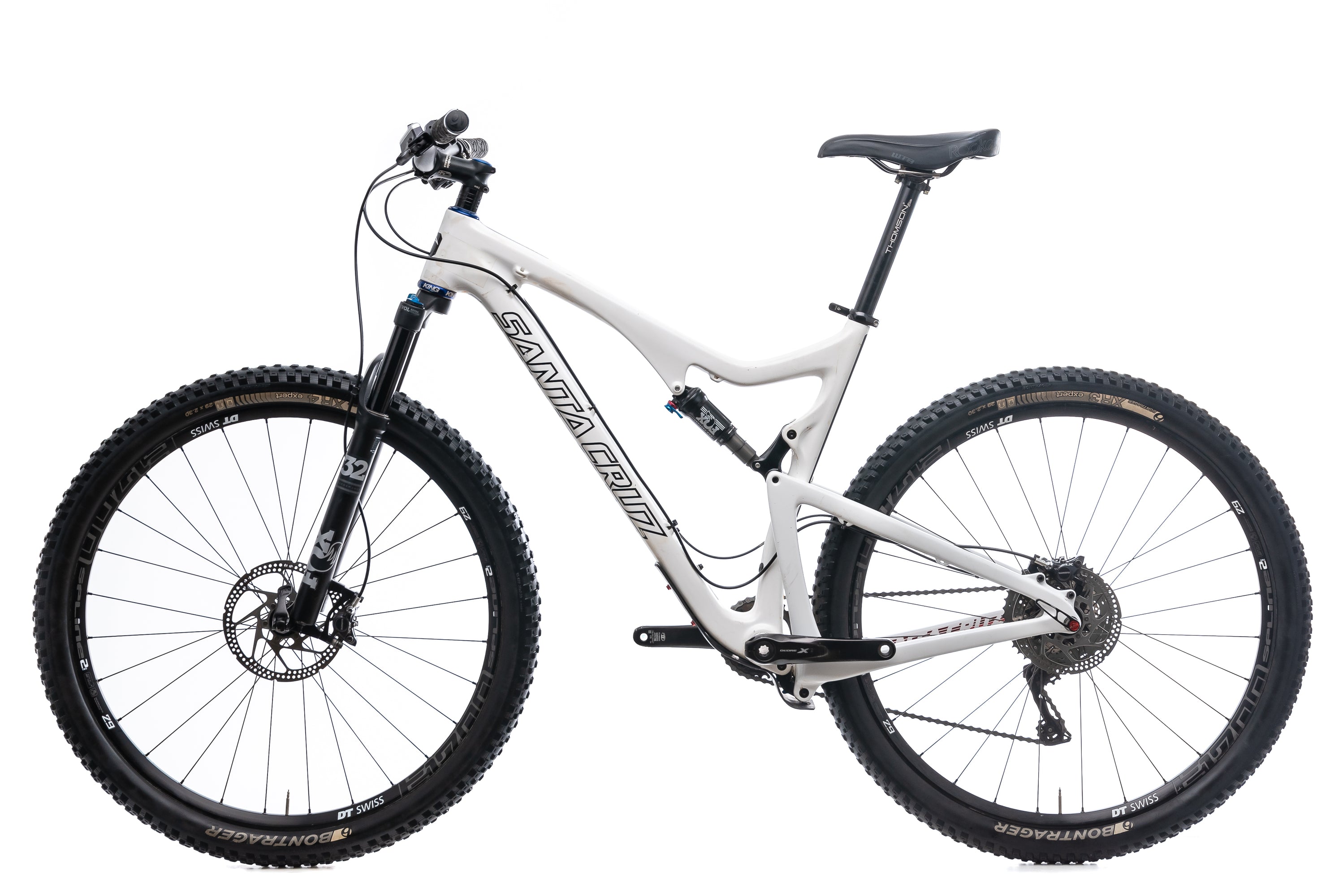

Santa Cruz Tallboy C X-Large Bike - 2014 non-drive side

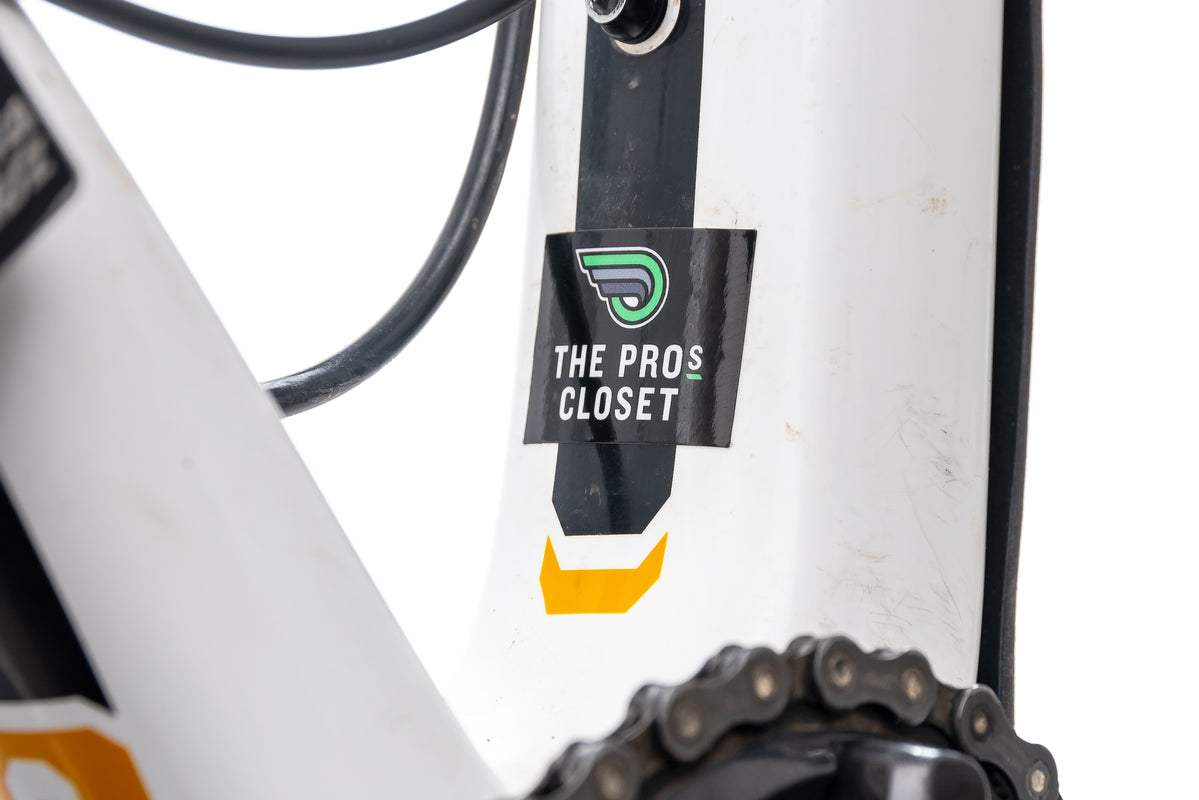

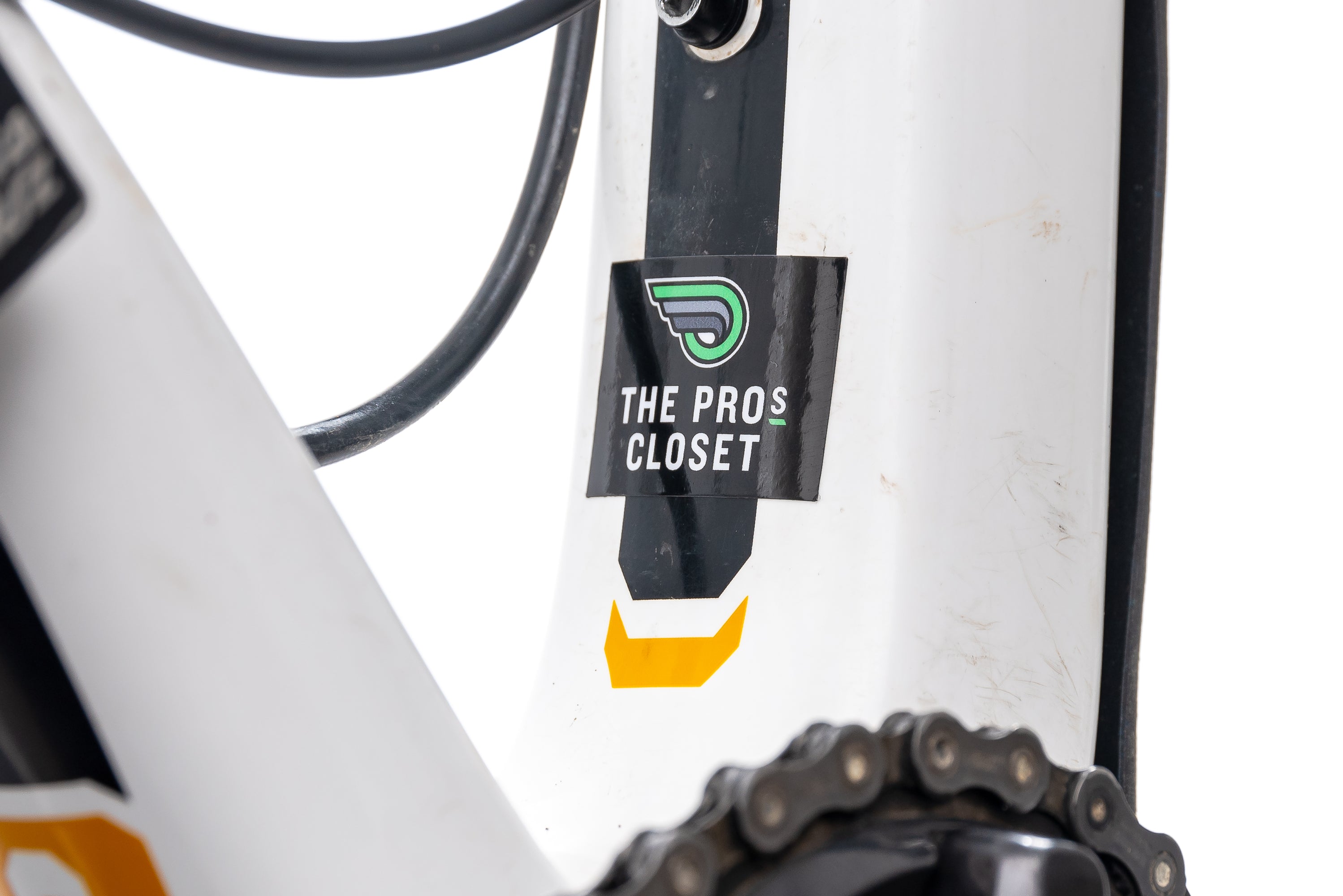

Santa Cruz Tallboy C X-Large Bike - 2014 sticker

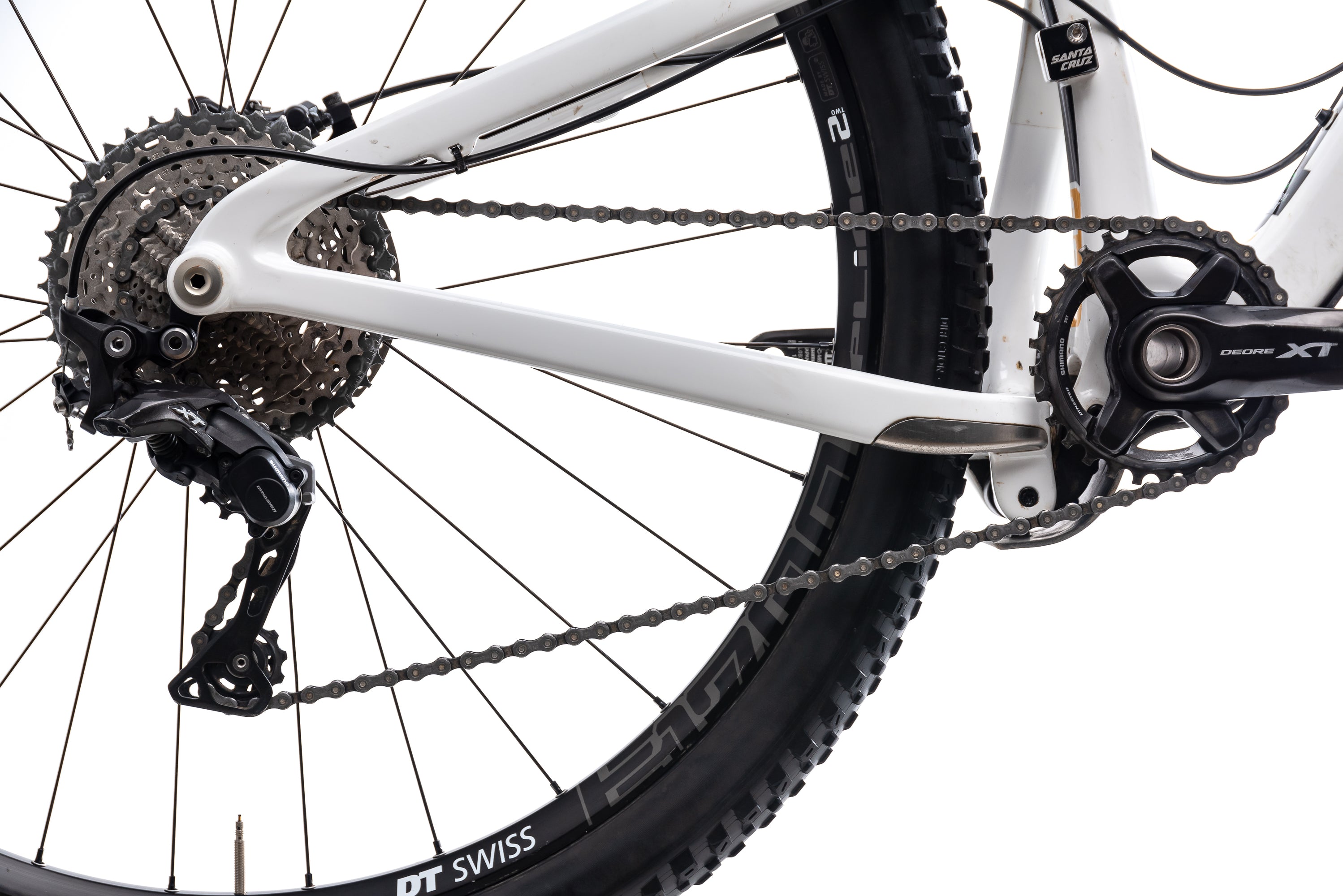

Santa Cruz Tallboy C X-Large Bike - 2014 drivetrain

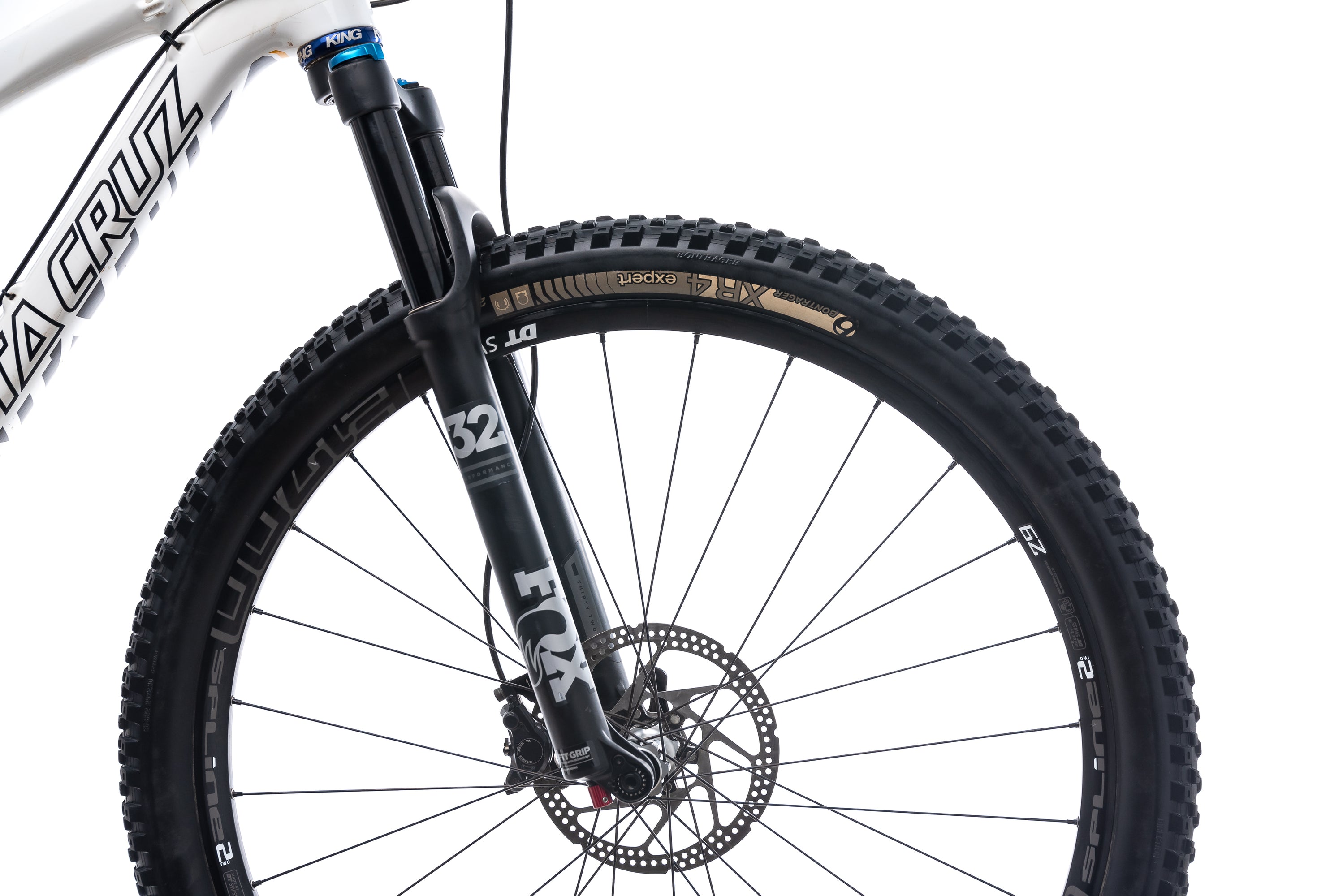

Santa Cruz Tallboy C X-Large Bike - 2014 front wheel

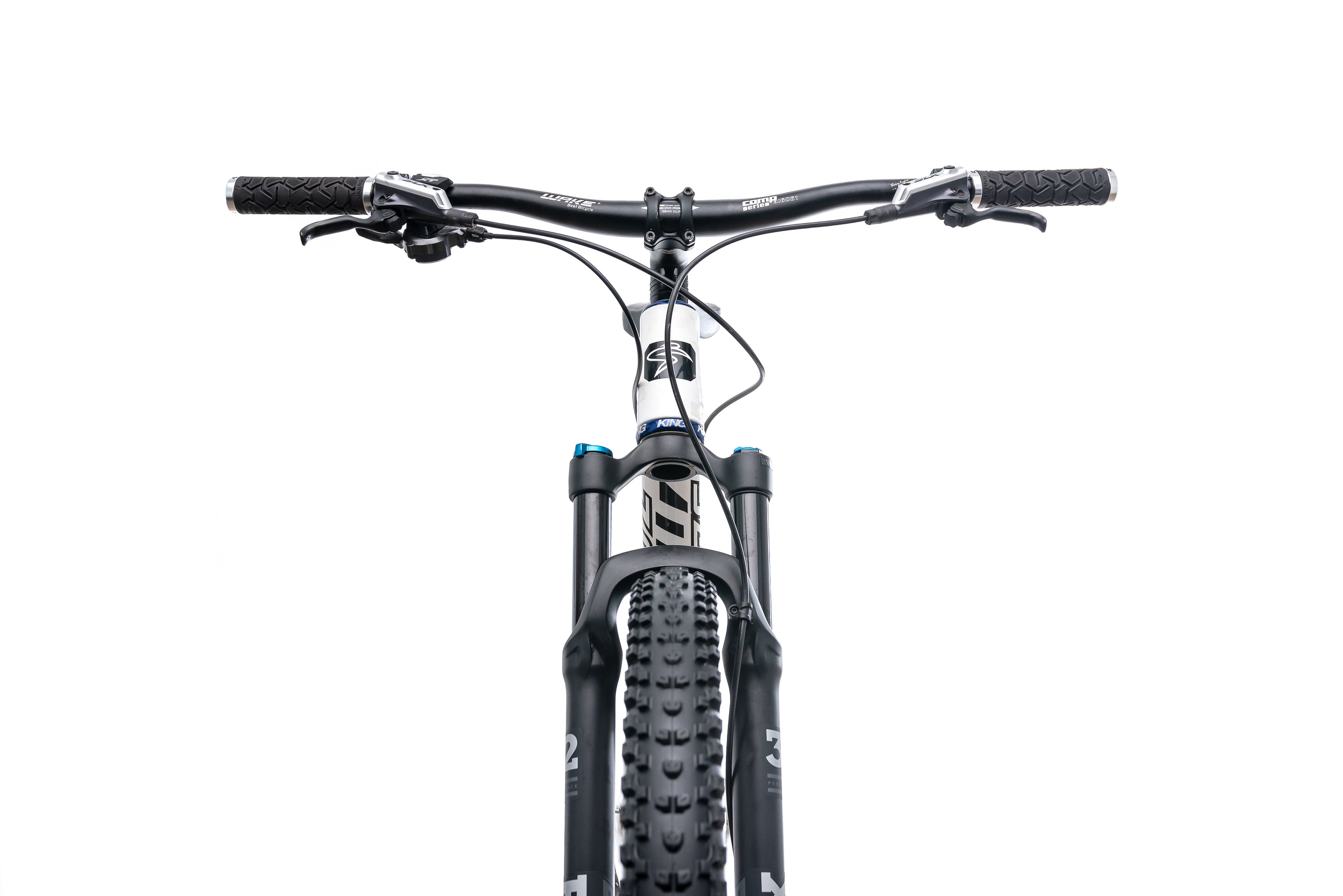

Santa Cruz Tallboy C X-Large Bike - 2014 cockpit

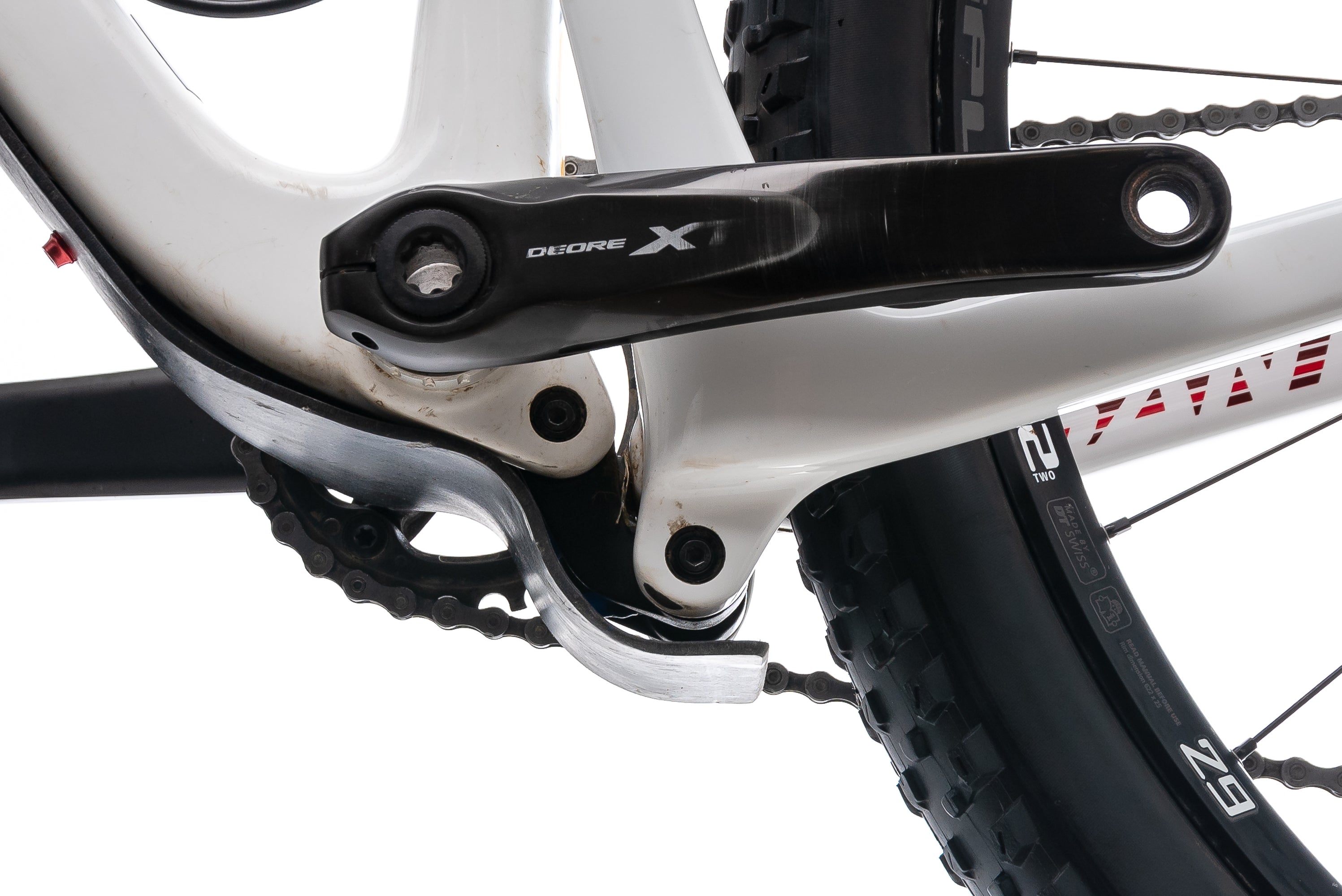

Santa Cruz Tallboy C X-Large Bike - 2014 crank

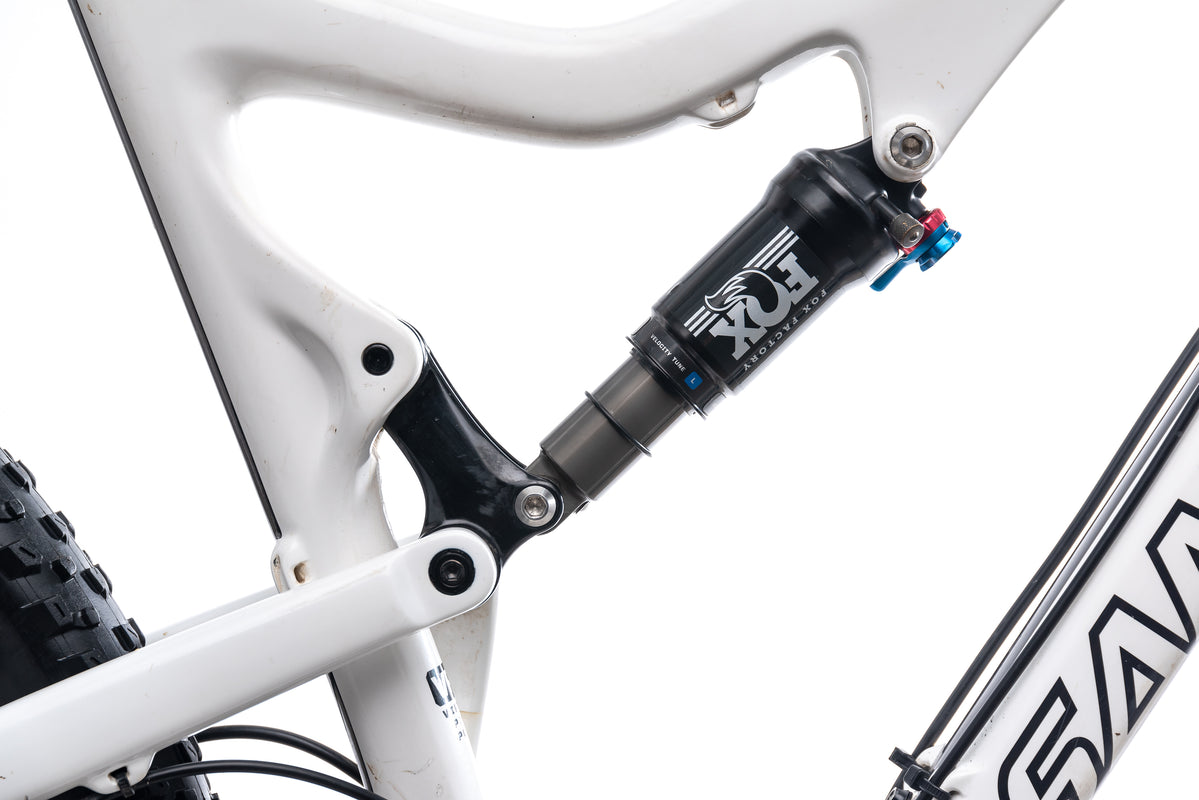

Santa Cruz Tallboy C X-Large Bike - 2014 detail 1

Santa Cruz Tallboy C X-Large Bike - 2014 detail 2

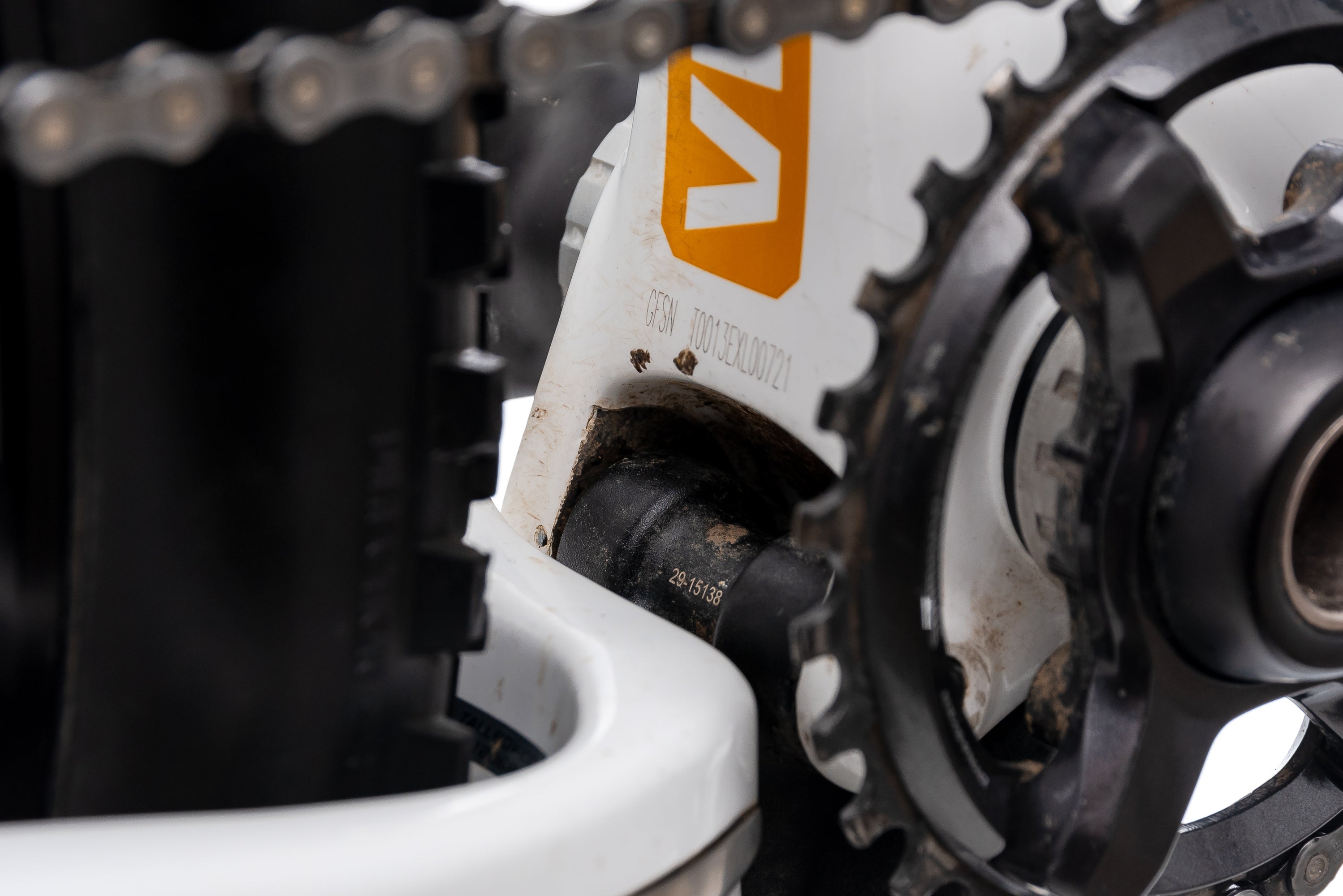

Santa Cruz Tallboy C X-Large Bike - 2014 detail 3

Santa Cruz Tallboy C X-Large Bike - 2014 drive side

Santa Cruz Tallboy C X-Large Bike - 2014 non-drive side

Santa Cruz Tallboy C X-Large Bike - 2014 sticker

Santa Cruz Tallboy C X-Large Bike - 2014 drivetrain

Santa Cruz Tallboy C X-Large Bike - 2014 front wheel

Santa Cruz Tallboy C X-Large Bike - 2014 cockpit

Santa Cruz Tallboy C X-Large Bike - 2014 crank

Santa Cruz Tallboy C X-Large Bike - 2014 detail 1

Santa Cruz Tallboy C X-Large Bike - 2014 detail 2

Santa Cruz Tallboy C X-Large Bike - 2014 detail 3

Santa Cruz Tallboy C X-Large Bike - 2014

Item #BMT12645

Recommended Rider Height: N/A Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2014
Brand	Santa Cruz
Model	Tallboy C
Size	X-Large
Frame Material	Carbon Fiber
Drivetrain	Shimano, 1x11 spd
Weight	28 lbs 6 oz

Build

Fork	Fox Performance 32 Float 29
Fork Travel	120mm
Rear Shock	Fox Factory
Rear Shock Travel	100mm
Brakes	Shimano SLX M675, Disc Brakes - Hydraulic
Shifters	Shimano XT M8000, Mechanical
Front Derailleur	N/A
Rear Derailleur	Shimano XT M8000
Crankset	Shimano XT M8000, 30t, 175 mm
Cassette	Shimano XT M8000, 11spd, 11-42t
Chain	Shimano HG601
Handlebar	Wake Comp Series, 780 mm
Headset	Chris King Integrated
Stem	Cannondale C4, 31.8 mm x 80mm, 6°
Seatpost	Thomson Elite, 30.9mm
Seatpost Travel	N/A
Saddle	WTB Rocket V
Front Axle Spacing	15x100mm
Rear Axle Spacing	12x142mm
Wheelset	DT Swiss E1700 Spline, DT Swiss
Front Tire	Bontrager XR4 Expert, 29" x 2.3"
Rear Tire	Bontrager XR3 Expert, 29" x 2.3"
Tire Type	Tubeless
Tubeless Compatibility	Yes (rim strips and valve stem not included)

Geometry

Recommended Rider Height	N/A Sizing Guide
a. Effective Top Tube	637 mm
b. Seat Tube	508 mm
c. Seat Tube Angle	72.4°
d. Head Tube Angle	70.2°
e. Head Tube	109 mm
f. Stack	630 mm
g. Reach	439 mm
h. Standover Height	749 mm

Santa Cruz Tallboy C X-Large Bike - 2014

Item #BMT12645

Recommended Rider Height: N/A Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Mountain Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Mountain Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
13 in	XS	4' 10"	5' 2"
15 in	Small	5' 2"	5' 6"
17 in	Medium	5' 6"	5' 10"
19 in	Large	5' 10"	6' 2"
21 in	XL	6' 2"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
