Pivot Vault Gravel Bike - 2020, Small drive side Pivot Vault Gravel Bike - 2020, Small non-drive side Pivot Vault Gravel Bike - 2020, Small sticker Pivot Vault Gravel Bike - 2020, Small drivetrain Pivot Vault Gravel Bike - 2020, Small front wheel Pivot Vault Gravel Bike - 2020, Small cockpit Pivot Vault Gravel Bike - 2020, Small crank
2020 Small SKU: BCY11257

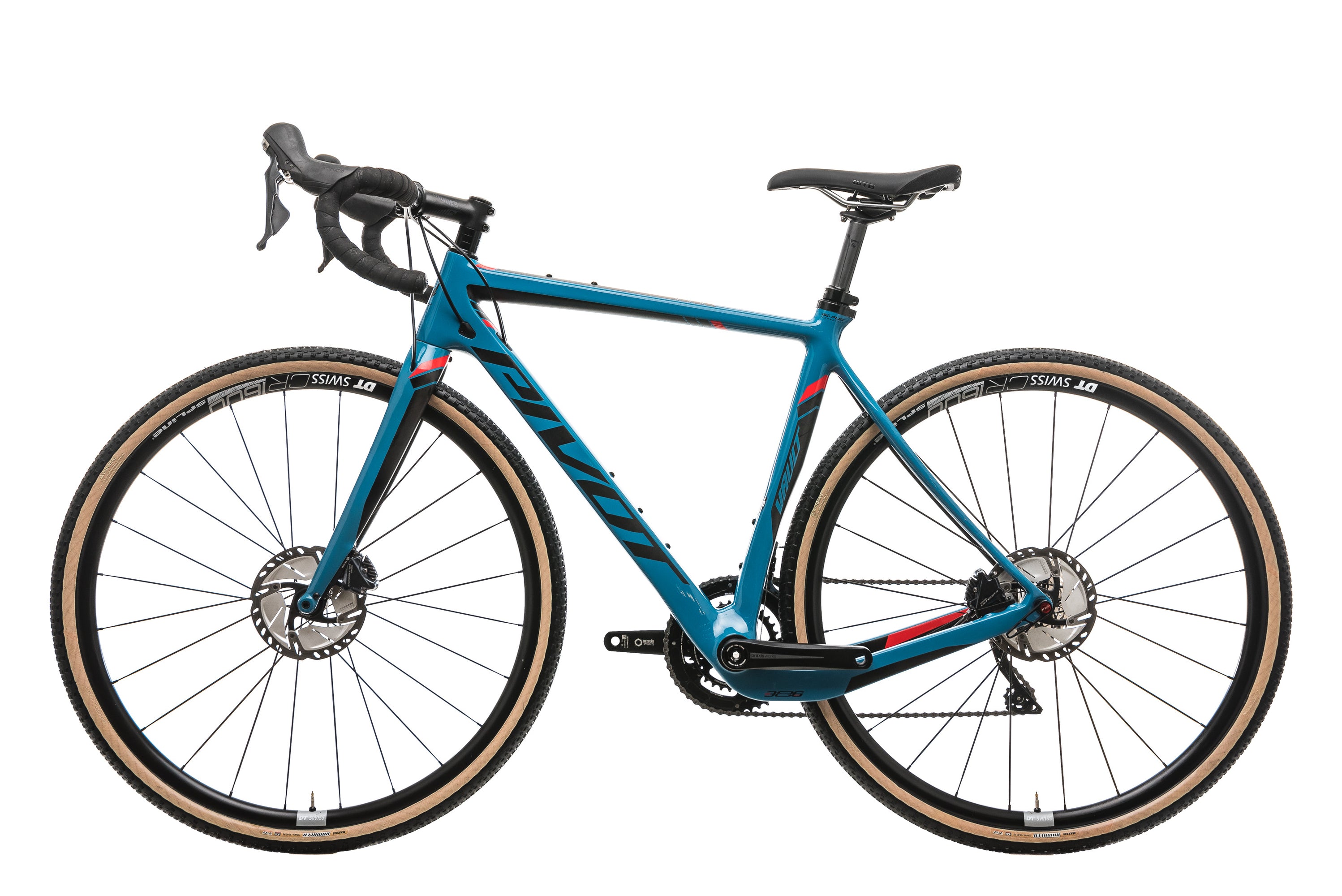

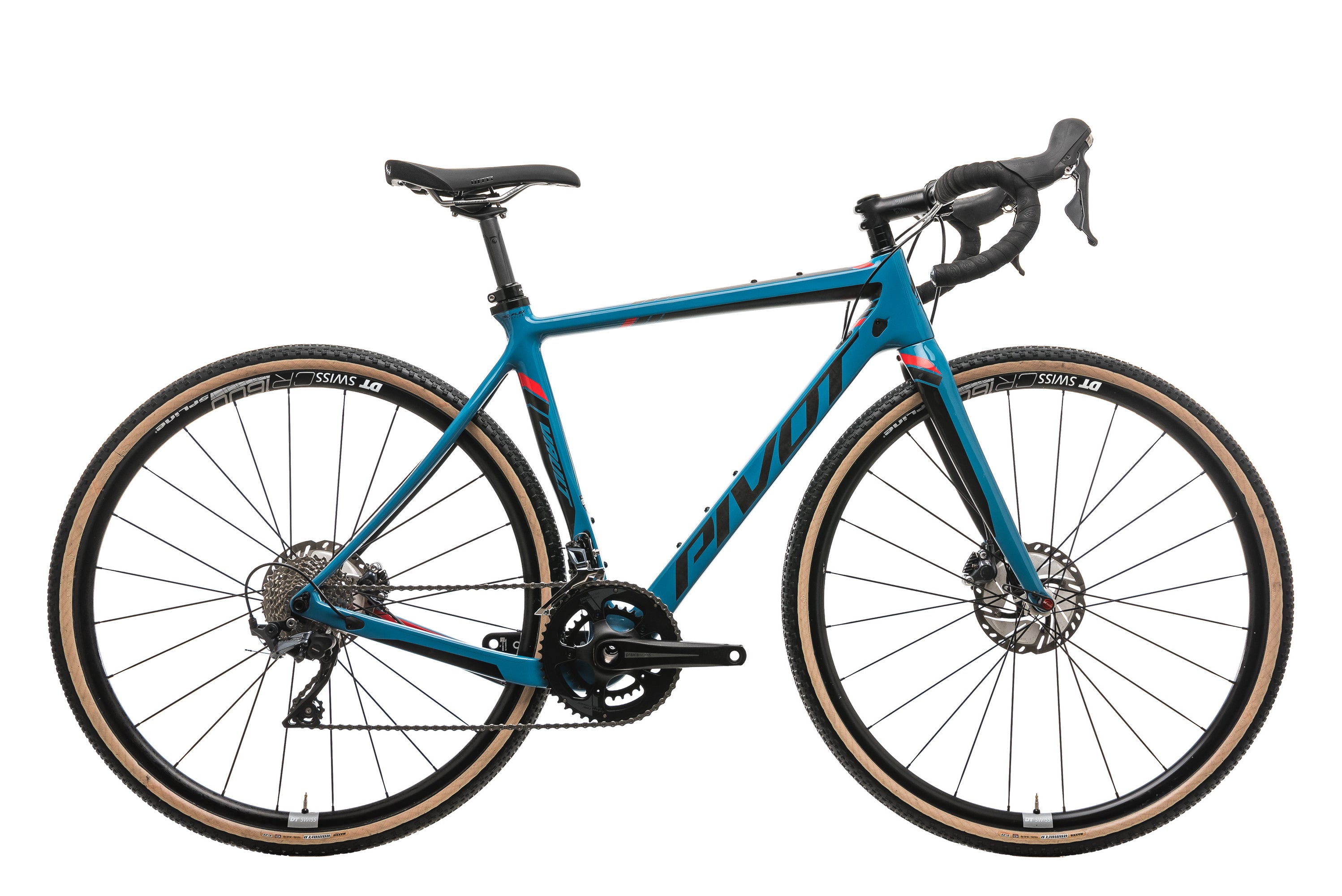

Pivot Vault Gravel Bike - 2020, Small

Recommended Rider Height: N/A Size Guide
Regular price

return icon 30-day returns
shipping icon $94.99 RideFast Shipping

This bicycle is backed by the TPC Quality Assurance program.

This bicycle has been professionally serviced by our mechanics.

Light wear and tear from cable rub, heel rub, chain, etc.

Paint chip to underside of drive side chainstay.

inspection image

TPC Guarantee

This bike passed a 141-point inspection and received a full pro-tune by our Master Mechanics in our Certified Pre-Owned process. CPO bikes are pristine and ready to ride!

Learn more
returns image

30-Day Hassle-Free Returns

Shop with confidence. Every bike is covered by our 30-day satisfaction guarantee. If this bike isn’t perfect for you, get in touch and we’ll help you find the right bike.

Learn more
shipping image

RideFast Shipping

Bikes ship in our custom RideFast box, and assembly is incredibly simple. Most novice riders can assemble their bike in 5 minutes or less. The tools you need to assemble are also included.

Learn more

Specifications

Year 2020
Brand Pivot
Model Vault
Size Small
Frame Material Carbon Fiber
Weight 19 lbs 8 oz
Fork Pivot Vault Carbon Disc, Carbon Fiber
Brakes Shimano Ultegra R8070, Disc Brakes - Hydraulic
Shifters Shimano Ultegra R8000, Mechanical
Front Derailleur Shimano Ultegra R8000

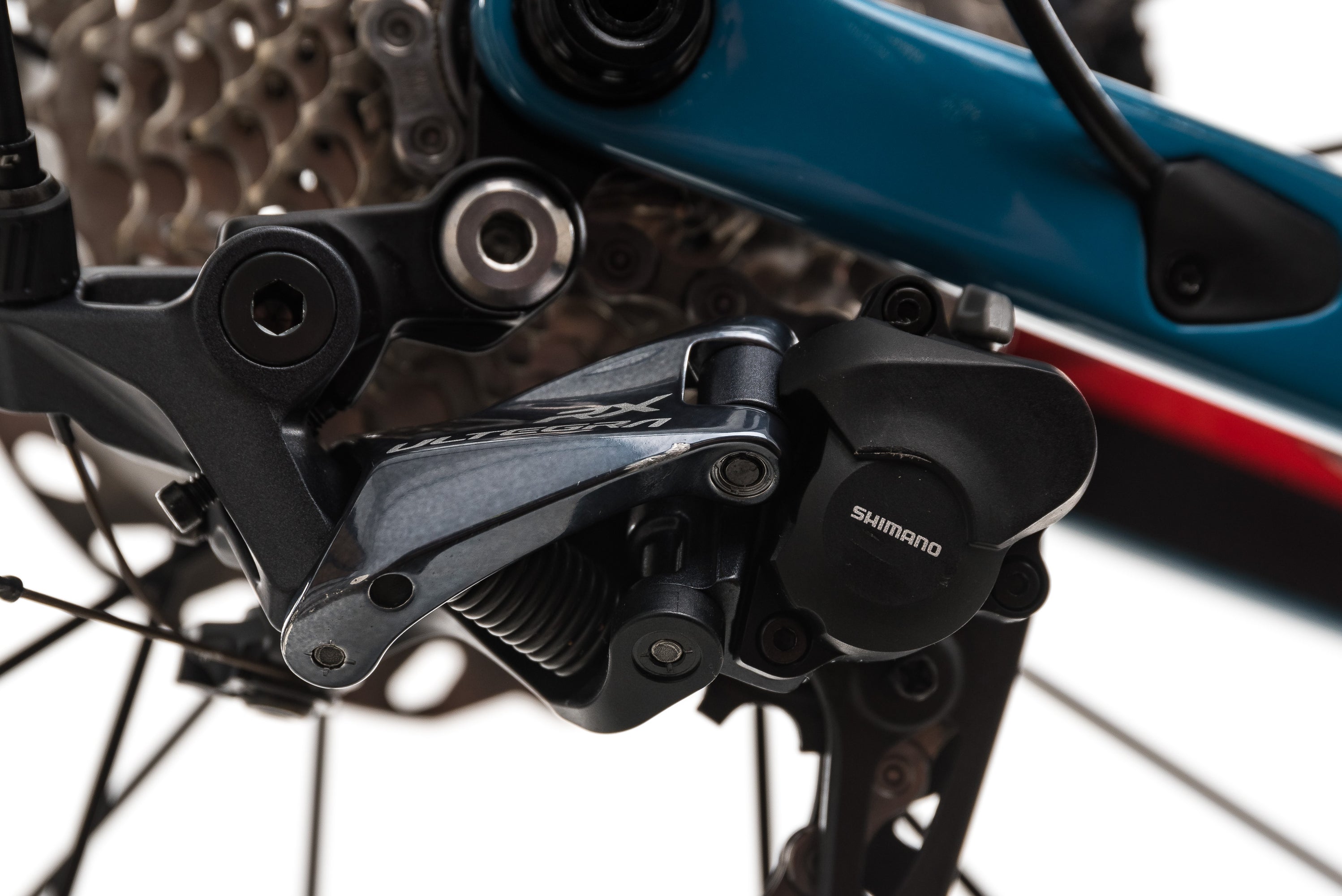

Rear Derailleur Shimano Ultegra RX800

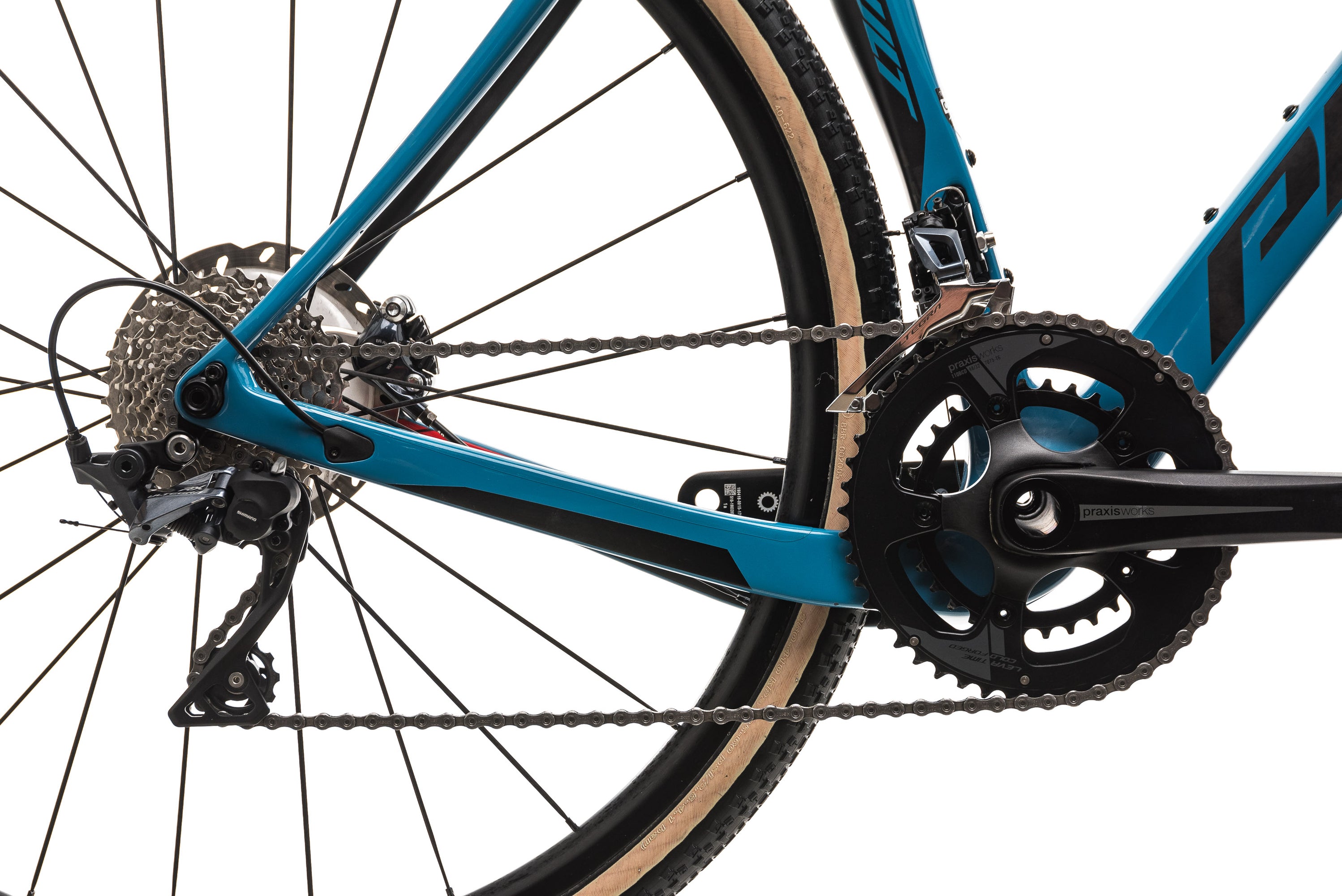

Crankset Praxis Zayante M30 hollow forged alloy, 48/32t, 170 mm
Cassette Shimano 105 R7000, 11spd, 11-32t
Chain Shimano HG-X11

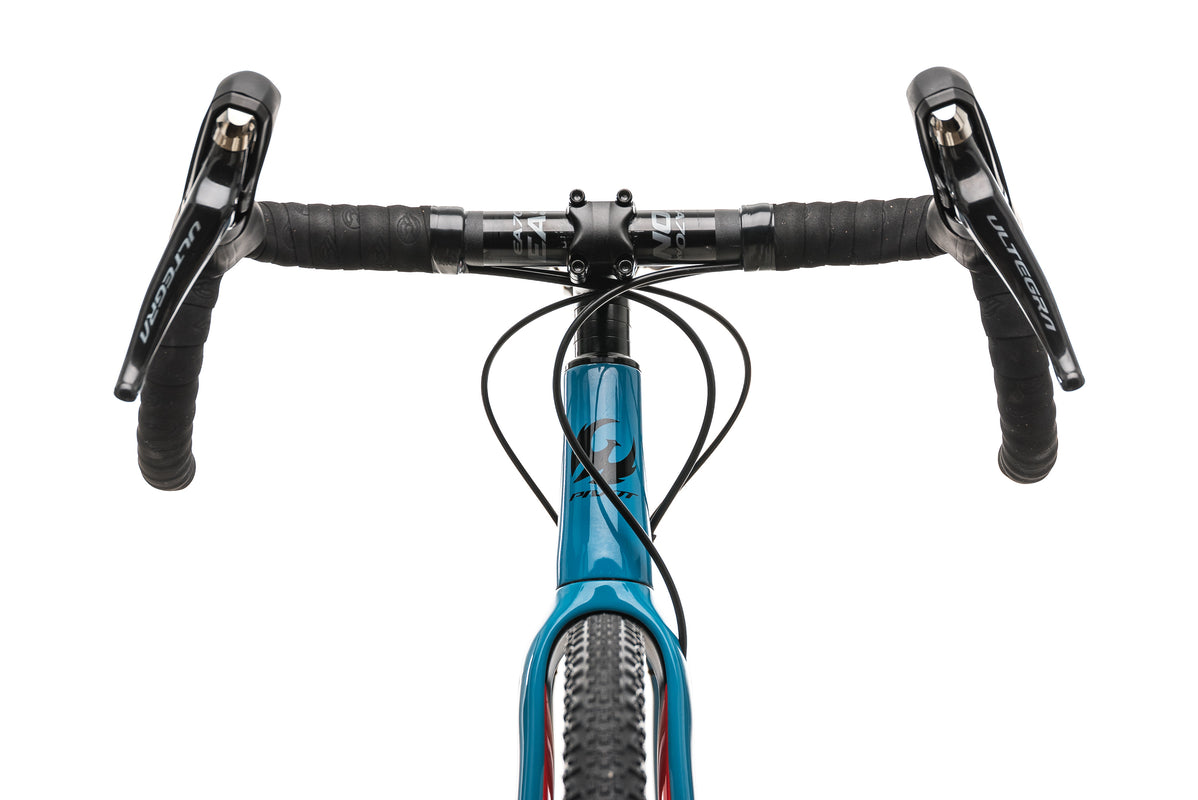

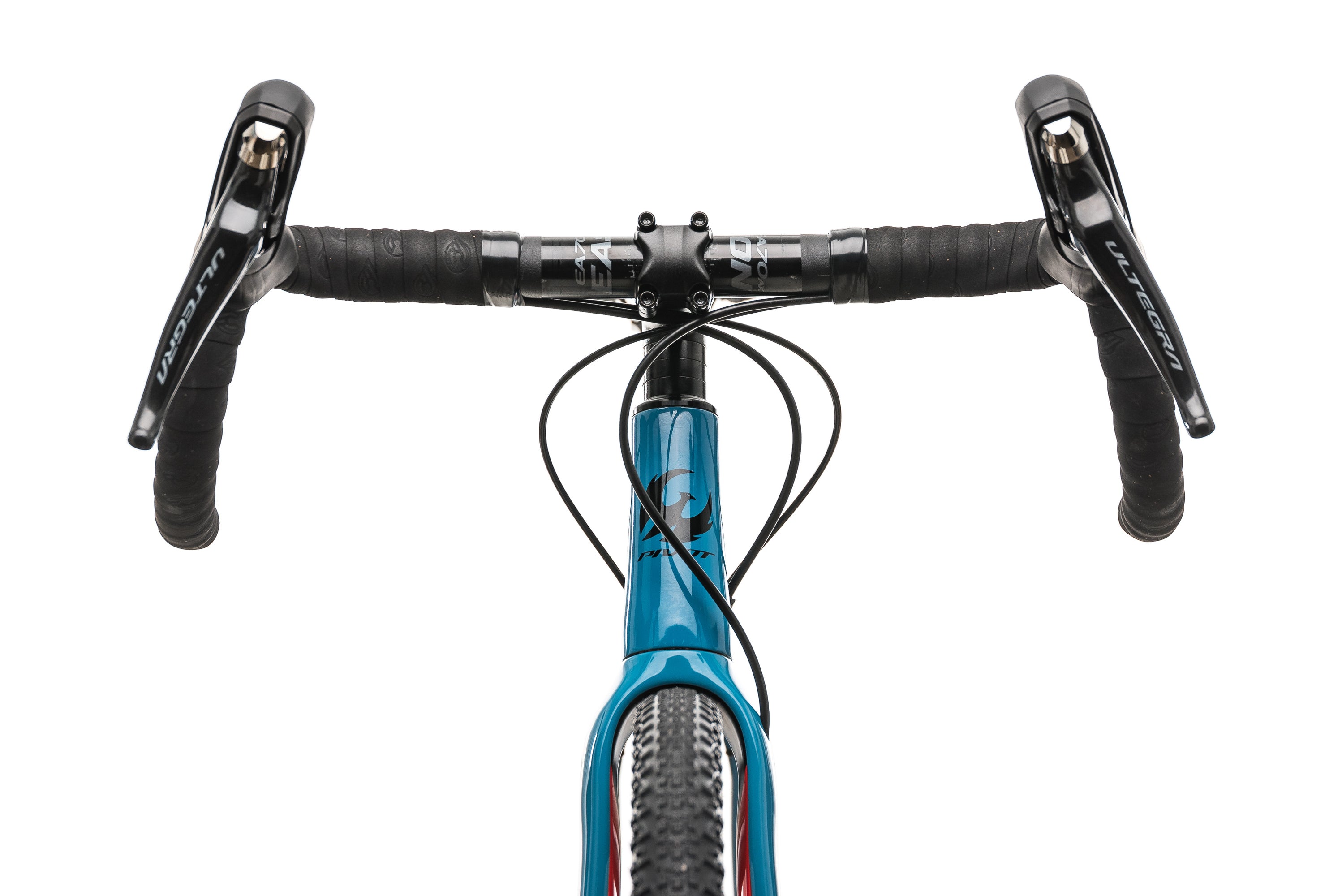

Handlebar Easton EA70 AX alloy w/ 16 degree flare, 40 cm
Headset Pivot integrated
Stem Pivot Phoenix Team alloy 31.8 mm x 90mm, 6°
Seatpost Pivot Phoenix Pro Carbon, 27.2mm
Saddle WTB Volt Pivot Custom w/ Cr-Mo rails

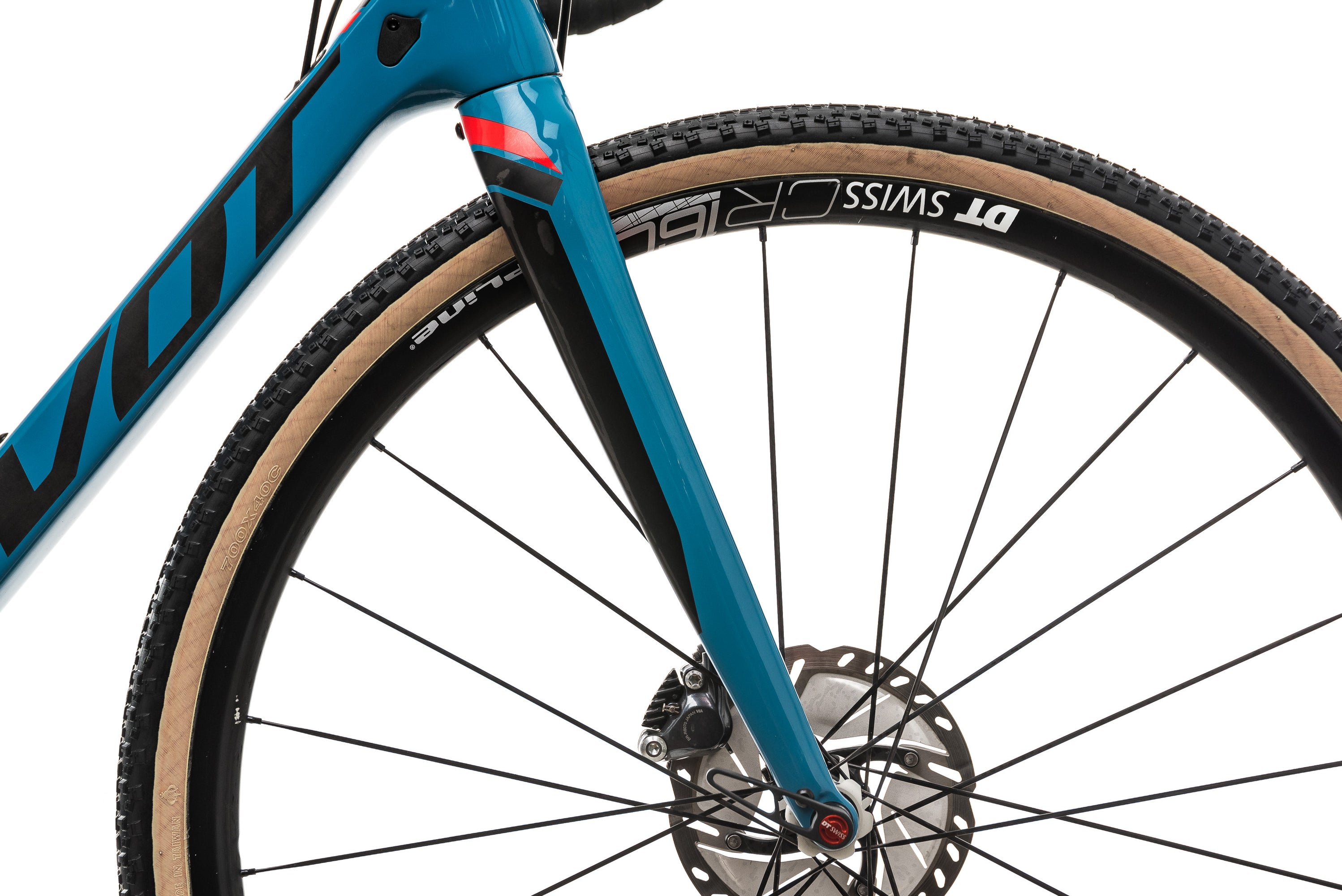

Wheelset DT Swiss CR 1600 Spline aluminum, DT Swiss Spline
Front Tire Maxxis Rambler EXO TR, 700C x 40C
Rear Tire Maxxis Rambler EXO TR, 700C x 40C
Tire Type Tubeless
Tubeless Compatibility Bike Ships Tubeless

Geometry

Recommended Rider Height N/A
a. Effective Top Tube 538 mm
b. Seat Tube 528 mm
c. Seat Tube Angle 74.0°
d. Head Tube Angle 71.5°
e. Head Tube 130 mm
f. Stack 549 mm
g. Reach 381 mm
h. Standover Height 766 mm
i. Saddle Height Range N/A
