Sorry, this Pivot Vault Gravel Bike - 2019, Small has been sold.

Try these similar items:

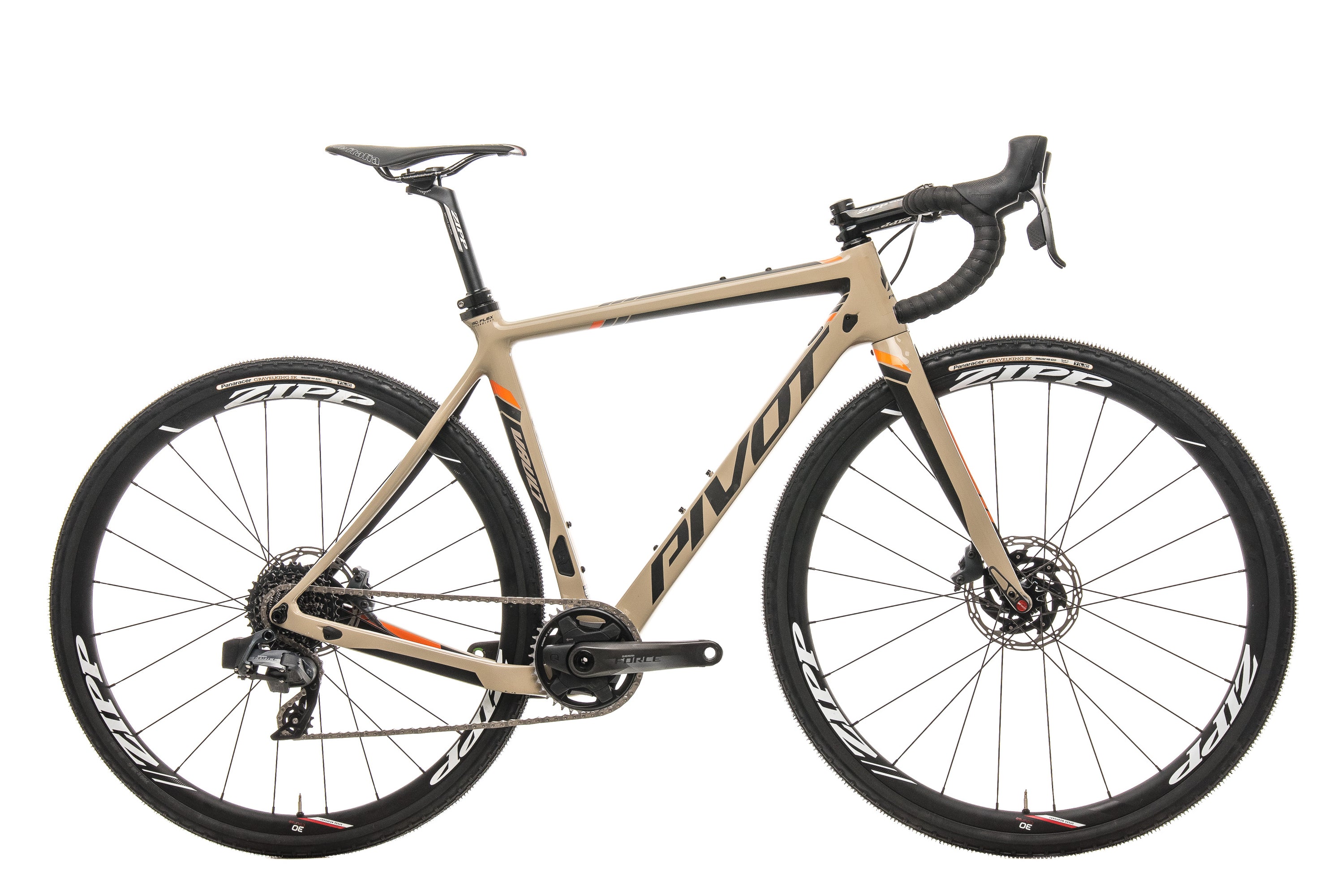

Pivot Vault Gravel Bike - 2019, Small drive side

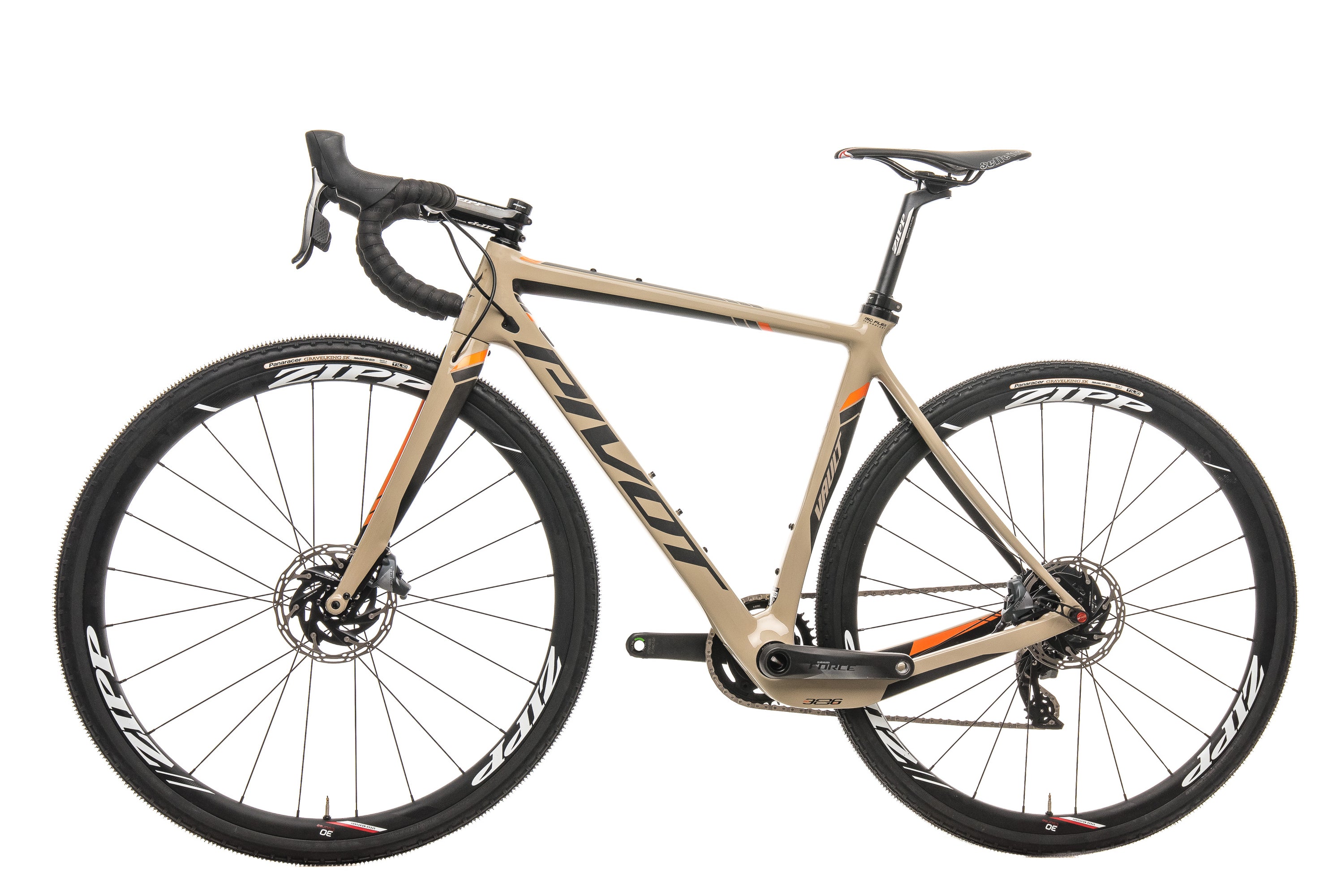

Pivot Vault Gravel Bike - 2019, Small non-drive side

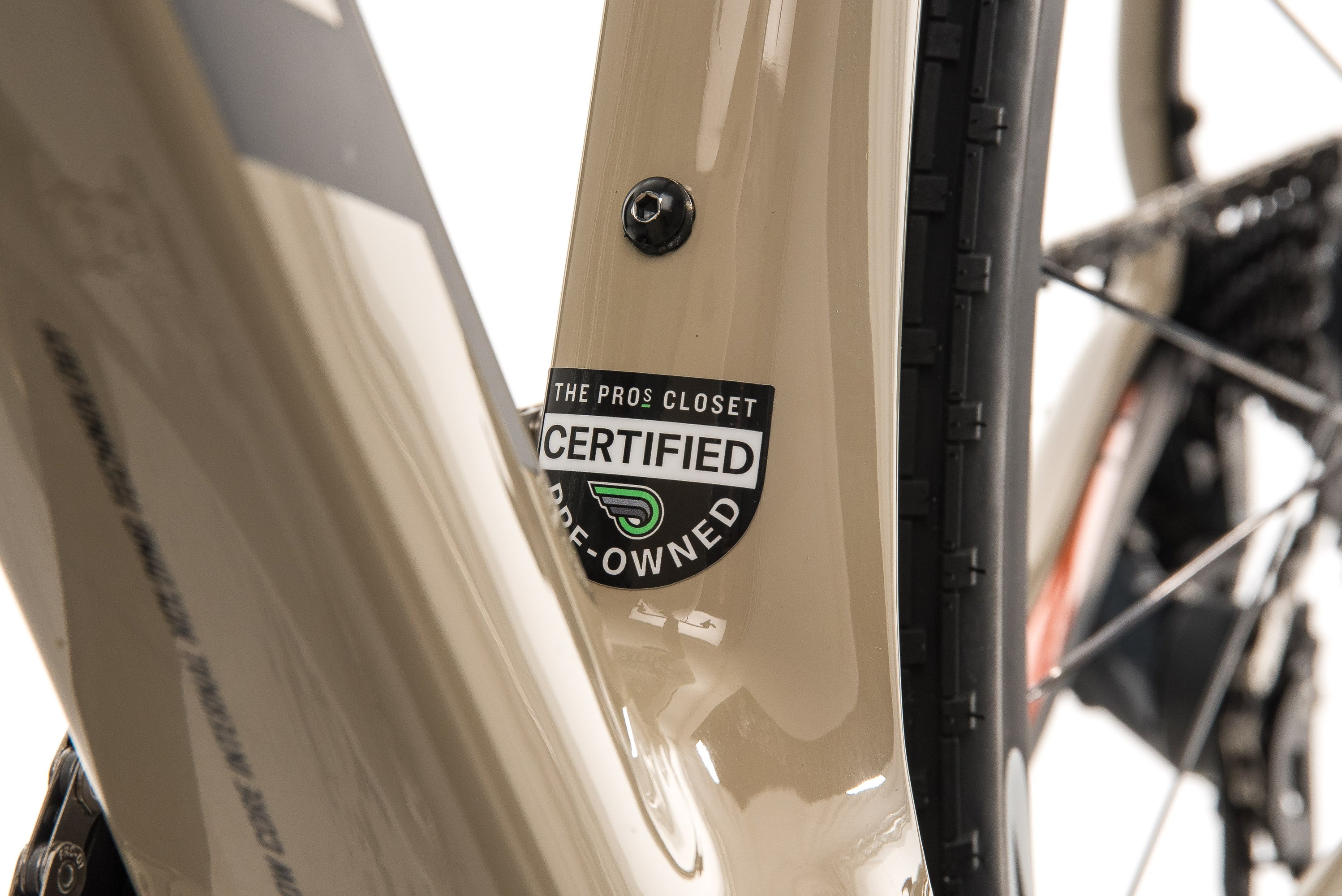

Pivot Vault Gravel Bike - 2019, Small sticker

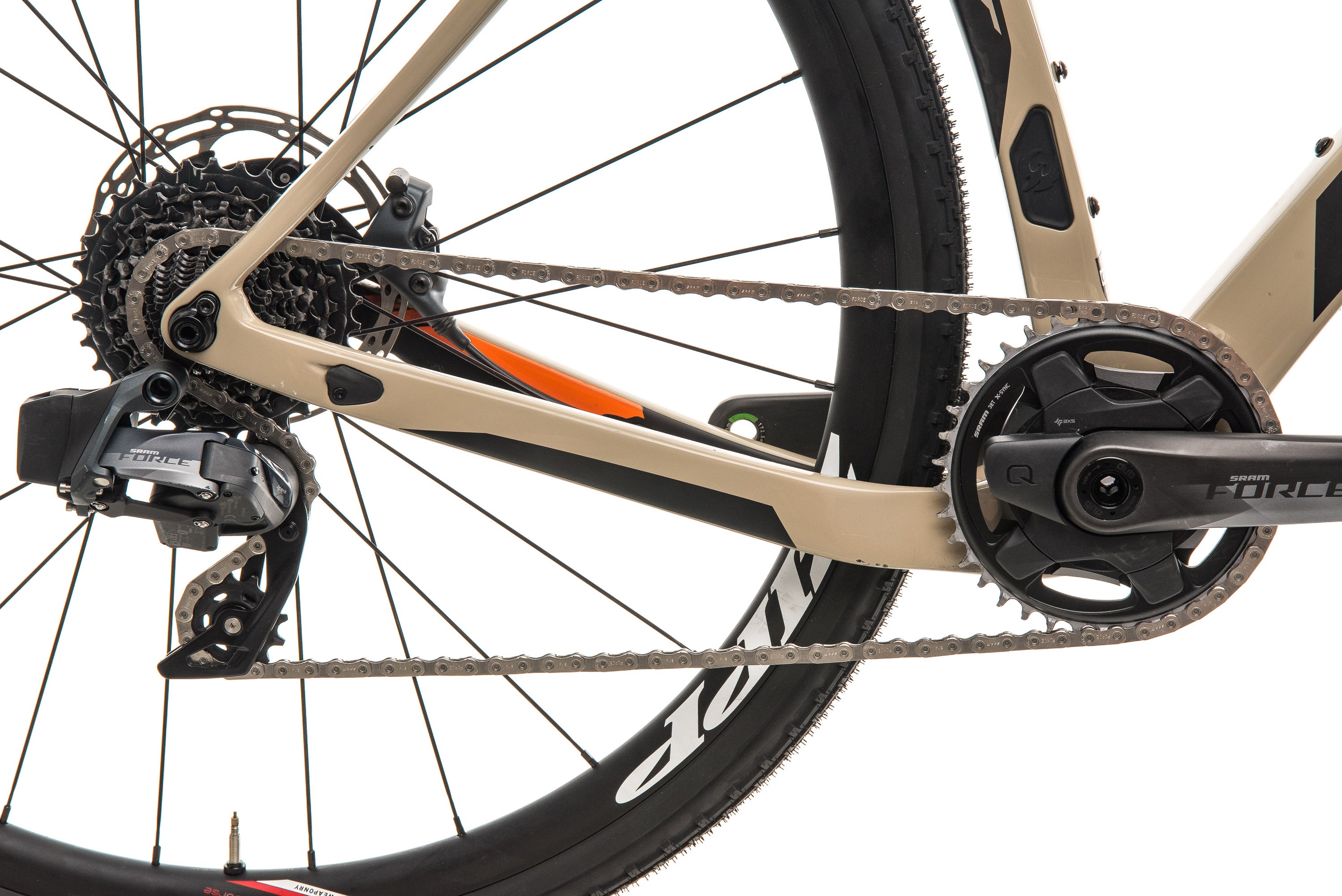

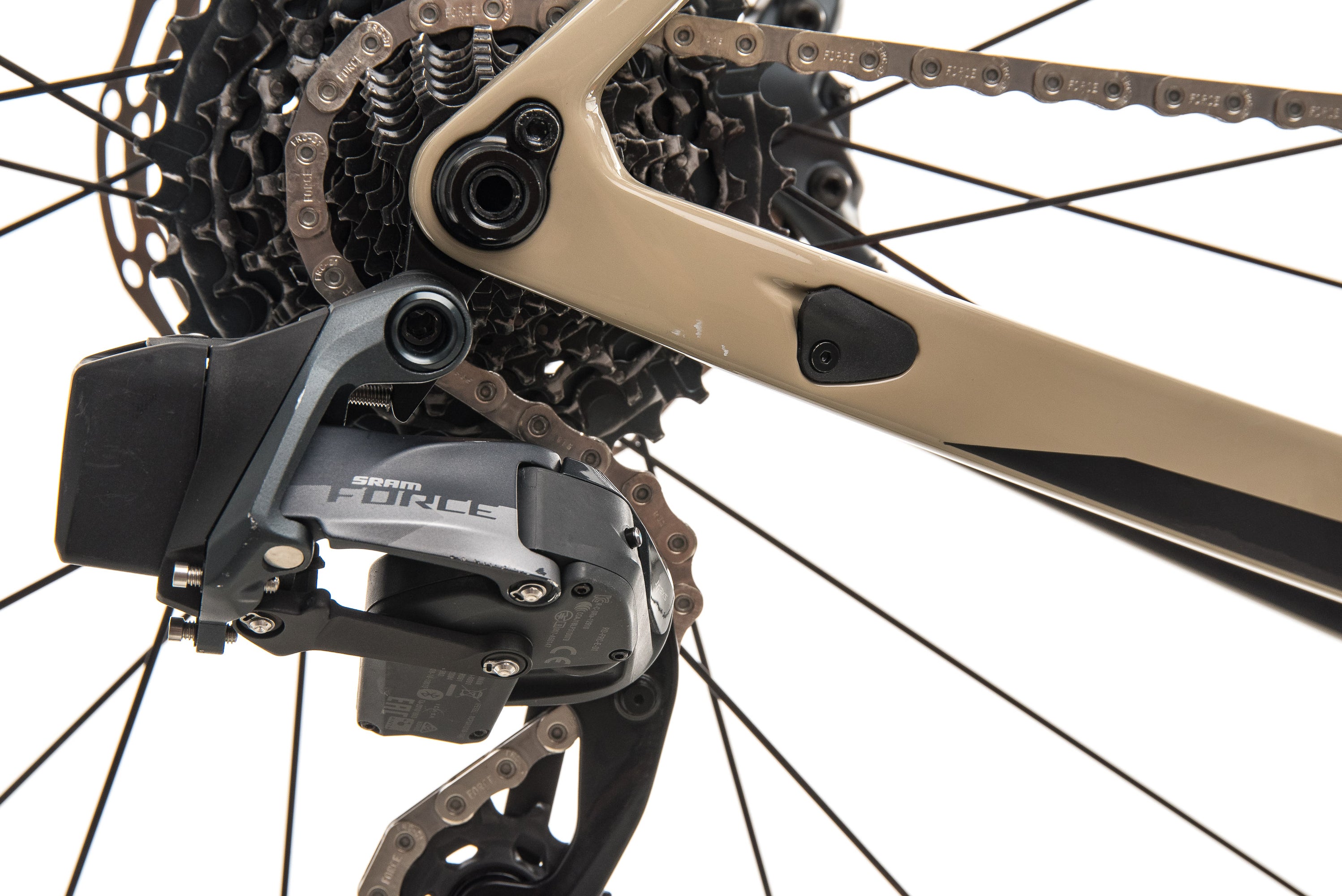

Pivot Vault Gravel Bike - 2019, Small drivetrain

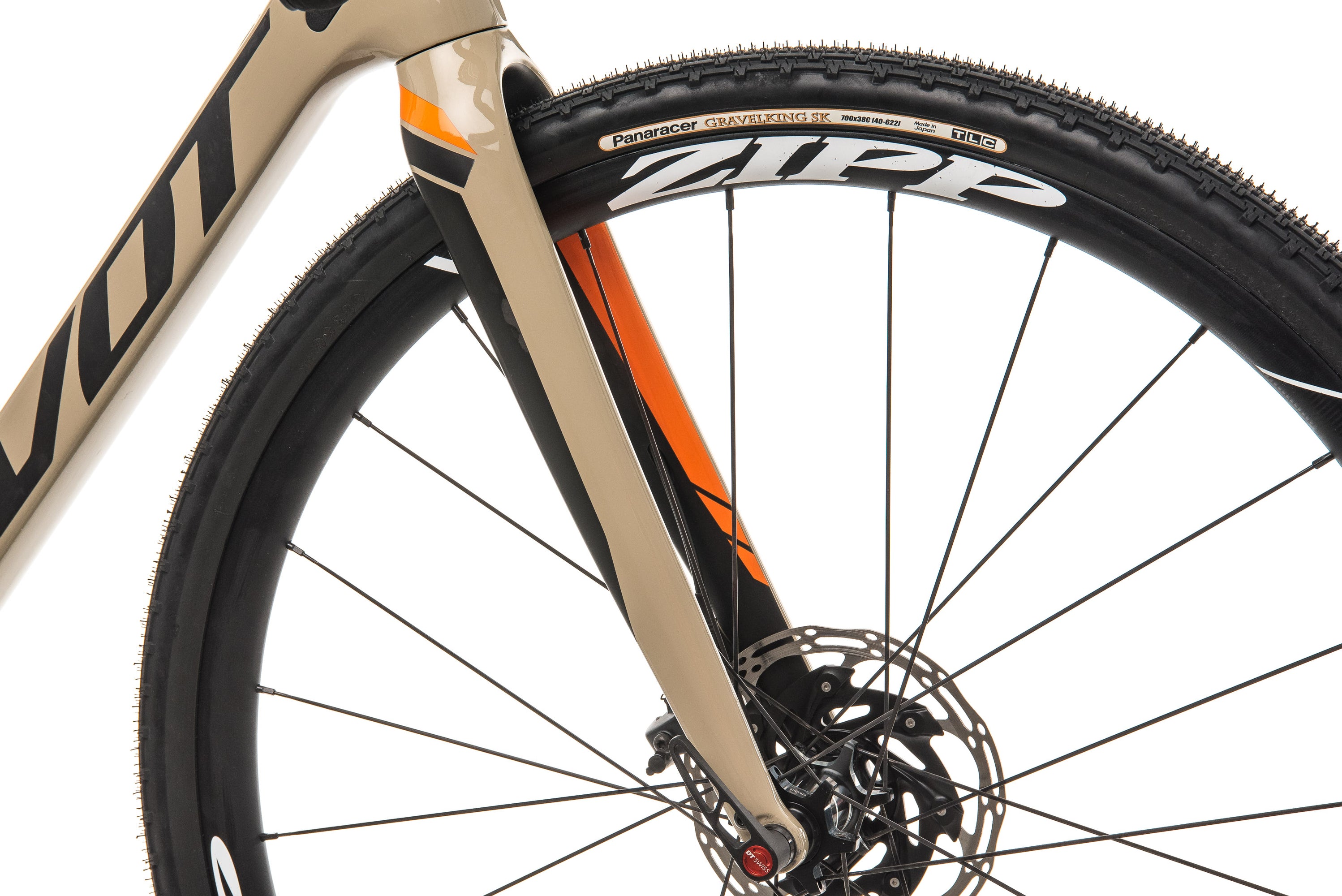

Pivot Vault Gravel Bike - 2019, Small front wheel

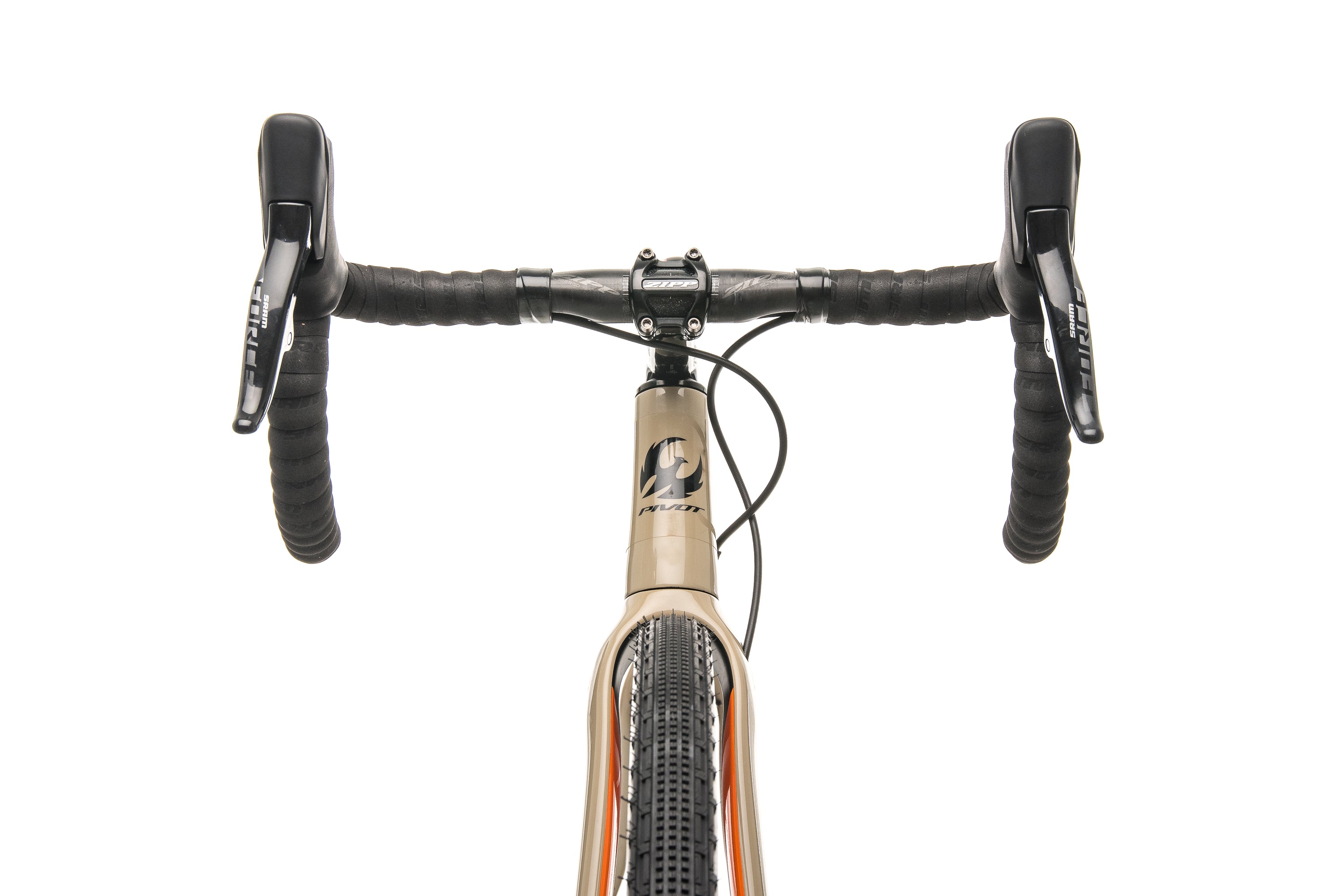

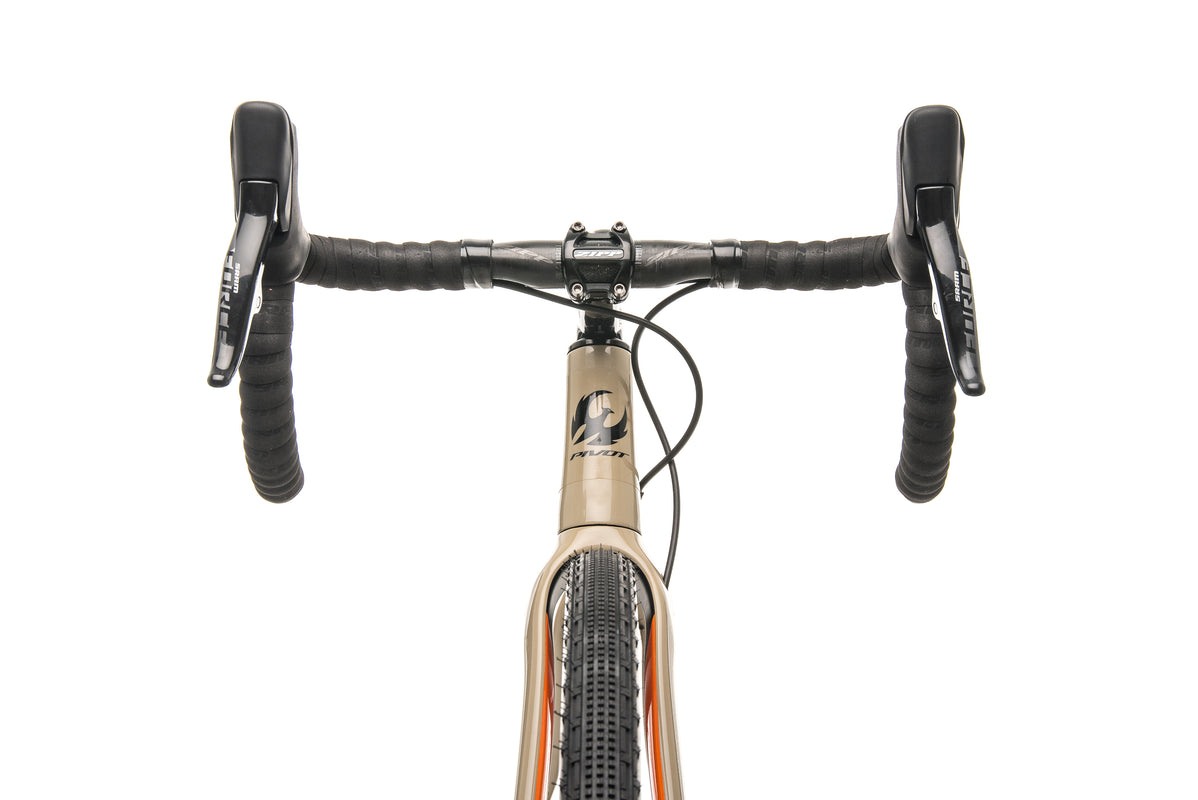

Pivot Vault Gravel Bike - 2019, Small cockpit

Pivot Vault Gravel Bike - 2019, Small crank

Pivot Vault Gravel Bike - 2019, Small drive side

Pivot Vault Gravel Bike - 2019, Small non-drive side

Pivot Vault Gravel Bike - 2019, Small sticker

Pivot Vault Gravel Bike - 2019, Small drivetrain

Pivot Vault Gravel Bike - 2019, Small front wheel

Pivot Vault Gravel Bike - 2019, Small cockpit

Pivot Vault Gravel Bike - 2019, Small crank

Pivot Vault Gravel Bike - 2019, Small

Item #BCY12074

Recommended Rider Height: N/A Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2019
Brand	Pivot
Model	Vault
Size	Small
Frame Material	Carbon Fiber
Weight	18 lbs 1 oz

Build

Fork	Pivot Vault, Carbon Fiber
Brakes	SRAM Force AXS, Disc Brakes - Hydraulic
Shifters	SRAM Force eTap AXS, Electronic
Front Derailleur	N/A
Rear Derailleur	SRAM Force eTap AXS
Crankset	SRAM Force AXS Power Meter DUB Carbon, We only purchase premium power meters in good condition, but due to the sensitivity of these devices, we cannot guarantee battery life, accuracy, or calibration., 38t, 172.5 mm
Cassette	SRAM Force AXS XG-1270, 12spd, 10-33t
Chain	SRAM
Handlebar	Zipp SL 70 Ergo Carbon, 40 cm
Headset	Integrated
Stem	Zipp Service Course SL Alloy 31.8 mm x 110mm, 7°
Seatpost	Zipp Service Course Alloy, 27.2mm
Saddle	Selle Italia SLR Manganese Rails
Wheelset	Zipp 30 Course Alloy, Zipp Alloy
Front Tire	Panaracer Gravel King SK TLC, 700C x 38C
Rear Tire	Panaracer Gravel King SK TLC, 700C x 38C
Tire Type	Tubeless
Tubeless Compatibility	Bike Ships Tubeless
Charger Included	Yes

Geometry

Recommended Rider Height	N/A Sizing Guide
a. Effective Top Tube	538 mm
b. Seat Tube	528 mm
c. Seat Tube Angle	74°
d. Head Tube Angle	71.5°
e. Head Tube	130 mm
f. Stack	549 mm
g. Reach	381 mm
h. Standover Height	766 mm
i. Saddle Height Range	N/A

Pivot Vault Gravel Bike - 2019, Small

Item #BCY12074

Recommended Rider Height: N/A Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
