Sorry, this Lightweight Urgestalt Rim 51cm Frameset - 2019 has been sold.

Try these similar items:

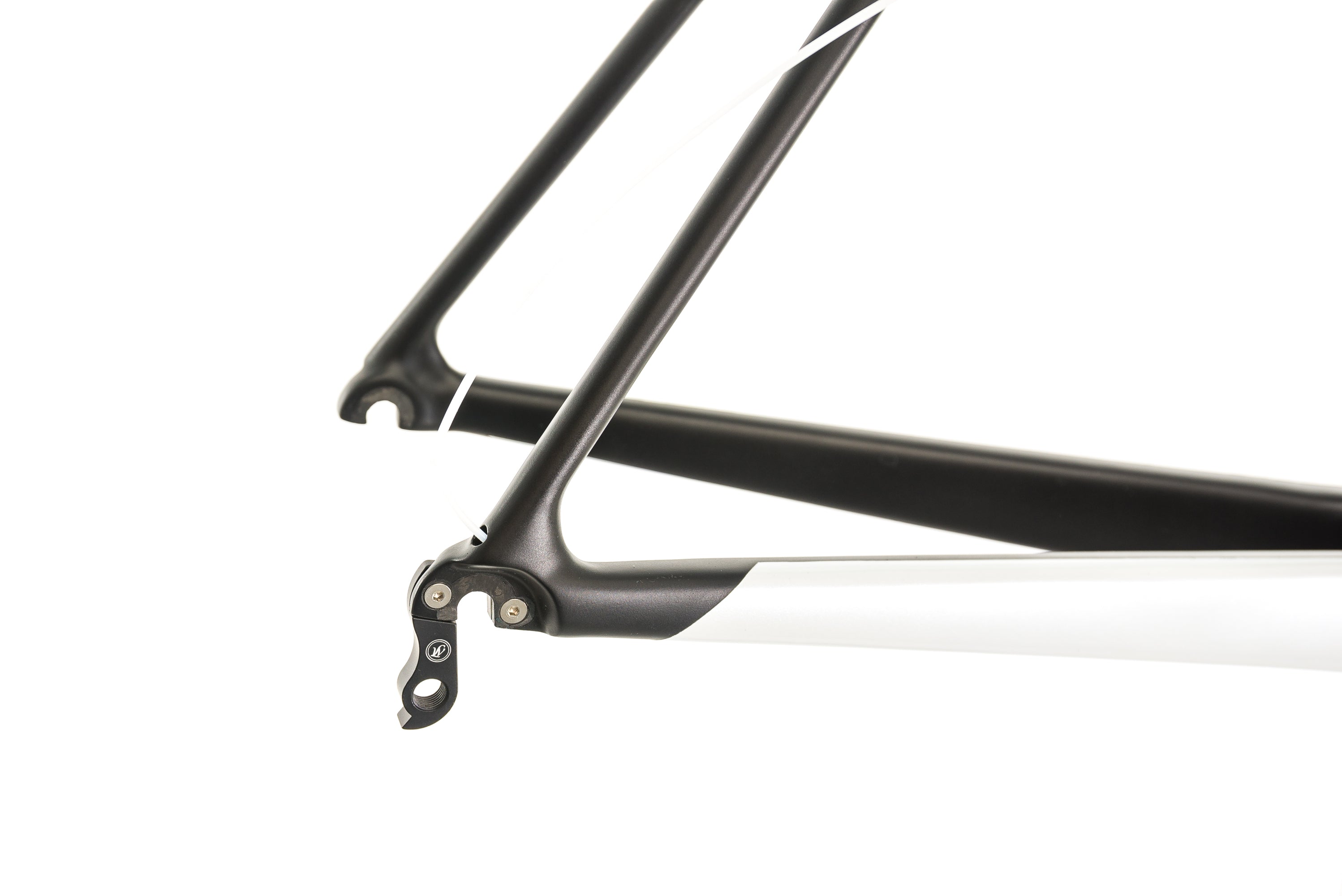

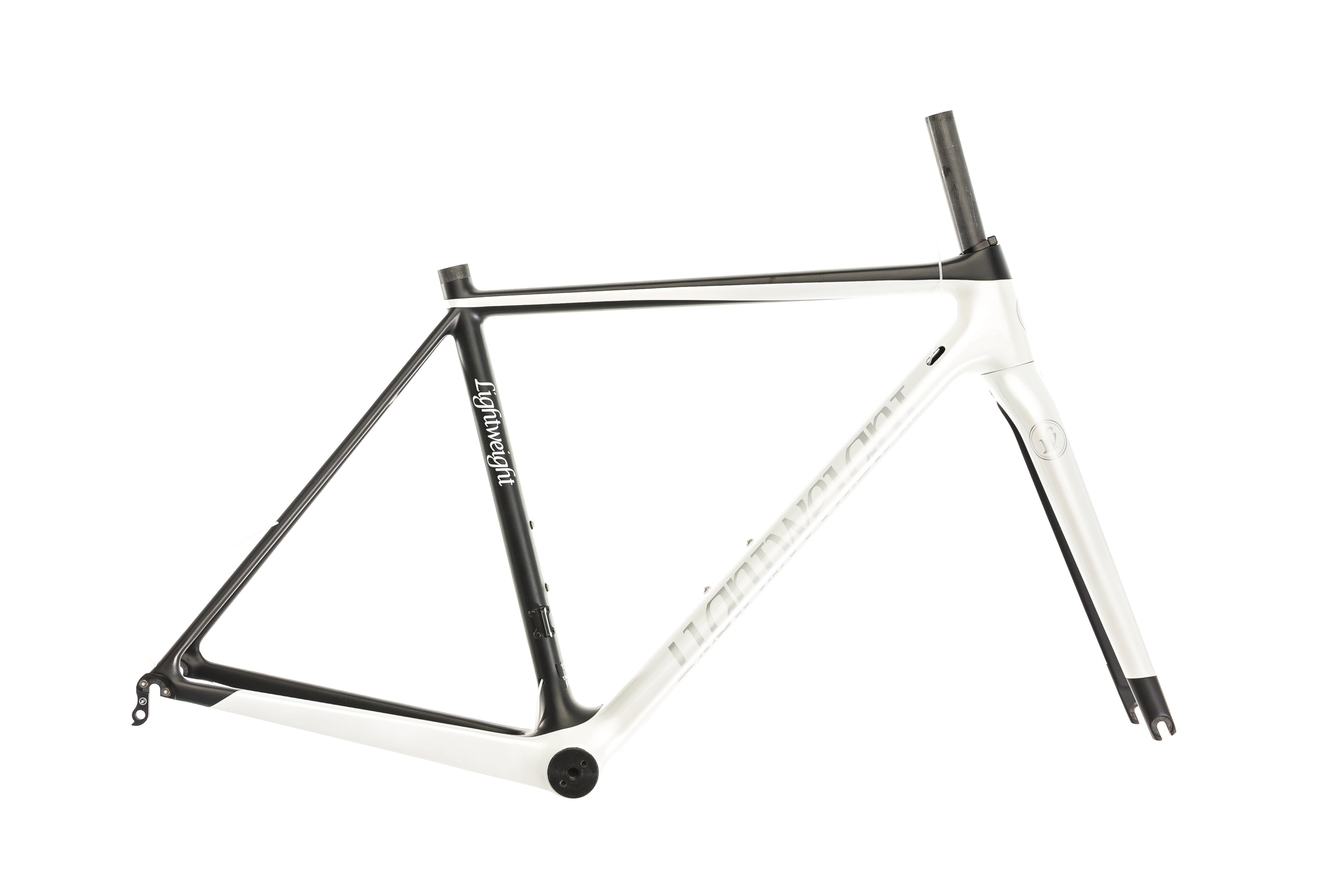

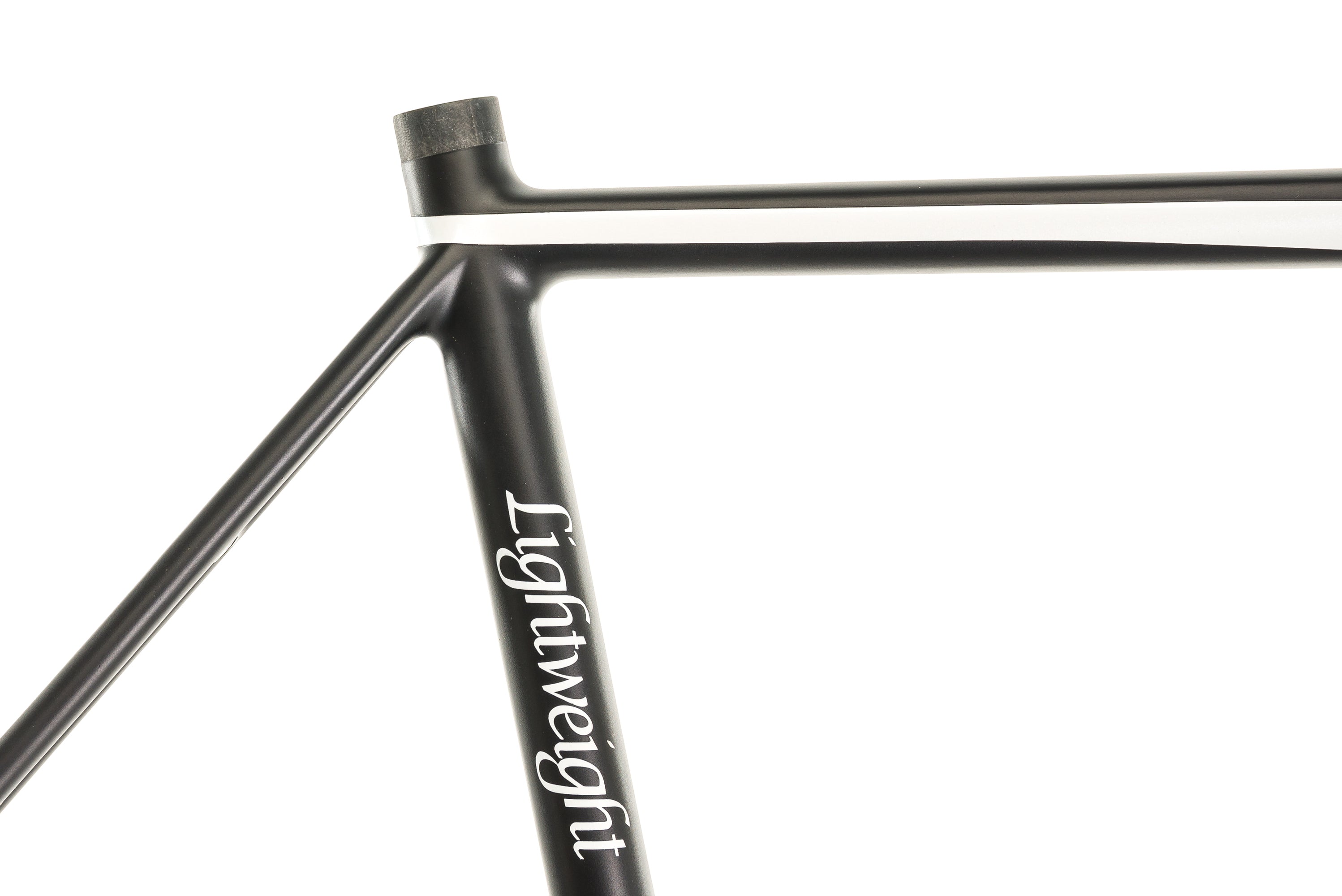

Lightweight Urgestalt Rim 51cm Frameset - 2019 drive side

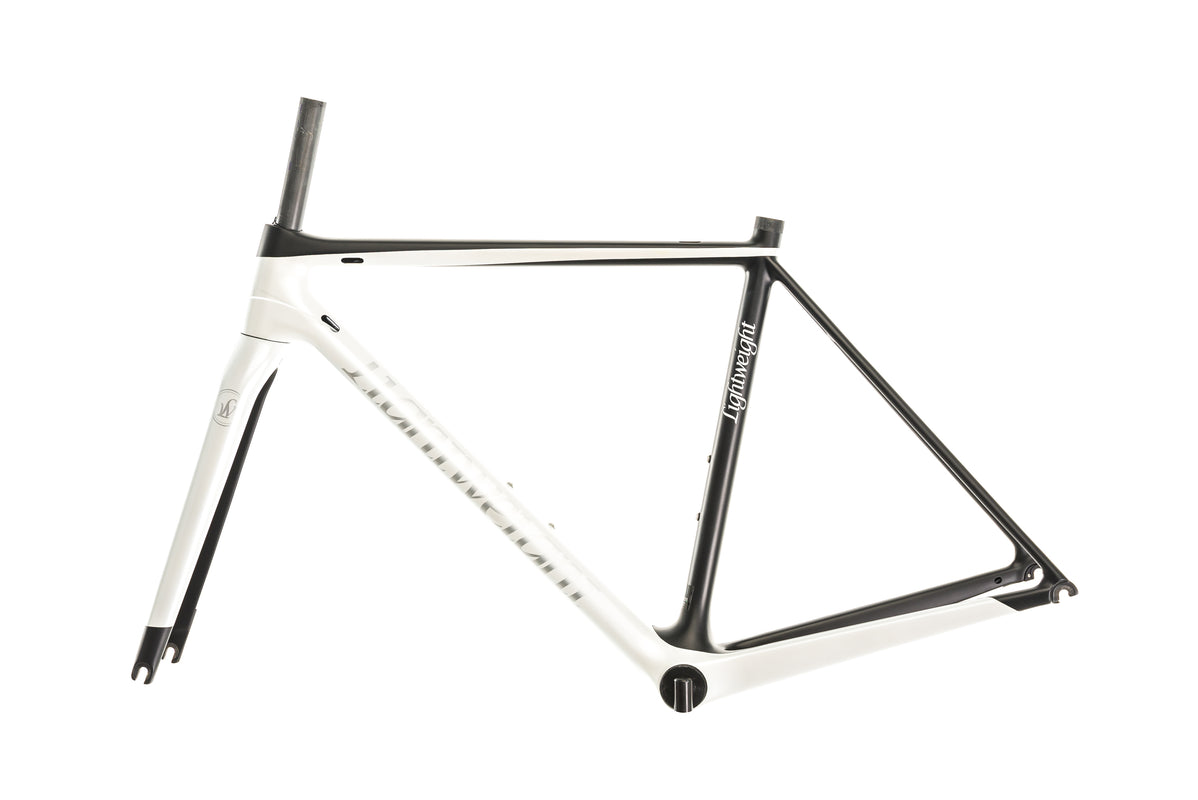

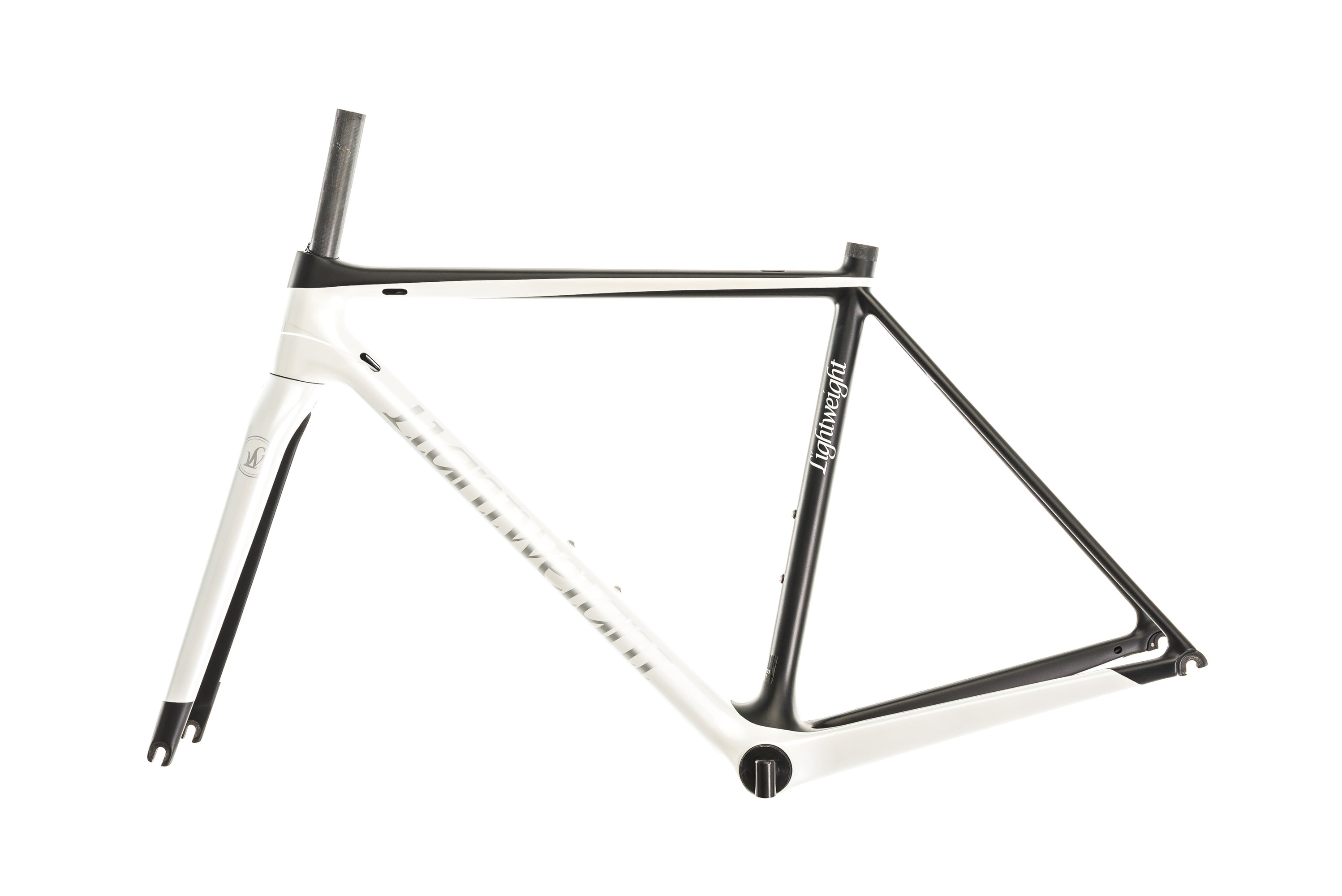

Lightweight Urgestalt Rim 51cm Frameset - 2019 non-drive side

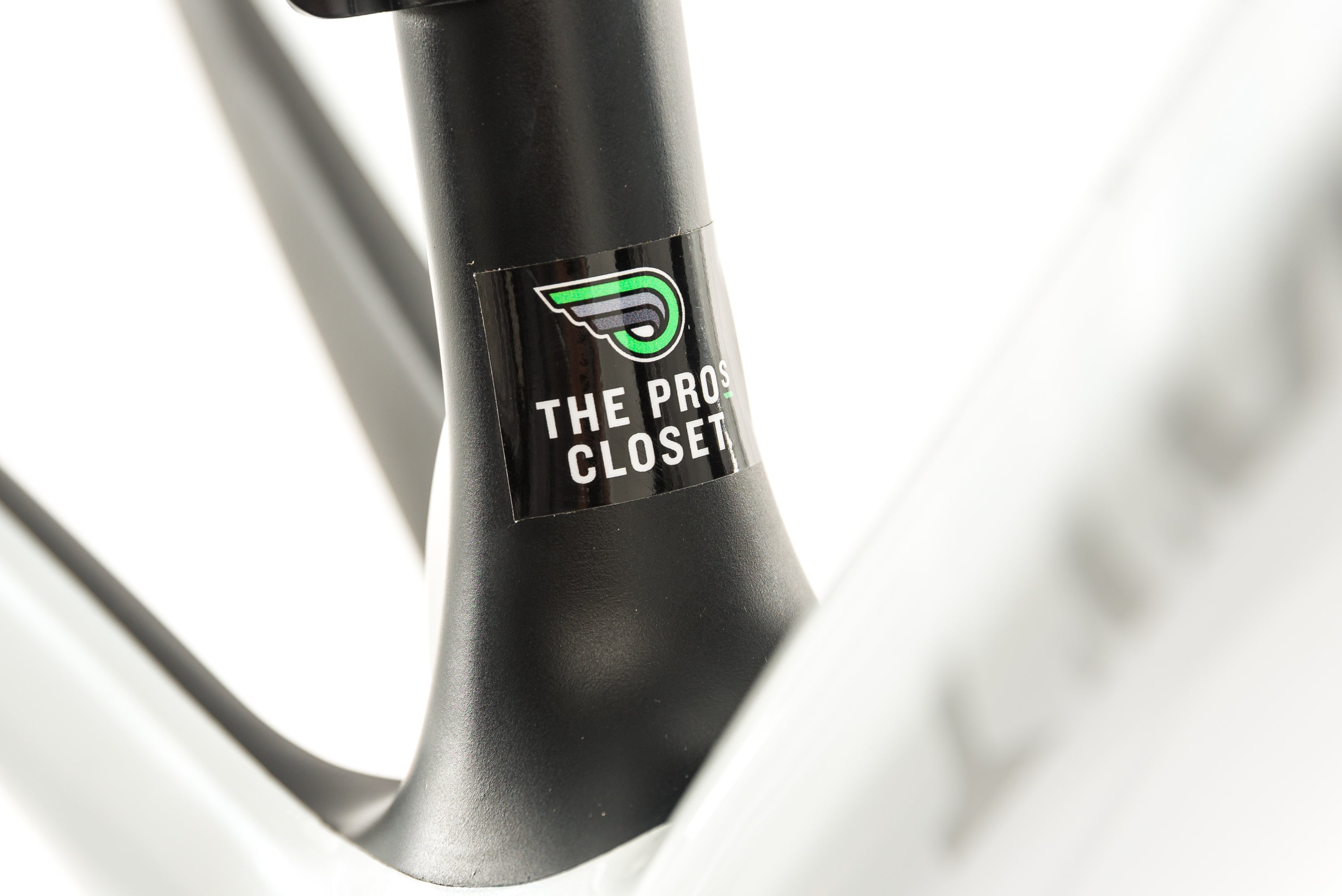

Lightweight Urgestalt Rim 51cm Frameset - 2019 sticker

Lightweight Urgestalt Rim 51cm Frameset - 2019 drivetrain

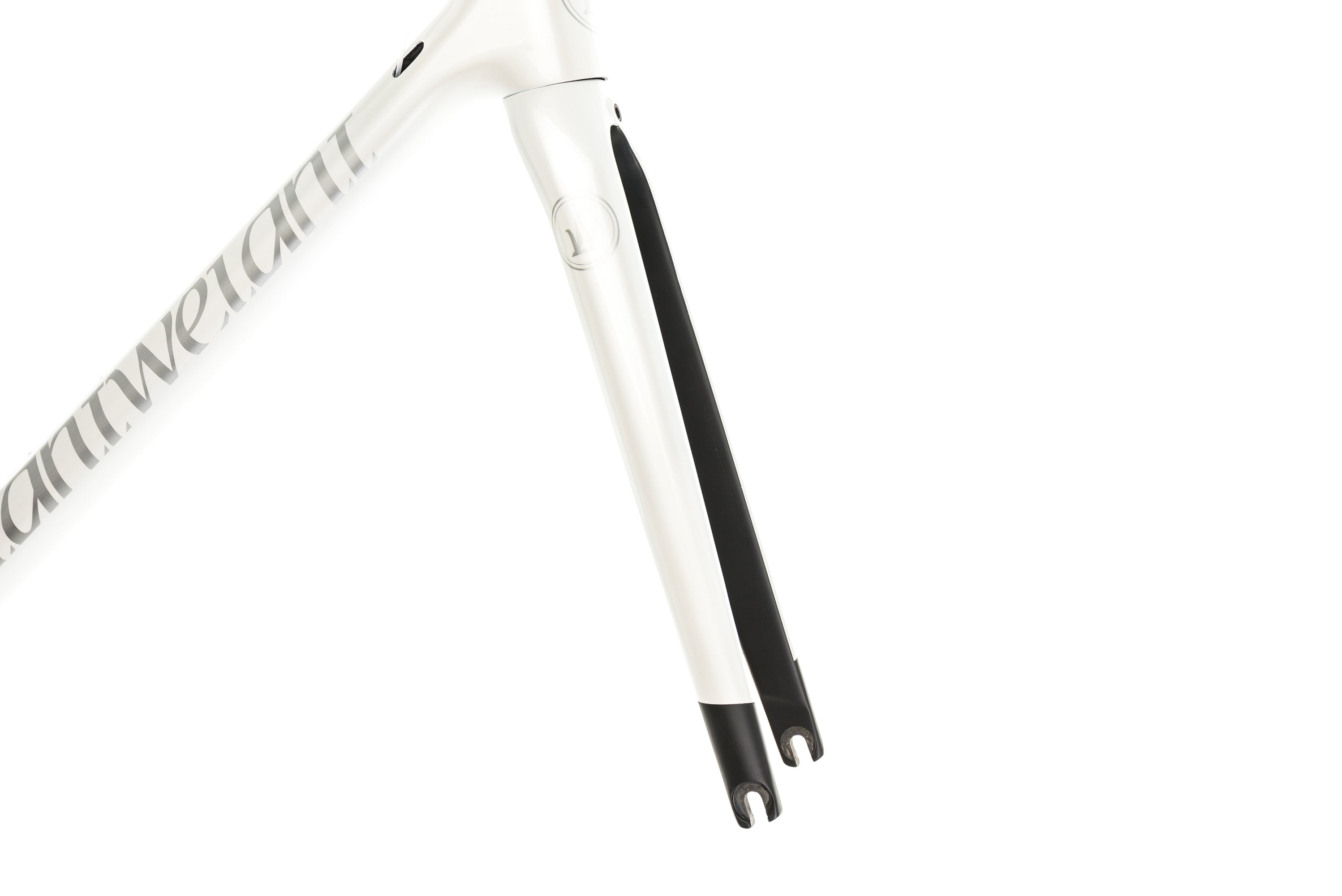

Lightweight Urgestalt Rim 51cm Frameset - 2019 front wheel

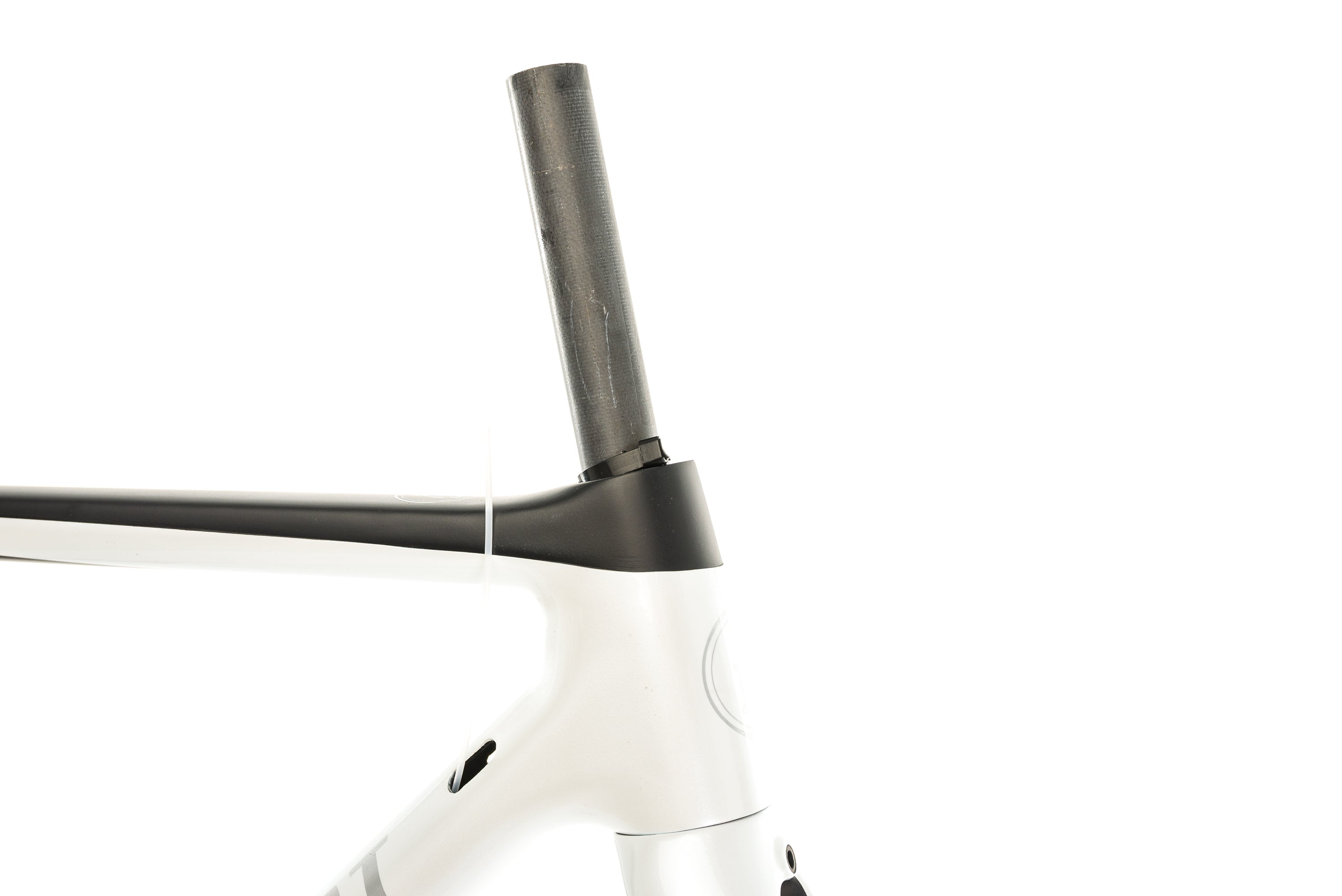

Lightweight Urgestalt Rim 51cm Frameset - 2019 cockpit

Lightweight Urgestalt Rim 51cm Frameset - 2019 crank

Lightweight Urgestalt Rim 51cm Frameset - 2019 drive side

Lightweight Urgestalt Rim 51cm Frameset - 2019 non-drive side

Lightweight Urgestalt Rim 51cm Frameset - 2019 sticker

Lightweight Urgestalt Rim 51cm Frameset - 2019 drivetrain

Lightweight Urgestalt Rim 51cm Frameset - 2019 front wheel

Lightweight Urgestalt Rim 51cm Frameset - 2019 cockpit

Lightweight Urgestalt Rim 51cm Frameset - 2019 crank

Lightweight Urgestalt Rim 51cm Frameset - 2019

Item #FRD10876

Recommended Rider Height: N/A Sizing Guide

Condition: NEW

SHIPPING

RETURNS

Specifications

Details

Year	2019
Brand	Lightweight
Model	Urgestalt Rim
Size	51cm
Frame Material	Carbon Fiber
Fork	Lightweight Urgestalt carbon, Carbon Fiber
Steerer Tube	260 mm, Tapered
Brake Type	Caliper - Center Pull
Front Derailleur Mount	Braze On
Headset	Included
Bottom Bracket	Not Included, BB386
Seatpost Diameter	27.2mm
Seatpost Clamp	Included
Front Axle Spacing	9x100mm (Quick Release)
Rear Axle Spacing	10x130mm (Quick Release)
Saddle Height Range	N/A
Weight	2 lbs 10 oz
Drivetrain Compatibility	Mechanical/Electronic

Geometry

Recommended Rider Height	N/A Sizing Guide
a. Effective Top Tube	530 mm
b. Seat Tube	510 mm
c. Seat Tube Angle	74.2°
d. Head Tube Angle	72.2°
e. Head Tube	120 mm
f. Stack	529.6 mm
g. Reach	380.2 mm
h. Standover Height	N/A
i. Saddle Height Range	N/A

Lightweight Urgestalt Rim 51cm Frameset - 2019

Item #FRD10876

Recommended Rider Height: N/A Sizing Guide

Condition: NEW

SHIPPING

RETURNS

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
