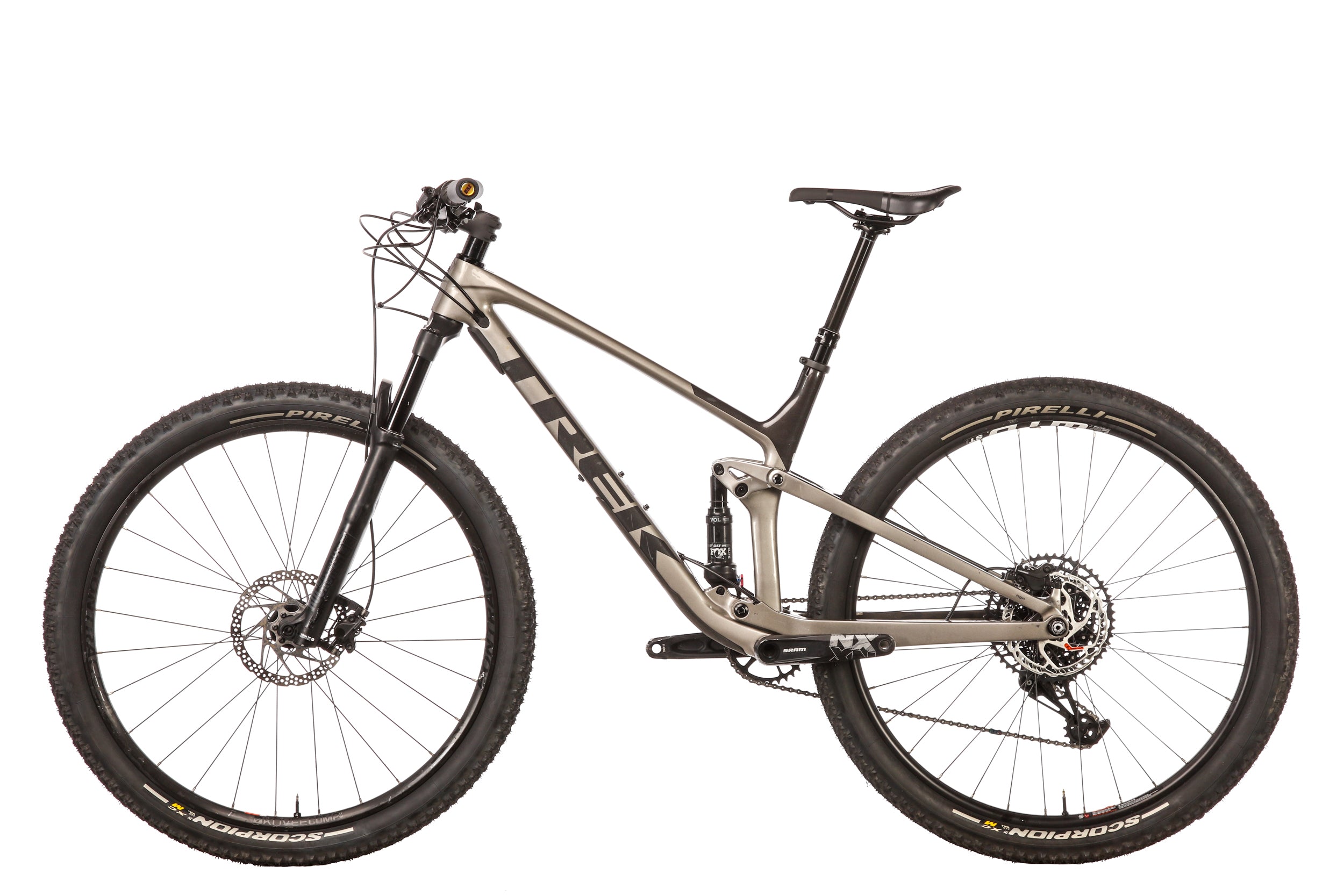

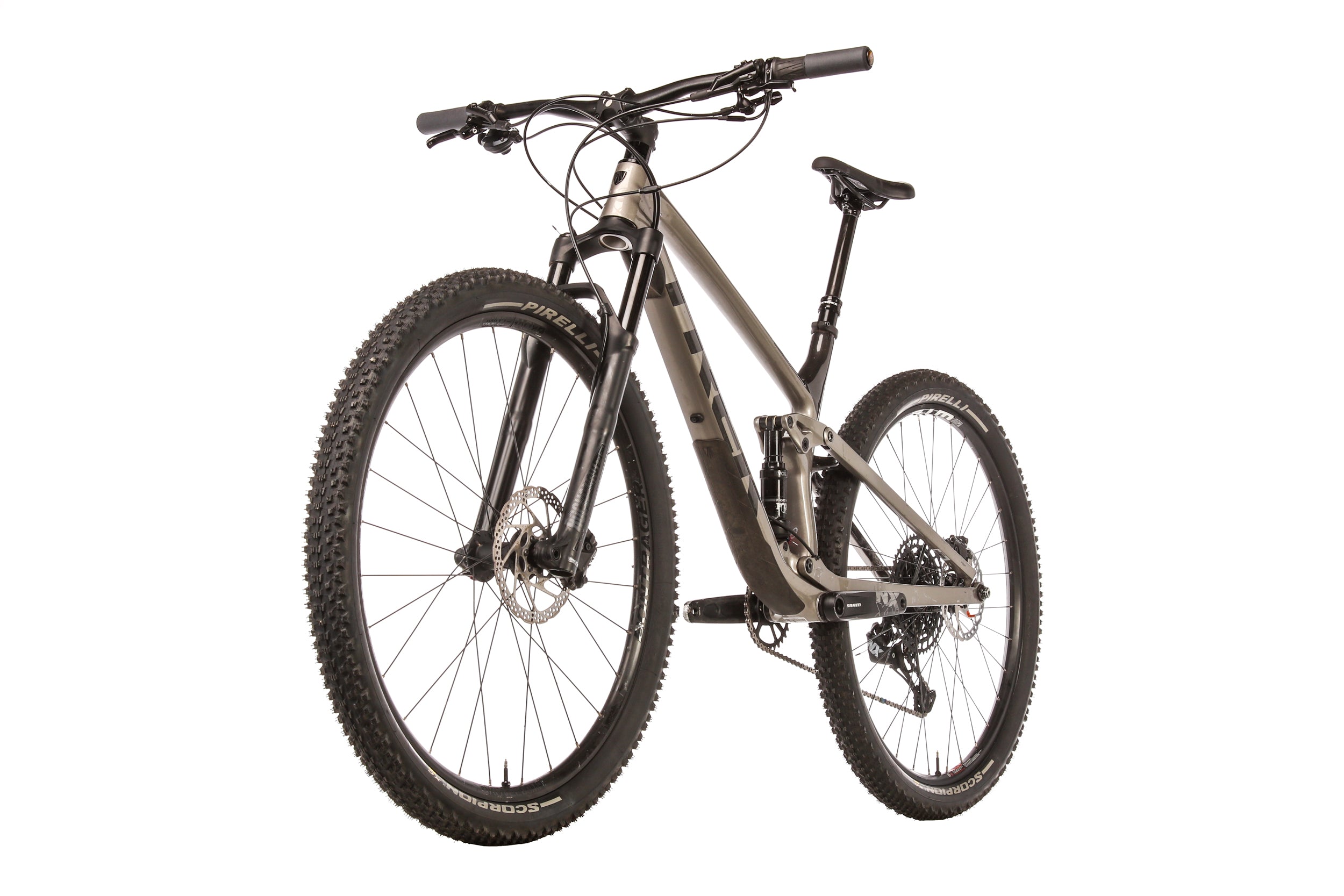

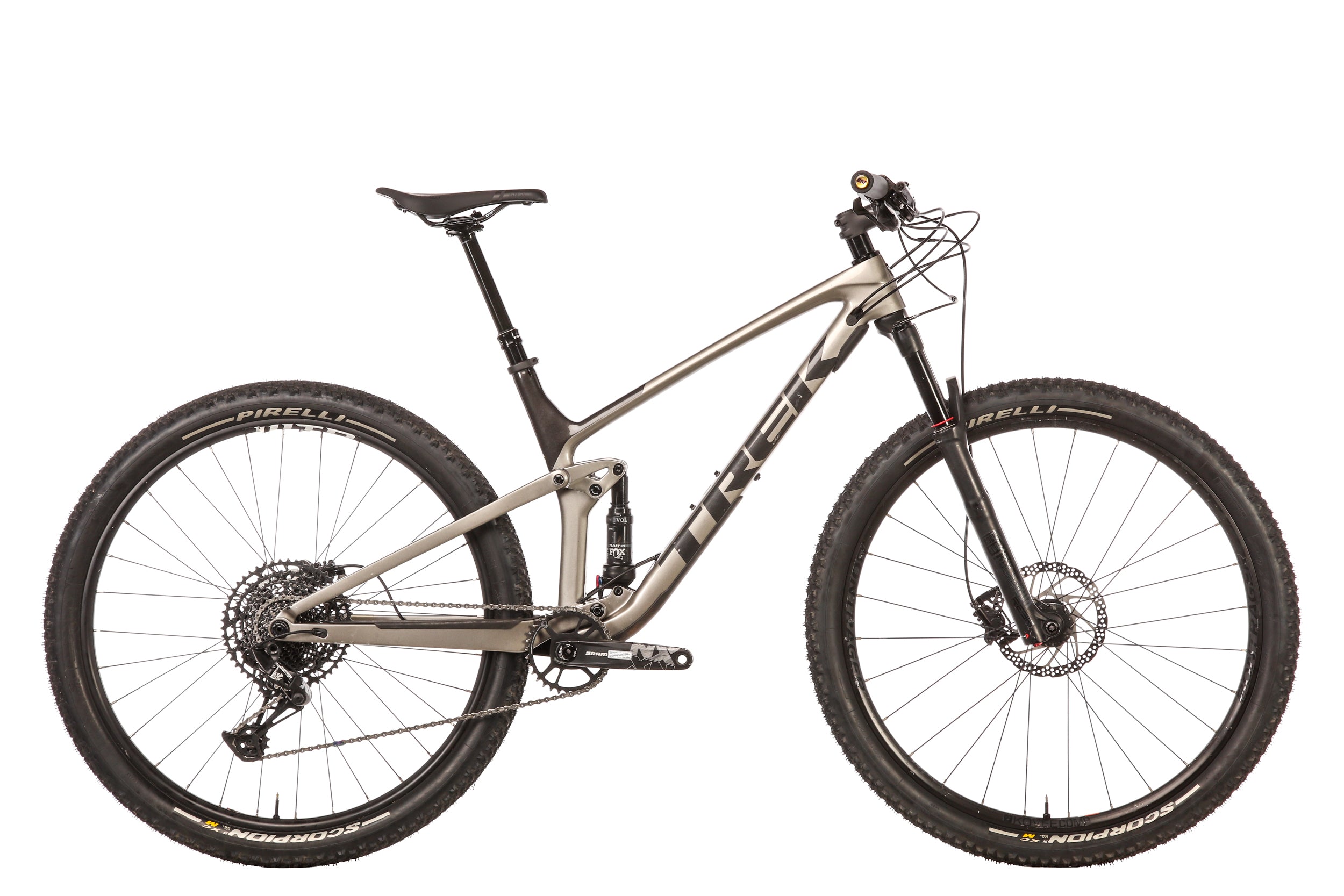

Trek Top Fuel 9.7 NX Mountain Bike - 2020, Med/Large
Item #BMT36190
Condition: Certified Pre-Owned
Fit Range: 5'8" - 5'11"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
A Do-It-All XC Bike
Why We Love It
Master Mechanic’s Notes
- New handlebar grips, SRAM chain, rear rotor, Selle San Marco GND Manganese saddle, & Race Face Aeffect R dropper post w/ 150mm of travel

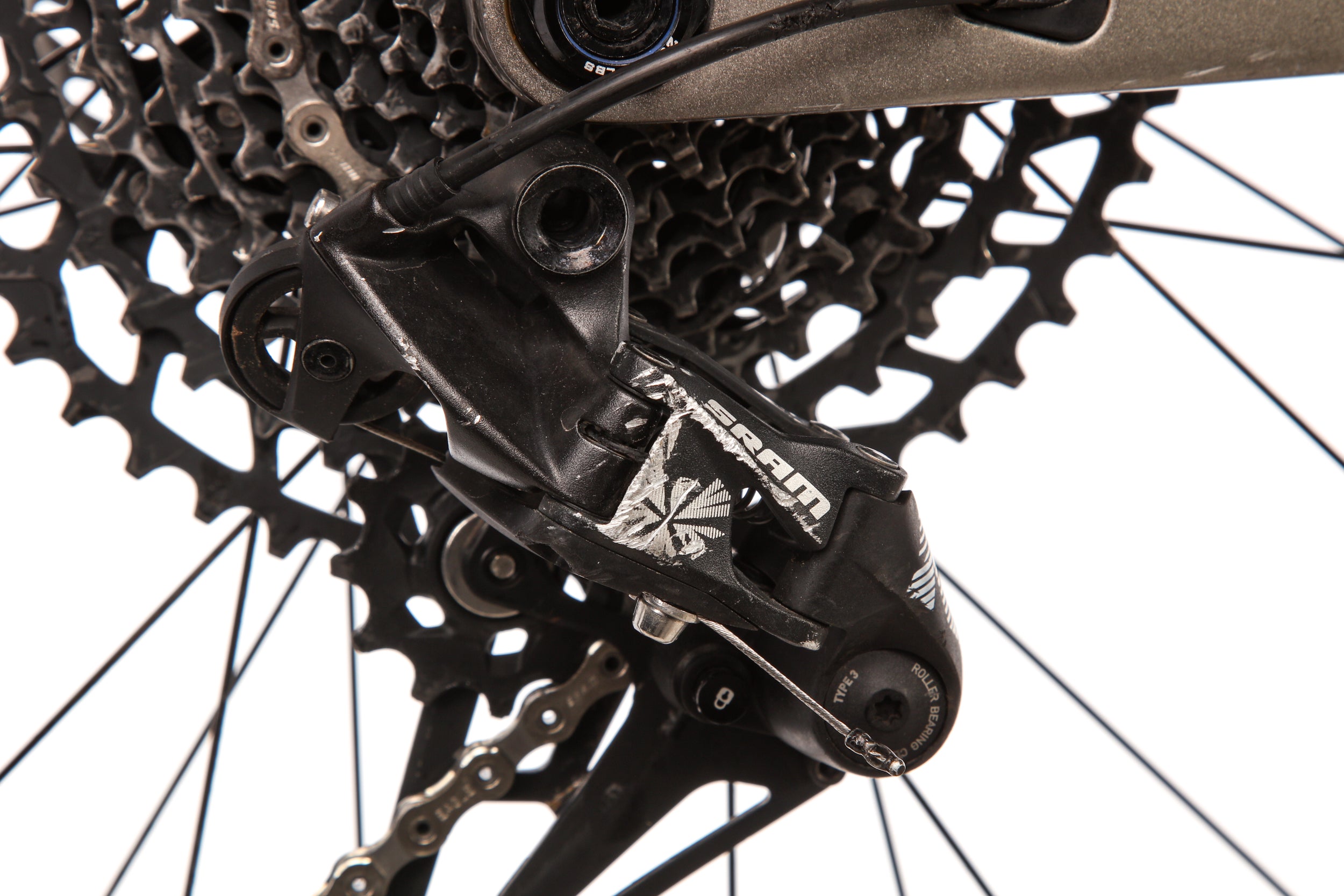

- Light scratches on the rear derailleur

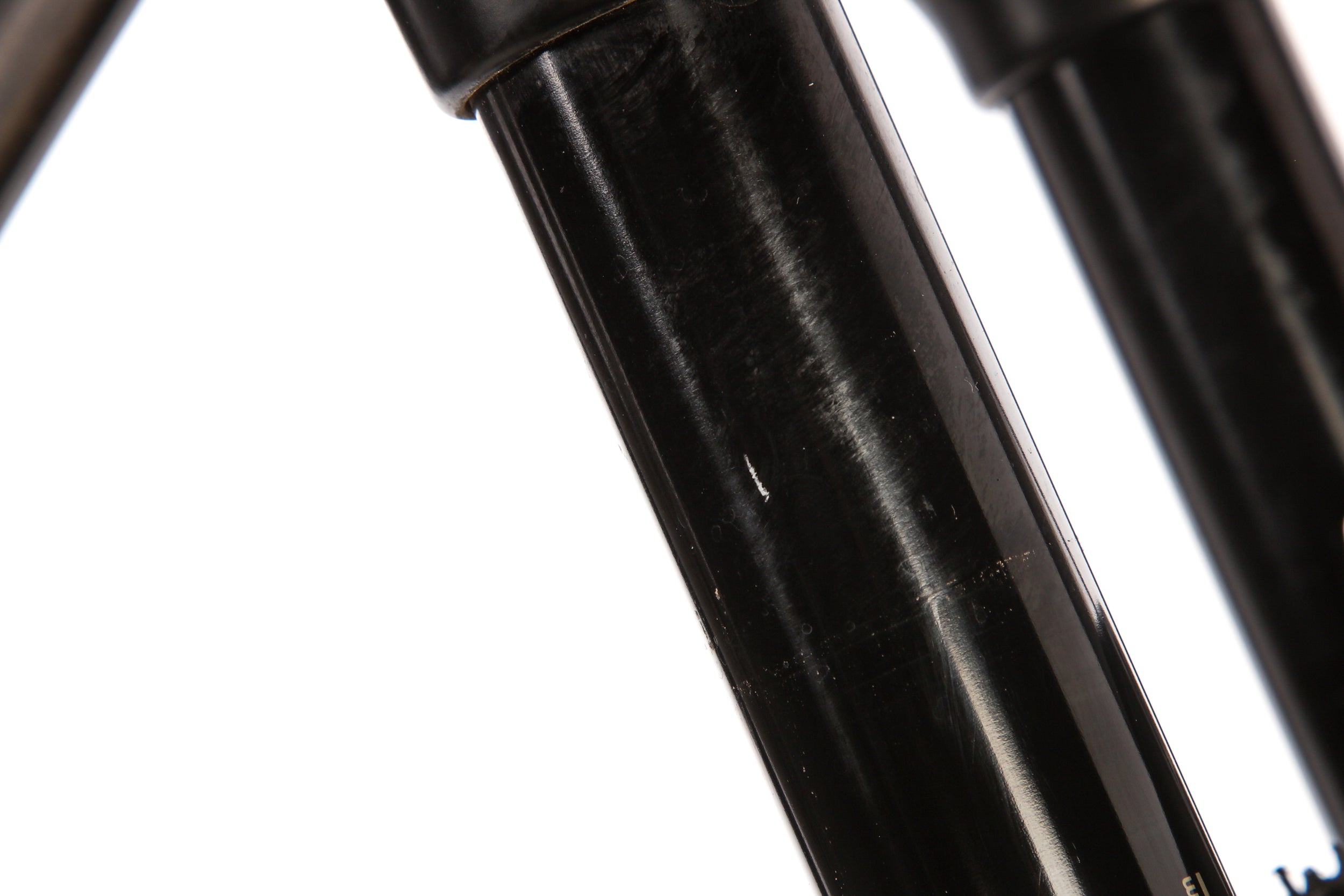

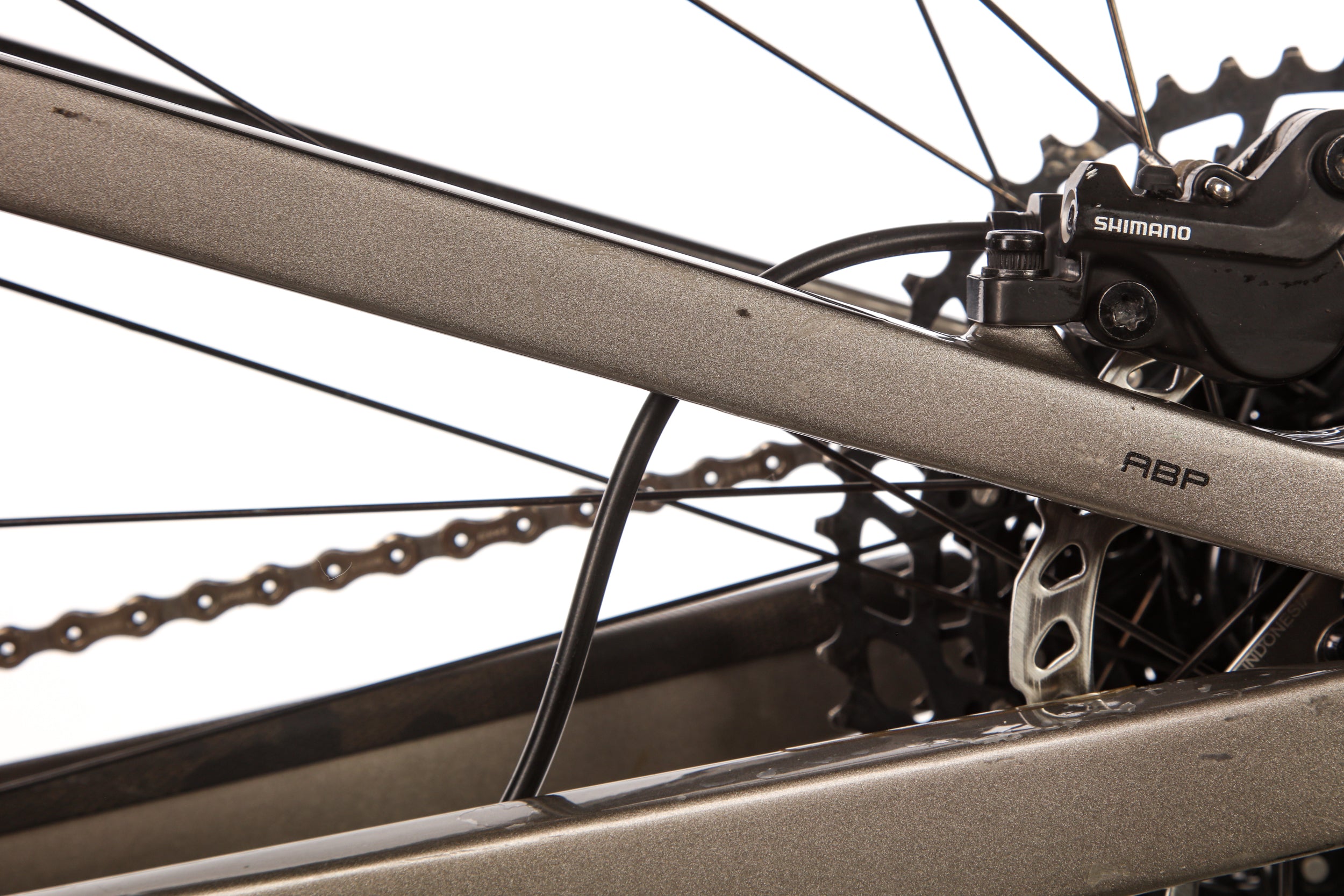

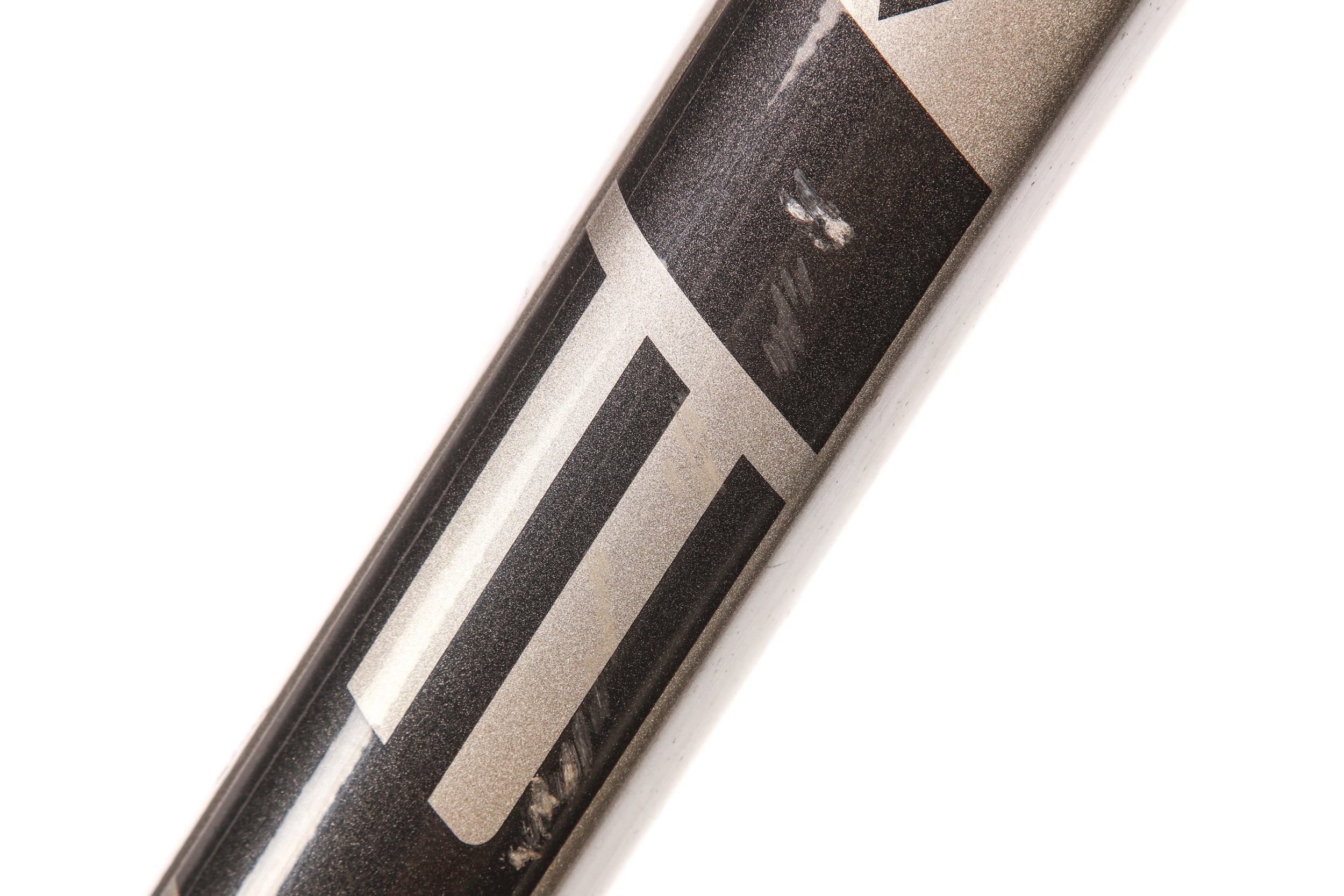

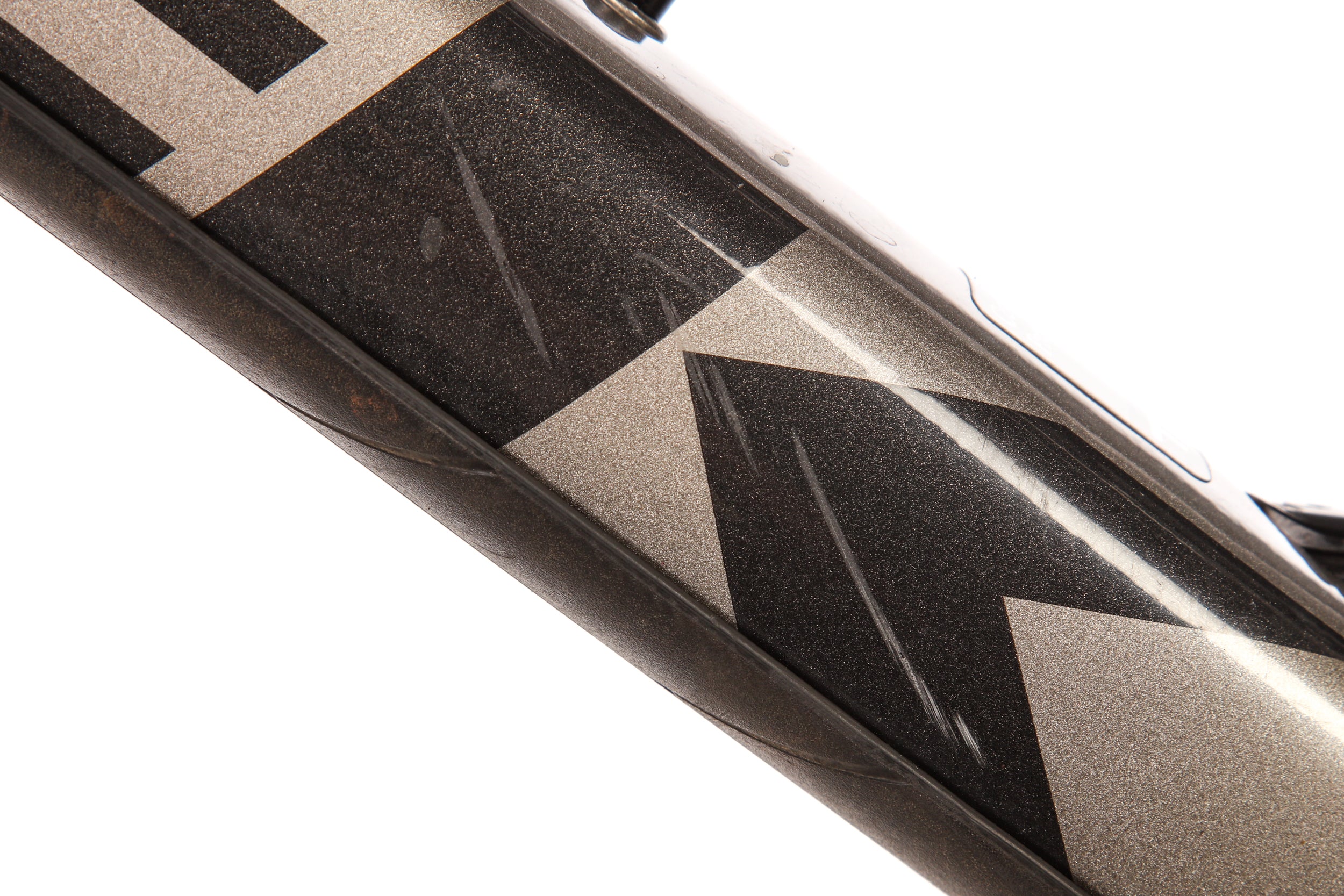

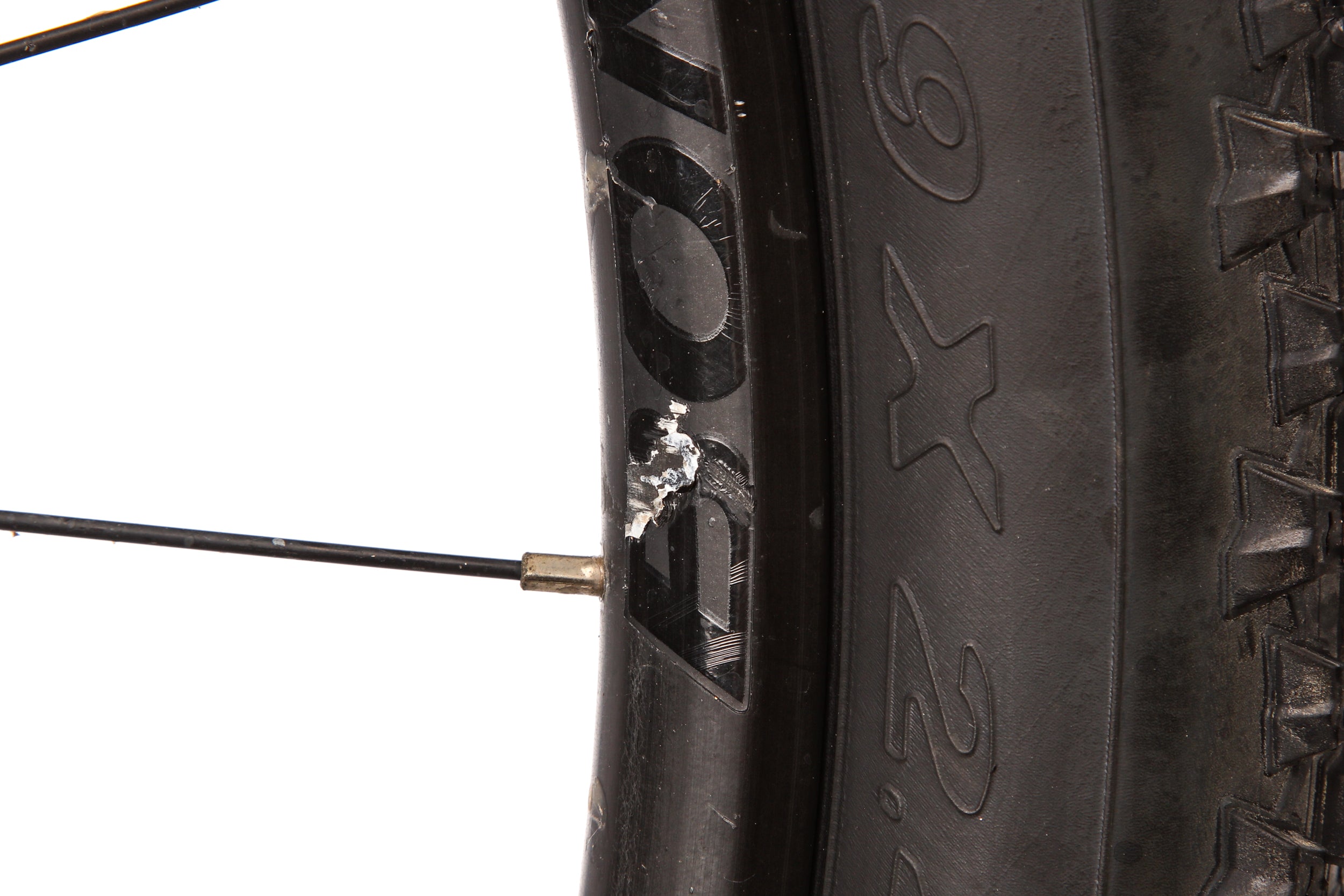

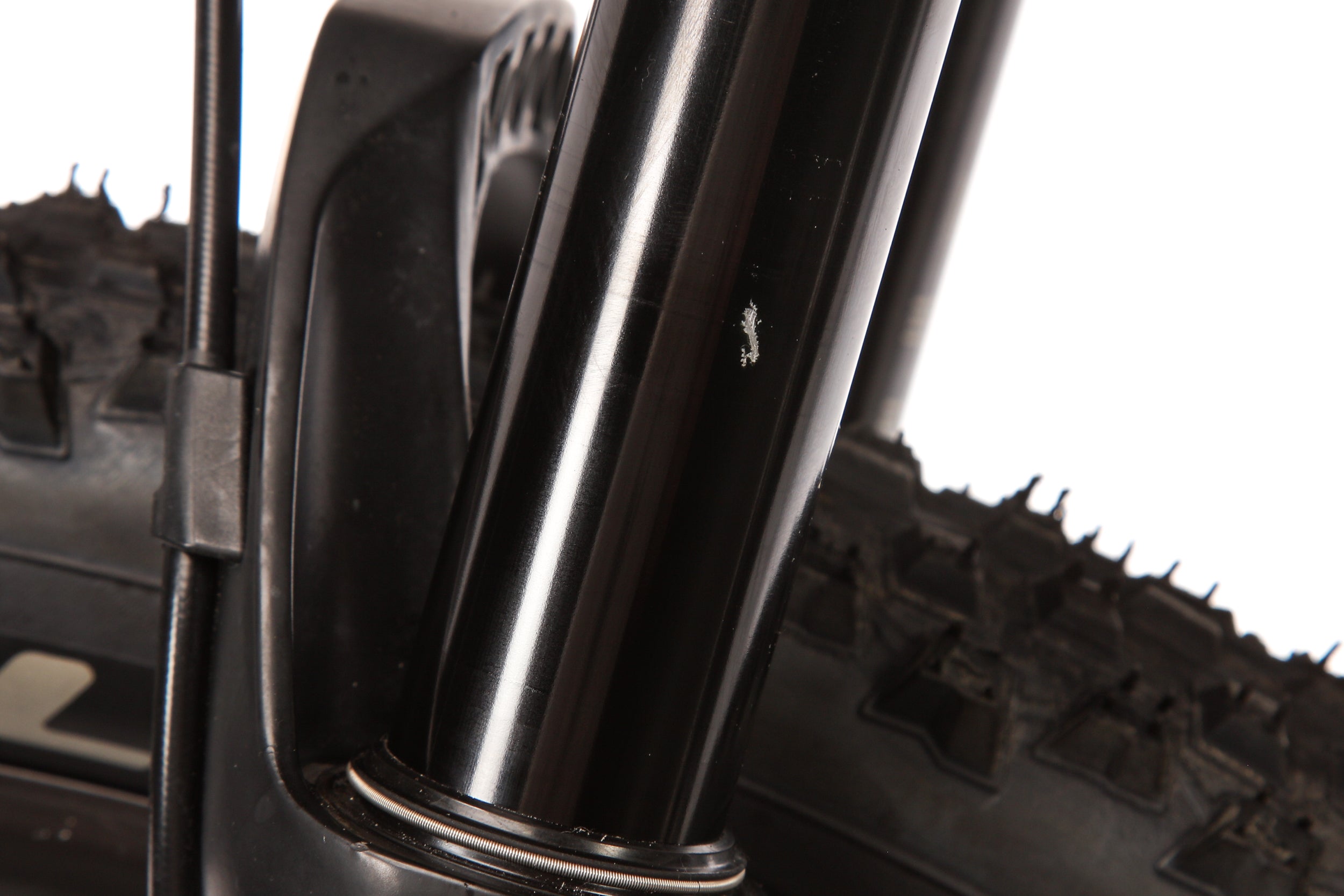

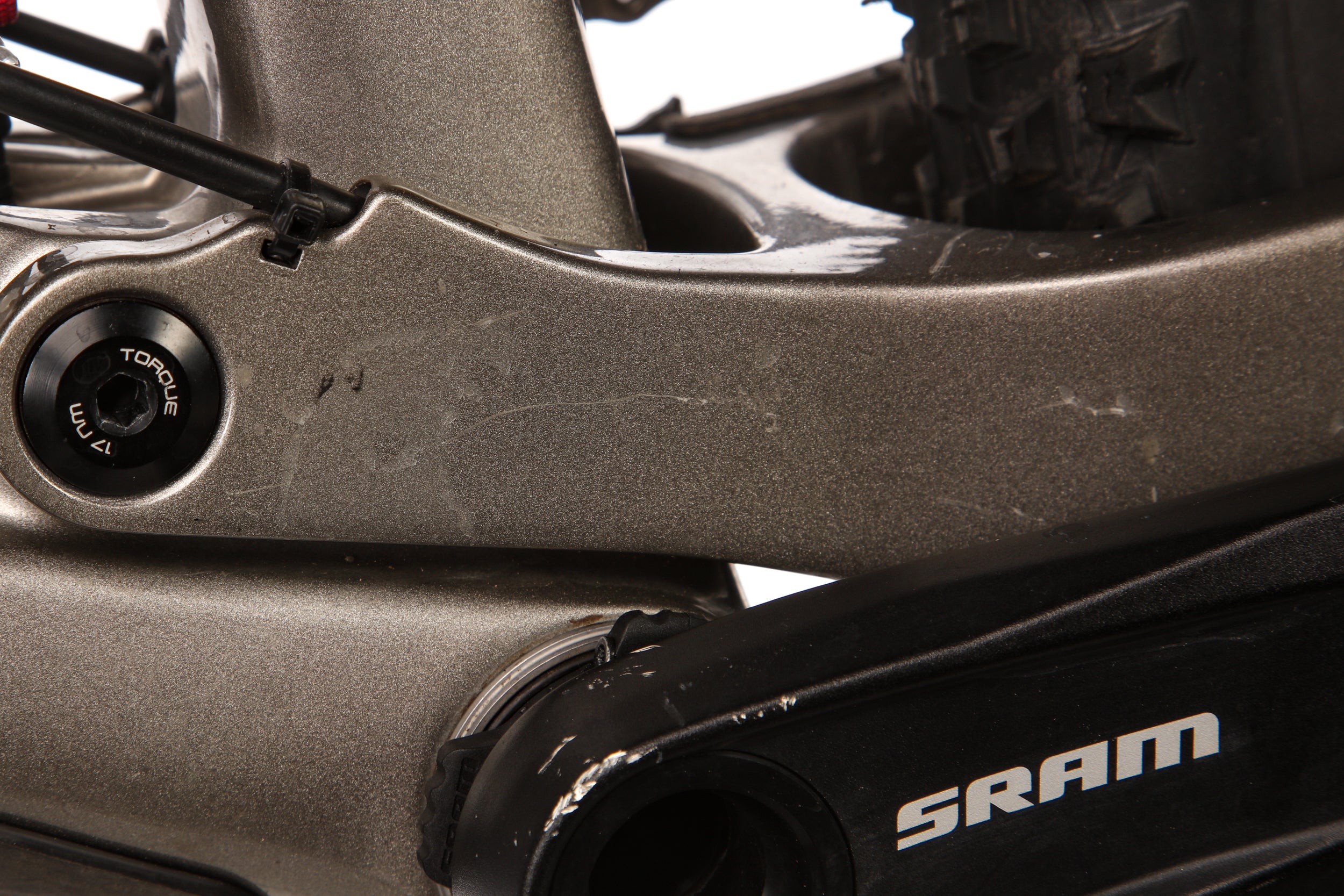

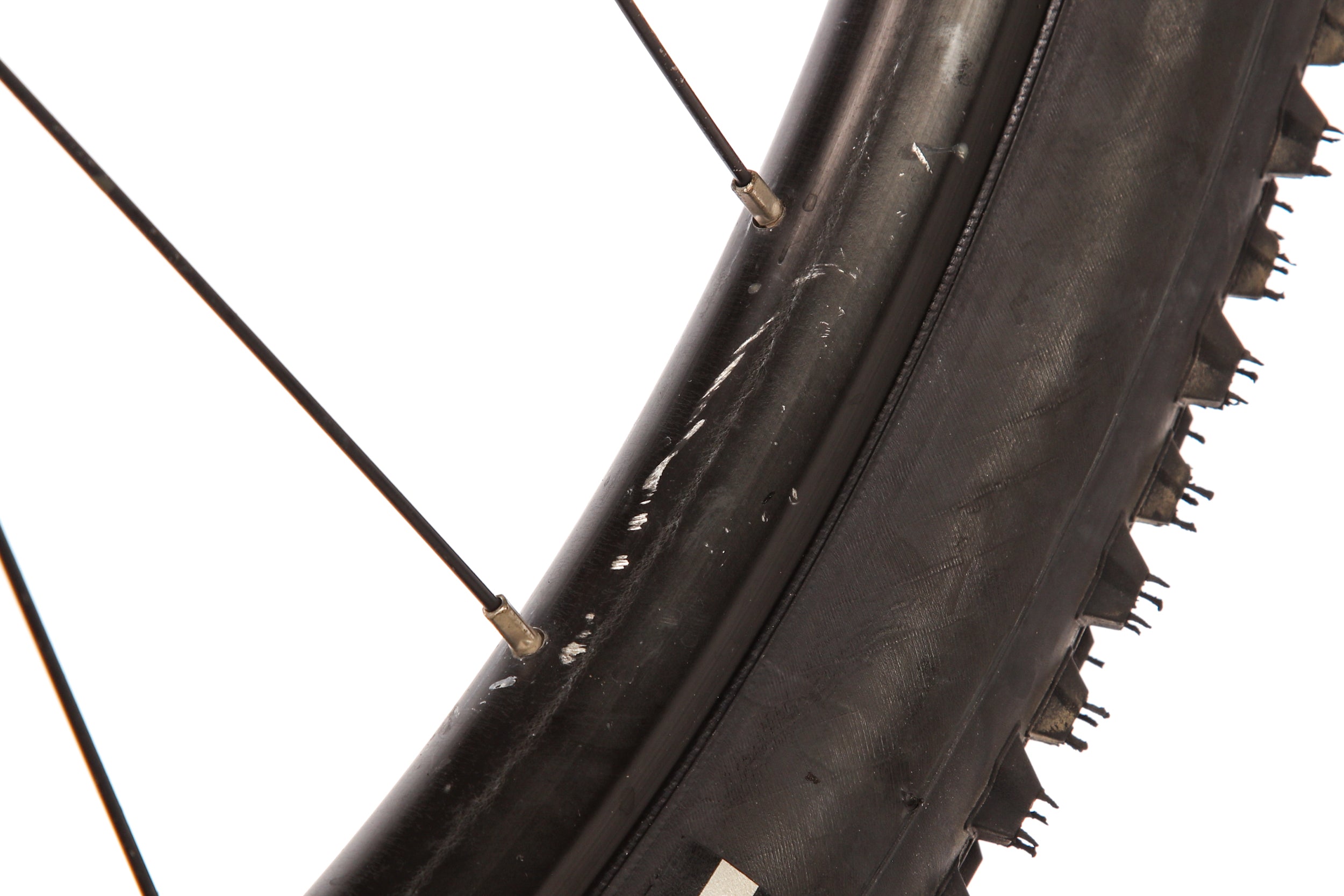

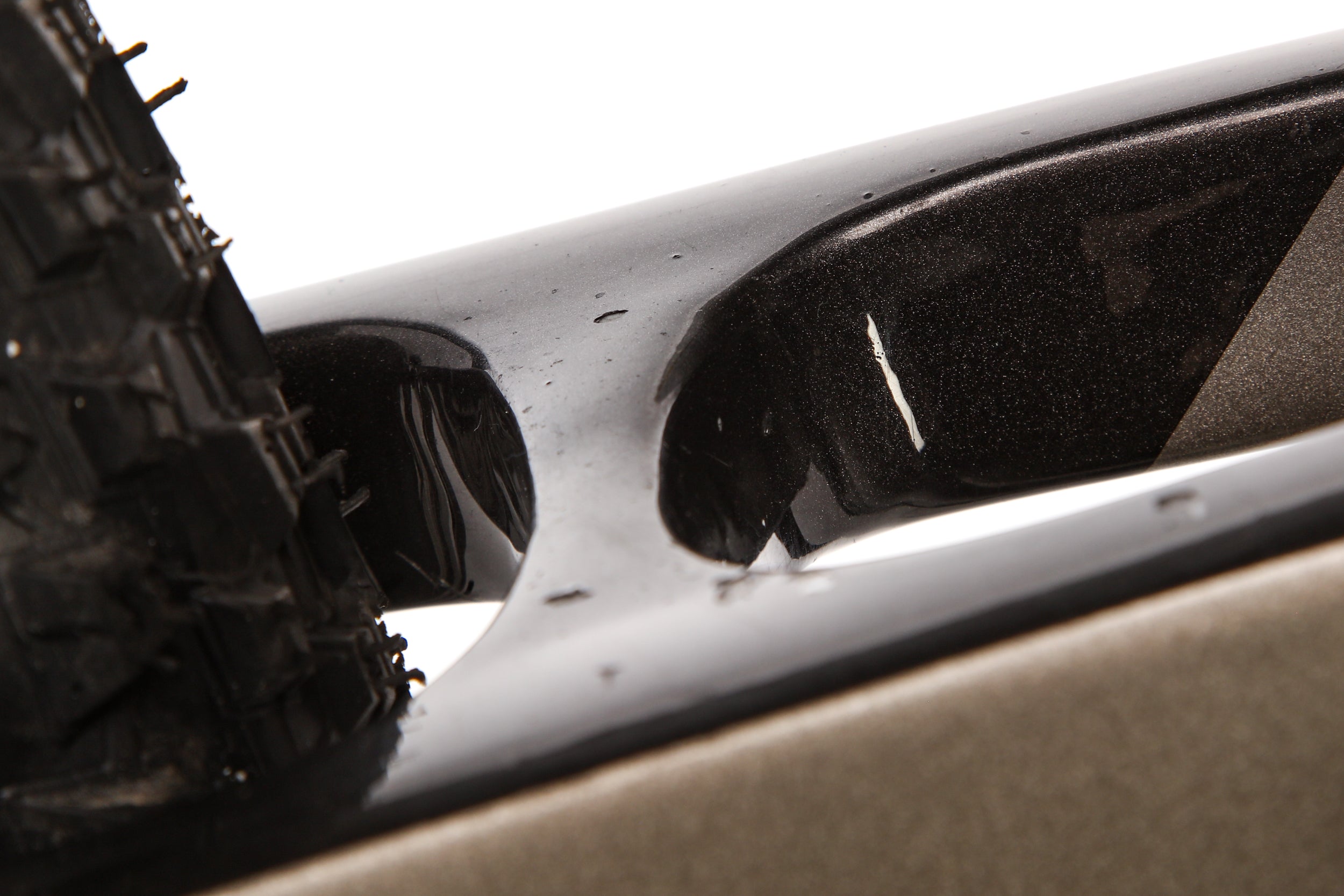

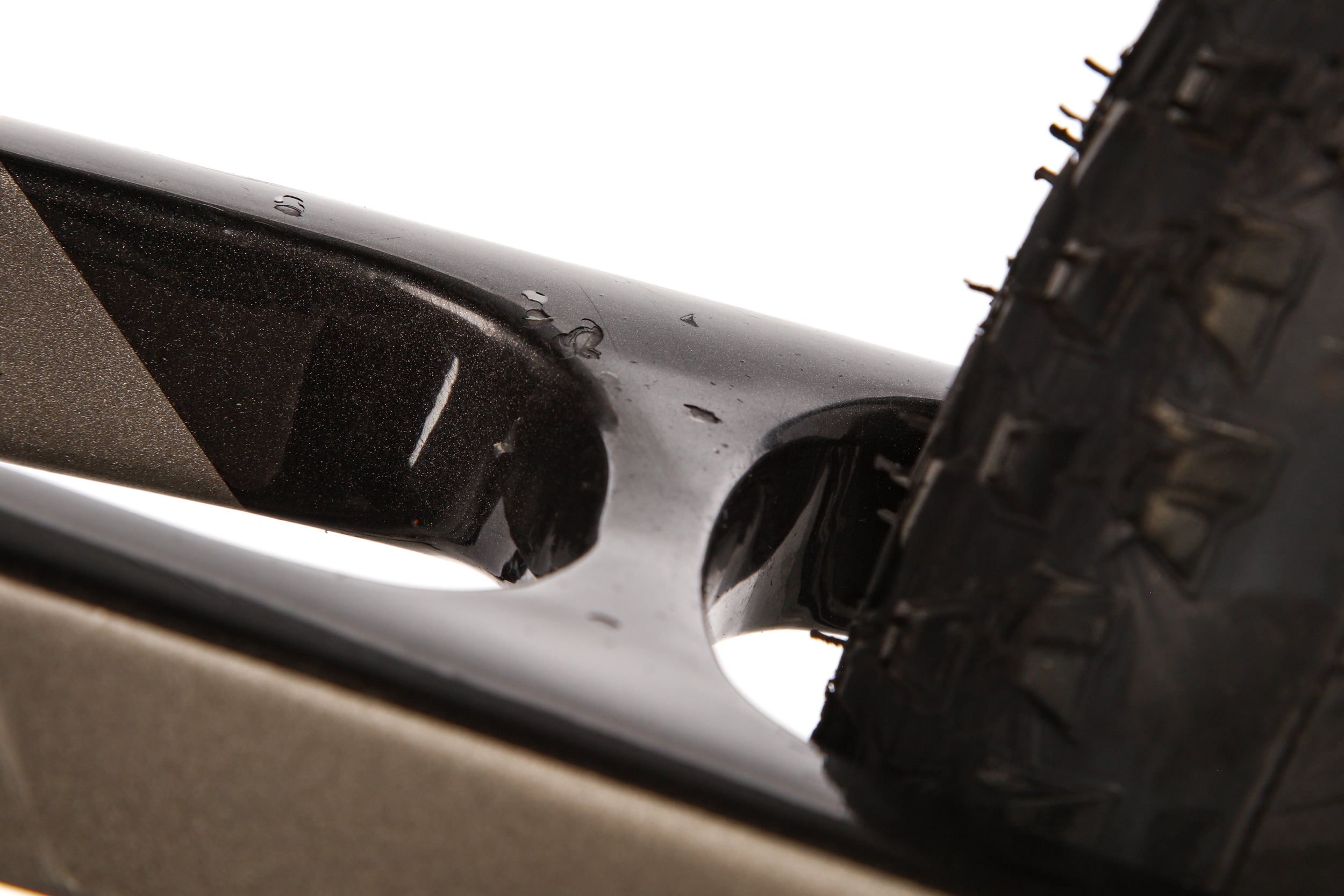

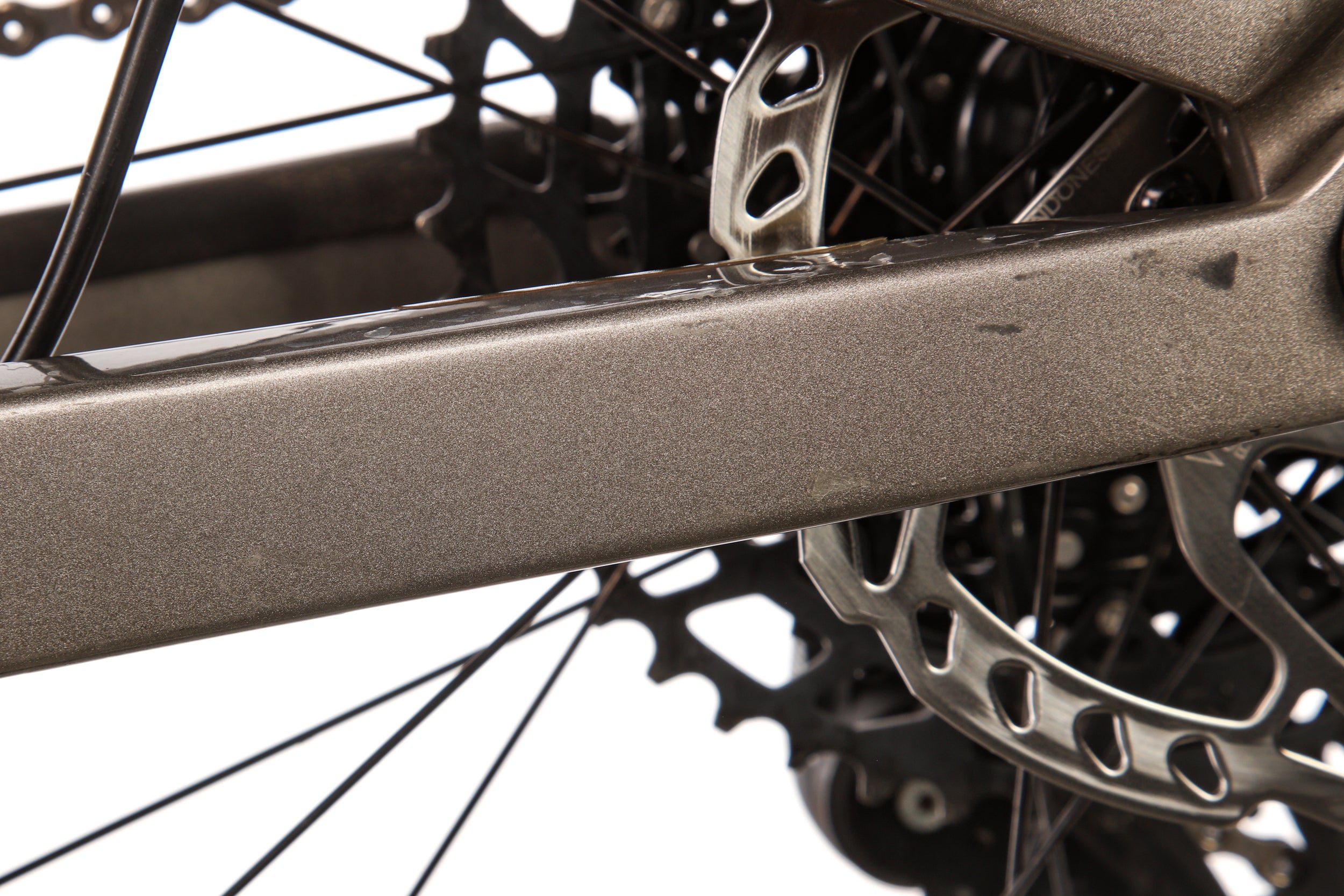

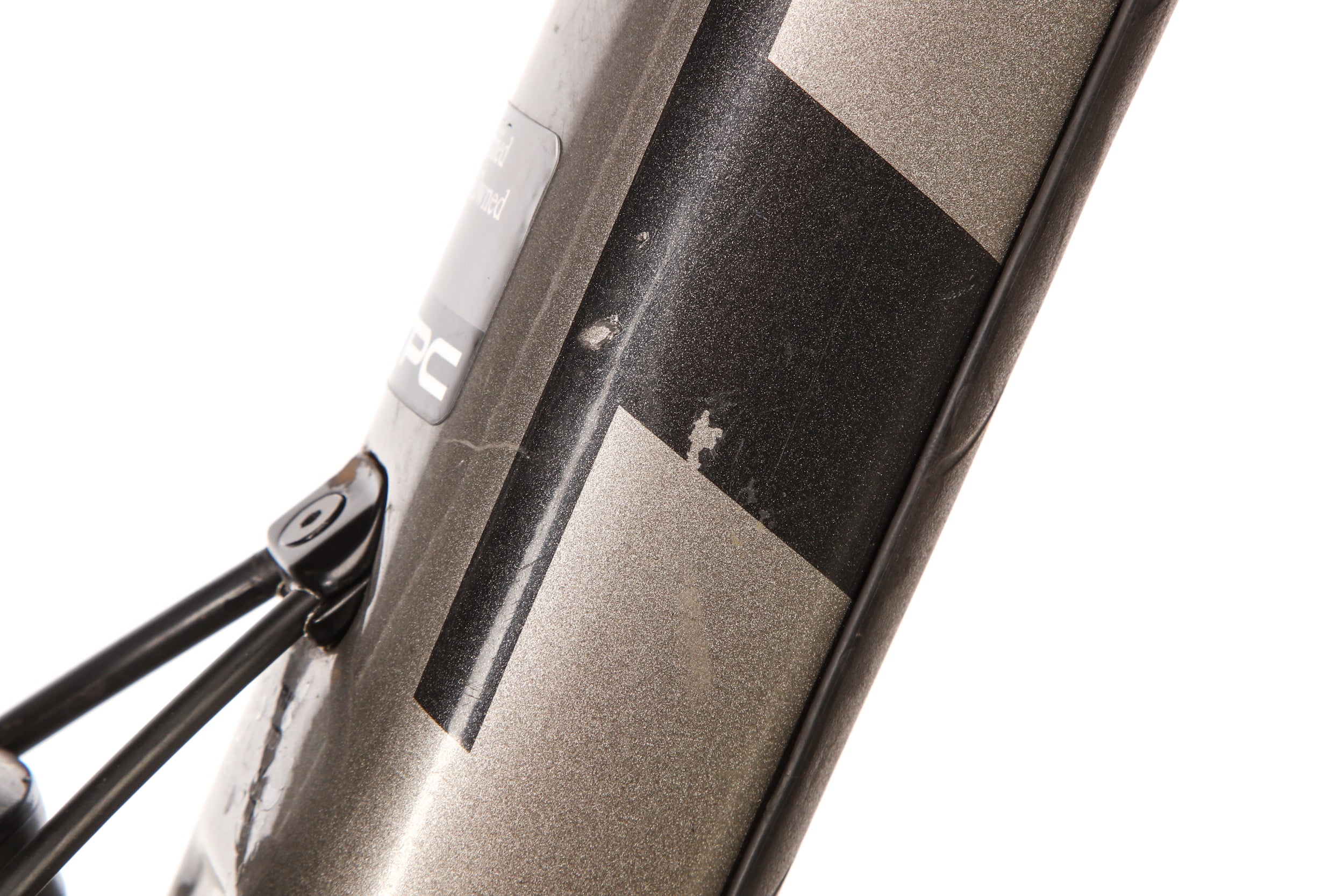

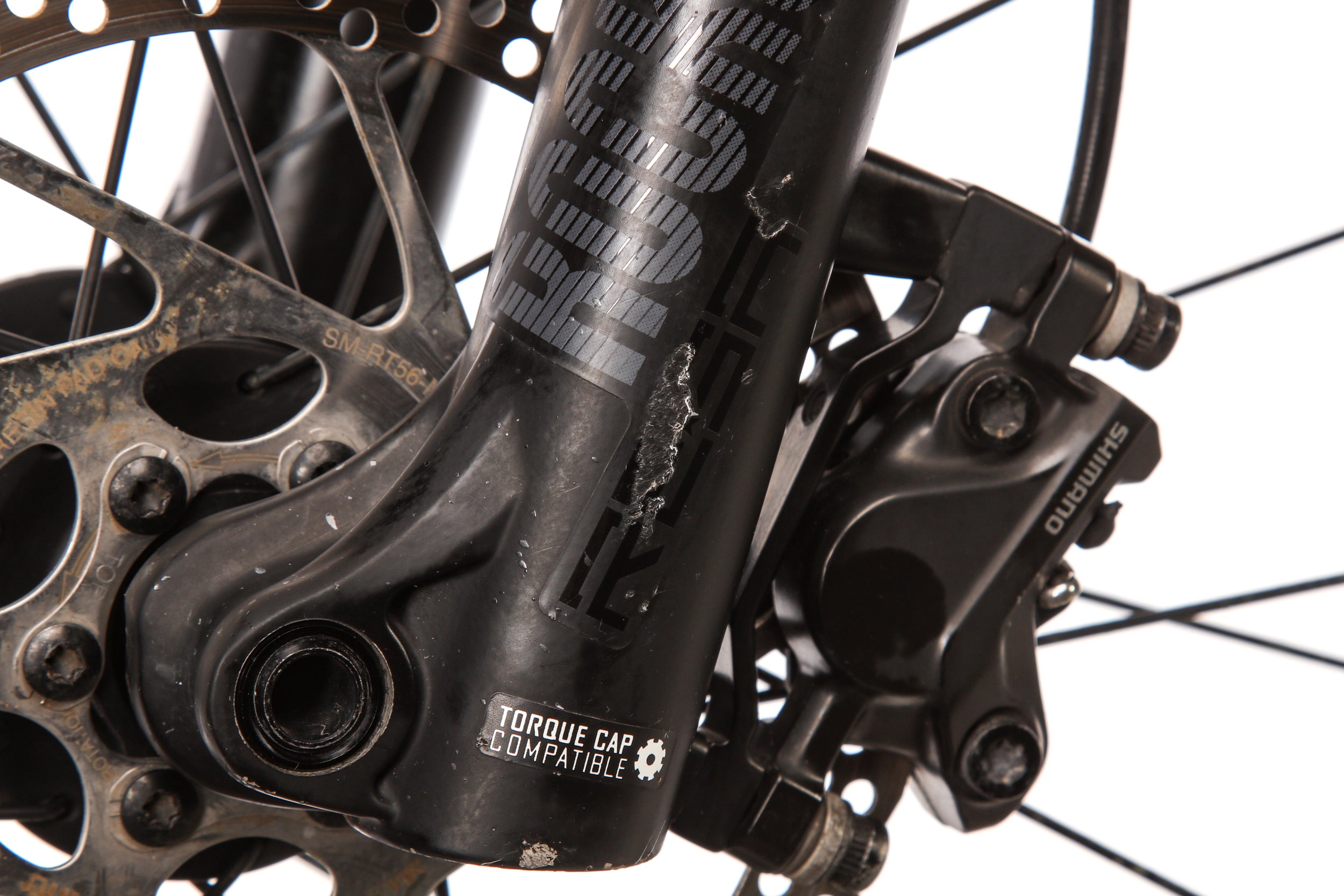

- Light scratches on the rims, fork lowers, fork stanchions, down tube, & rear triangle

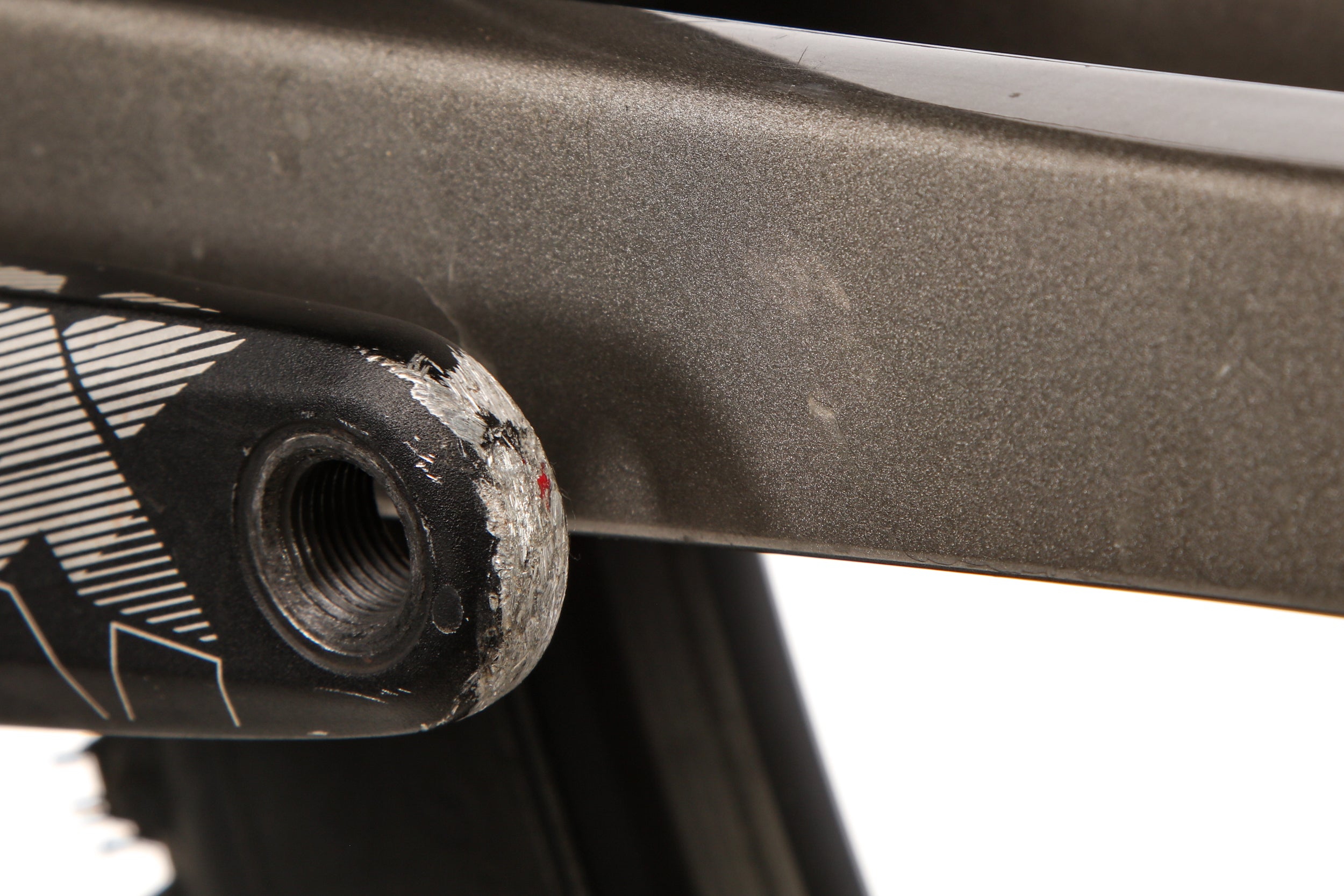

- Moderate scratches on the crank arms

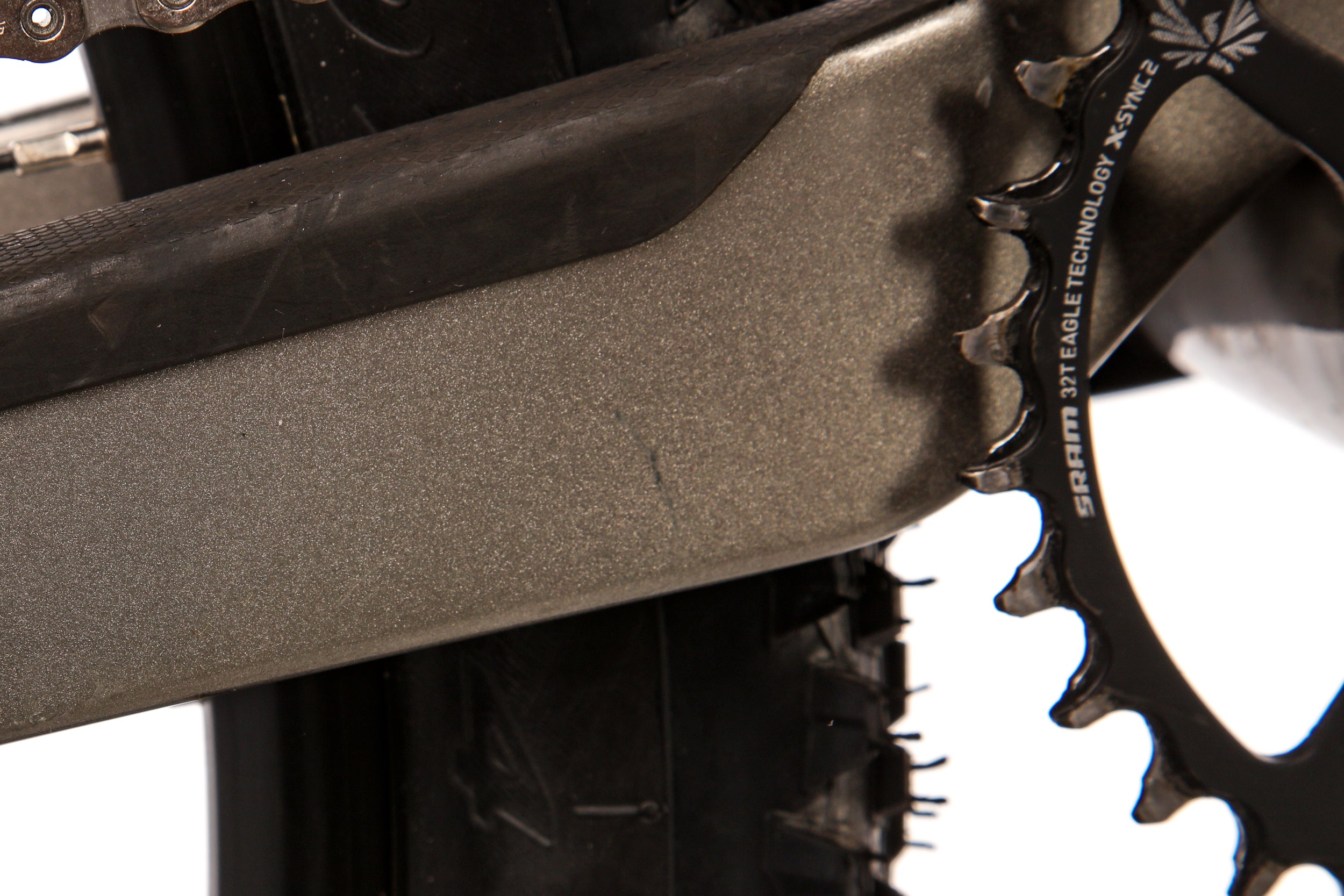

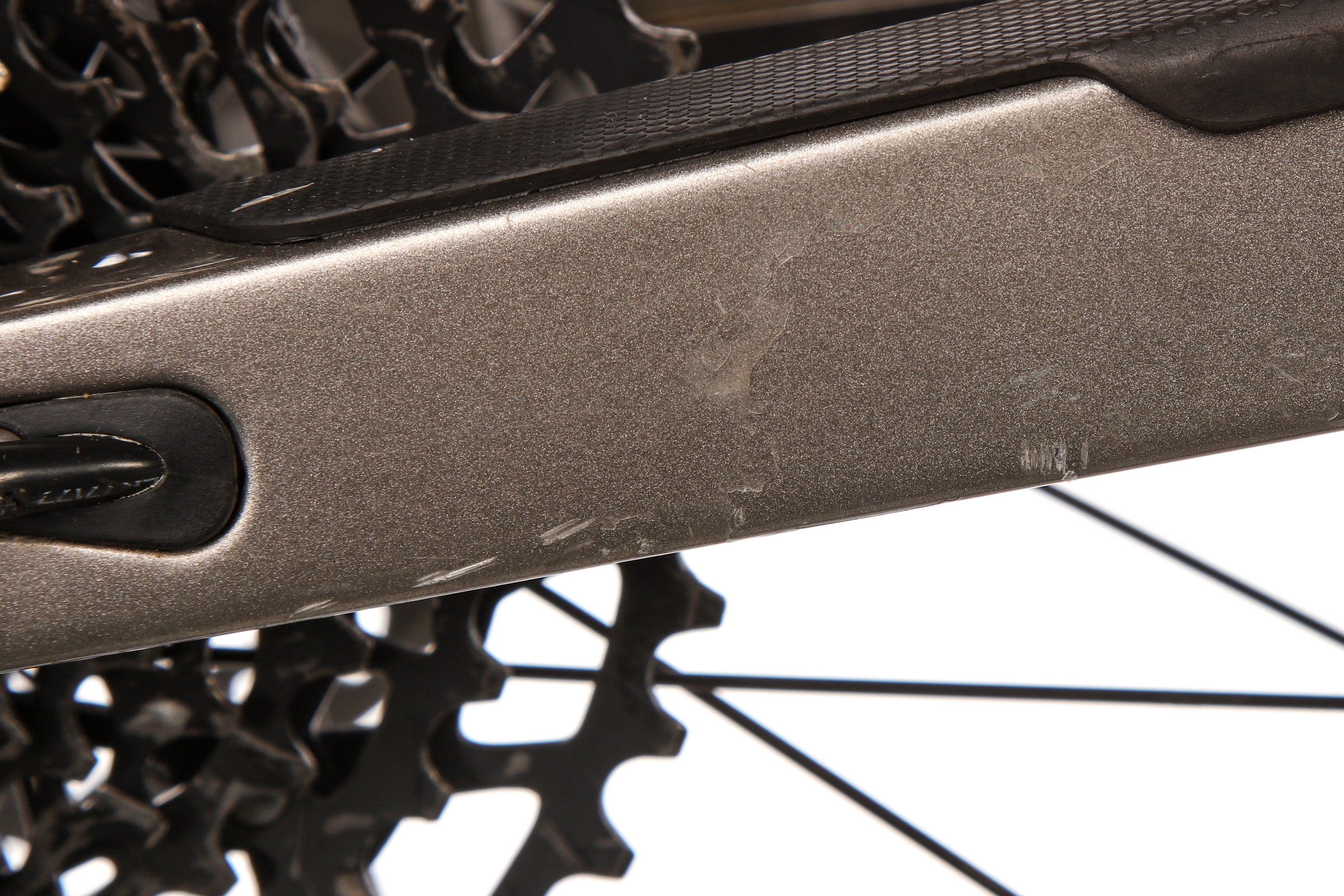

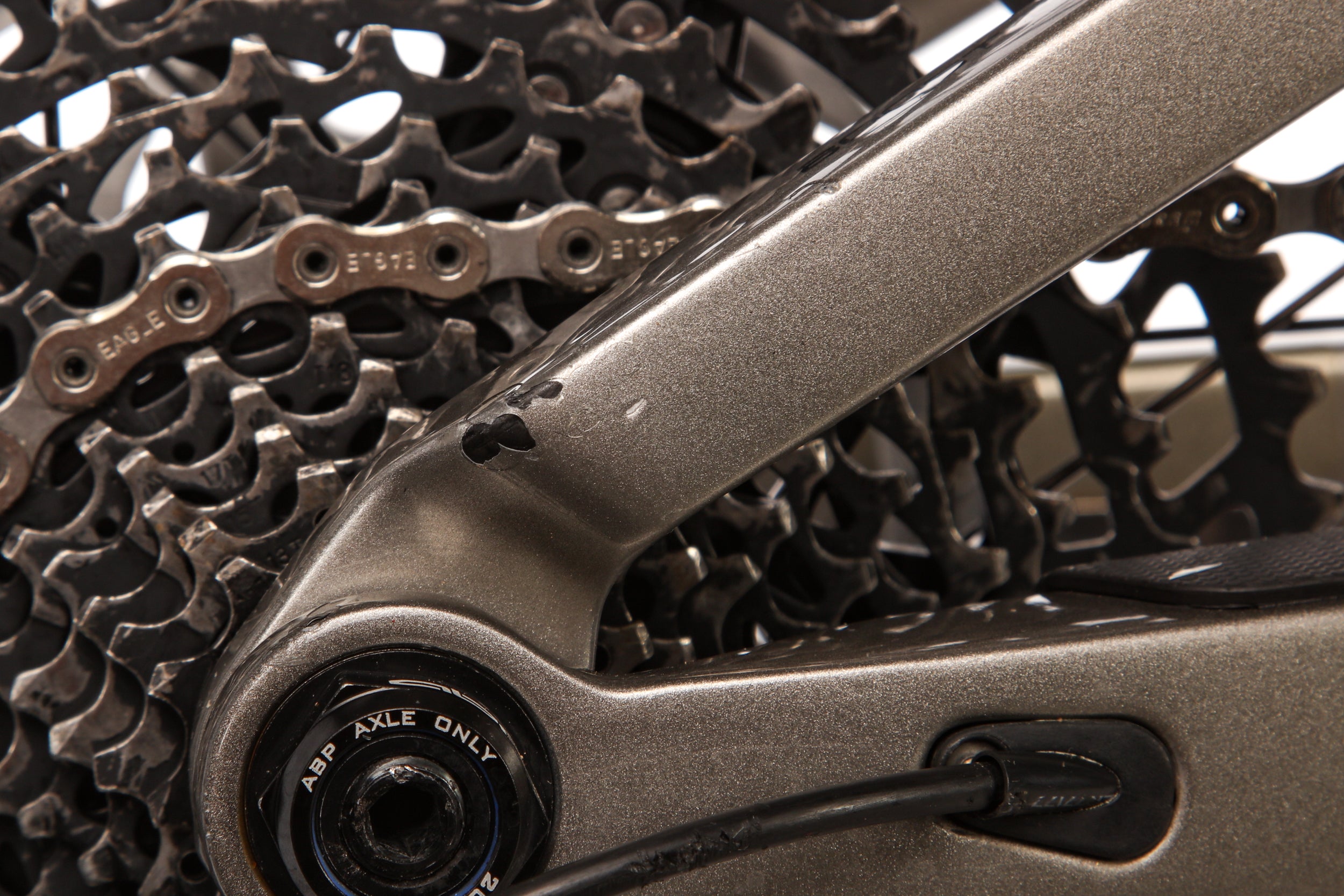

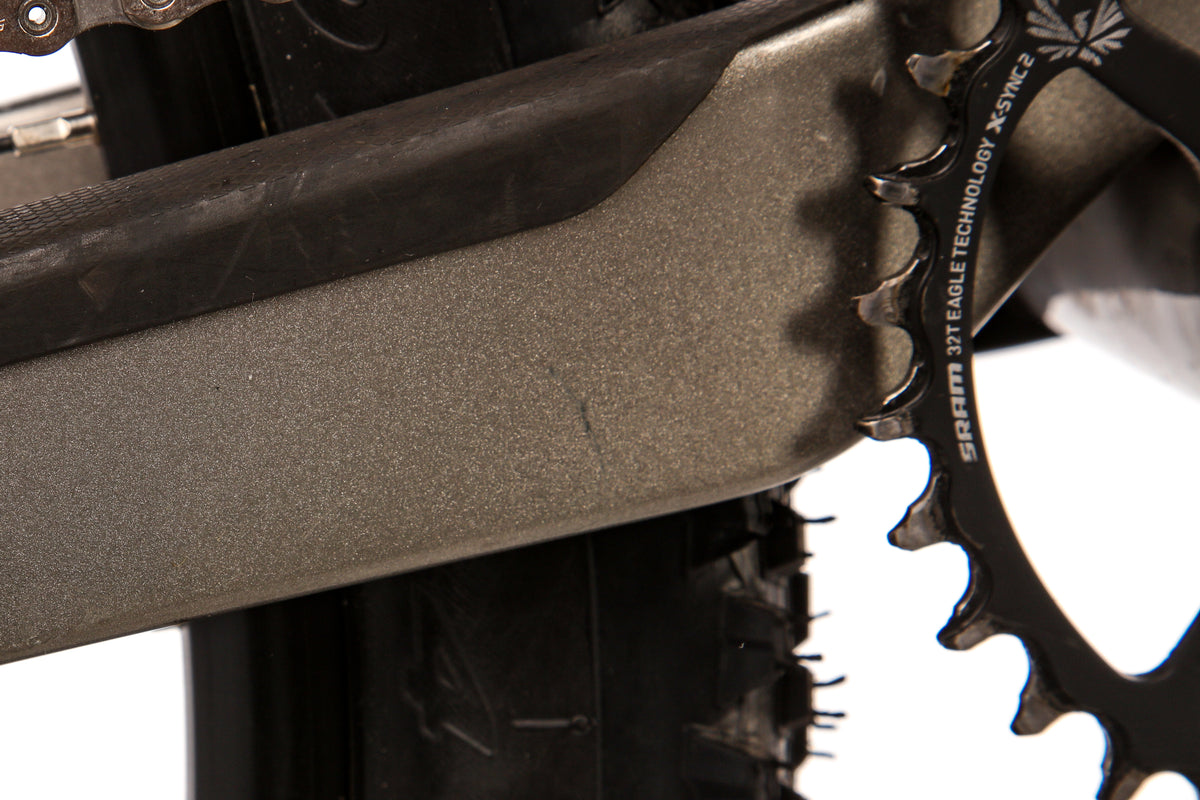

- Moderate clear coat chips on the drive side chainstay
Specifications
Details
| Original MSRP | $3,999.00 |
| Year | 2020 |
| Brand | Trek |
| Model | Top Fuel |
| Size | Med/Large |
| Frame Material | Carbon Fiber |

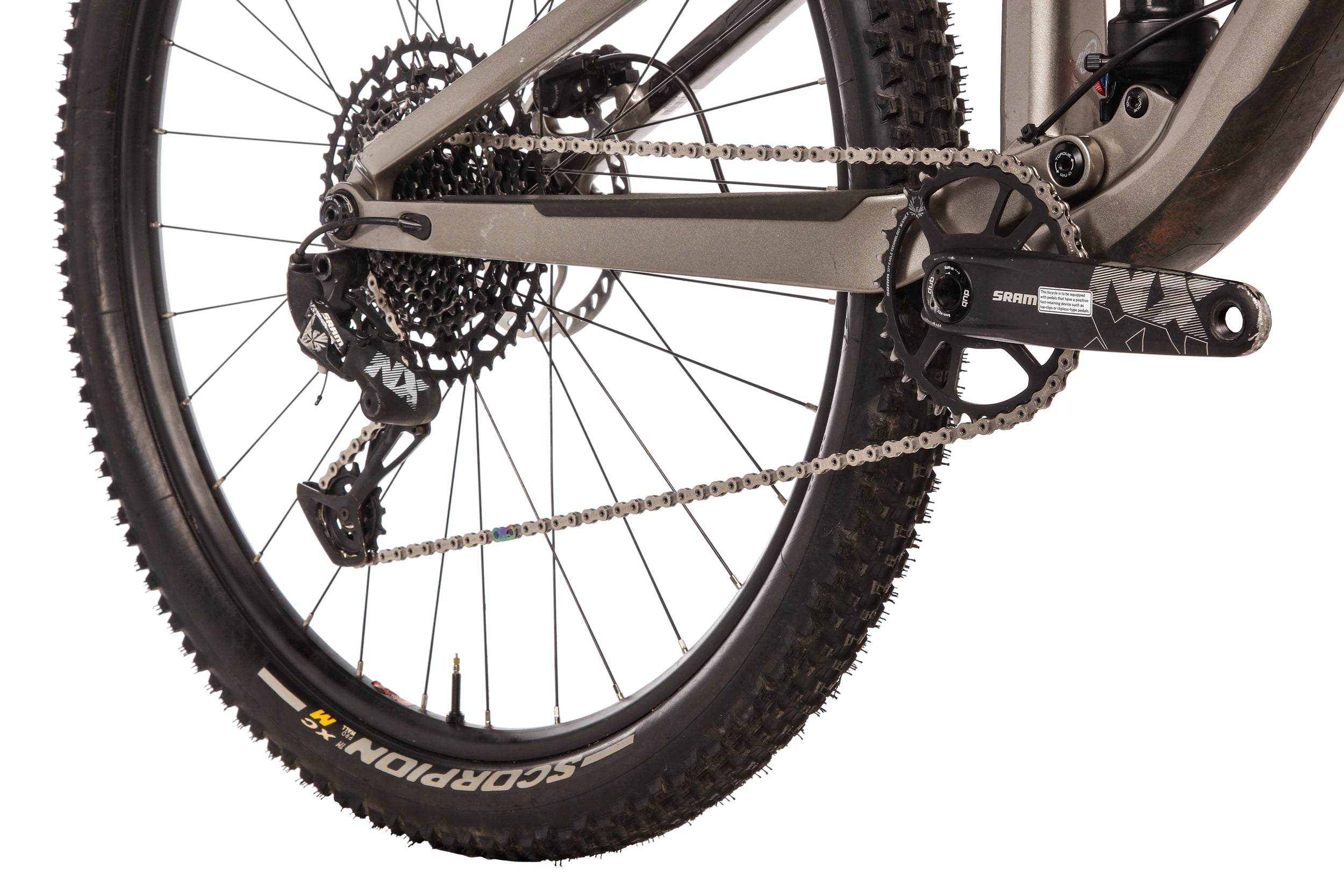

| Drivetrain | SRAM, 1x12 spd |
| Weight | 28 lbs 11 oz |
Build
| Fork | RockShox Reba RL |
| Fork Travel | 120mm |

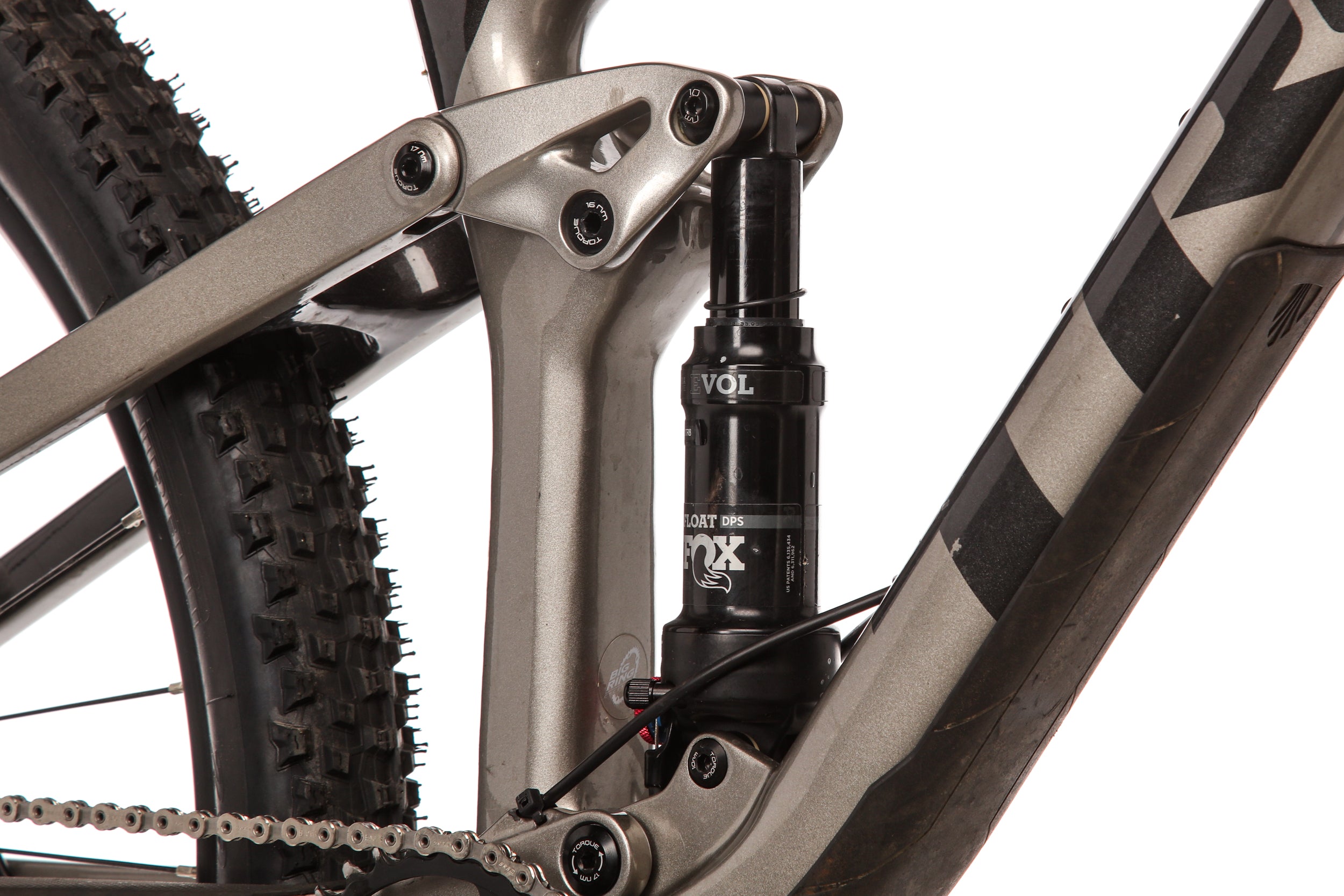

| Rear Shock | FOX Performance Elite FLOAT DPS |
| Rear Shock Travel | 115mm |
| Brakes | Shimano MT500, Disc Brakes - Hydraulic |
| Shifters | SRAM NX Eagle, Mechanical |
| Rear Derailleur | SRAM NX Eagle |
| Bottom Bracket Shell | Press fit |
| Crankset | SRAM NX Eagle Alloy, 32t, 175mm |
| Cassette | SRAM XG-1230 Eagle, 11-50t |
| Chain | SRAM |

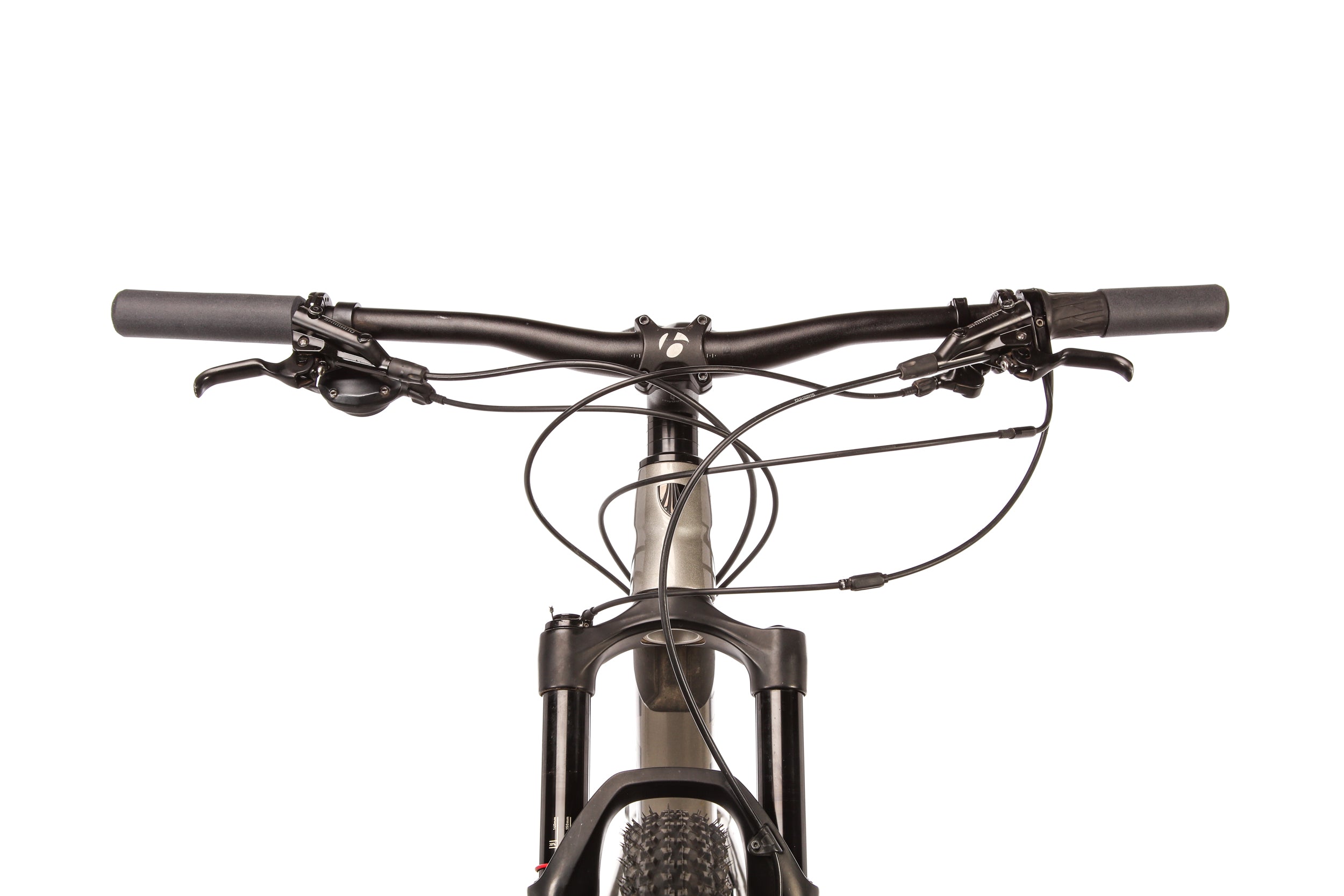

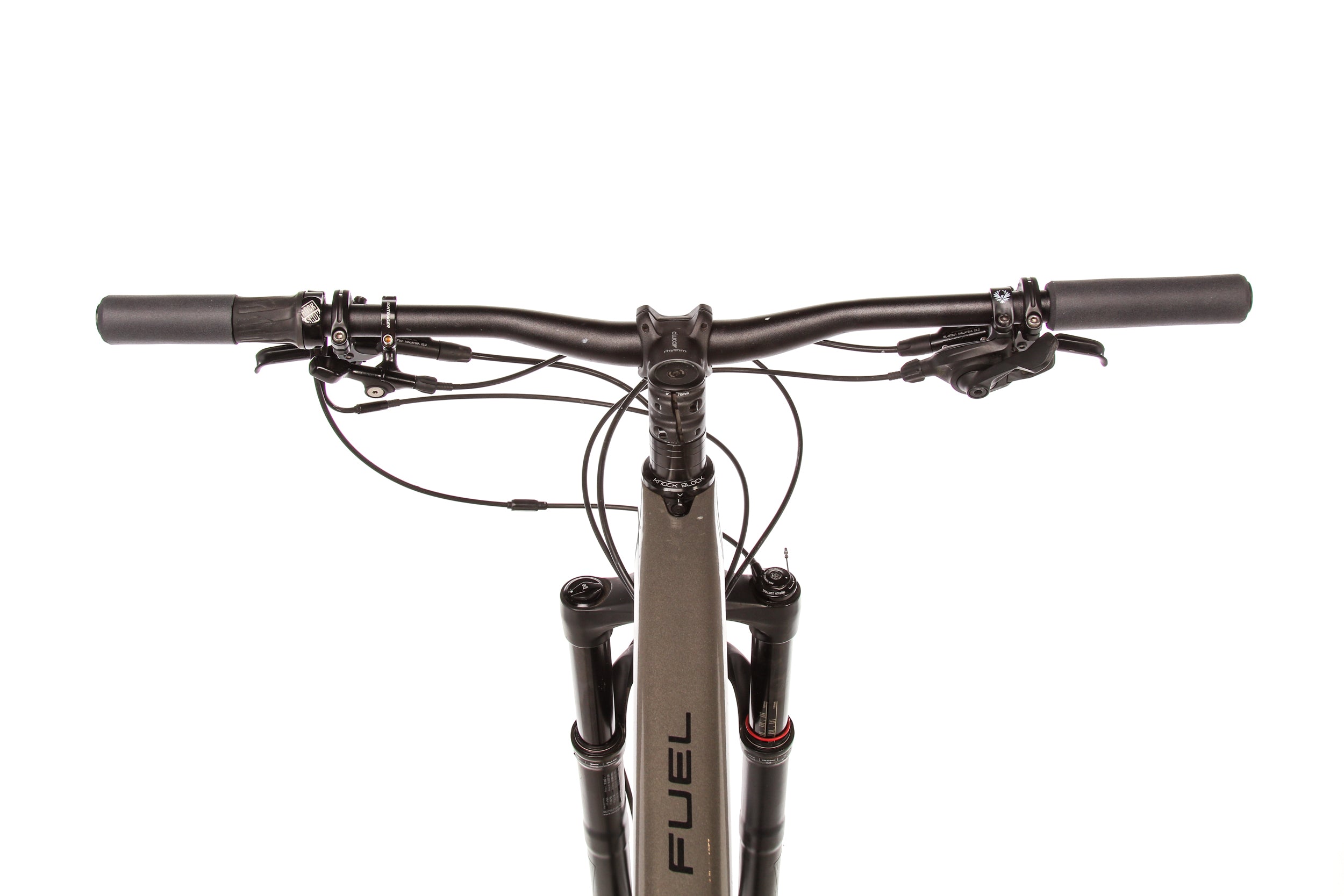

| Handlebar | Bontrager Rhythm Comp Alloy, 740mm |
| Headset | FSA Knock Block |
| Stem | Bontrager Rhythm Comp Alloy, 31.8mm x 70mm, 0° |
| Seatpost | Race Face Aeffect R, 31.6mm |
| Seatpost Travel | 150mm |
| Saddle | Selle San Marco GND w/ Manganese Rails |
| Front Axle Spacing | 15x110mm (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost |
| Wheelset | Front: Bontrager Kovee Comp / Rear: WTB ST i23 TCS 2.0, Aluminum Tubeless Compatible, Front: Bontrager / Rear: SRAM MTH 746 |
| Front Tire | Pirelli Scorpion XC M, 29" x 2.4" |
| Rear Tire | Pirelli Scorpion XC M, 29" x 2.4" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Bike ships tubeless |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'8" - 5'11"
|
| A. Effective Top Tube | 614mm, 615mm (High, Low) |
| B. Seat Tube | 445 mm |
| C. Seat Tube Angle | 75.5, 75 (High, Low) |
| D. Head Tube Angle | 68, 67.5 (High, Low) |
| E. Head Tube | 90 mm |
| F. Stack | 590mm, 594mm (High, Low) |
| G. Reach | 461mm, 456mm (High, Low) |
| H. Standover Height | 741mm, 735mm (High, Low) |
| I. Saddle Height Range | N/A |
