Sorry, this Trek Madone 4.5 H2 Road Bike - 2012, 54cm has been sold.

Try these similar items:

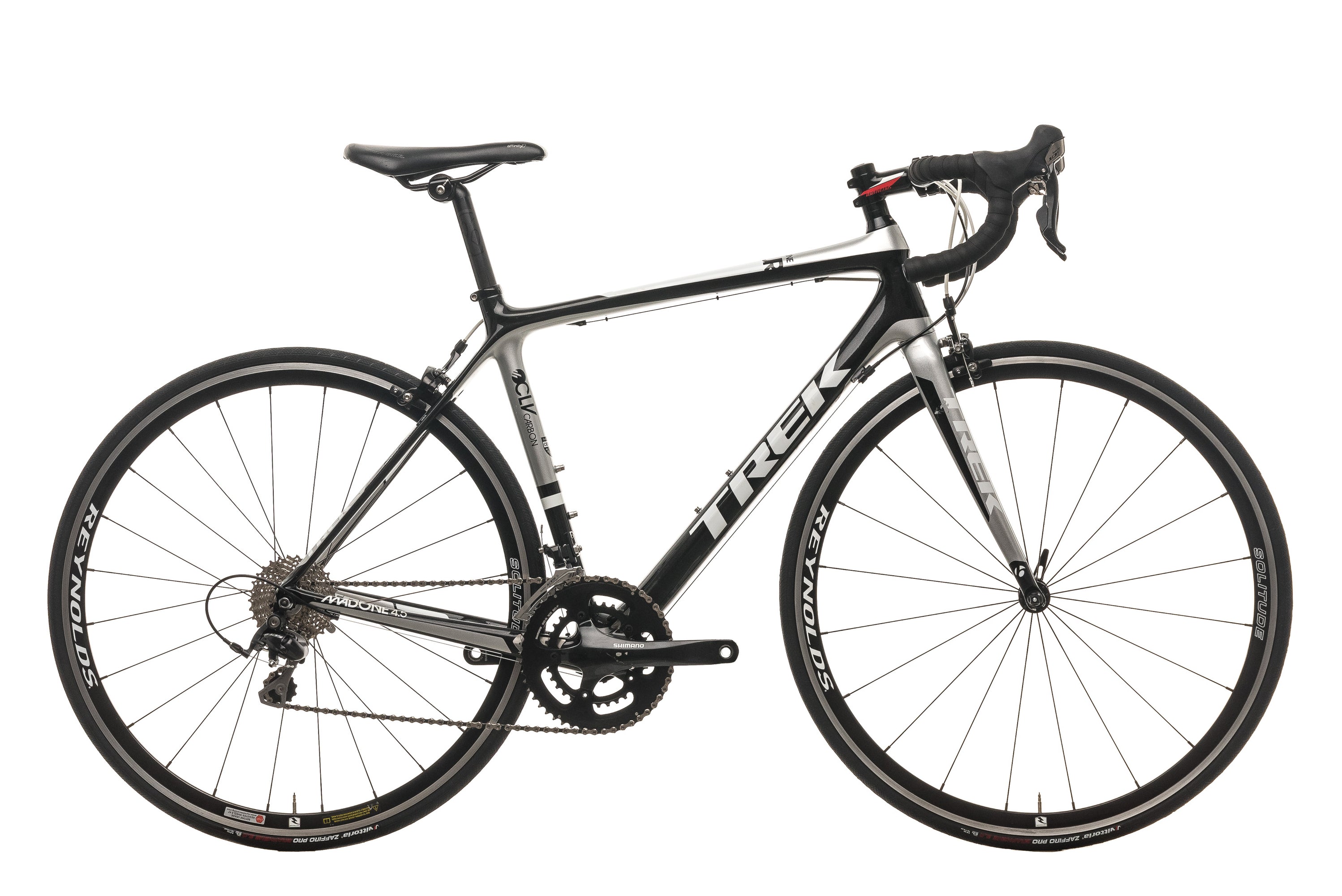

Trek Madone 4.5 H2 Road Bike - 2012, 54cm drive side

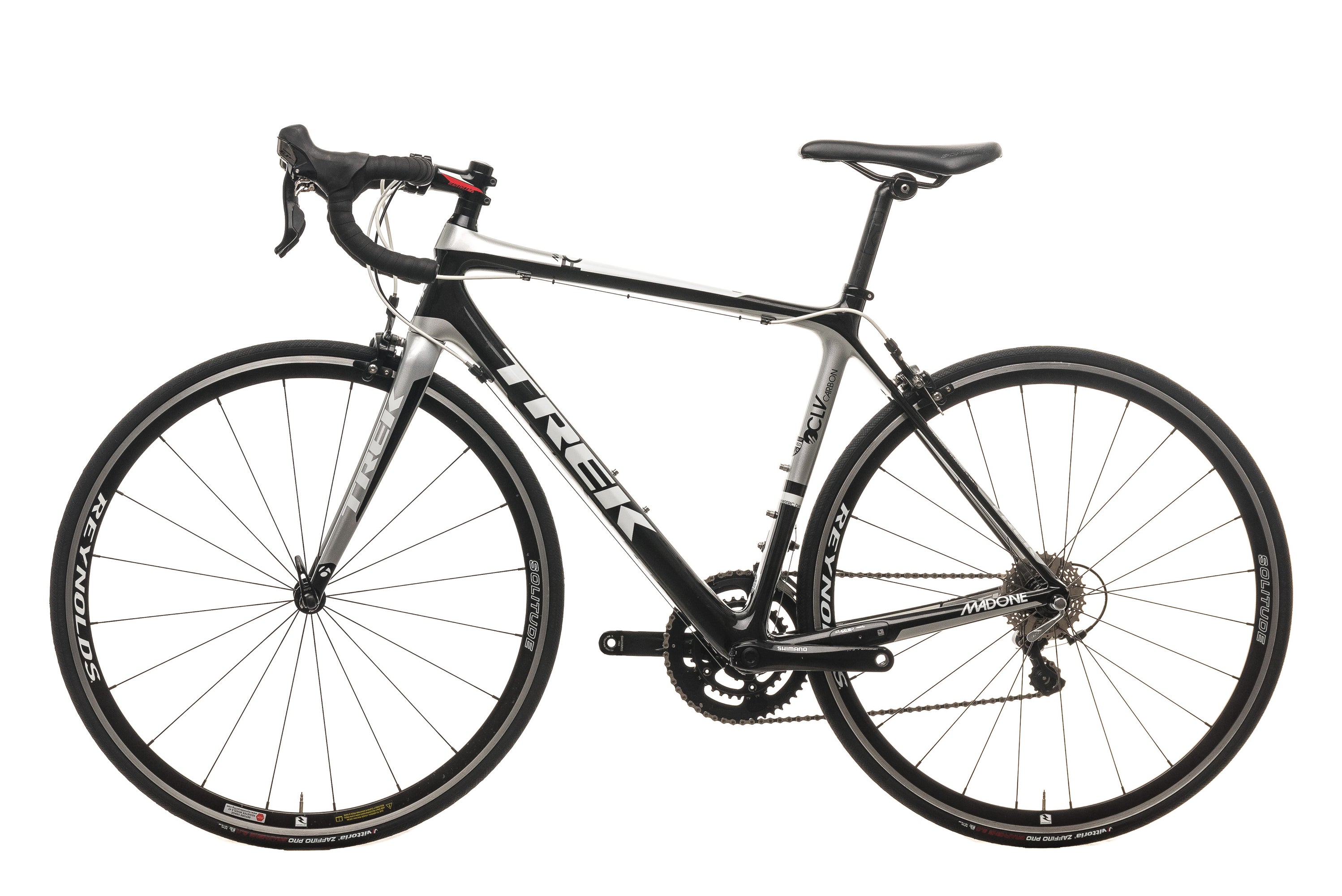

Trek Madone 4.5 H2 Road Bike - 2012, 54cm non-drive side

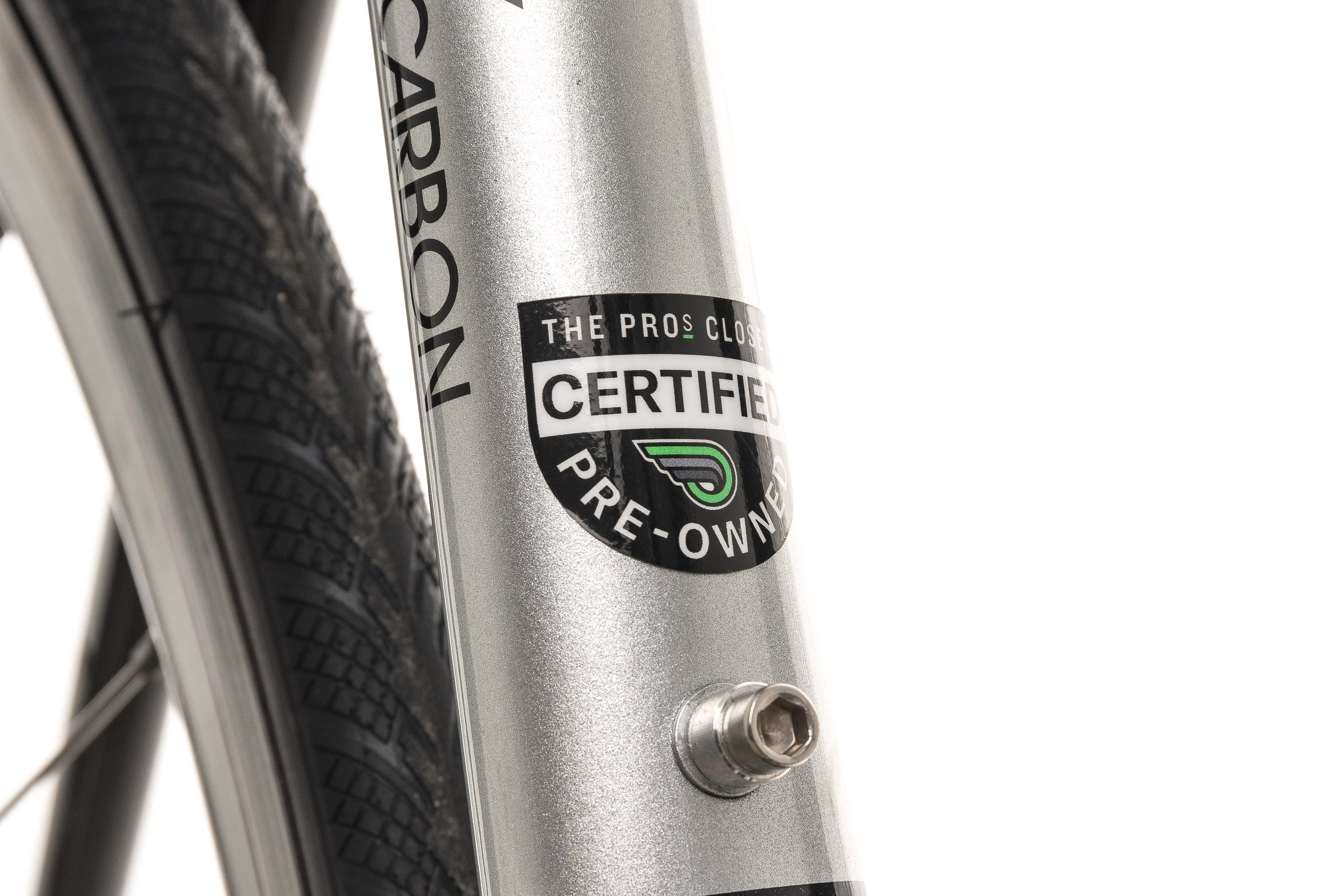

Trek Madone 4.5 H2 Road Bike - 2012, 54cm sticker

Trek Madone 4.5 H2 Road Bike - 2012, 54cm drivetrain

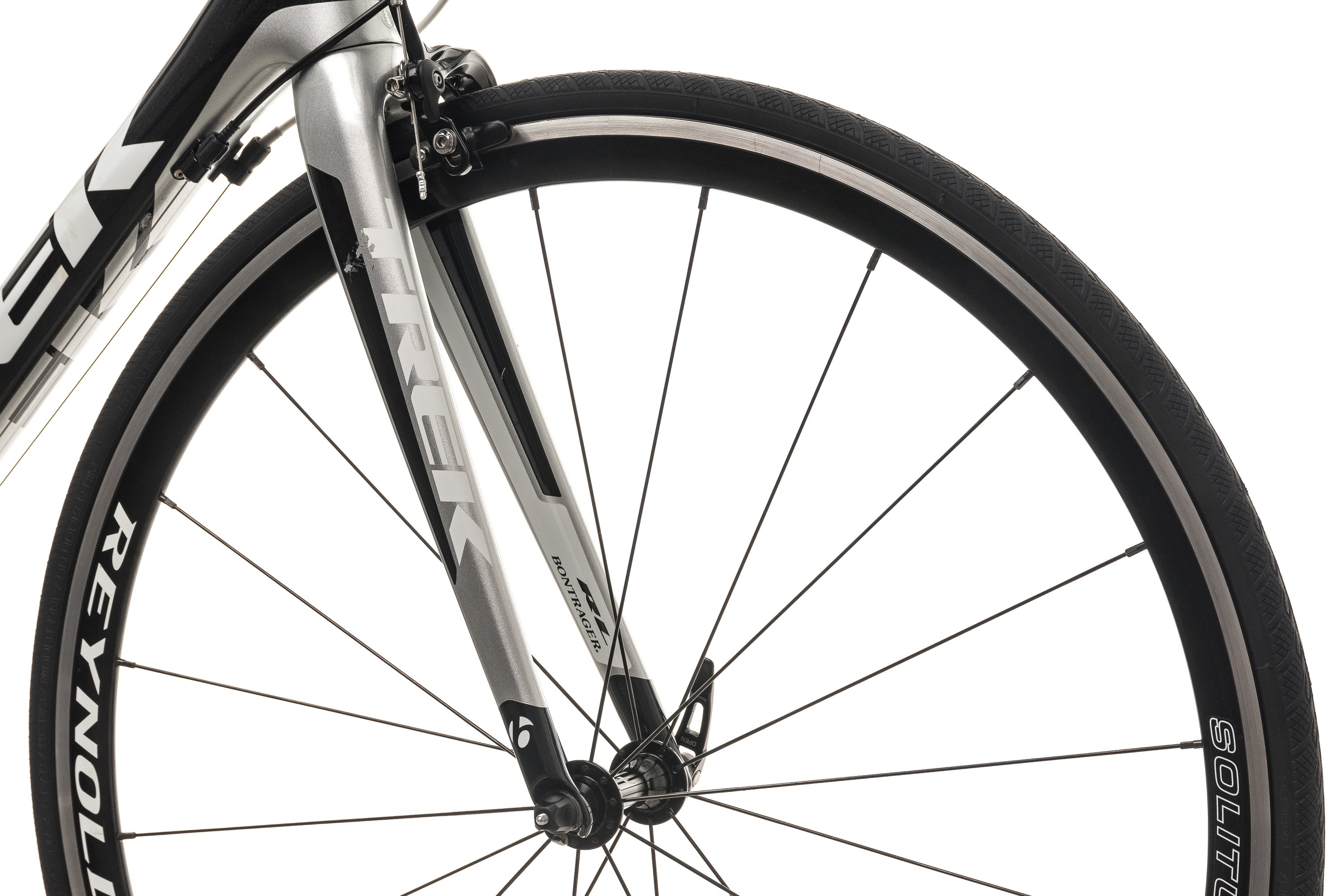

Trek Madone 4.5 H2 Road Bike - 2012, 54cm front wheel

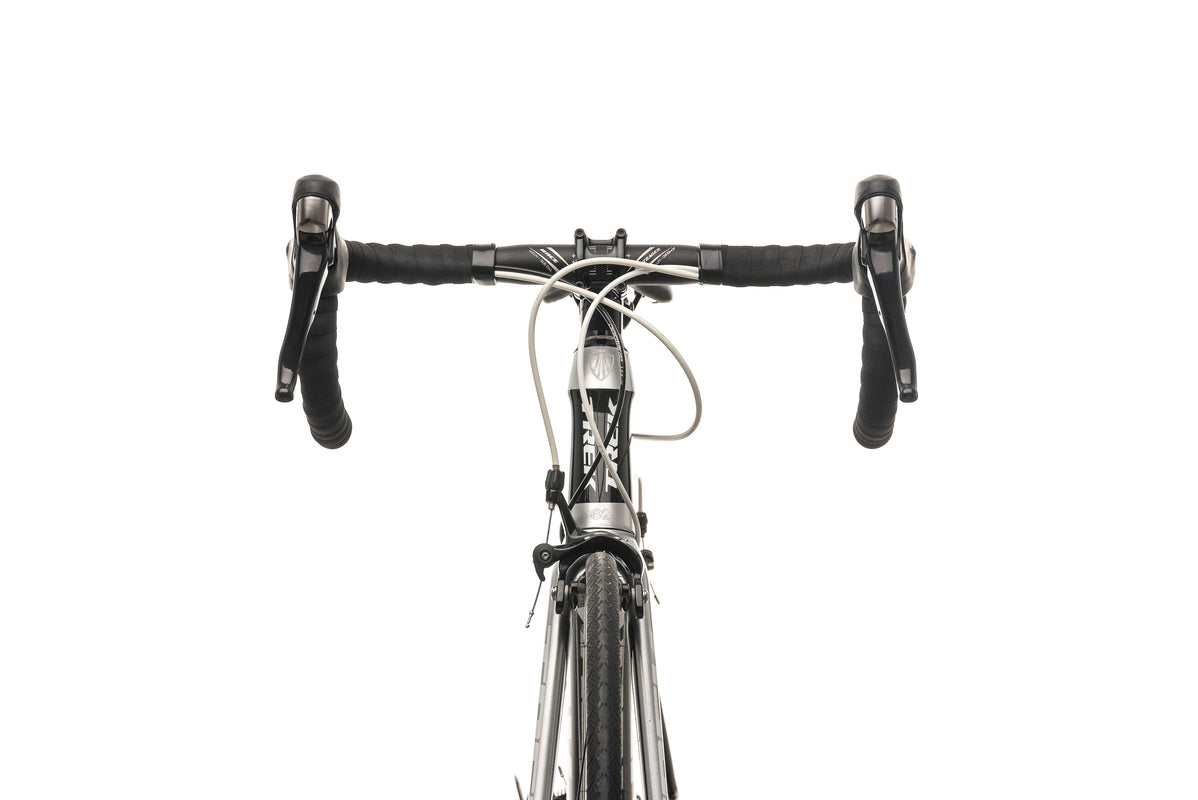

Trek Madone 4.5 H2 Road Bike - 2012, 54cm cockpit

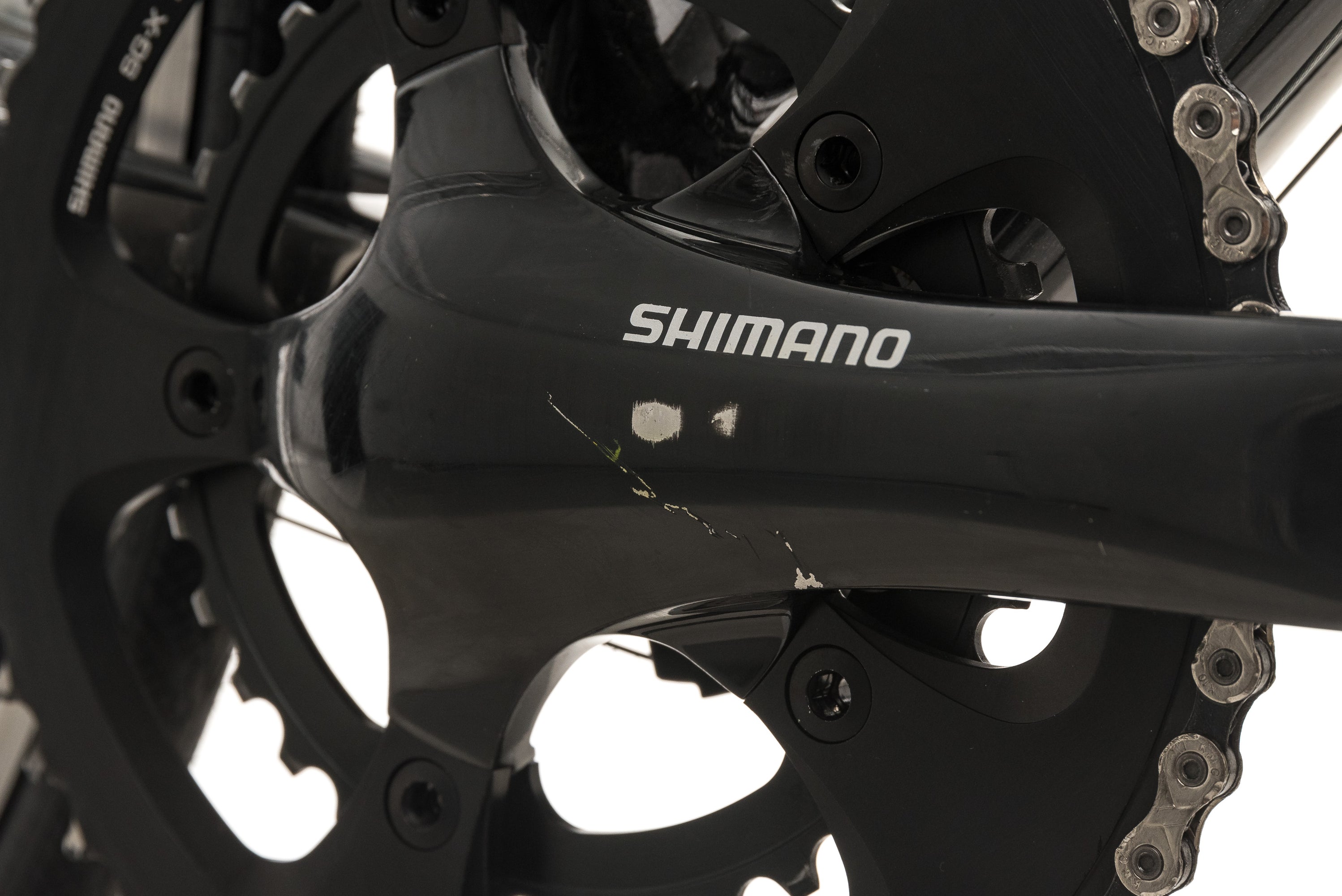

Trek Madone 4.5 H2 Road Bike - 2012, 54cm crank

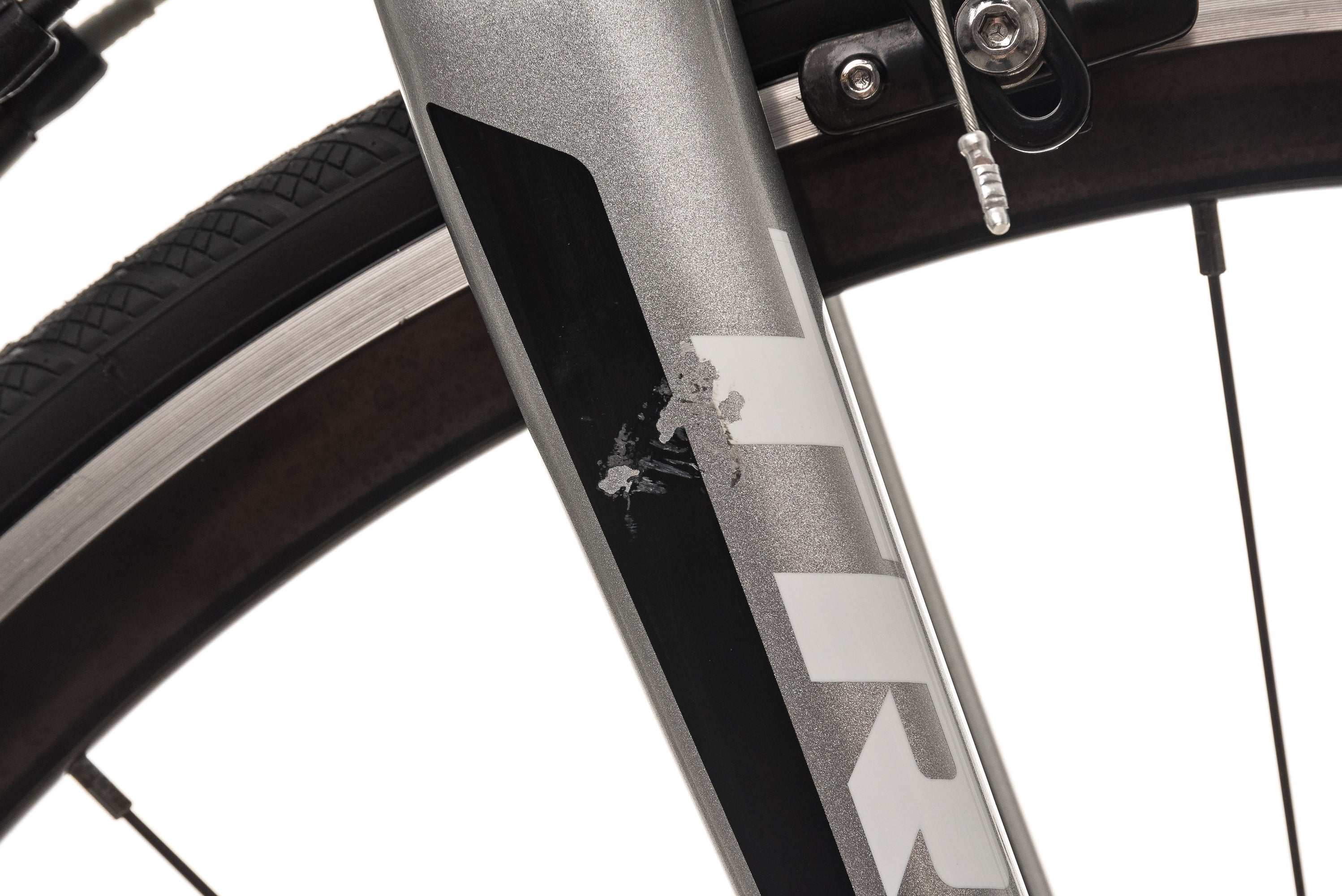

Trek Madone 4.5 H2 Road Bike - 2012, 54cm detail 1

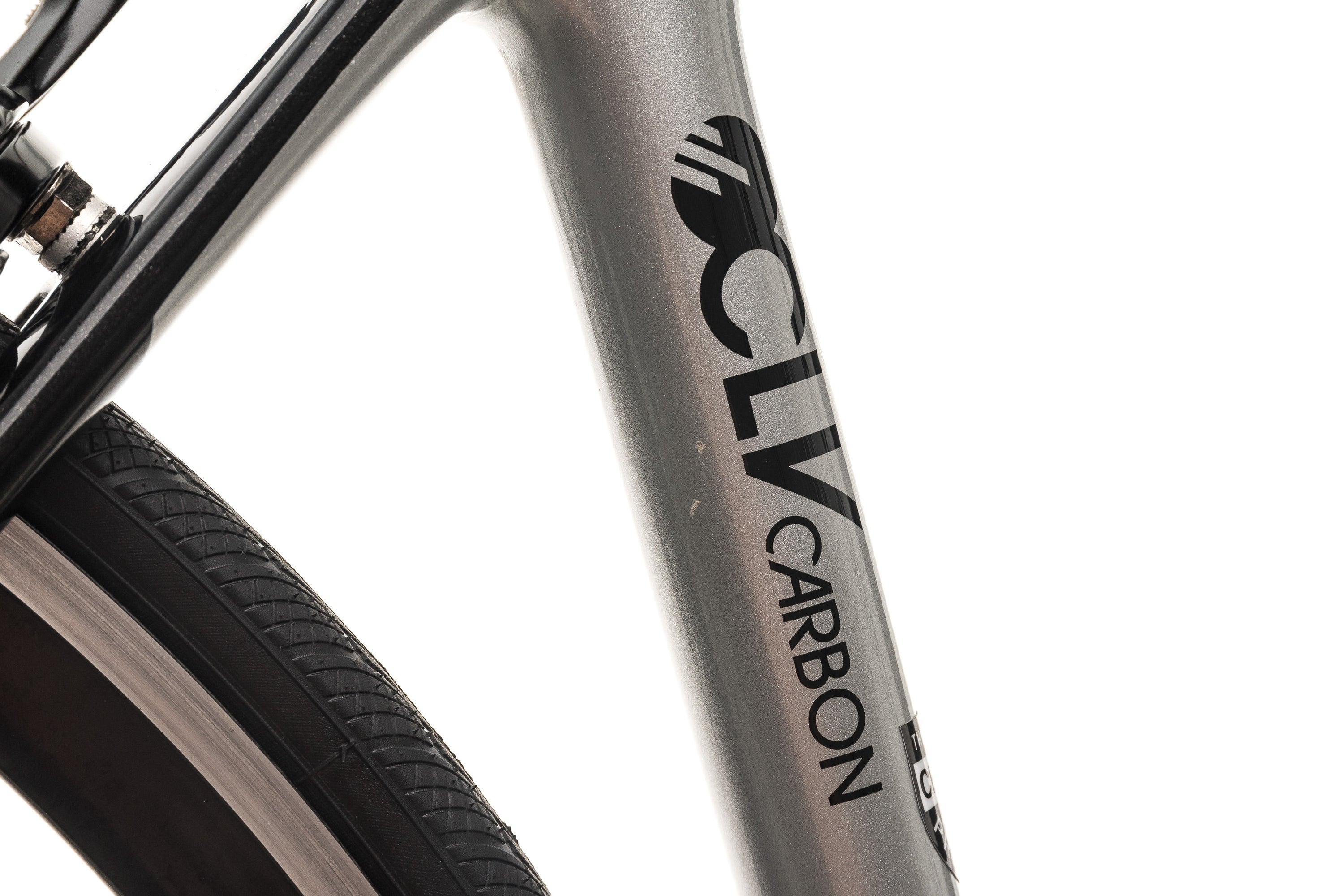

Trek Madone 4.5 H2 Road Bike - 2012, 54cm detail 2

Trek Madone 4.5 H2 Road Bike - 2012, 54cm drive side

Trek Madone 4.5 H2 Road Bike - 2012, 54cm non-drive side

Trek Madone 4.5 H2 Road Bike - 2012, 54cm sticker

Trek Madone 4.5 H2 Road Bike - 2012, 54cm drivetrain

Trek Madone 4.5 H2 Road Bike - 2012, 54cm front wheel

Trek Madone 4.5 H2 Road Bike - 2012, 54cm cockpit

Trek Madone 4.5 H2 Road Bike - 2012, 54cm crank

Trek Madone 4.5 H2 Road Bike - 2012, 54cm detail 1

Trek Madone 4.5 H2 Road Bike - 2012, 54cm detail 2

Trek Madone 4.5 H2 Road Bike - 2012, 54cm

Item #BRD20715

Recommended Rider Height: 5'7" - 5'10" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2012
Brand	Trek
Model	Madone 4.5 H2
Size	54cm
Frame Material	Carbon Fiber
Weight	17 lbs 9 oz

Build

Fork	Bontrager Race Lite w/E2 Aluminum Steerer, Carbon Fiber
Brakes	Alloy, Caliper - Side Pull
Shifters	Shimano 105 R5700, Mechanical
Front Derailleur	Shimano 105 R5700
Rear Derailleur	Shimano 105 R5700
Bottom Bracket Shell	Press Fit
Crankset	Shimano 105 R600, 50/34t, 172.5 mm
Cassette	Shimano HG400, 10spd, 12-30t
Chain	KMC
Handlebar	Bontrager Race VR-C Alloy, 42 cm
Headset	Integrated
Stem	Specialized Alloy 31.8 mm x 80mm, 6°
Seatpost	Bontrager Carbon, 27.2mm
Saddle	Bontrager Affinity 1 Steel Rails
Wheelset	Reynolds Solitude Aluminum Clincher, Reynolds
Front Tire	Vittoria Zaffiro Pro Graphene 2.0, 700C x 23C
Rear Tire	Vittoria Zaffiro Pro Graphene 2.0, 700C x 23C
Tire Type	Clincher
Tubeless Compatibility	Wheels are not tubeless compatible

Geometry

Recommended Rider Height	5'7" - 5'10" Sizing Guide
a. Effective Top Tube	543 mm
b. Seat Tube	506 mm
c. Seat Tube Angle	73.7°
d. Head Tube Angle	73°
e. Head Tube	150 mm
f. Stack	555 mm
g. Reach	381 mm
h. Standover Height	742 mm
i. Saddle Height Range	N/A

Trek Madone 4.5 H2 Road Bike - 2012, 54cm

Item #BRD20715

Recommended Rider Height: 5'7" - 5'10" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Road Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Road Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
48cm	XS	4' 11"	5' 2"
50 cm	Small	5' 2"	5' 5"
52 cm	Small/M	5' 5"	5' 7"
54 cm	Medium	5' 7"	5' 10"
56 cm	Large	5' 10"	6' 1"
58 cm	Large/XL	6' 1"	6' 3"
60 cm	XL	6' 3"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
