2021 X-Large SKU: FRD12263

Canyon Ultimate CF SLX Disc Electronic X-Large Frameset - 2021

Condition: PRE-OWNED
Regular price

return icon 30-day returns
shipping icon Fast Shipping

About this item

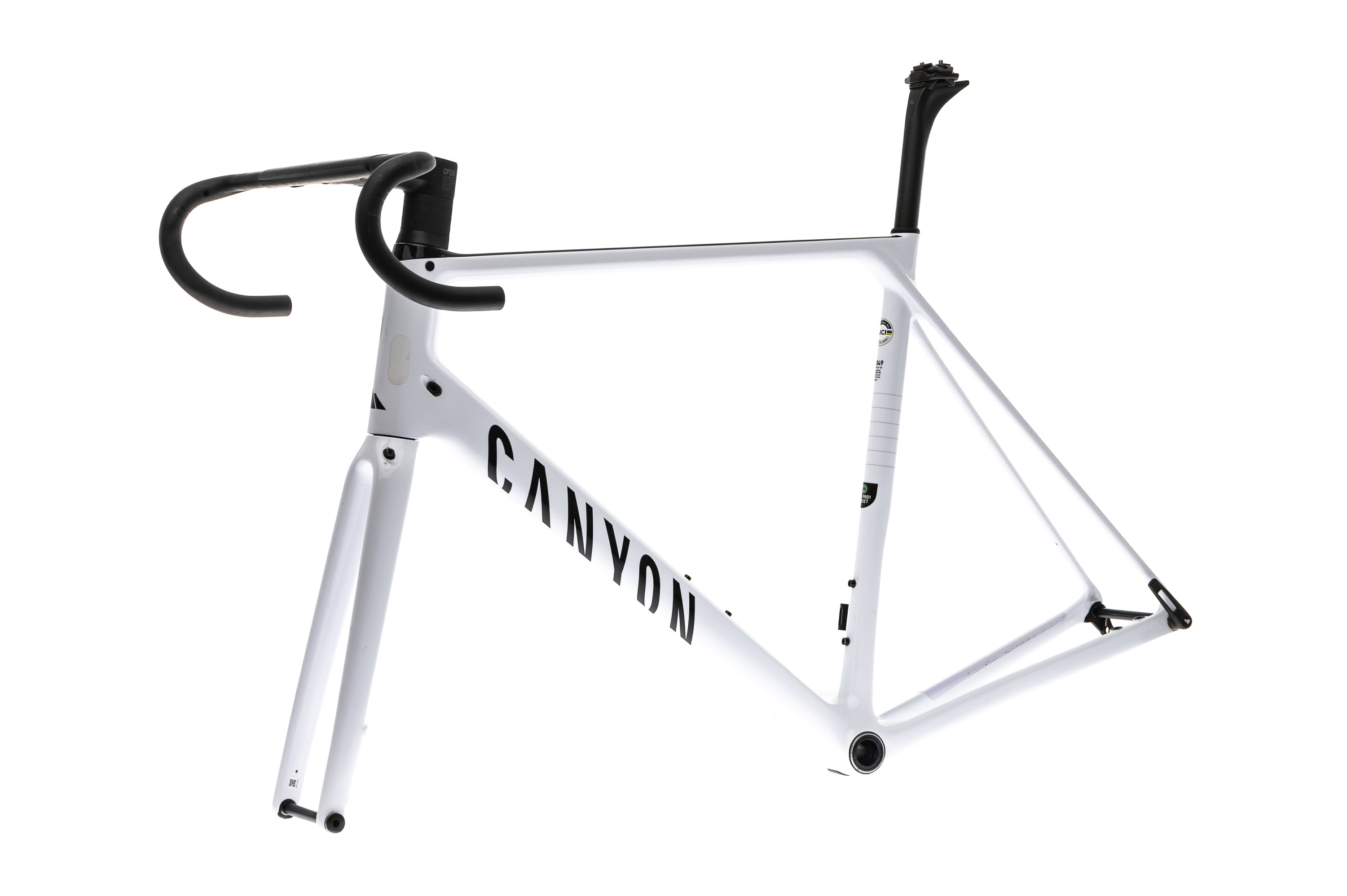

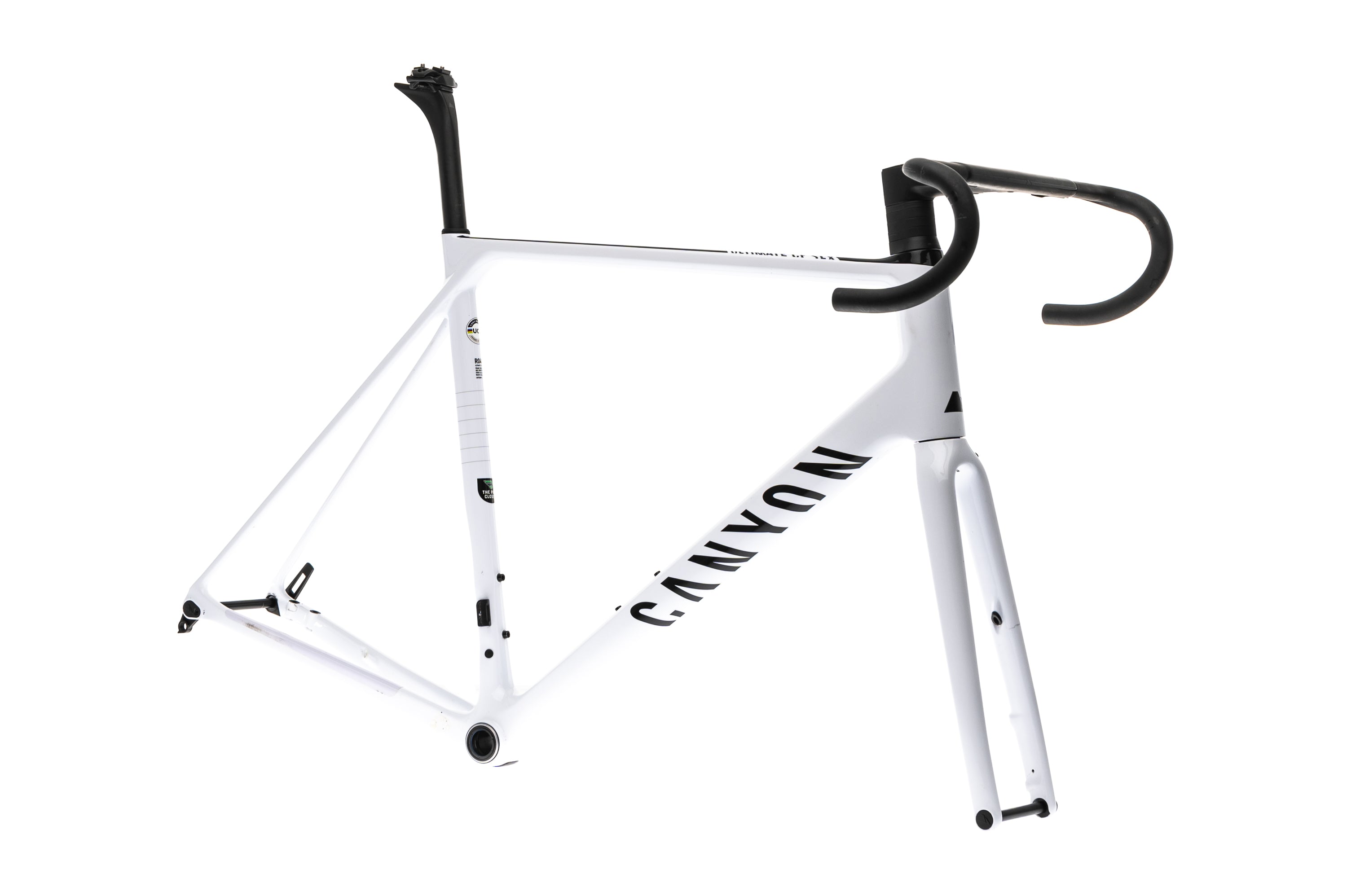

Canyon Ultimate CF SLX Disc Electronic X-Large Frameset - 2021

Mechanic's Comments
- Frame is electronic specific shifting.
- Includes: Frame, fork, headset, handlebar/stem, seatpost, thru axles, & rear derailleur hanger (installed).
- Canyon CP10 Aerocockpit CF Carbon integrated handlebar/stem 43cm x 110mm included (installed).
- Light wear and tear from cable rub, heel rub, chain, etc.

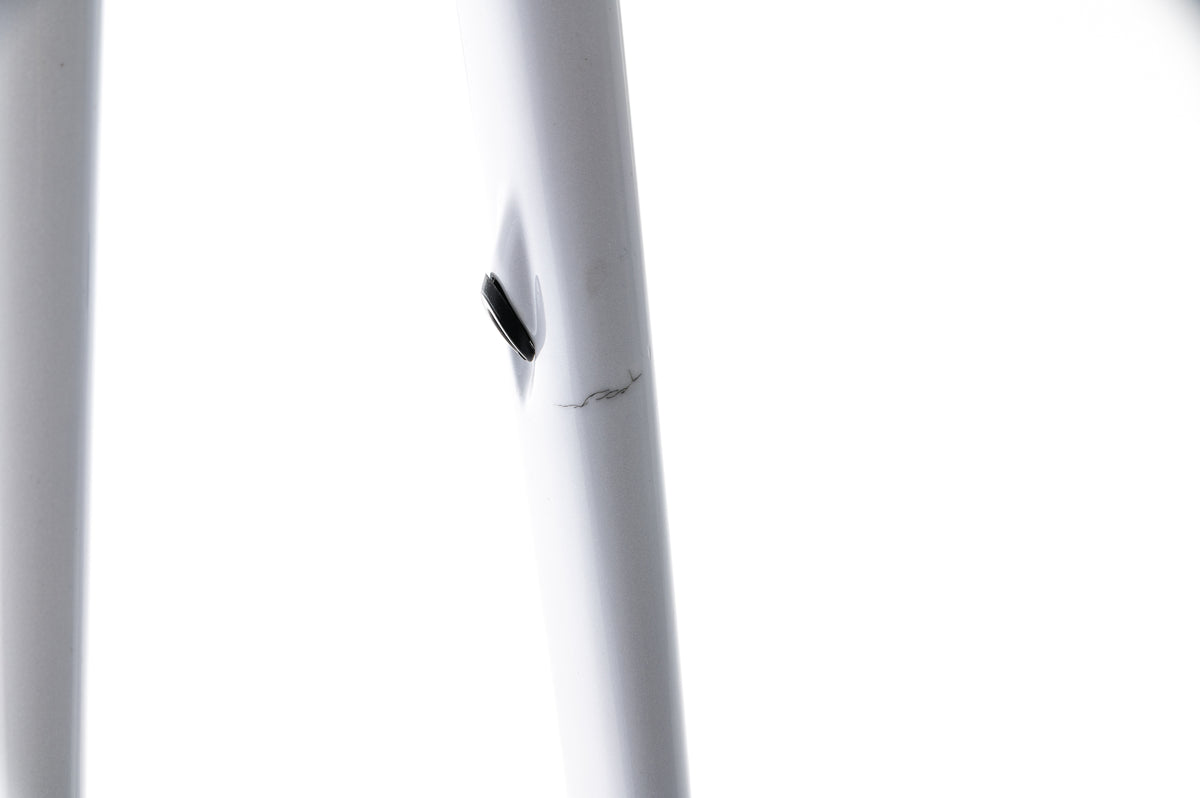

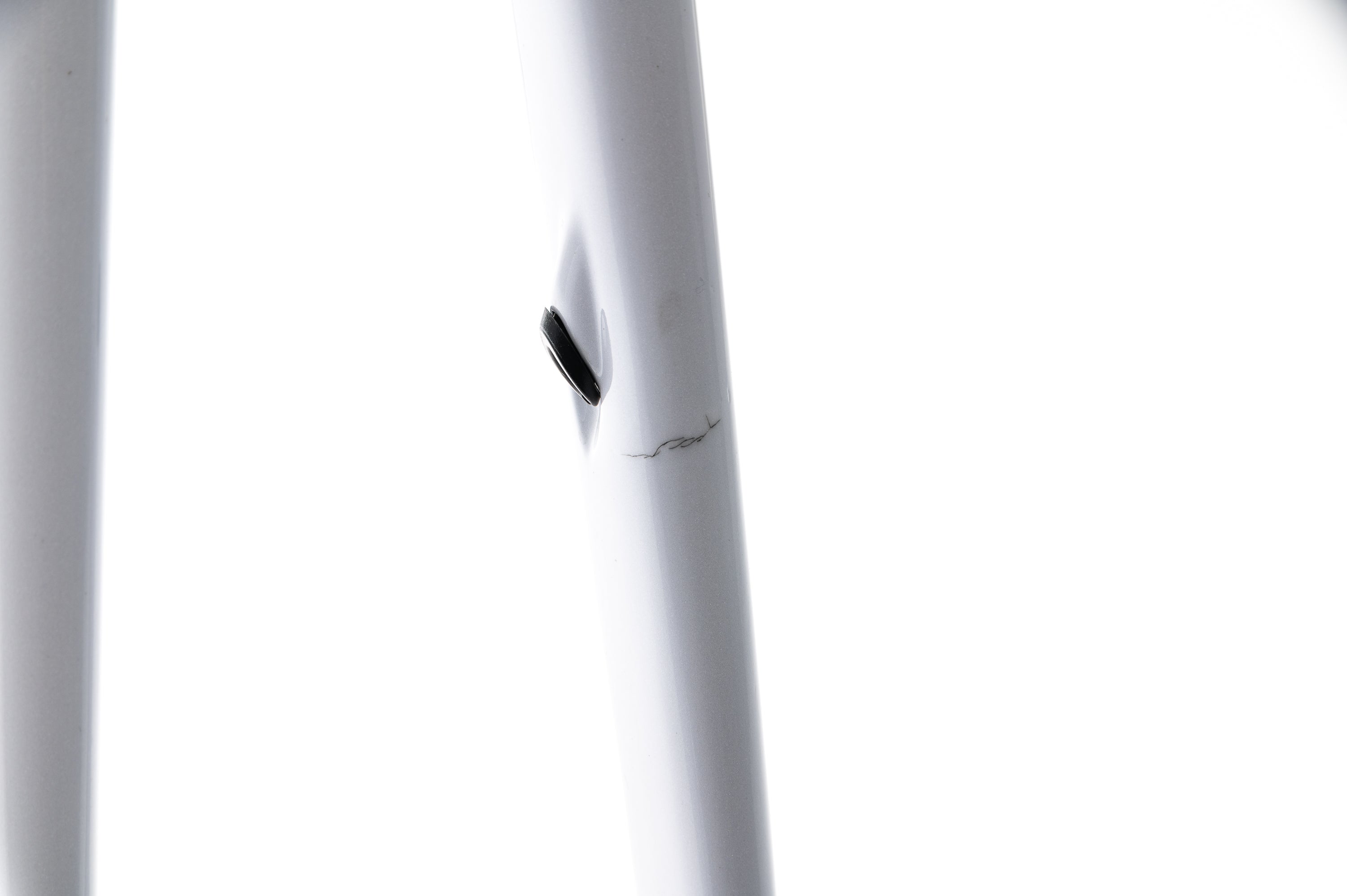

- Moderate scratch to non-drive side fork leg lower.
- Paint chipping to inner chainstay bridge.

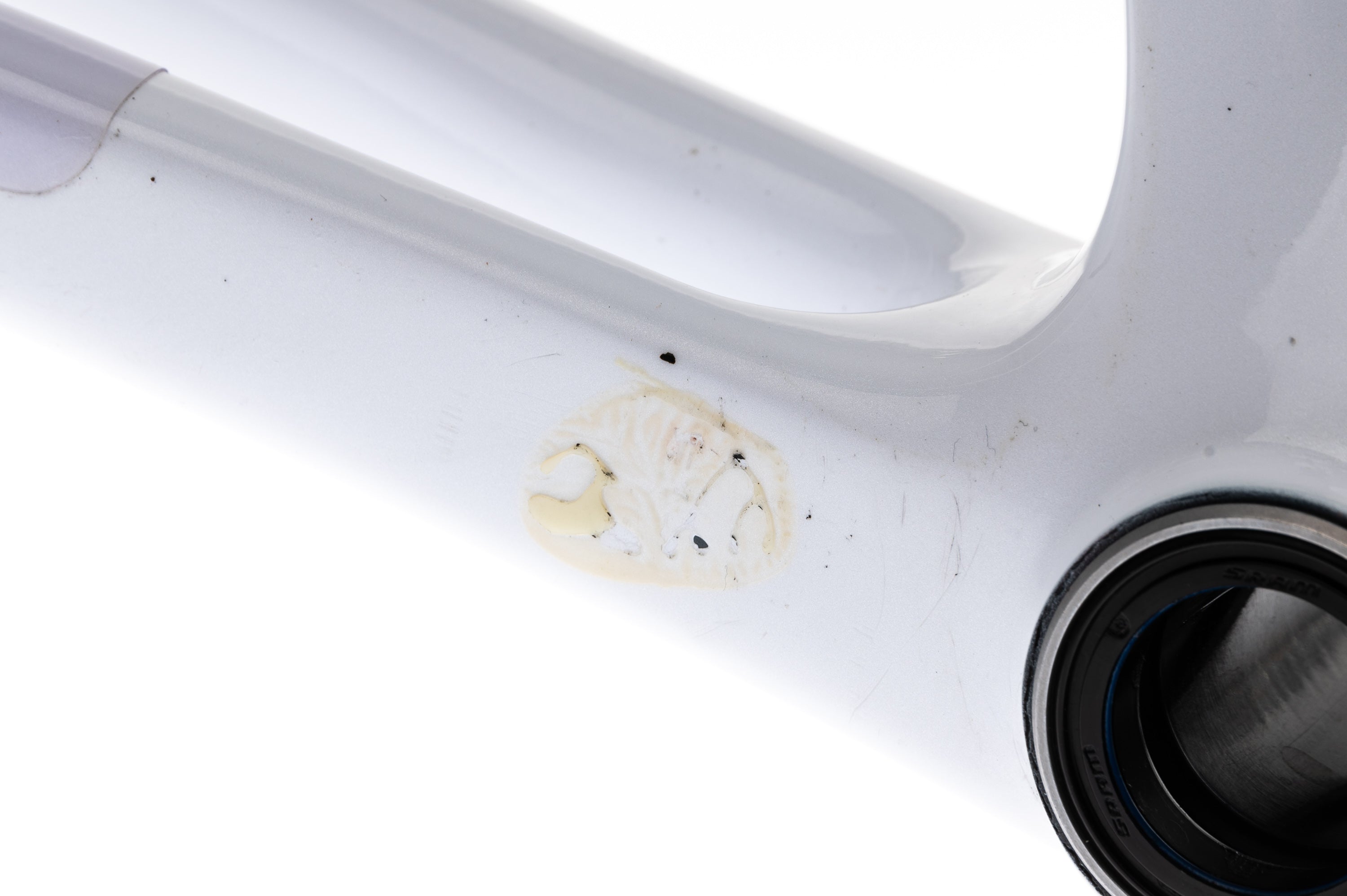

- Glue residue on drive side chainstay from magnet.

Specifications

Year 2021
Brand Canyon
Model Ultimate CF SLX Disc Electronic
Size X-Large
Frame Material Carbon Fiber
Fork Canyon F38 CF Disc
Fork Material Carbon
Steerer Tube 285mm, Tapered
Brake Type Disc Brakes - Hydraulic
Front Derailleur Mount Braze-On
Headset Acros Integrated w/ 1-2mm, 1-5mm, 3-10mm Composite Integrated Spacers & Top Cap
Bottom Bracket Included, BB86
Wheel Size 700C
Seatpost Diameter 27.2mm
Seatpost Clamp Yes
Front Axle Spacing 12x100mm (Thru-Axle)
Rear Axle Spacing 12x142mm
Weight 4 lbs 14 oz
Drivetrain Compatibility Mechanical/Electronic

Geometry

Recommended Rider Height 6'2" - 6'6"
a. Effective Top Tube 596 mm
b. Seat Tube 584 mm
c. Seat Tube Angle 73.8°
d. Head Tube Angle 73.5°
e. Head Tube 195 mm
f. Stack 613 mm
g. Reach 418 mm
h. Standover Height 851 mm
i. Saddle Height Range N/A
