Sorry, this Franco Grimes Gravel Bike - 2019, X-Small has been sold.

Try these similar items:

BGR11735_PH1_01

BGR11735_PH1_02

BGR11735_PH1_03

BGR11735_PH1_04

BGR11735_PH1_05

BGR11735_PH1_06

BGR11735_PH1_07

BGR11735_PH1_08

BGR11735_PH1_09

BGR11735_PH1_10

BGR11735_PH1_01

BGR11735_PH1_02

BGR11735_PH1_03

BGR11735_PH1_04

BGR11735_PH1_05

BGR11735_PH1_06

BGR11735_PH1_07

BGR11735_PH1_08

BGR11735_PH1_09

BGR11735_PH1_10

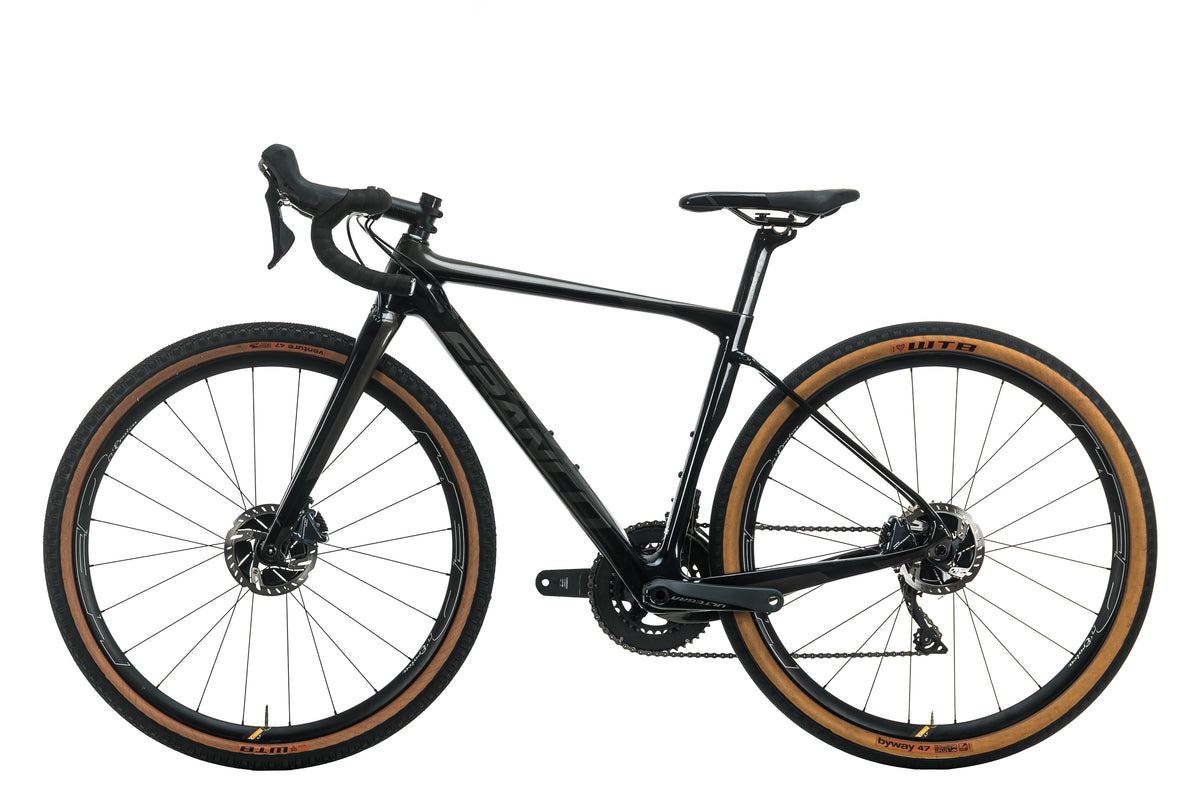

Franco Grimes Gravel Bike - 2019, X-Small

Item #BGR11735

Recommended Rider Height: 5'1" - 5'6" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2019
Brand	Franco
Model	Grimes
Size	X-Small
Frame Material	Carbon Fiber

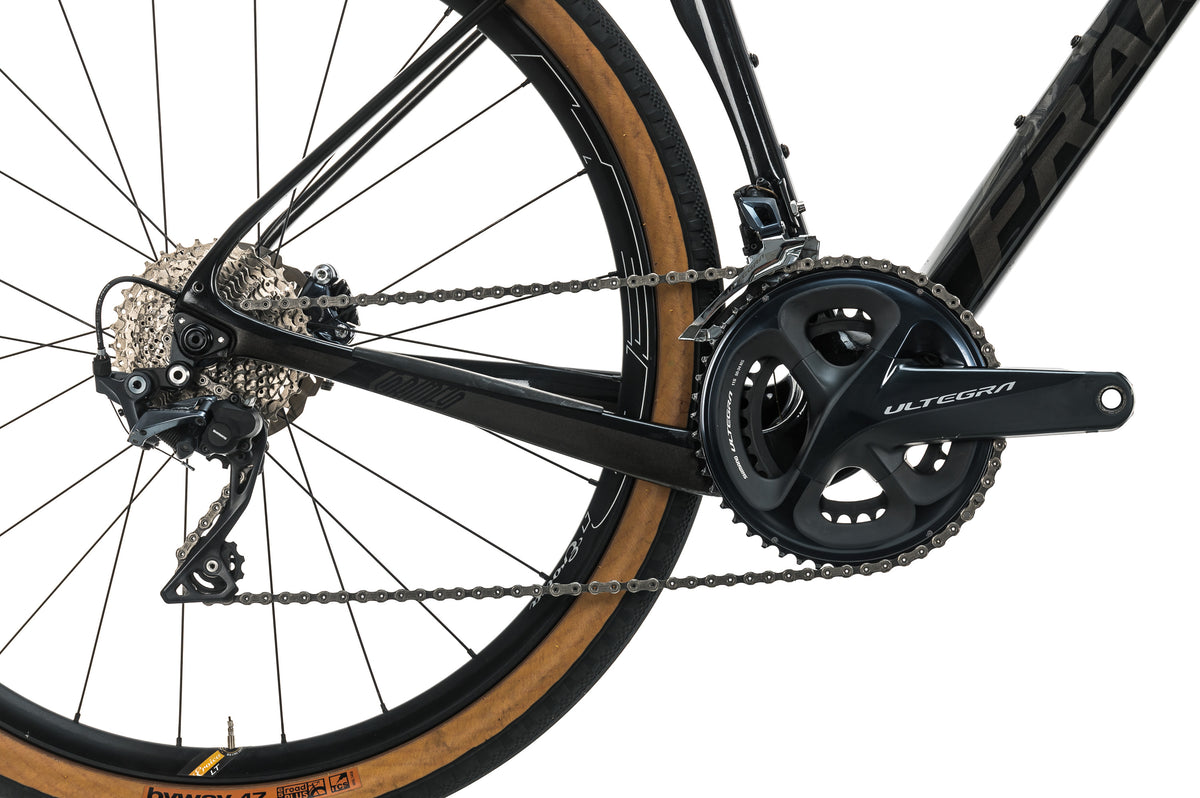

Drivetrain	Shimano, 2x11 spd
Weight	19 lbs 7 oz

Build

Fork	Franco Disc, Carbon
Brakes	Shimano Ultegra R8070, Disc Brakes - Hydraulic
Shifters	Shimano Ultegra R8020, Mechanical
Front Derailleur	Shimano Ultegra R8000
Rear Derailleur	Shimano Ultegra R8000
Bottom Bracket Shell	Threaded
Crankset	Shimano Ultegra R8000, 50/34t, 170mm
Cassette	Shimano Ultegra HG800, 11-34t
Chain	Shimano
Handlebar	Zipp Service Course Alloy, 38cm
Headset	Integrated
Stem	Salsa Alloy, 31.8mm x 80mm, 6°
Seatpost	Franco Carbon, Frame Specific
Saddle	Corki Padded
Front Axle Spacing	12x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm
Wheelset	HED Eroica Disc Aluminum Tubeless Compatible, HED
Front Tire	WTB Venture TCS, 650B x 47C
Rear Tire	WTB Byway TCS, 650B x 47C
Tire Type	Tubeless
Tubeless Compatibility	Wheels are tubeless compatible but ships with tubes installed

Geometry

Recommended Rider Height	5'1" - 5'6" Sizing Guide
a. Effective Top Tube	520 mm
b. Seat Tube	440 mm
c. Seat Tube Angle	74°
d. Head Tube Angle	70°
e. Head Tube	110 mm
f. Stack	526 mm
g. Reach	369 mm
h. Standover Height	759 mm
i. Saddle Height Range	N/A

Franco Grimes Gravel Bike - 2019, X-Small

Item #BGR11735

Recommended Rider Height: 5'1" - 5'6" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
