2017 15.5" SKU: BMT22388

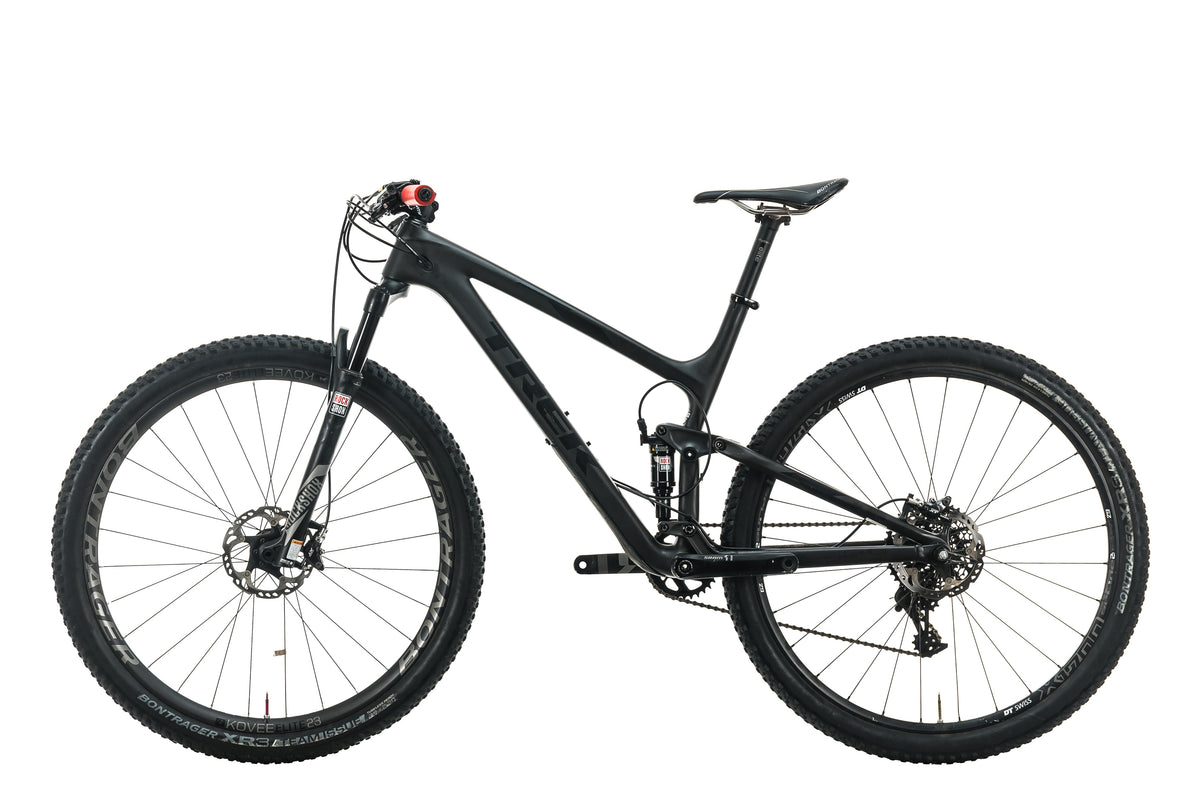

Trek Top Fuel 9.8 Mountain Bike - 2017, 15.5"

Recommended Rider Height: 5'2" - 5'5" Size Guide
Regular price

return icon 30-day returns
shipping icon $94.99 RideFast Shipping

About Trek

Trek Bicycles set out to change minds—top-notch bikes do come from America, not just Europe. Trek makes over a million bikes a year and is still simmering with homegrown American pride.

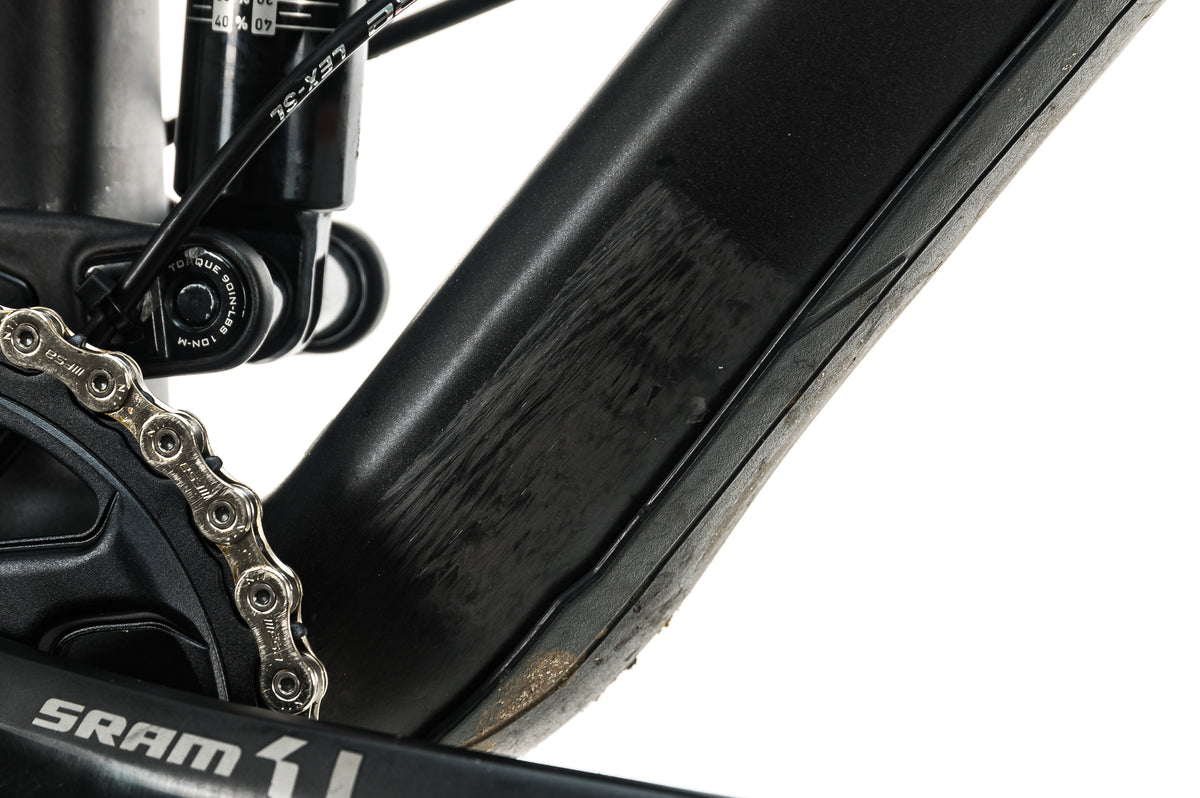

The down tube was professionally repaired by Broken Carbon in Boulder, CO. Broken Carbon offers a 5-year limited warranty on all frame repairs.

Highlights:
- This bike combines lightweight carbon with cross country geometry.
- Tuned front & rear brakes, firming up lever pull & creating consistent grab.
- New chain & chainring for crisp shifting.
- New shifter cable & housing, pro-tuned to optimize crisp shifting.

Master Mechanic's Notes:
- Moderate paint chips on the top tube

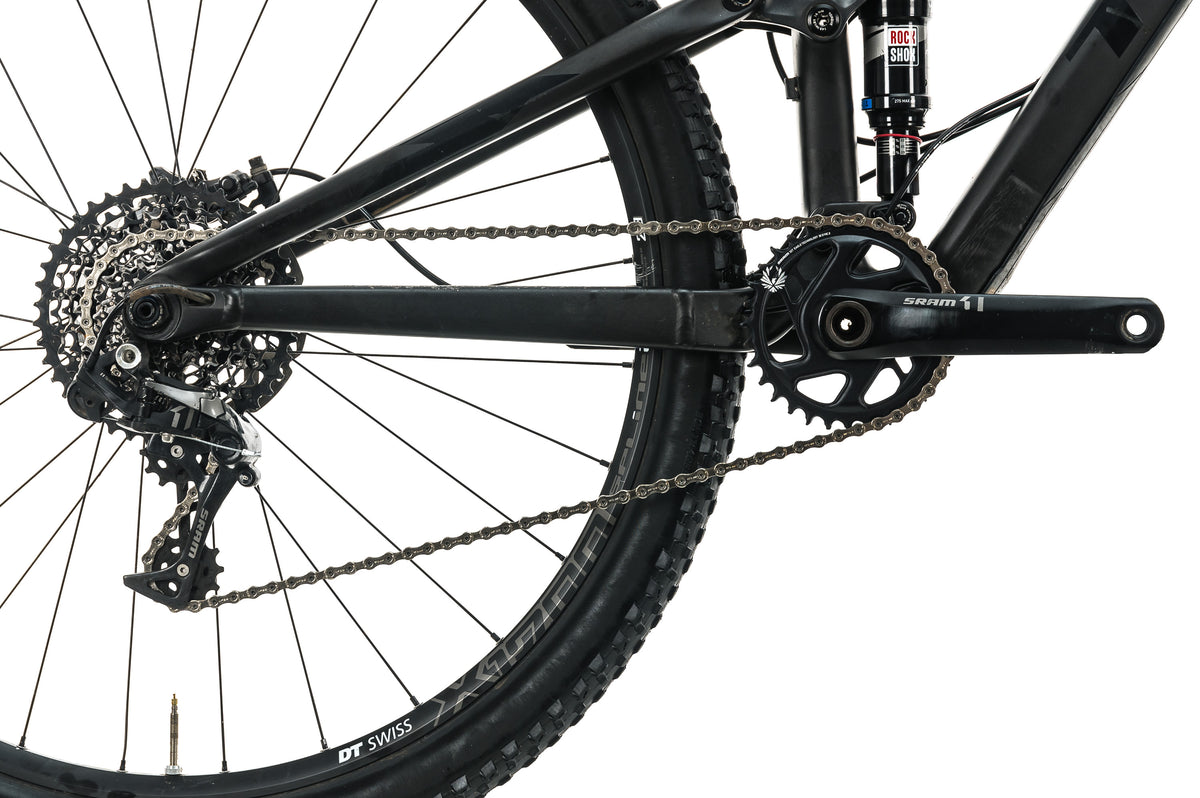

- Moderate scratches on the drive side chainstay.
- Light scratches on the down tube, non-drive side chainstay & crank arms.
- Light nicks on the rims.

About Trek

Trek Bicycles set out to change minds—top-notch bikes do come from America, not just Europe. Trek makes over a million bikes a year and is still simmering with homegrown American pride.
inspection image

TPC Guarantee

This bike passed a 141-point inspection and received a full pro-tune by our Master Mechanics in our Certified Pre-Owned process. CPO bikes are pristine and ready to ride!

Learn more
returns image

30-Day Hassle-Free Returns

Shop with confidence. Every bike is covered by our 30-day satisfaction guarantee. If this bike isn’t perfect for you, get in touch and we’ll help you find the right bike.

Learn more
shipping image

RideFast Shipping

Bikes ship in our custom RideFast box, and assembly is incredibly simple. Most novice riders can assemble their bike in 5 minutes or less. The tools you need to assemble are also included.

Learn more

Specifications

Year 2017
Brand Trek
Model Top Fuel 9.8
Size 15.5"
Frame Material Carbon Fiber
Drivetrain Shimano, 1x11 spd
Weight 24 lbs 14 oz
Fork RockShox SID XX
Fork Travel 100mm
Rear Shock RockShox Monarch
Rear Shock Travel 100mm
Brakes Shimano XT M8000, Disc Brakes - Hydraulic
Shifters SRAM X1, Mechanical
Rear Derailleur SRAM X01
Bottom Bracket Shell Press fit
Crankset SRAM X1, 32t, 175mm
Cassette SRAM XG-1150, 10-42t
Chain FSA
Handlebar Bontrager Carbon, 690mm
Headset FSA
Stem Truvativ Holzfeller Alloy, 31.8mm x 50mm, 0°
Seatpost Bontrager Rhythm Elite Alloy, 31.6mm
Saddle Bontrager Montrose Elite
Front Axle Spacing 15x110mm (Boost)
Rear Axle Spacing 12x148mm Boost
Wheelset Front: Bontrager Kovee Elite 23 Carbon Tubeless Compatible/ Rear: DT Swiss X 1700 Spline Aluminum Tubeless Compatible, Front: Bontrager/ Rear: DT Swiss
Front Tire Bontrager XR3, 29" x 2.2"
Rear Tire Bontrager XR3, 29" x 2.2"
Tire Type Tubeless
Tubeless Compatibility Bike ships tubeless

Geometry

Recommended Rider Height 5'2" - 5'5"
a. Effective Top Tube 558 mm
b. Seat Tube 394 mm
c. Seat Tube Angle 73.5°
d. Head Tube Angle 69.9°
e. Head Tube 100 mm
f. Stack 561 mm
g. Reach 392 mm
h. Standover Height 732 mm
i. Saddle Height Range N/A
VIEW SIZING GUIDE
