2015 57.5cm SKU: FRD12005

Pinarello Dogma F8 57.5cm Frameset - 2015

Condition: PRE-OWNED
Regular price

return icon 30-day returns
shipping icon Fast Shipping

About this item

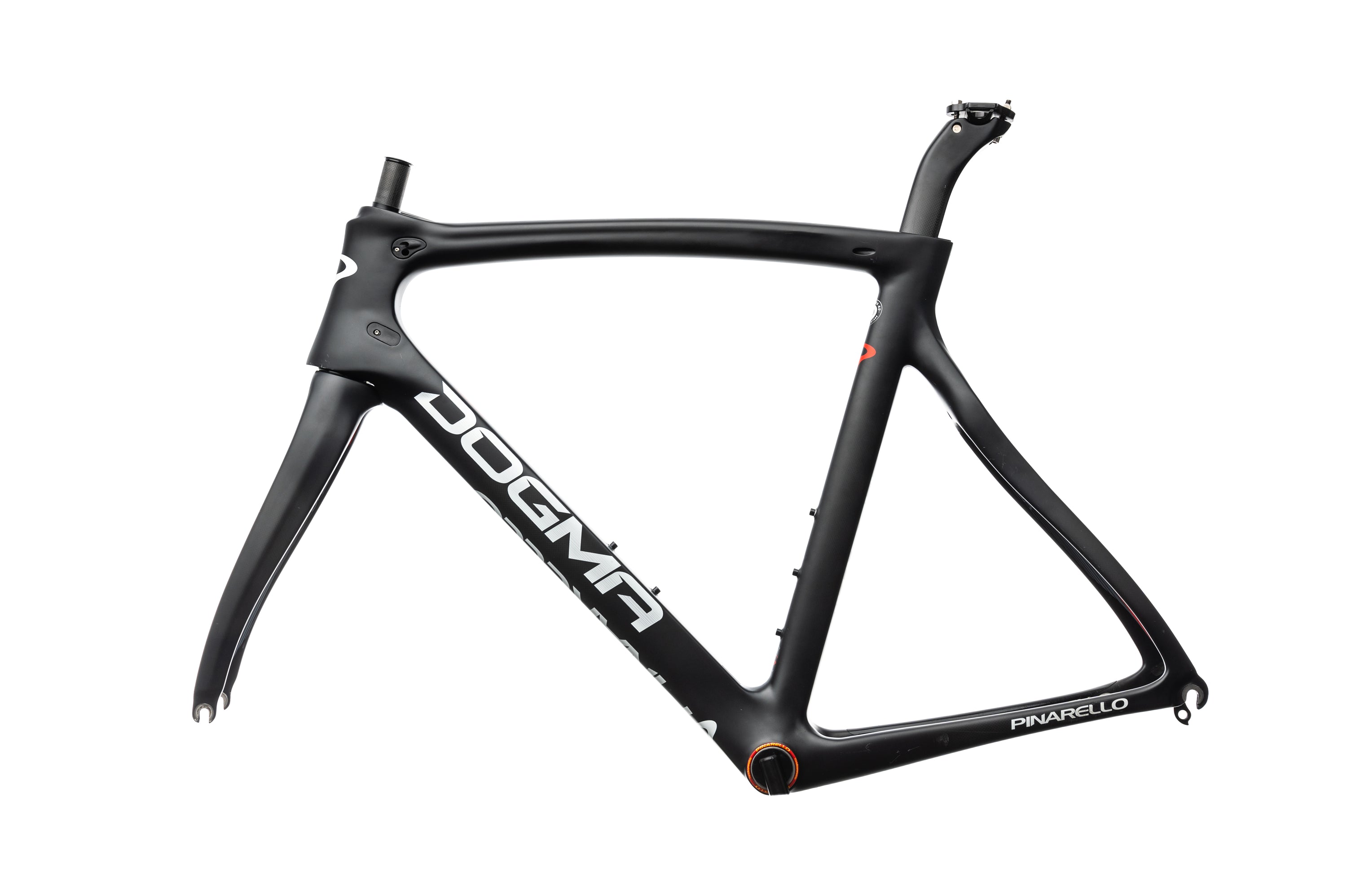

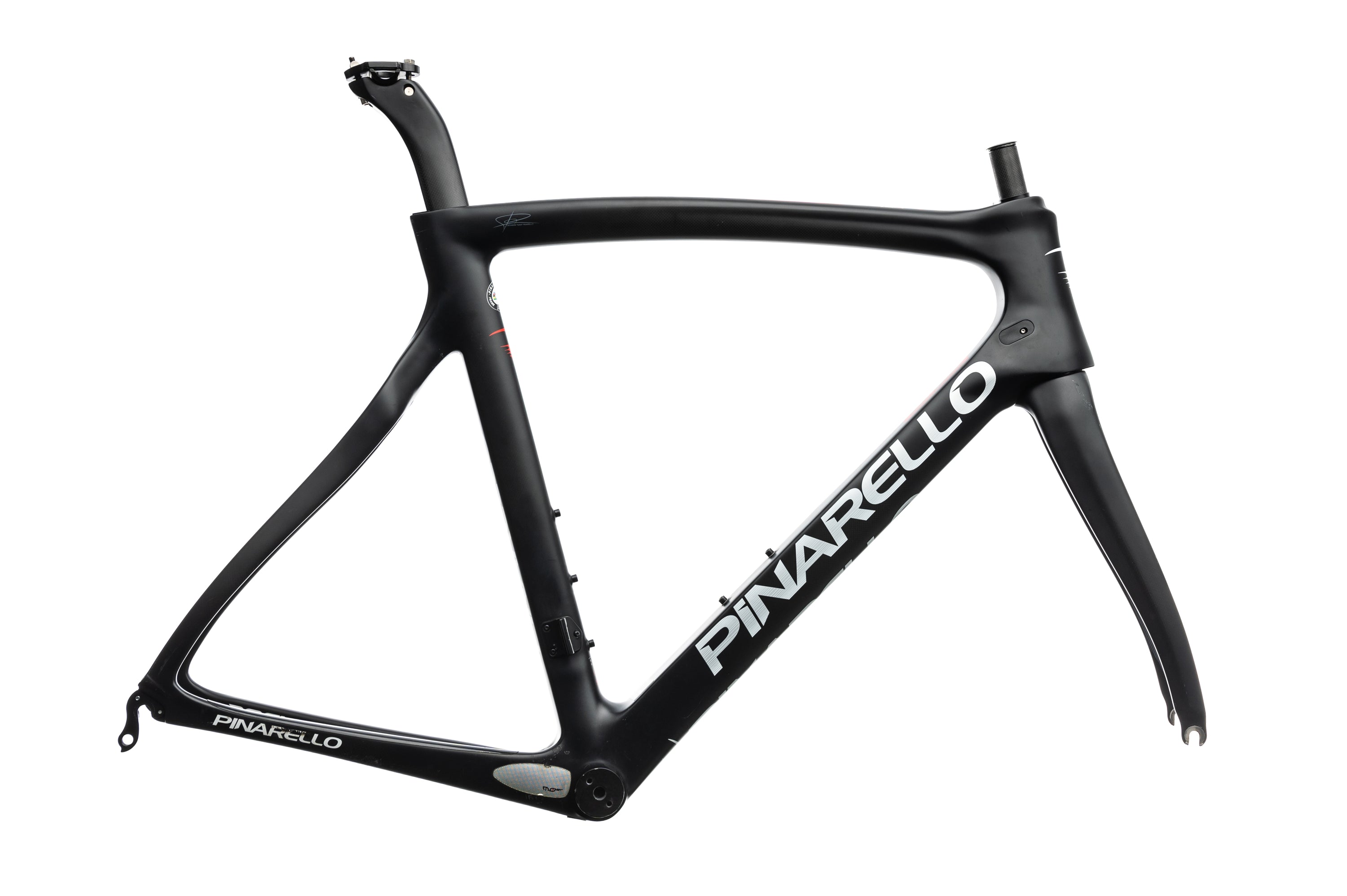

Pinarello Dogma F8 57.5cm Frameset - 2015

Mechanic's Comments
- Includes: Frame, fork, seatpost, & rear derailleur hanger (installed).
- Frame is currently set up for electronic shifting.
- Bottom bracket cable guide & frame grommets for mechanical shifting not included.
- Light wear and tear from cable rub, heel rub, chain, etc.

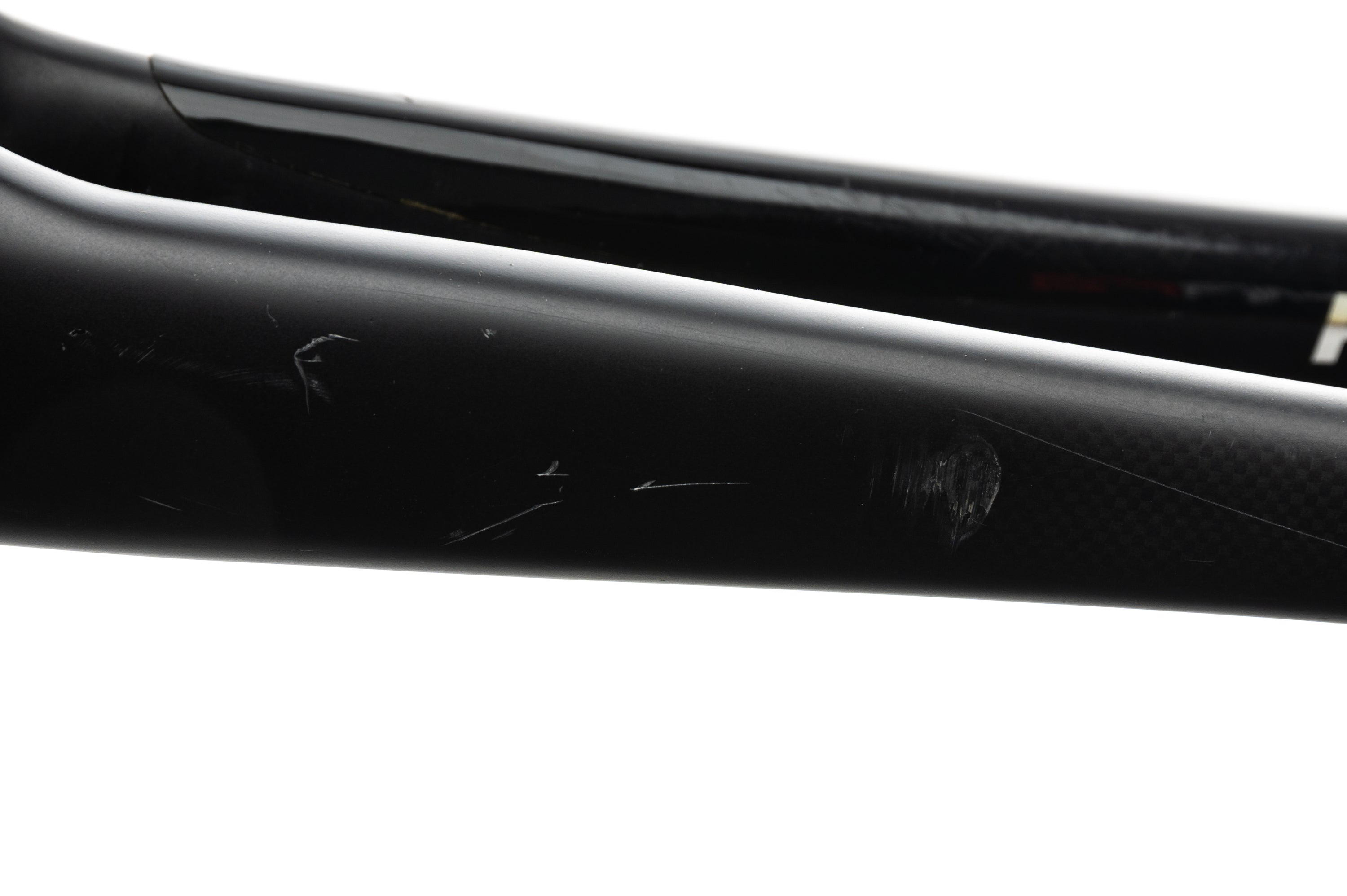

- Paint chipping to drive side chainstay.

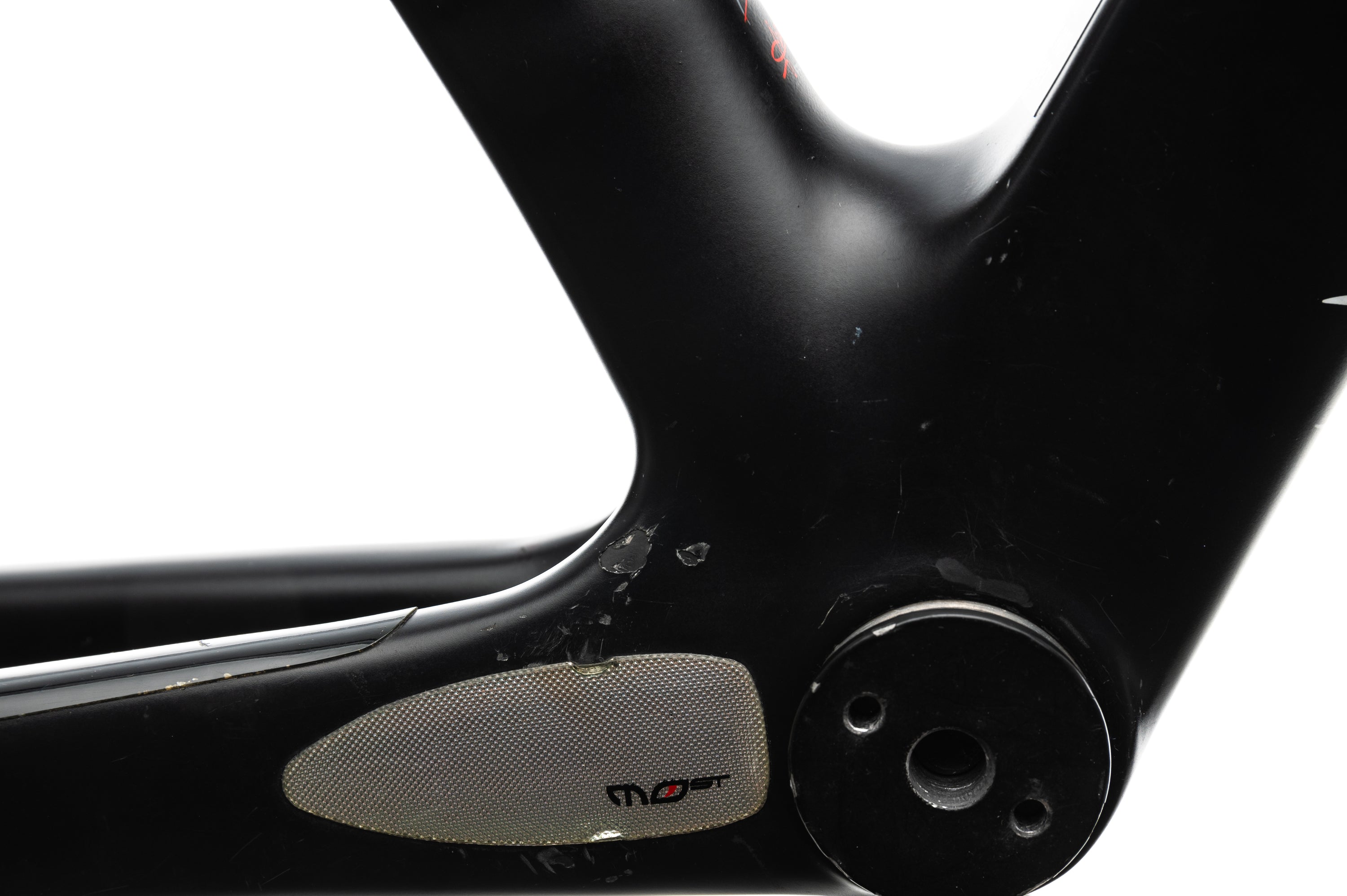

- Non-structural inner bottom bracket shell has been altered for cable routing by previous owner (see photo).

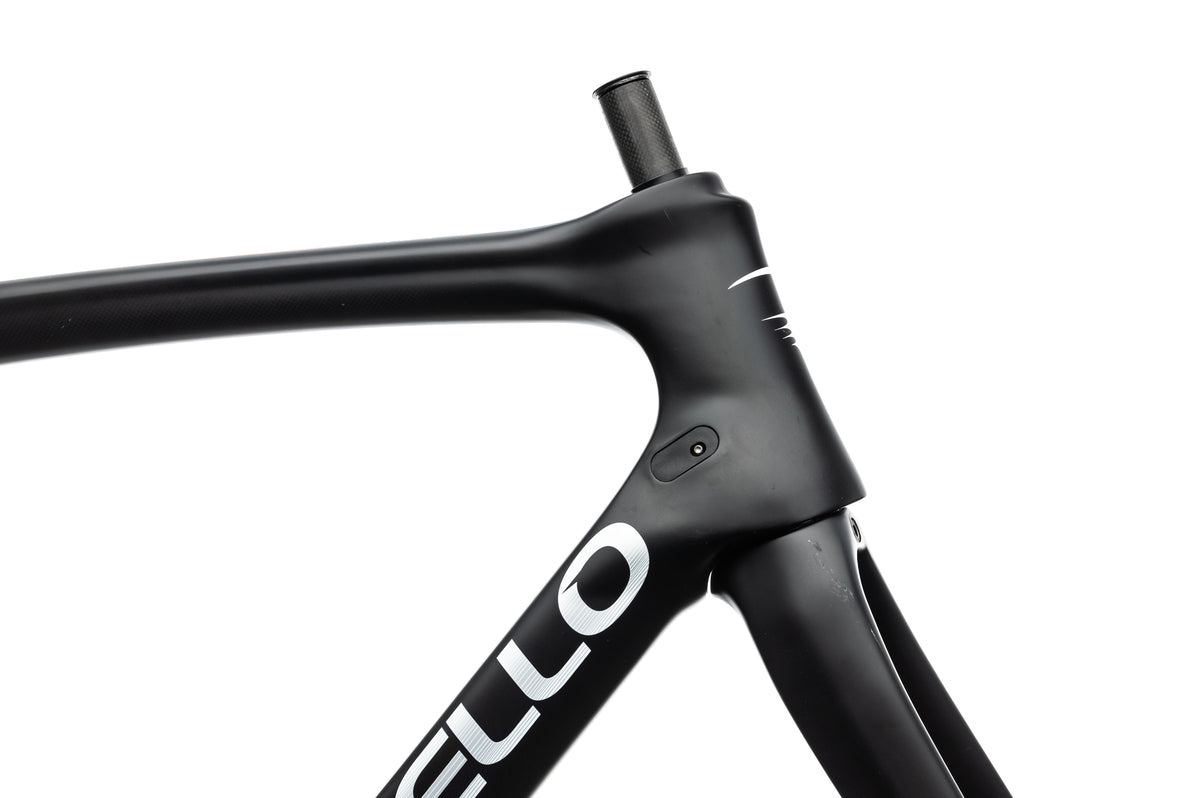

- Compression plug installed in fork steerer tube w/ top cap.

Specifications

Year 2015
Brand Pinarello
Model Dogma F8
Size 57.5cm
Frame Material Carbon Fiber

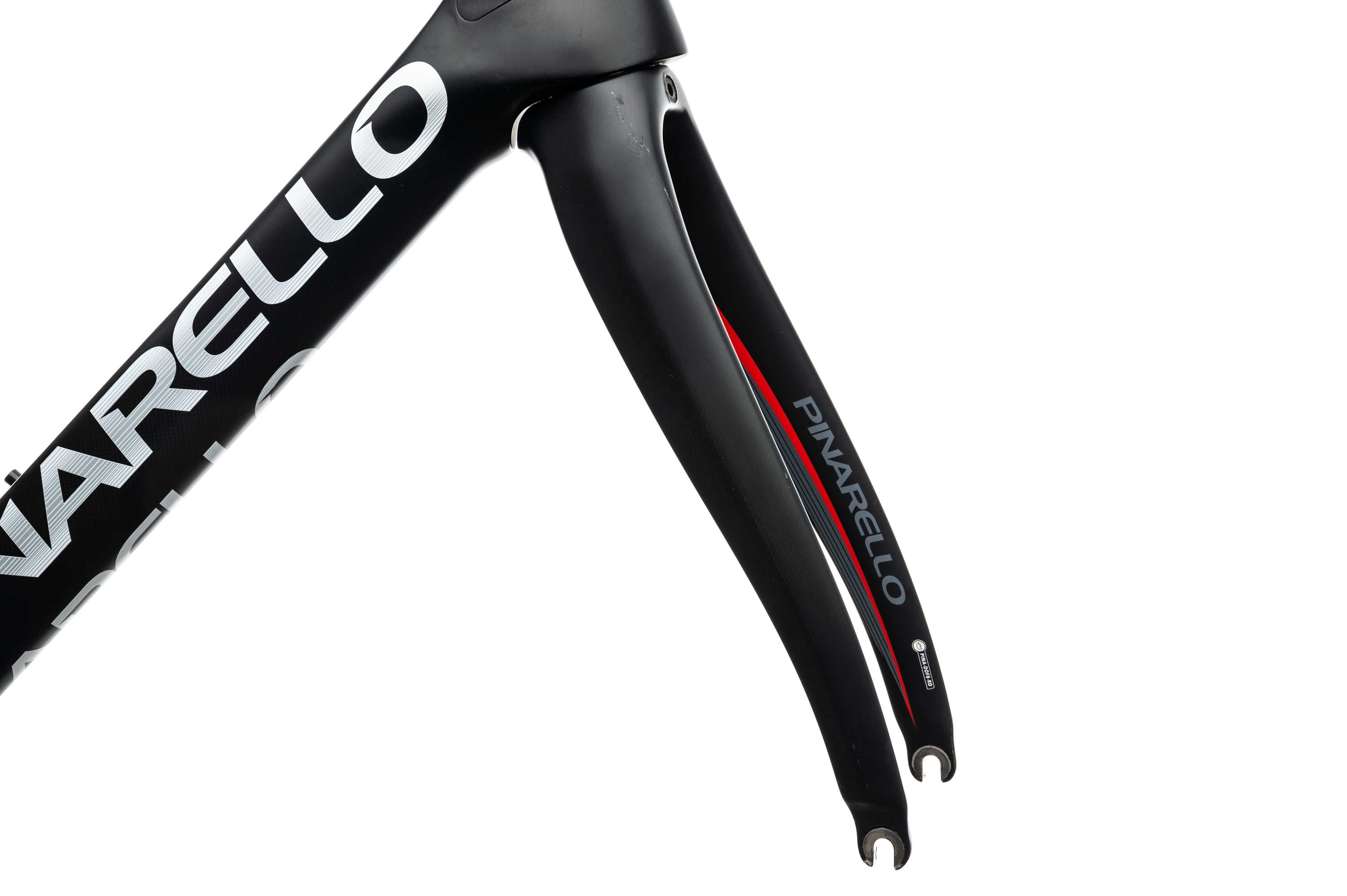

Fork Pinarello Onda
Fork Material Carbon
Steerer Tube 230 mm, Tapered
Brake Type Caliper - Side Pull
Front Derailleur Mount Braze-On
Headset Not Included
Bottom Bracket Not Included, Italina
Wheel Size 700C
Seatpost Diameter Frame Specific
Seatpost Clamp Yes
Front Axle Spacing 9x100mm (Quick Release)
Rear Axle Spacing 10x130mm
Weight 3 lbs 10 oz
Drivetrain Compatibility Mechanical/Electronic

Geometry

Recommended Rider Height N/A
a. Effective Top Tube 575 mm
b. Seat Tube 575 mm
c. Seat Tube Angle 73°
d. Head Tube Angle 73.7°
e. Head Tube 179 mm
f. Stack 584 mm
g. Reach 397 mm
h. Standover Height 839 mm
i. Saddle Height Range N/A
