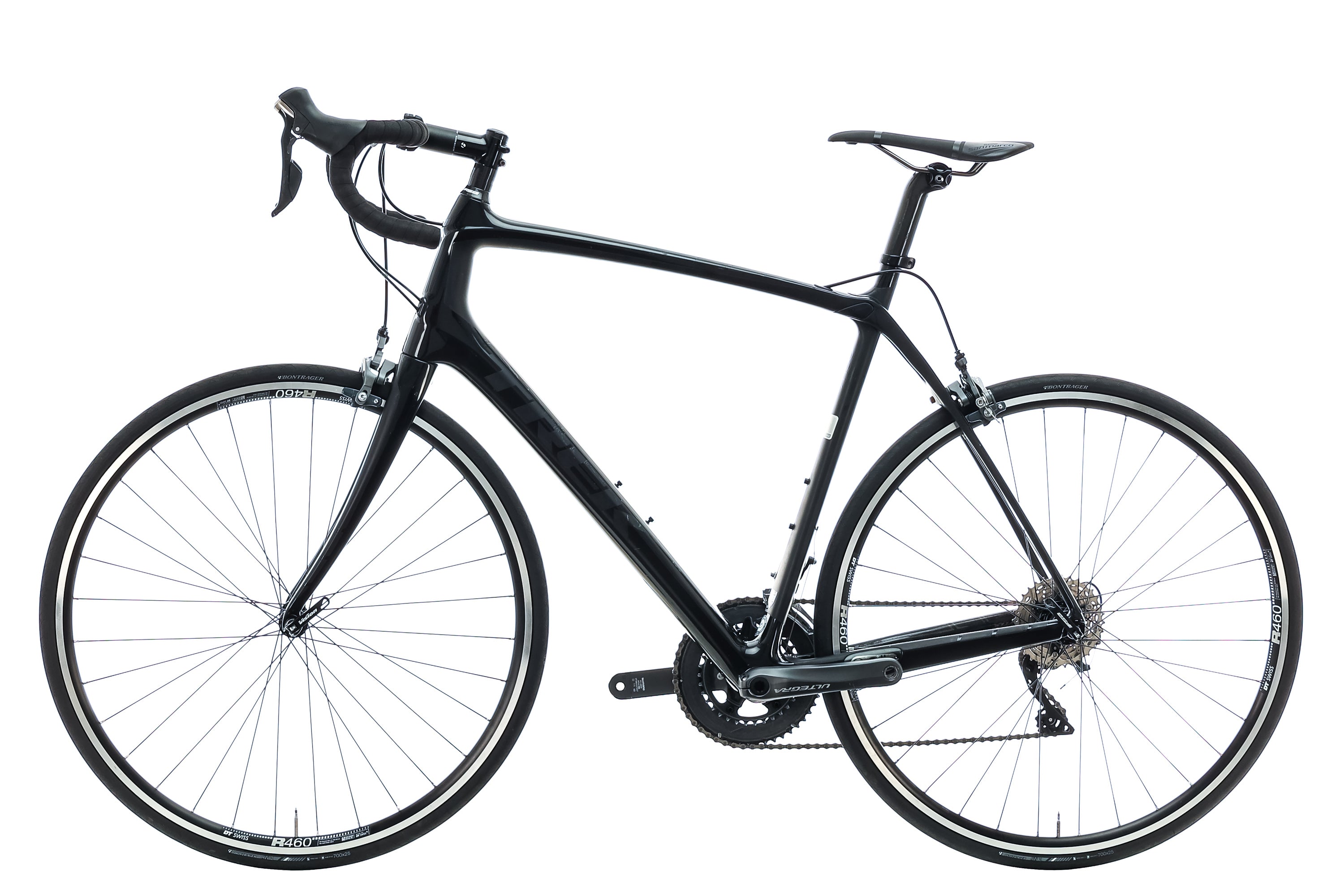

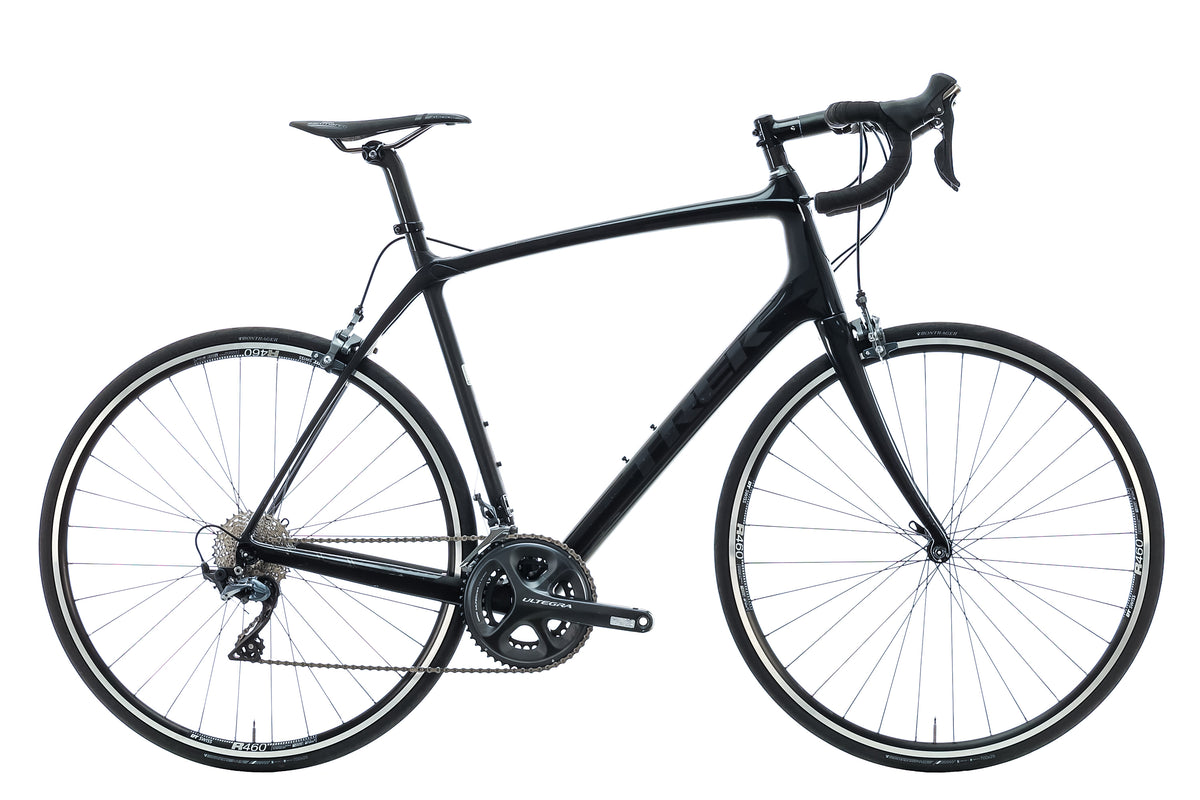

Trek Domane 5.2 Compact Road Bike - 2015, 60cm

Name: Trek Domane 5.2 Compact Road Bike - 2015, 60cm
Brand: Trek
SKU: BRD30208
Price: 2299.99 USD
Availability: InStock

Item #BRD30208

Recommended Rider Height: 6'3" - 6'5" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Relentless Supporter for Long Days

Product Details

Why We Love It

Floaty on the climbs and confident on the descents, the Domane will have you riding faster than ever before. Sitting right in the middle of the Trek’s lineup, the Domane excels at long days, and is less aggressive than the Madone and Émonda.

Features

New DT Swiss R460 aluminum wheelset.

Designed to be smooth, nimble, and agile for all day rides and races
Endurance geometry excels on climbs, descents, and sprints
Front and rear IsoSpeed smooth out the road below
Wide tire clearance for all-road capabilities
New models feature integrated downtube storage

Master Mechanic’s Notes

Specifications

Details

Year	2015
Brand	Trek
Model	Domane
Size	60cm
Frame Material	Carbon Fiber
Drivetrain	Shimano, 2x11 spd
Weight	17 lbs 6 oz

Build

Fork	Domane IsoSpeed, Carbon
Brakes	Shimano Ultegra 6800, Caliper - Side Pull
Shifters	Shimano Ultegra 6800, Mechanical
Front Derailleur	Shimano Ultegra 6800
Rear Derailleur	Shimano Ultegra R8000
Bottom Bracket Shell	Press fit

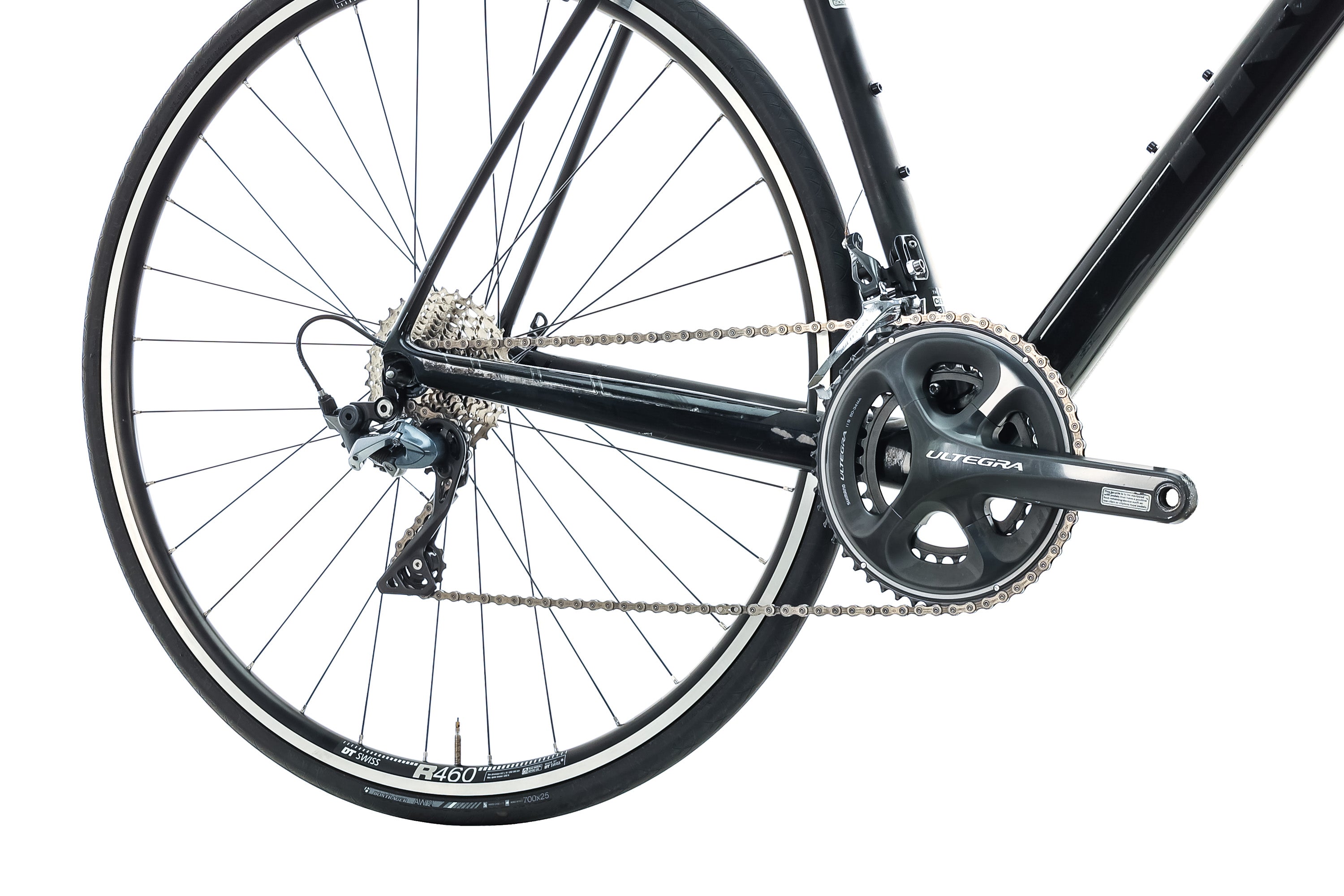

Crankset	Shimano Ultegra 6800, 50/34t, 175mm
Cassette	Shimano Ultegra CS-8000, 11-32t
Chain	Shimano
Handlebar	Bontrager Race Lite IsoZone VR-CF Alloy, 44cm
Headset	FSA Integrated
Stem	Bontrager Race X Lite Alloy, 31.8mm x 110mm, 7°
Seatpost	Bontrager Ride Tuned Carbon Seatmast Cap, Frame Specific
Saddle	Selle San Marco Aspide
Front Axle Spacing	9x100mm (Quick Release)
Rear Axle Spacing	10x130mm
Wheelset	DT Swiss R460 Aluminum Tubeless Ready , Bontrager Race
Front Tire	Bontrager AW2 Hard-Case-Lite, 700C x 25C
Rear Tire	Bontrager AW2 Hard-Case-Lite, 700C x 25C
Tire Type	Clincher
Tubeless Compatibility	Wheels are tubeless compatible but ships with tubes installed

Geometry

Recommended Rider Height	6'3" - 6'5" Sizing Guide
a. Effective Top Tube	579 mm
b. Seat Tube	567 mm
c. Seat Tube Angle	72.8°
d. Head Tube Angle	72.1°
e. Head Tube	220 mm
f. Stack	632 mm
g. Reach	383 mm
h. Standover Height	817 mm
i. Saddle Height Range	710 - 760 mm

Trek Domane 5.2 Compact Road Bike - 2015, 60cm

Item #BRD30208

Recommended Rider Height: 6'3" - 6'5" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Need Advice? Ask a Ride Guide

Our Ride Guide team is based in the U.S. and staffed with former bike mechanics, bike shop managers, and other certified bike nerds. Get expert advice on calibrating fit, deciding between models, or chat through any other questions.

Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
48cm	XS	4' 11"	5' 2"
50 cm	Small	5' 2"	5' 5"
52 cm	Small/M	5' 5"	5' 7"
54 cm	Medium	5' 7"	5' 10"
56 cm	Large	5' 10"	6' 1"
58 cm	Large/XL	6' 1"	6' 3"
60 cm	XL	6' 3"	6' 5"
